Features and Benefits
- Flexible reconfigurable common platform design
- Supports single, dual, and quad band per channel
- Datapaths and DSP blocks are fully bypassable
- On-chip PLL with multichip synchronization
- External RFCLK input option for off-chip PLL
- Support clock input frequencies up to 12 GHz
- Maximum ADC sample rate up to 6 GSPS
- Useable analog bandwidth to 8 GHz
- Maximum data rate up to 6 GSPS using JESD204C
- Noise density: −153 dBFS/Hz
- ADC AC performance at 6 GSPS, input at 2.7 GHz, −1 dBFS
- Full-scale sine wave input voltage: 1.475 V p-p
- Noise figure: 25.3 dB
- HD2: −70 dBFS
- HD3: −68 dBFS
- Worst other (excluding HD2 and HD3): −84 dBFS
- Versatile digital features
- Selectable decimation filters
- Configurable DDC
- 8 fine complex DDCs and 4 coarse complex DDCs
- 48-bit NCO per DDC
- Option to bypass fine and coarse DDC
- Programmable 192-tap PFIR filter for receive equalization
- Supports 4 different profile settings loaded via the GPIOx pins
- Programmable delay per datapath
- Receive AGC support
- Fast detect with low latency for fast AGC control
- Signal monitor for slow AGC control
- Dedicated AGC support pins
- Receive AGC support
- Auxiliary features
- Fast frequency hopping
- ADC clock driver with selectable divide ratios
- On-chip temperature monitoring unit
- Flexible GPIOx pins
- SERDES JESD204B/JESD204C interface, 8 lanes up to 24.75 Gbps
- 8 lanes JESD204B/JESD204C transmitter (JTx)
- JESD204B compliance with the maximum 15.5 Gbps
- JESD204C compliance with the maximum 24.75 Gbps
- Supports real or complex digital data (8 bit, 12 bit, 16 bit, or

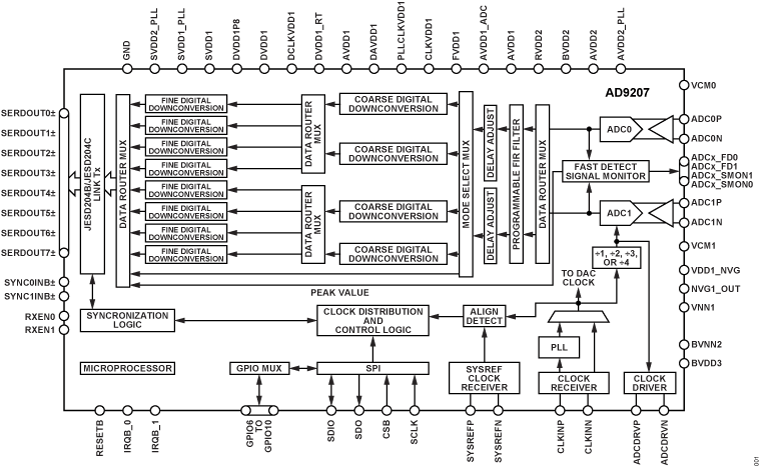

The AD9207 is a dual, 12-bit, 6 GSPS analog-to-digital converter (ADC). The ADC input features an on-chip wideband buffer with overload protection. This device is designed to support applications capable of direct sampling wideband signals up to 8 GHz. An onchip, low phase noise, phase-locked loop (PLL) clock synthesizer is available to generate the ADC sampling clock, which simplifies the printed circuit board (PCB) distribution of a high frequency clock signal. A clock output buffer is available to transmit the ADC sampling clock to other devices.
The dual ADC cores have code error rates (CER) better than 2 × 10−15. Low latency fast detection and signal monitoring are available for automatic gain control (AGC) purposes. A flexible 192-tap programmable finite impulse response filter (PFIR) is available for digital filtering and/or equalization. Programmable integer and fractional delay blocks support compensation for analog delay mismatches.
The digital signal processing (DSP) block consists of two coarse digital downconverters (DDCs) and four fine DDCs per ADC pair. Each ADC can operate with one or two main DDC stages in support of multiband applications. The four additional fine DDC stages are available to support up to four bands per ADC. The 48-bit numerically controlled oscillators (NCOs) associated with each DDC support fast frequency hopping (FFH) while maintaining synchronization with up to 16 unique frequency assignments selected via the general-purpose input and output (GPIOx) pins or the serial port interface (SPI).
The AD9207 supports one or two JTx links that can be configured for either JESD204B or JESD204C subclass operation, which allows different datapath configurations for each ADC. Multidevice synchronization is supported through the SYSREF± input pins.

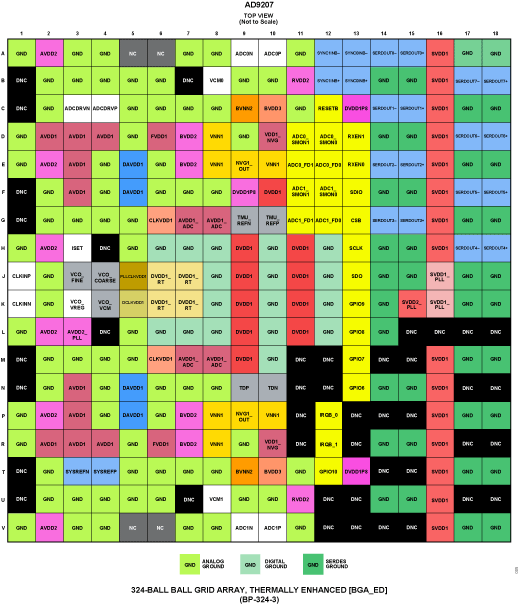

See the Outline Dimensions section and the Ordering Guide section of the data sheet for more information.
- Wireless communications infrastructure
- Microwave point to point, E-band, and 5G mmWave
- Broadband communications systems, satellite communications
- DOCSIS 3.1 and 4.0 CMTS
- Electronic warfare
- Electronic test and measurement systems
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (2)
The AD9082-FMCA-EBZ evaluation board includes all of the support circuitry required to operate the AD9082 in various modes and configurations. The application software used to interface with the device is also described. The AD9082-FMCA-EBZ evaluation board connects to the Analog Devices, Inc., ADS9-V2EBZ for evaluation with the ACE software. The boards can also interface to commercially available field- programmable gate array (FPGA) development boards from Xilinx® or Intel®. Information on how to use these platforms to evaluate the AD9081 or AD9082 is available in the Using the AD-FMC-SDCARD section.
The ACE software allows the user to set up the AD9081 or AD9082 in various modes, and capture analog-to-digital converter (ADC) data for analysis. The PGDownloaderLite software generates and transmits vectors to the DACs, which can then be sent to a spectrum analyzer for further analysis. For more details, see the AD9081 and AD9082 data sheets, which must be consulted in conjunction with this user guide when using the evaluation boards.
When connected to a specified Analog Devices high speed converter evaluation board, the ADS9-V2EBZ works as a data capture/transmit board. Designed to support the highest speed JESD204B/C data converters, the FPGA on the ADS9-V2EBZ acts as the data receiver for high speed ADC's, and as the transmitter for high speed DAC's.
Features & Benefits
Xilinx Kintex Ultrascale+ XCKU15P-2FFVE1517E FPGA.
- One (1) FMC+ connector.
- Twenty (20) 28Gbps transceivers supported by one (1) FMC+ connector.
- HMC DRAM
- Simple USB 3.0 port interface.
- Two micro SD cards are included, "TRX" -- for ADRV9026 evaluation boards and "HSX" -- for MxFE™ evaluation boards.
Tools & Simulations
Software and Simulation
The JESD204B/C Mode Selector Tool is a simple command line-based Windows executable that can be used to narrow down the number of JESD204x modes to only include those modes that support the user’s specific application use case. The tool guides the user through a use case description flow chart and gives the user a small list of applicable transmit and/or receive modes to choose from. This tool is applicable to the AD9081, AD9082, AD9177, AD9207, AD9209, AD9986, and AD9988.
This command line executable tool generates a Verilog module which implements the JESD204 receive transport layer. The user specifies in a configuration file one or more modes to be supported by the transport layer module. These modes are defined as a set of JESD204 parameter values: L, M, F, S, N', and CF. The transport layer converts JESD204 lane data output from a JESD204 link layer IP to a data bus with a fixed width, containing interleaved virtual converter samples. Both JESD204B and JESD204C link layers are supported.
The JESD204x Frame Mapping Table Generator tool consists of two Windows executables that will allow the user to input any valid combination of JESD204x parameters (L, M, F, S, NP) in order to output a .csv file that illustrates the frame mapping of the JESD204x mode in table format. There is an executable that allows the user to input a single JESD204x mode and another, that allows the user to input the parameters for multiple JESD204x modes in a specified .csv format in order to output a .csv file that illustrates the frame mapping of each of the JESD204x modes that were input into separate tables.
AD9207 Companion Parts
Recommended Power Products
- For a low noise linear regulators: ADP1765, ADP7158, ADM7172, ADM7150.
DC-to-DC switching regulators:
Recommended Clock Distribution Device
