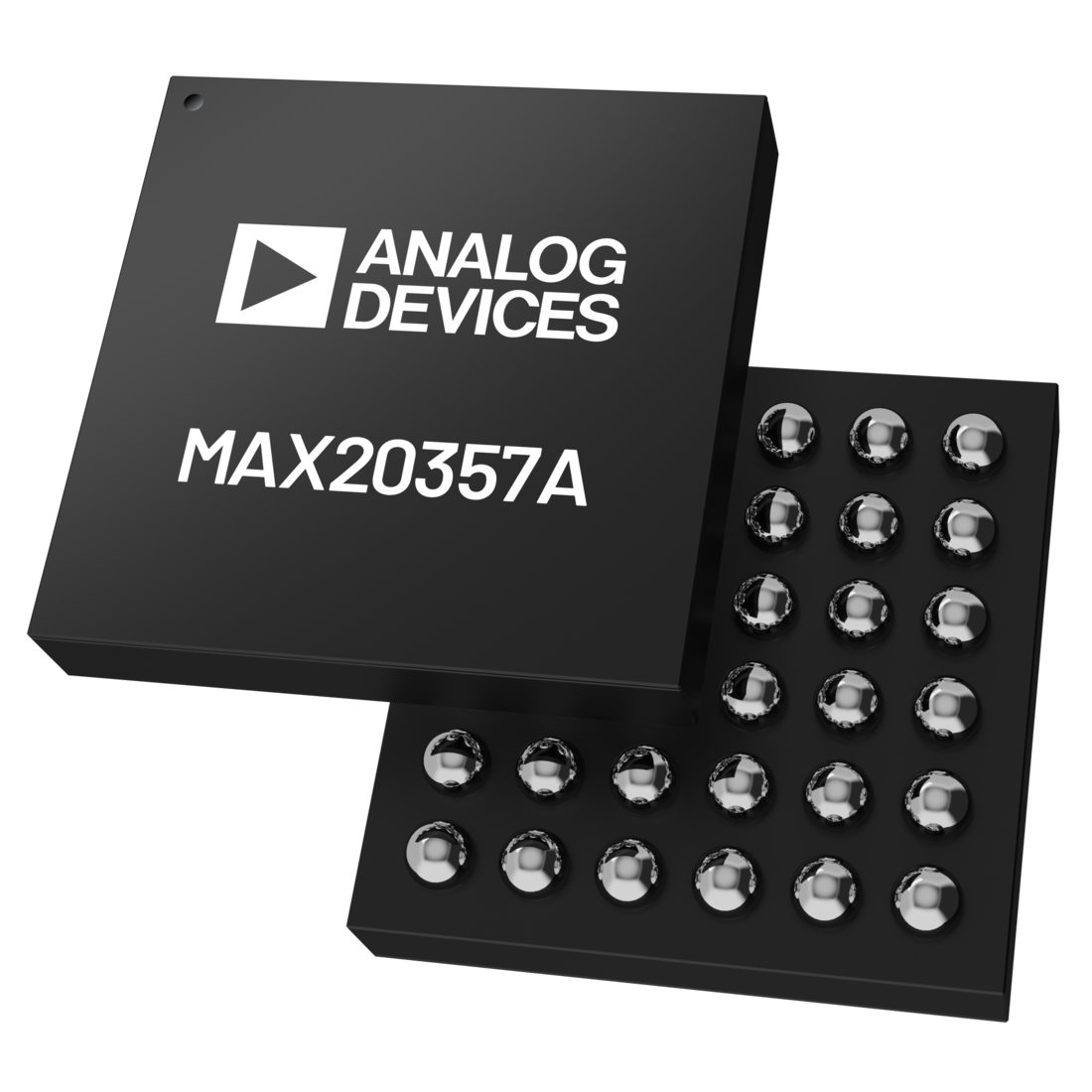

MAX20357A
推荐用于新设计Power Line Communication with ModelGauge Fuel Gauge and Charger
- 产品模型
- 1
概述
- Power Line Communication (PLC) Interface
- 100kpbs System Throughput
- 167.7kpbs Bit Rate
- 200mA Dual-Slave and 400mA Mono-Slave Output Charging Current
- Automatic Earbud Insertion/Removal Detection
- 4Mbaud, Half-Duplex, Data-Only UART Mode
- PLC Controllable GPIOs, Reset and Shipping Mode
- High-Efficiency Autonomous Charging System
- 90% End-to-End Charging Efficiency from Master to Slave Battery
- 400mA Integrated Linear Charger
- Optimized Charging Efficiency by Automatic DVS Negotiation between Master and Slave
- Robust PLC Output Protection Features
- Highly Flexible Moisture Detection Block
- Input Current Limiting
- 8kV Contact ESD Protection
- Small Solution Size
- Low External Component Count
- 2.69mm x 2.69mm, 36-Bump, 0.4mm Pitch Wafer-Level Package (WLP)
The MAX20357A is a power line communication (PLC) slave with ModelGauge™ m5 EZ fuel gauge and charger. With the MAX20355A, the MAX20357A provides a complete system solution for charging and data transfer between a charging case and a battery-powered device over a single contact.
The PLC interface is capable of 100kpbs throughput while simultaneously providing 200mA of charging/system current per channel. A 4Mbaud half-duplex data-only UART mode provides an easy and fast method for firmware updates, debugging interface, and factory modes.
The charger on slave device MAX20357A controls the output of the 3.3W buck-boost converter in the MAX20355A with dynamic voltage scaling (DVS).
The MAX20357A integrates an ultra-low power fuel gauge which implements the ModelGauge m5 algorithm. The IC monitors a single-cell battery pack and supports internal current sensing.
Additional features include comprehensive master device insertion and removal notifications, moisture detection, overcurrent protection, and 8kV contact-rated ESD protection on the PLC output.
APPLICATIONS
- True Wireless Stereo Headphones
- Augmented Reality Glasses
- Wearable Devices
参考资料
数据手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX20357AEWX+T | WLCSP |
| 产品型号 | 产品生命周期 | PCN |
|---|---|---|
|
2月 21, 2025 - 2452N ASSEMBLY |
||
| MAX20357AEWX+T | 量产 | |
这是最新版本的数据手册
