MAX20355A
推荐用于新设计Power Line Communication with ModelGauge Fuel Gauge and Buck-Boost Converter
- 产品模型
- 1
概述
- Power Line Communication (PLC) Interface
- 100kpbs System Throughput
- 166.7kbps Bit Rate
- 200mA per Output Charging Current
- Automatic Earbud Insertion/Removal Detection
- 4Mbaud, Half-Duplex, Data-Only UART Mode
- PLC Controllable GPIOs, Reset and Shipping Mode
- High-Efficiency Autonomous Charging System
- 90% End-to-End Charging Efficiency from Master to Slave Battery
- 200mA per Output Charging/System Current
- Integrated 3.3W Buck-Boost
- Automatic DVS for each Earbud to Optimize Charging Efficiency
- Robust PLC Output Protection Features
- Highly Flexible Moisture Detection Block
- Programmable Overcurrent Protection
- 8kV Contact ESD Protection
- Small Solution Size
- Small Single 1608 Inductor

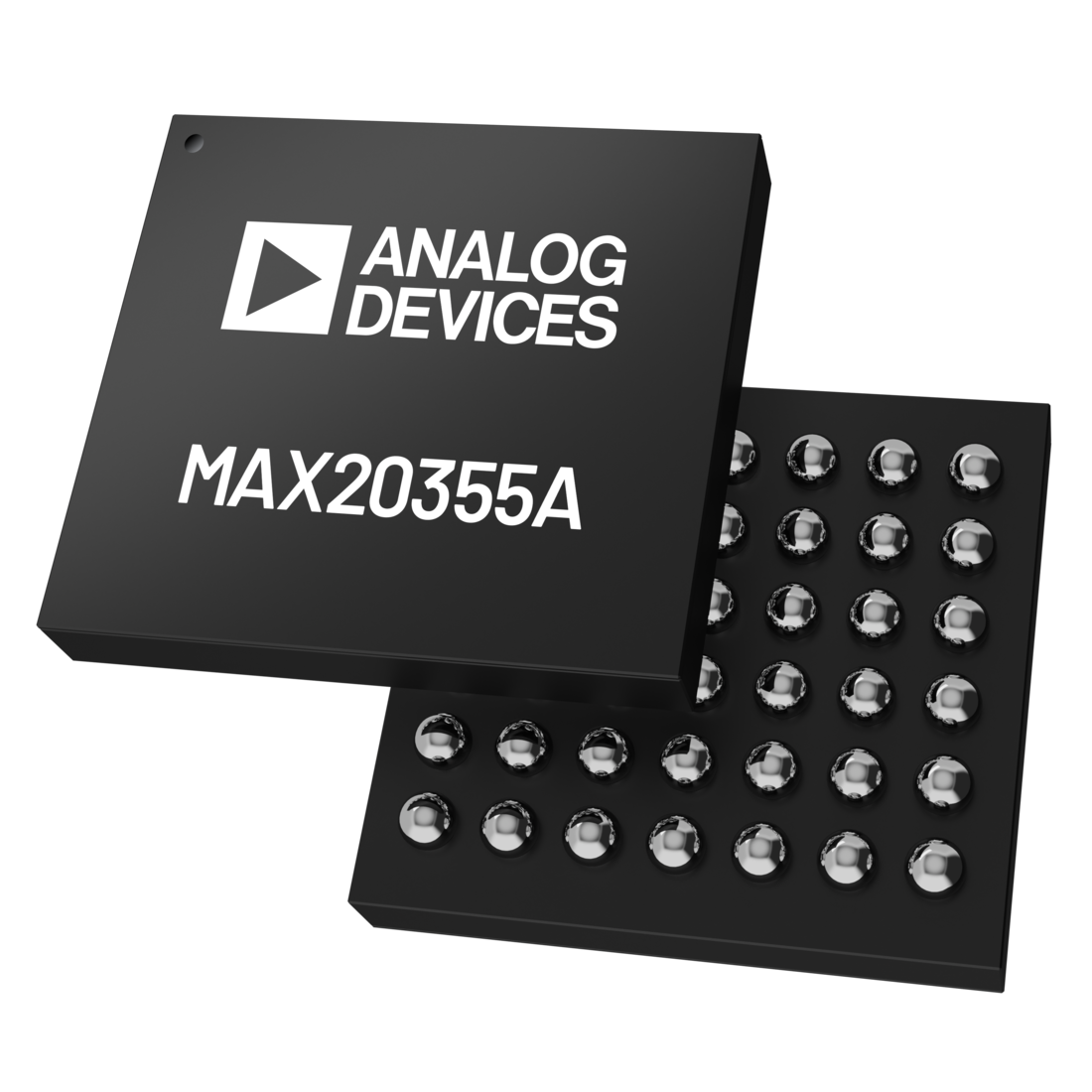

- 3.08mm x 2.83mm, 42-Bump Wafer-Level Package (WLP)

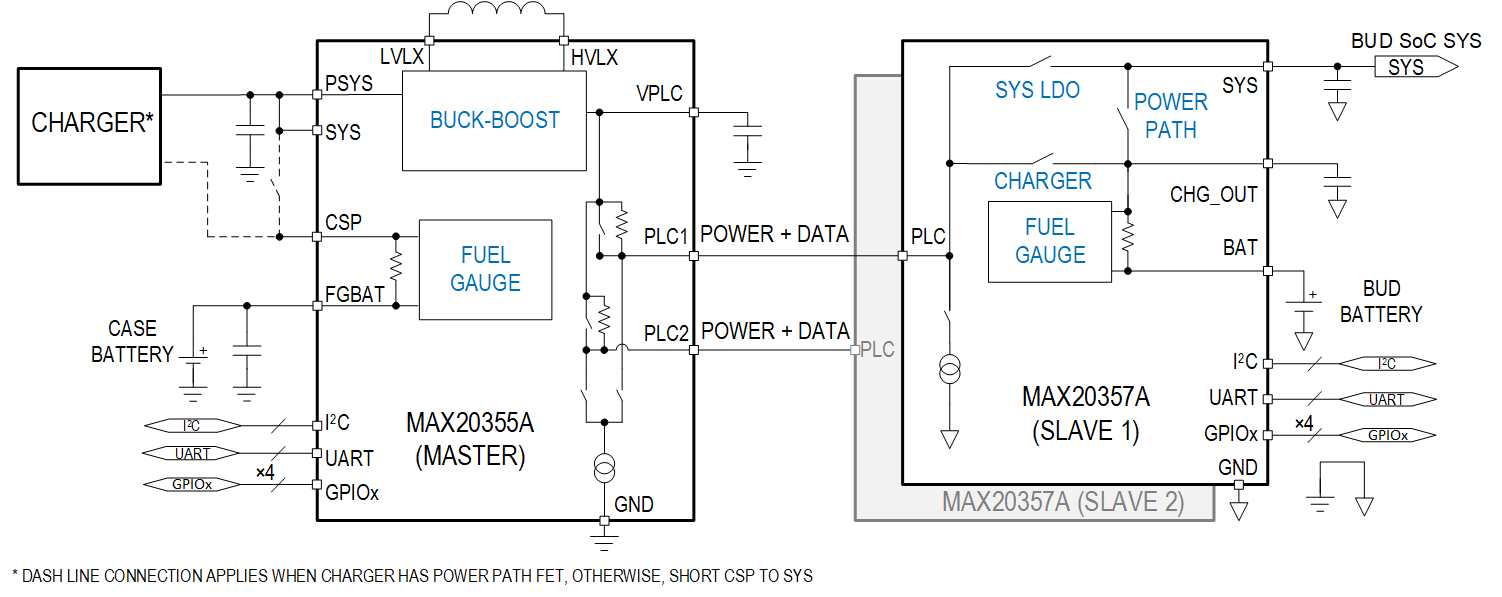

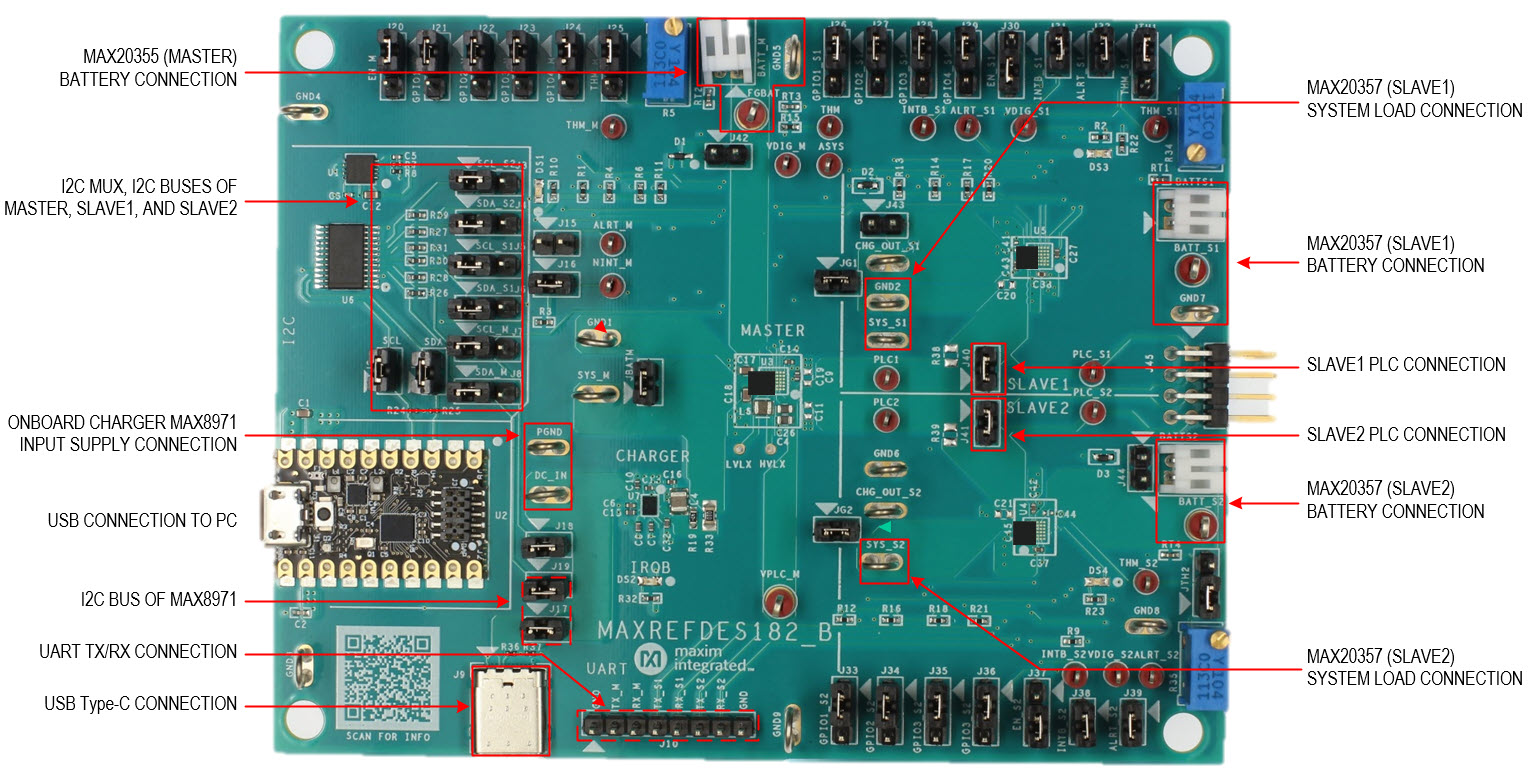

The MAX20355A is a power line communication (PLC) controller with a ModelGauge™ m5 EZ fuel gauge and buck-boost converter. With the MAX20357A, the MAX20355A provides a complete system solution for charging and data transfer between a charging case and a battery-powered device over a single contact.
The PLC interface is capable of 100kpbs throughput while simultaneously providing 400mA of total charging/system current. A 4Mbaud half-duplex dataonly UART mode provides an easy and fast method for firmware updates, debugging interface, and factory modes.
The MAX20355A controller device utilizes a 3.3W buckboost converter with dynamic voltage scaling (DVS) to automatically manage the charging voltage based on the slave device MAX20357A control signal.
Additional features include comprehensive slave device insertion and removal notifications, moisture detection, overcurrent protection, and 8kV contact-rated ESD protection on the PLC outputs.
- TWS Headphones
- Augmented Reality Glasses
- Wearable Devices
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX20355AEWO+T | WLCSP |
| 产品型号 | 产品生命周期 | PCN |
|---|---|---|
|
2月 21, 2025 - 2452N ASSEMBLY |
||
| MAX20355AEWO+T | 量产 | |
这是最新版本的数据手册
