概览

优势和特点

  • High Voltage Dual SPST, Current Sharing Allowed
  • 5% Accurate Analog Current Monitor Outputs
  • Adjustable Circuit Breaker Thresholds to 1.2A
  • Filtered (50μs) Primary OC Threshold
  • Fast (2μs) Secondary OC Threshold
  • 75mΩ Integrated Switches
  • Automatic Inrush Control
  • Short-Circuit Protection
  • Precision Enable Inputs
  • Open-Drain, Ready Status Outputs
  • 16-Lead 3mm × 3mm LQFN and 12-Lead (Skipped Lead) 3mm × 4mm LQFN

产品详情

The LTC4249 dual electronic circuit breaker (ECB) provides independent overcurrent protection to a pair of loads. Each channel has a precision enable input, current monitor output and ready status output. A single resistor configures the ECB threshold. If either channel detects an overcurrent condition, the corresponding breaker disconnects the input from the load.

After a circuit breaker event, the open-drain RDY status output pulls low and the ECB latches off. Toggling the enable input turns the ECB back on after a 1 second cooloff period. The cool-off timer, overtemperature sensor, short-circuit detector and inrush controller prevent operation outside the safe operating area of the circuit breakers.

Precision enable inputs, ready outputs and analog current monitor outputs permit voltage sequencing and closed loop bias current control applications. ECB channels may be paralleled as needed. Load isolation and reverse current detection applications are also possible.

APPLICATIONS

  • 5G mMIMO PA Array Protection
  • Industrial Safety
  • Condition Monitoring
  • Relay Replacement
  • Load Switching

产品生命周期 icon-recommended 推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

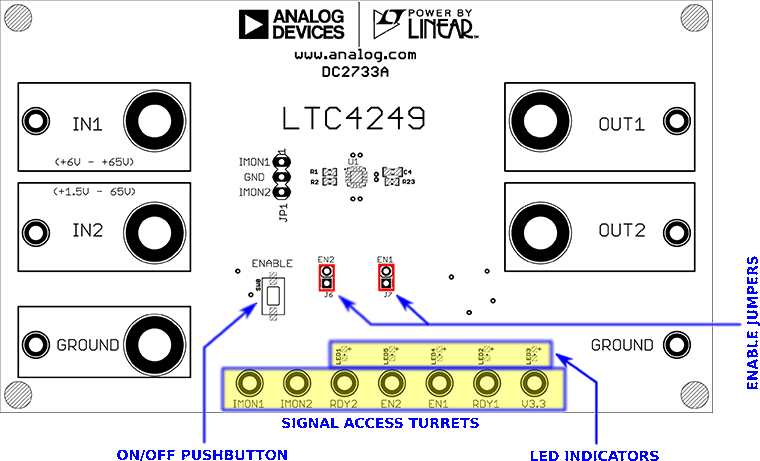

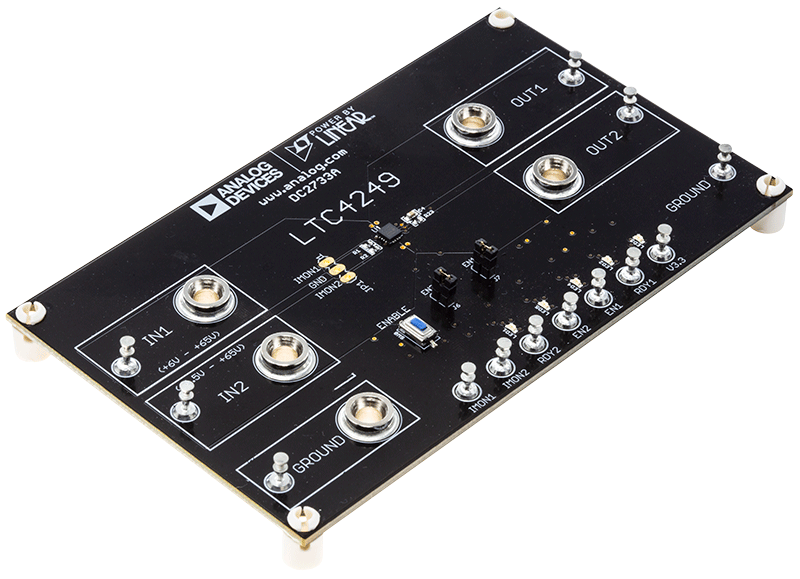

评估套件 (1)
