- 15Msps 吞吐速率
- 在 fIN = 1MHz 时的 SNR 典型值为 95.7dB
- 在 fIN = 1MHz 时的 SFDR 典型值为 102dB
- 输入频率高达 7.5MHz 的奈奎斯特采样
- 保证 18 位，无漏失码
- ±3LSB INL (最大值)
- 8.192VP-P 差分输入
- 5V 和 2.5V 电源
- 内部 20ppm/°C (最大值) 基准
- 串行 LVDS 接口
- 125mW 功率耗散
- 32 引脚 (5mm x 5mm) QFN 封装
LTC®2387-18 是一款非常适合众多应用的低噪声、高速、18 位、15Msps 逐次逼近型寄存器 (SAR) ADC。LTC2387-18 兼具卓越的线性和动态范围，因而成为了高速成像和仪表应用的理想选择。无延迟操作提供了一种面向高速控制环路应用的独特解决方案。高输入频率下的非常低失真可实现需要宽动态范围和大信号带宽的通信应用。
为了在尽量减少数据线数目的同时支持高速运作，LTC2387-18 具有一个串行 LVDS 数字接口。该 LVDS 接口拥有单线道和双线道输出模式，从而允许用户针对每种应用来优化接口数据速率。
- ATE (自动测试设备)

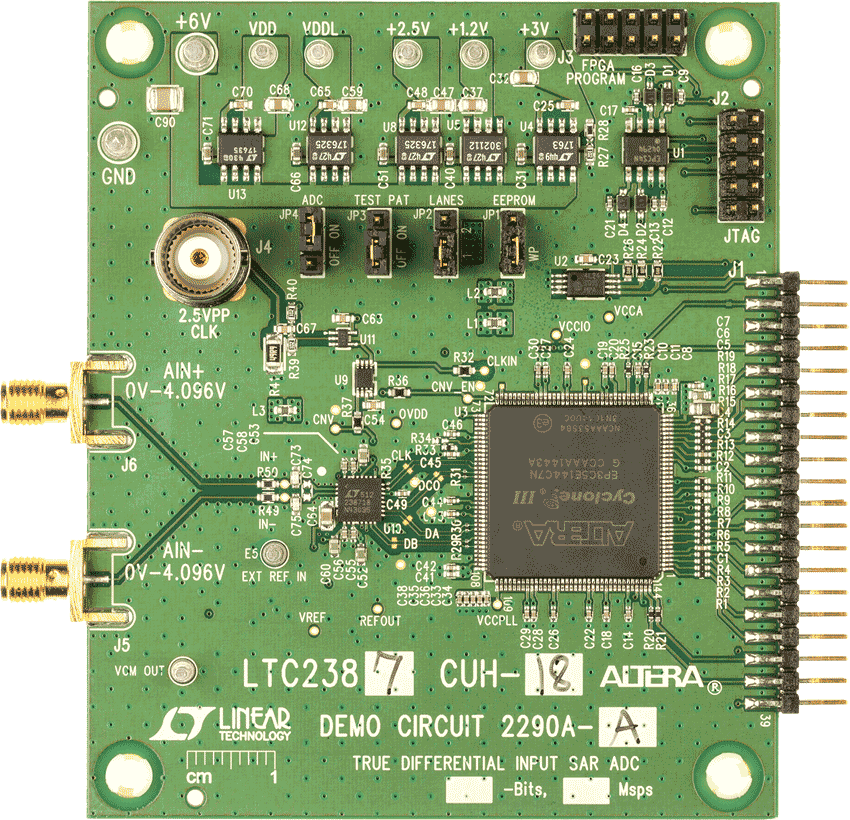

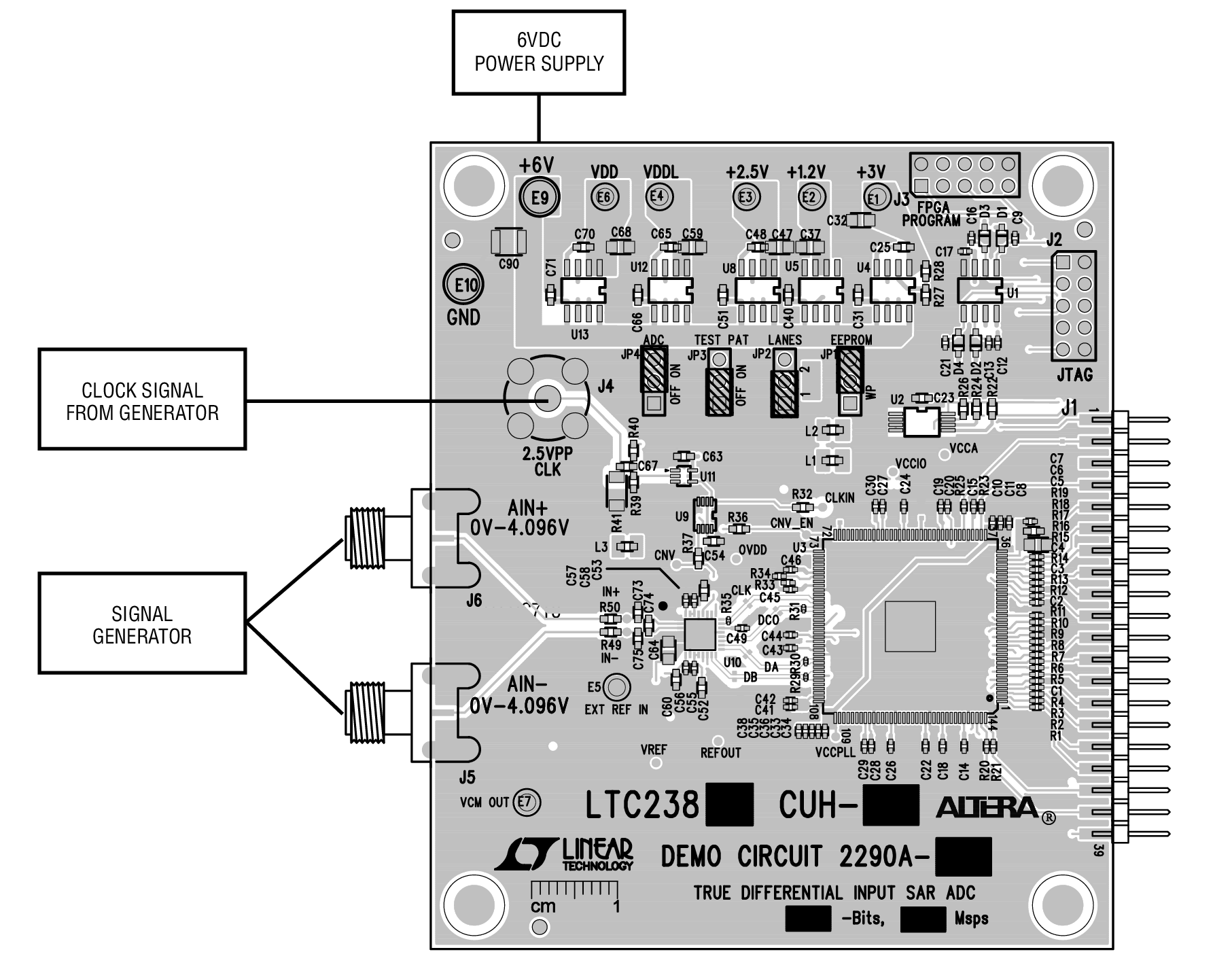

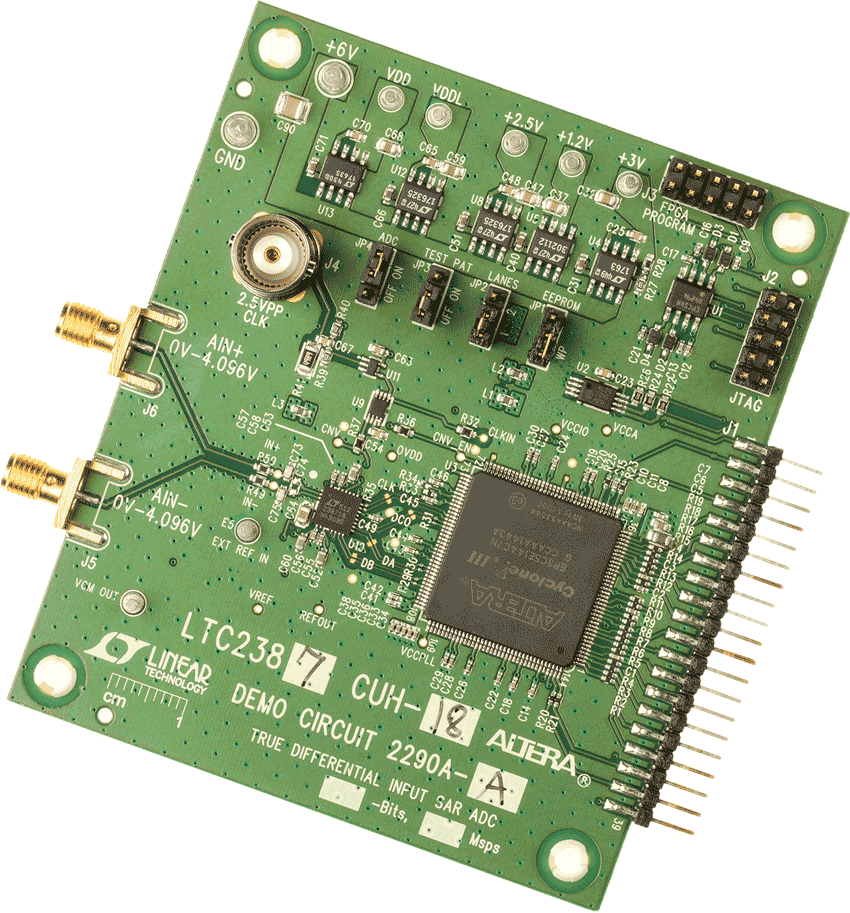

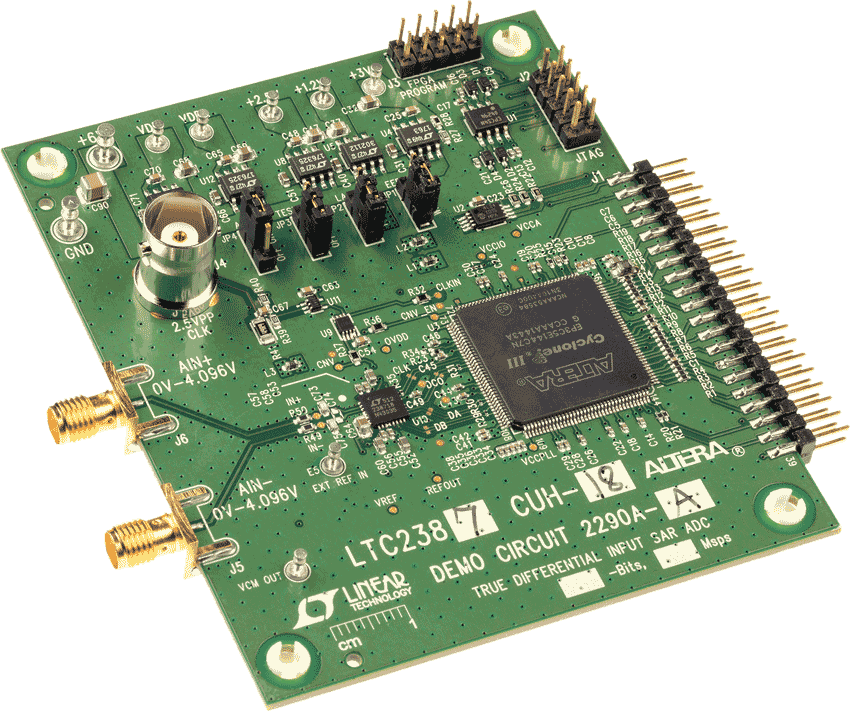

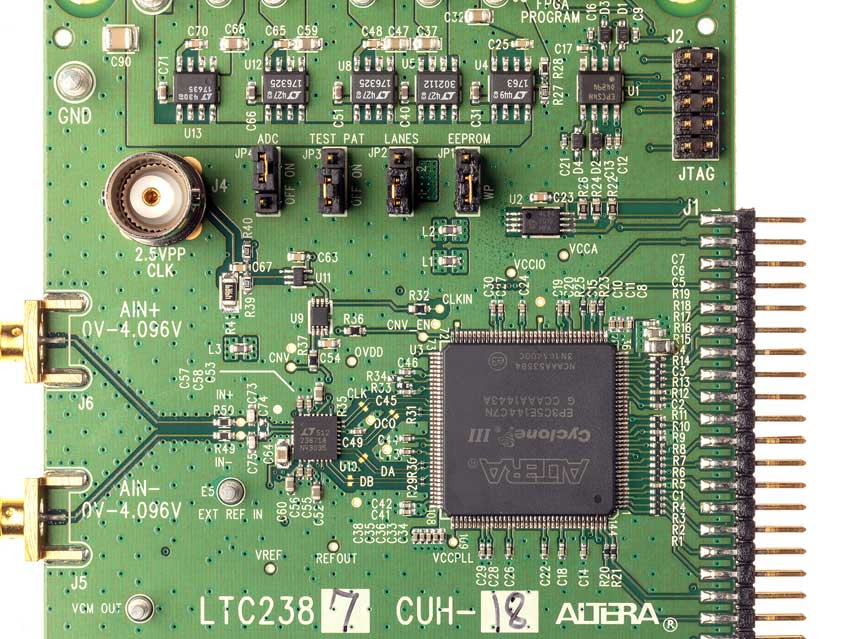

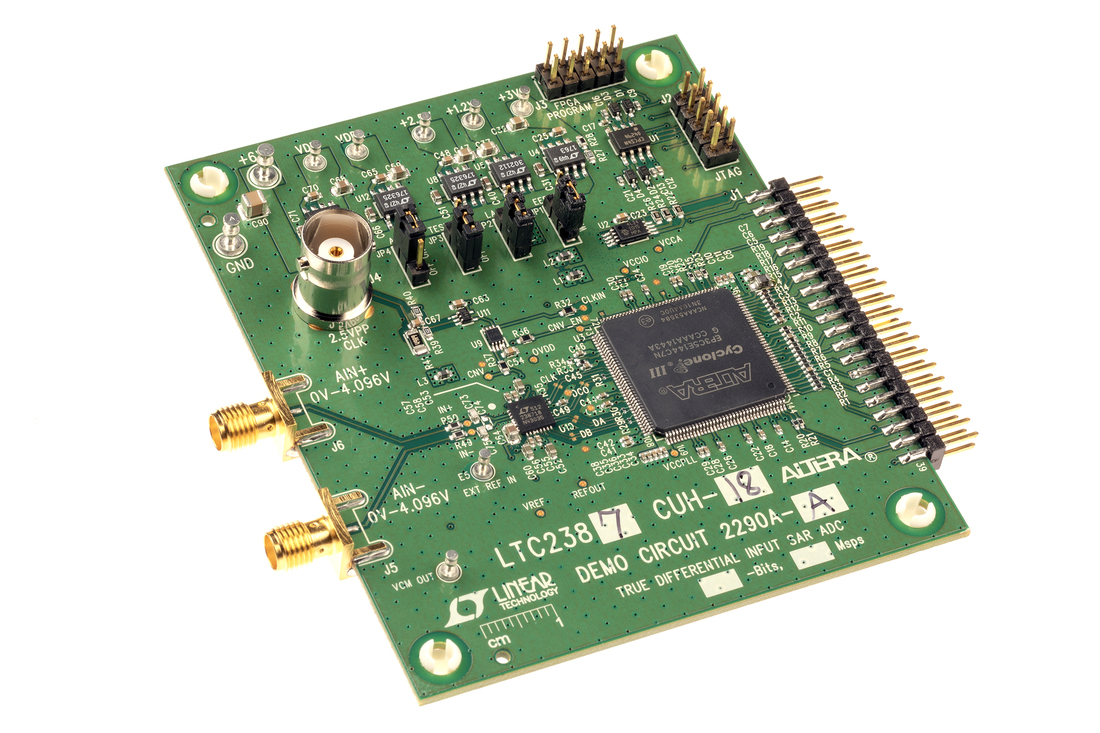

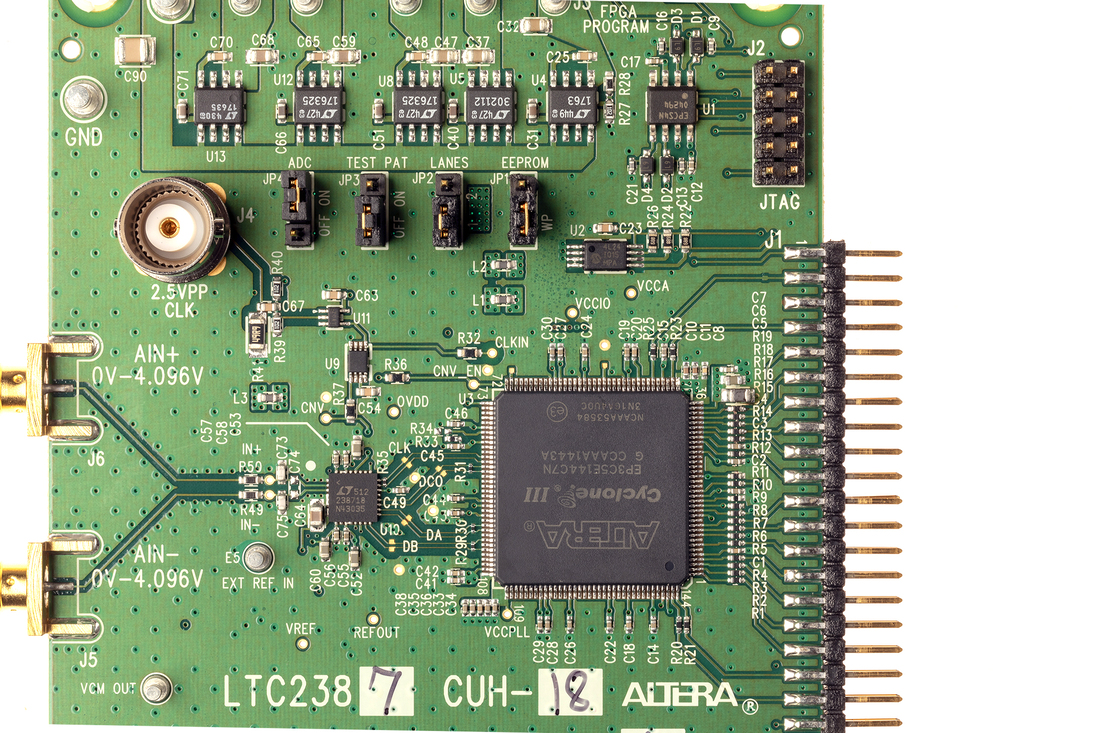

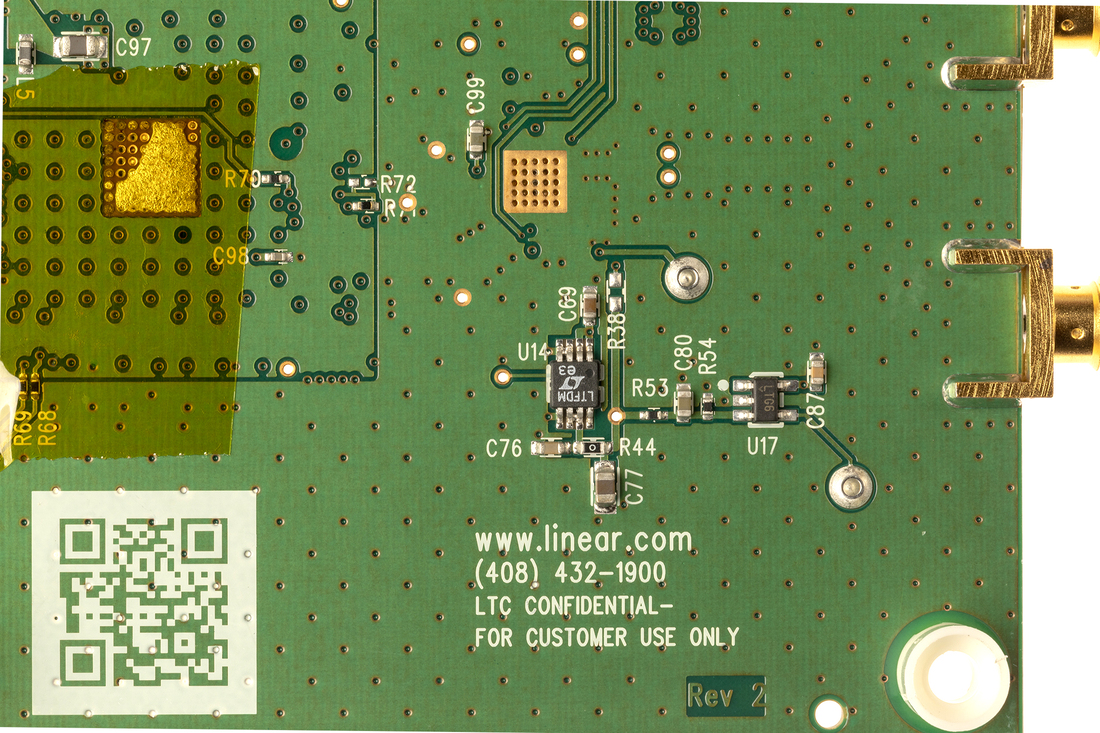

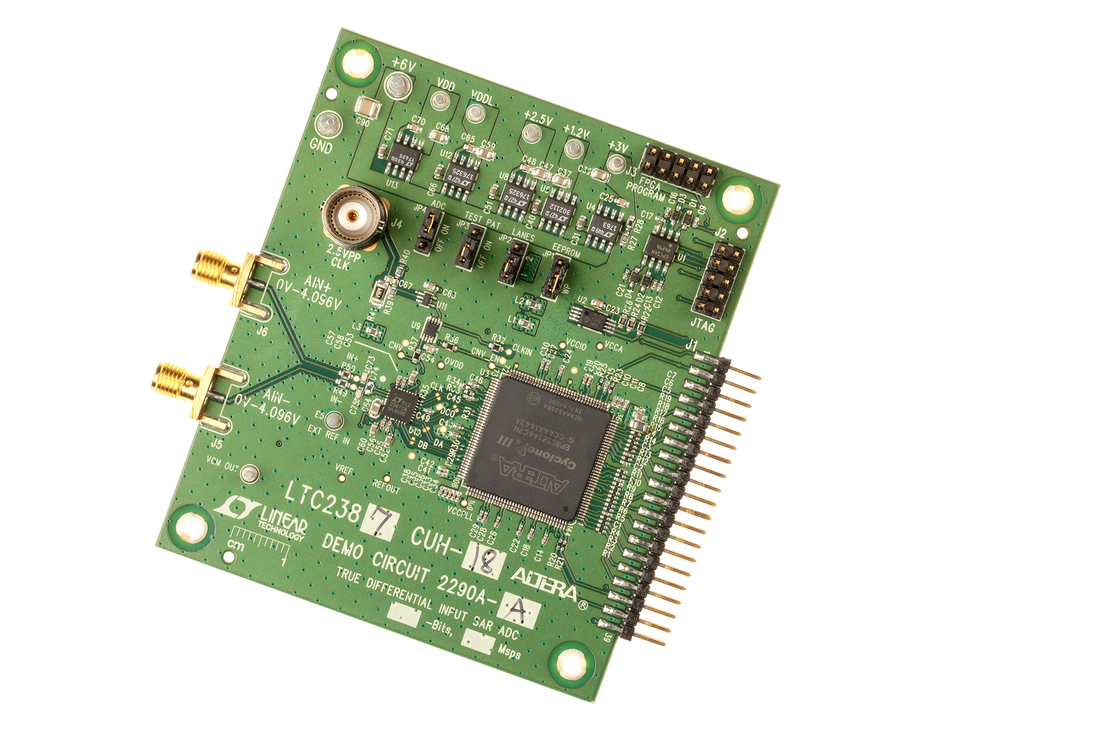

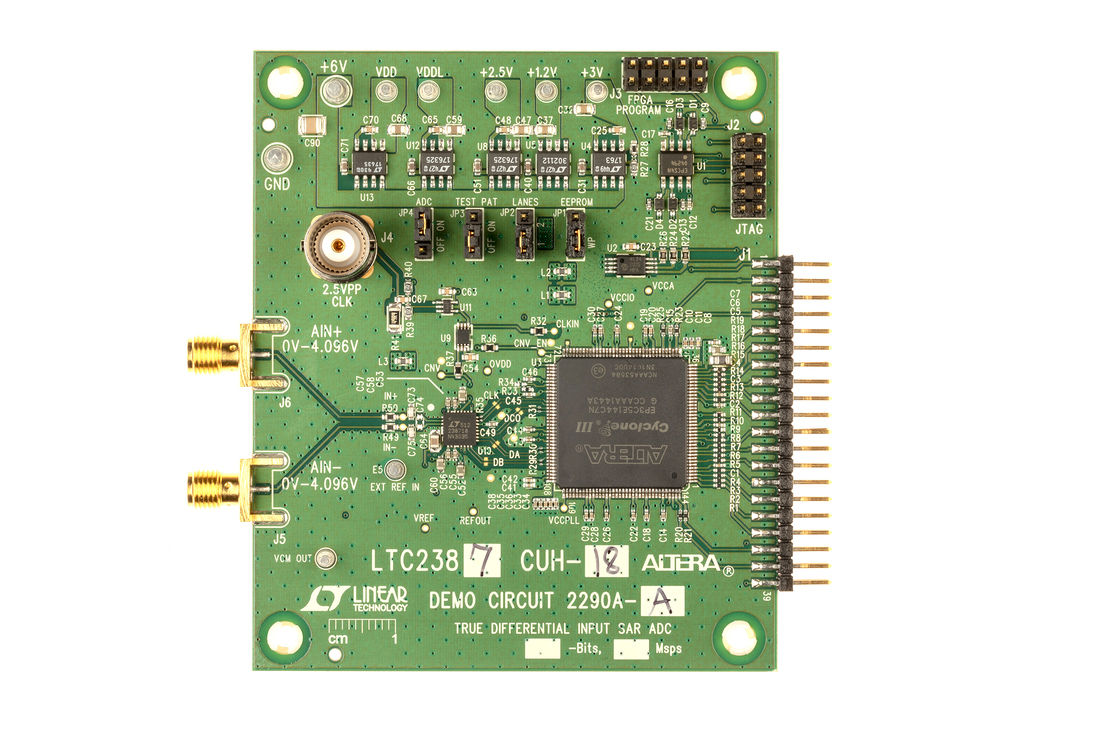

Demonstration circuit 2290A features the LTC2387 family. With up to 15Msps, these differential input, single channel, 18-/16-Bit, serial, high speed successive approximation register (SAR) ADCs are available in a 32-Pin QFN package. The LTC2387 family has an internal 20ppm/°C reference and a serial LVDS interface. The demo manual refers to the LTC2387 but applies to all members of the family, the only difference being the sample rate and the number of bits. The DC2290A demonstrates the AC performance of the LTC2387 in conjunction with the DC718 data collection board. Differential amplifier demo boards are available separately that provide amplification of low level differential signals if required. Alternatively, by connecting the DC2290A into a customer application the performance of the LTC2387 can be evaluated directly in that circuit.

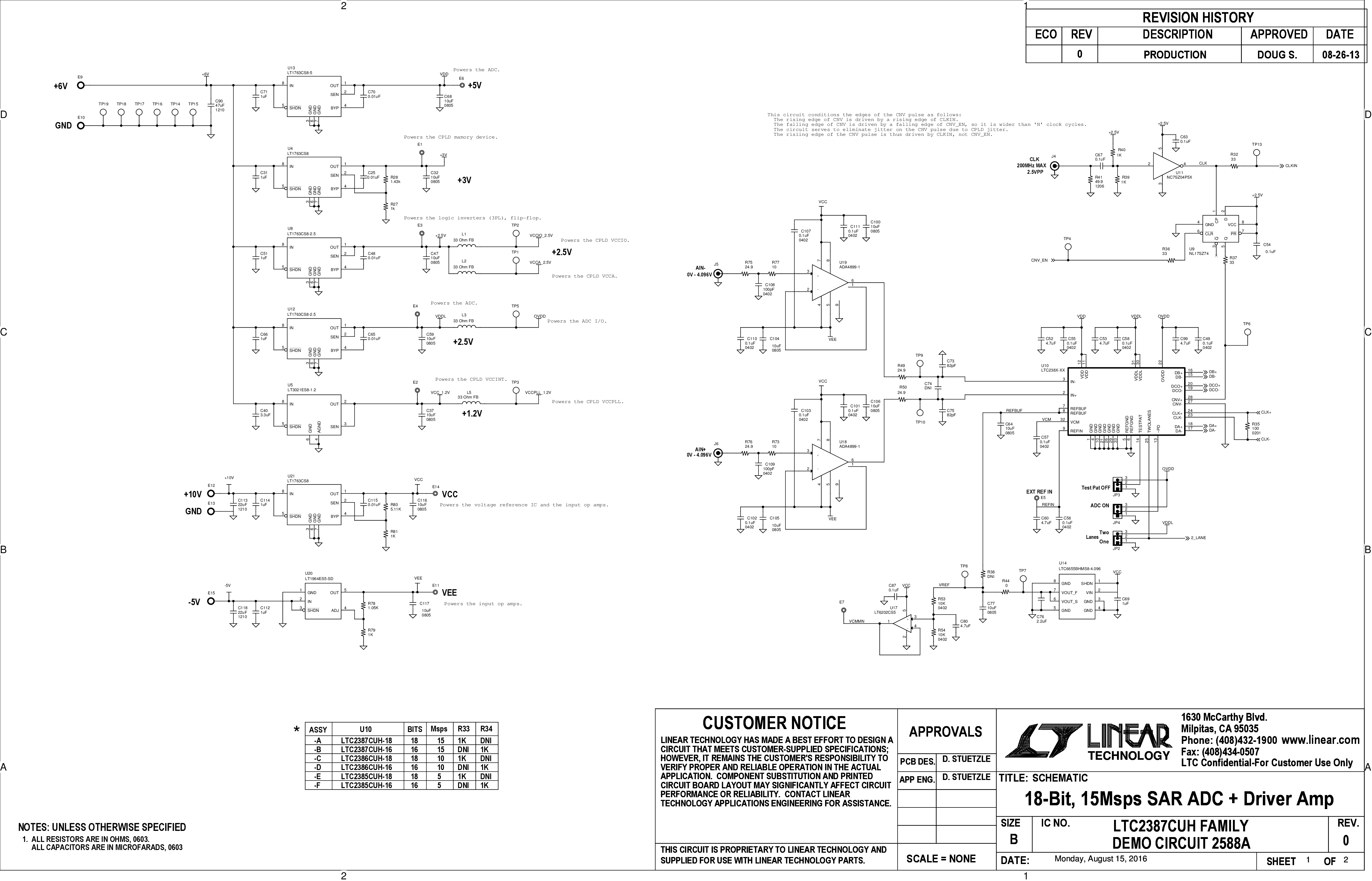

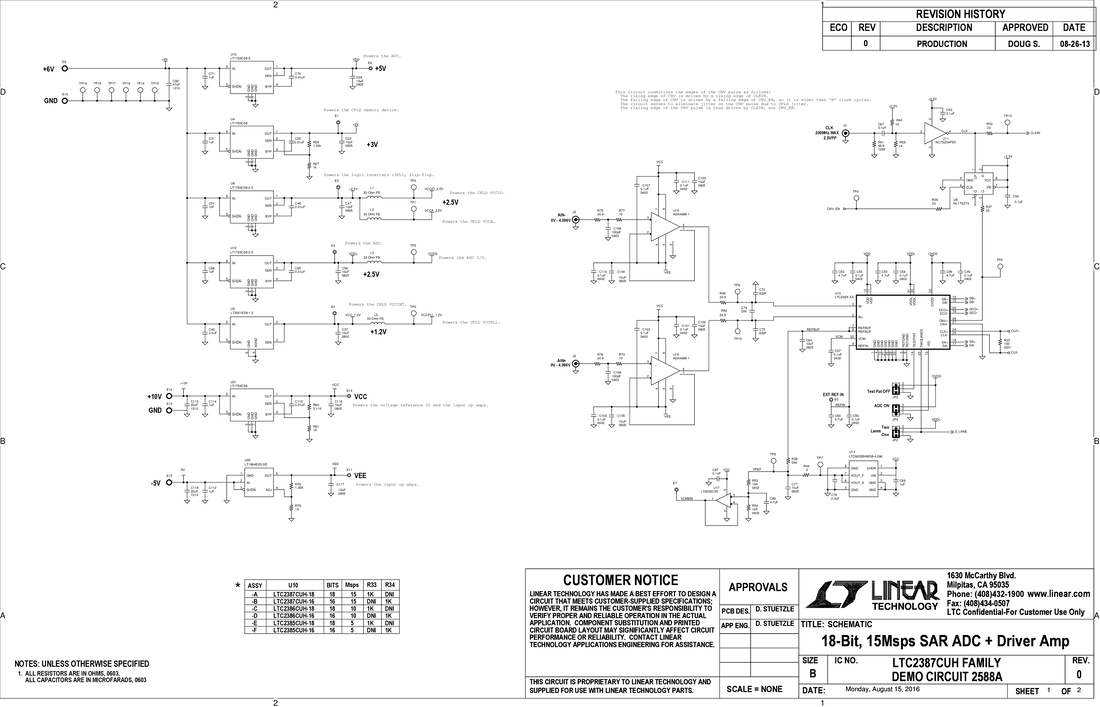

Demonstration circuit 2588A features the LTC2387 family driven by a pair of ADA4899-1 driver amplifiers. With up to 15Msps, these differential input, single channel, 18-/16- Bit, serial, high speed successive approximation register (SAR) ADCs are available in a 32-Pin QFN package. The LTC2387 family has an internal 20ppm/°C reference and a serial LVDS interface. The demo manual refers to the LTC2387 but applies to all members of the family, the only difference being the sample rate and the number of bits.
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Precision ADC Driver Tool - BETA
The Precision ADC Driver Tool is a web application that simulates the performance of precision ADC and driver combinations. Potential issues with driver selection, kickback settling, and distortion are flagged, and design tradeoffs can be quickly evaluated. Simulations and calculations include system noise, distortion, and settling of the ADC input
