ADRF5532

2.3 GHz to 2.7 GHz, Receiver Front End

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
特性
  • Integrated RF front end
    • LNA and high-power silicon SPDT switch
    • On-chip bias and matching
    • Single-supply operation
  • Gain: 35.5 dB typical at 2.6 GHz
  • Gain flatness: 0.2 dB at 25°C across 400 MHz bandwidth
  • Low noise figure: 1.2 dB typical at 2.6 GHz
  • Low insertion loss: 0.7 dB typical at 2.6 GHz
  • High-power handling at TCASE = 105°C
    • Full lifetime
      • LTE average power (8 dB PAR): 36.5 dBm
    • Single event (<10 sec operation)
      • LTE average power (8 dB PAR): 39 dBm
  • High Input IP3: −4 dBm
  • Low-supply current
    • Receive operation: 118 mA typical at 5 V
    • Transmit operation: 15 mA typical at 5 V
  • Positive logic control
  • 5 mm × 3 mm, 24-lead LFCSP package
  • Pin compatible with the ADRF5534, 3.1 GHz to 4.2 GHz receiver front end
更多细节
show more Icon

The ADRF5532 is an integrated RF, front-end multichip module designed for time division duplex (TDD) applications. The device operates from 2.3 GHz to 2.7 GHz. The ADRF5532 is configured with a low-noise amplifier (LNA) and a high-power, silicon, single pole double throw (SPDT) switch.

In the receive operation at 2.6 GHz, the LNA offers a low noise figure (NF) of 1.2 dB and a high gain of 35.5 dB with a third order input intercept point (IIP3) of −4 dBm.

In the transmit operation, the switch provides a low insertion loss of 0.7 dB and handles a long-term evolution (LTE) average power of 36.5 dBm for a full lifetime operation (8 dB peak to average ratio (PAR)) and 39 dBm for a single event (<10 sec) LNA protection operation.

The device is featured in an RoHS compliant, compact, 5 mm × 3 mm, 24-lead LFCSP package.

APPLICATIONS

  • Wireless infrastructure
  • TDD massive multiple input and multiple output (MIMO) and active antenna systems
  • TDD-based communication systems

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
ADRF5532BCPZN
  • HTML
  • HTML
ADRF5532BCPZN-R7
  • HTML
  • HTML
ADRF5532BCPZN-RL
  • HTML
  • HTML
软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 1

reference details image

EVAL-ADRF5532

Evaluating the ADRF5532, 2.3 GHz to 2.7 GHz, Receiver Front End

zoom

EVAL-ADRF5532

Evaluating the ADRF5532, 2.3 GHz to 2.7 GHz, Receiver Front End

Evaluating the ADRF5532, 2.3 GHz to 2.7 GHz, Receiver Front End

特性和优点

  • Full featured evaluation board for the ADRF5532
  • Easy connection to test equipment
  • Thru line for calibration

产品详情

The ADRF5532 is an integrated RF, front-end multichip module designed for time division duplex (TDD) applications. The device operates from 2.3 GHz to 2.7 GHz. The ADRF5532 is configured with a low-noise amplifier (LNA) and a high-power, silicon, single pole double throw (SPDT) switch.

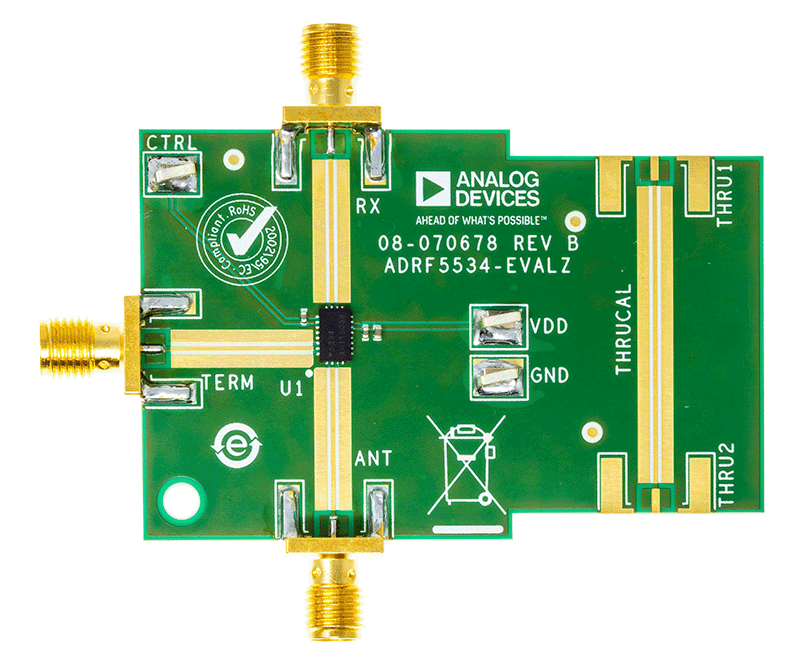

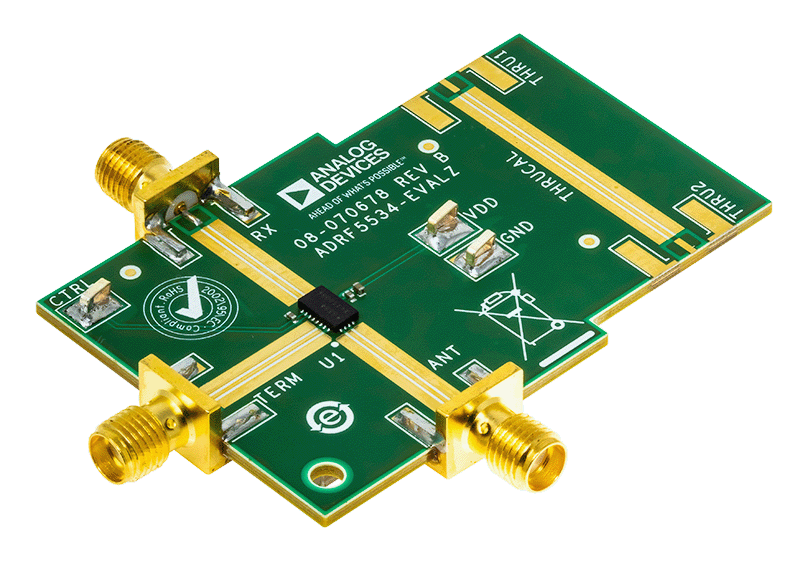

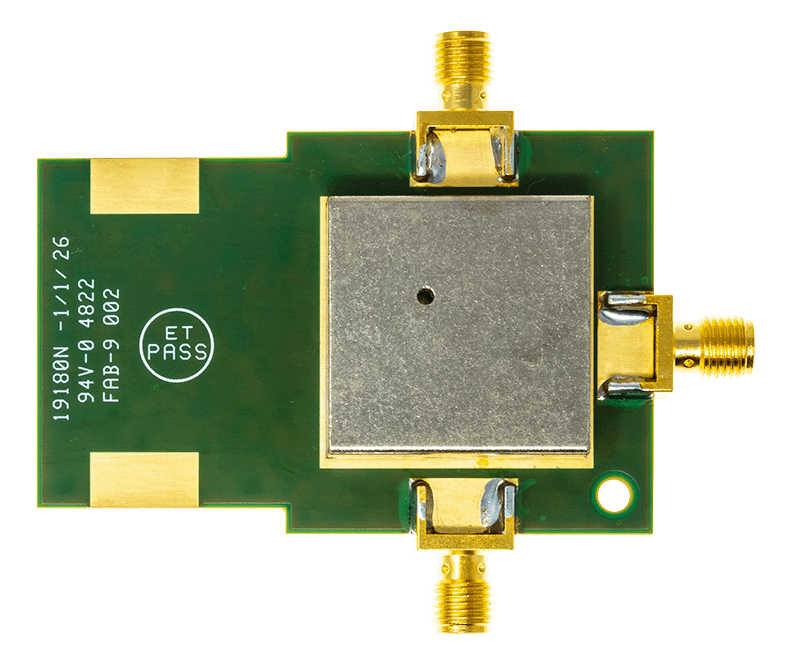

This user guide describes the ADRF5532-EVALZ, designed to easily evaluate the features and performance of the ADRF5532. Figure 1 shows a photograph of the ADRF5532-EVALZ.

Note that the ADRF5532 IC is populated on the ADRF5534 bare evaluation board. However, the whole assembly is the ADRF5532- EVALZ

Full details about the device are available in the ADRF5532 data sheet. Consult it when using the ADRF5532-EVALZ.
