ADP3026

过期

High-Efficiency Notebook Computer Power Supply Controller

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Wide Input Voltage Range: 6.5 V to 25 V
  • High Conversion Efficiency > 96%
  • Integrated Current Sense-No External Resistor Required
  • Low Shutdown Current: 14 µA (Typical)
  • Voltage Mode PWM with Input Feed Forward for Fast Line Transient Response
  • Dual Synchronous Buck Controllers with PWM/Power-Saving Mode Operation
  • Built-In Gate Drive Boost Circuit for Driving External N-Channel MOSFETs
  • Two Fixed Output Voltages: 3.3 V, 5 V
  • PWM Frequency: 300 kHz PWM Frequency: 300 kHz
  • Extensive Circuit Protection Functions
  • 28-Lead TSSOP Package

The ADP3026 is a highly efficient dual synchronous buck switching regulator controller optimized for converting the battery or adapter input into the system supply voltages required in notebook computers. The ADP3026 uses a dual-mode PWM/Power Saving Mode architecture to maintain efficiency over a wide load range.

The ADP3026 provides accurate and reliable short circuit protection using an internal current sense circuit, which reduces cost and increases overall efficiency. Other protection features include programmable soft-start, UVLO, and integrated output undervoltage/overvoltage protection.

ADP3026
High-Efficiency Notebook Computer Power Supply Controller

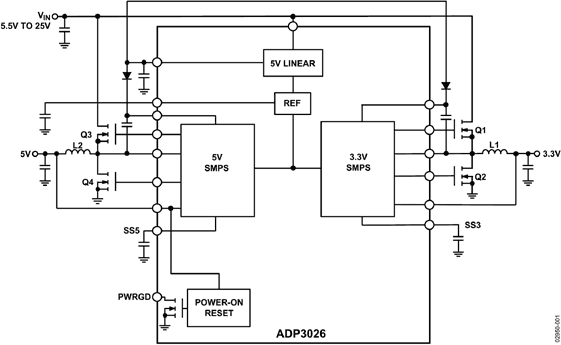

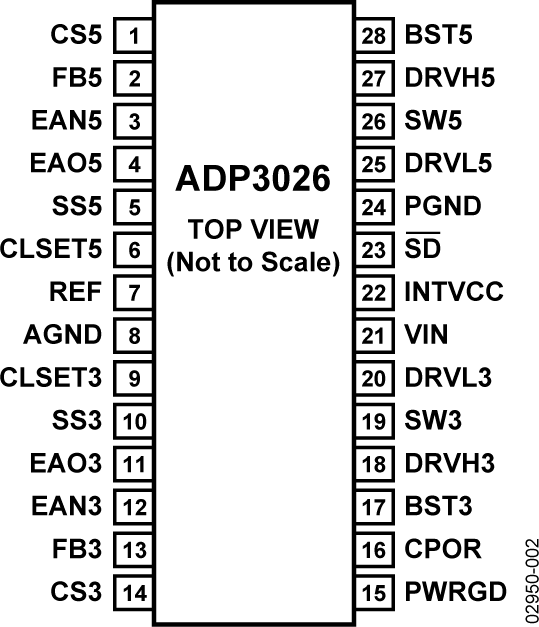

295774548ADP3026-fbl 651943409ADP3026-pc
