ADIN1111
推荐新设计使用Robust, Industrial, Low Power 10BASE-T1L Ethernet MAC-PHY
- 产品模型
- 4
产品详情
- 10BASE-T1L IEEE Standard 802.3cg-2019 compliant
- Cable reach up to 1700 m with 1.0 V/2.4 V
- Integrated MAC with SPI
- Supports OPEN Alliance 10BASE-T1x MAC-PHY serial interface
- 16 MAC address filters
- High and low priority queues with 28 kB buffer
- Cut through or store forward operation
- IEEE 1588 timestamp support
- Statistics counters
- Low power consumption: single supply 50 mW
- Diagnostics
- Cable fault detection with TDR
- Link quality indicator with MSE
- Frame generator and checker
- Multiple loopback modes
- IEEE test mode support
- Supports 1.0 V p-p and 2.4 V p-p transmit levels
- MDI polarity detection and correction
- 2-pin MDI
- Internal termination resistors and hybrid
- Autonegotiation
- 25 MHz crystal or external clock input
- EMC test standards
- IEC 61000-4-4 electrical fast transient (±4 kV)
- IEC 61000-4-2 ESD (±4 kV contact discharge)
- IEC 61000-4-2 ESD (±8 kV air discharge)
- IEC 61000-4-6 conducted immunity (10 V/m)
- IEC 61000-4-5 surge (±4 kV)
- IEC 61000-4-3 radiated immunity (Class A)
- EN 55032 radiated emissions (Class B)
- Small package: 32-lead (5 mm × 5 mm) LFCSP
- Temperature range
- Industrial: −40°C to +85°C
- Extended: −40°C to +105°C
The ADIN1111 is an ultra low power, single port, 10BASE-T1L transceiver design for industrial Ethernet applications and is compliant with the IEEE® 802.3cg-2019™ Ethernet standard for long reach, 10 Mbps single pair Ethernet (SPE). Featuring an integrated media access control (MAC) interface, the ADIN1111 enables direct connectivity with a variety of host controllers via a serial peripheral interface (SPI). This SPI enables the use of lower power processors without an integrated MAC, which provides for the lowest overall system level power consumption. The ADIN1111 is designed for edge node sensors and field instruments deployed in building, factor, and process automation.
The device operates from a single power supply rail of 1.8 V or 3.3 V, supporting both 1.0 V and 2.4 V. The internal hybrid and termination resistors allow the ADIN1111 to connect directly to the MDI interface.
The ADIN1111 has an integrated voltage supply monitoring and power-on reset (POR) circuitry to improve system level robustness and has a 4-wire SPI for communication between the MAC interface and host processor.
The ADIN1111 is available in a 32-lead, 5 mm × 5 mm lead frame chip scale package [LFCSP].
APPLICATIONS
- Building automation and fire safety
- Factory automation
- Condition monitoring and machine connectivity
参考资料
数据手册 1
用户手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADIN1111BCPZ | 32-Lead LFCSP (5mm x 5mm w/ EP) | ||
| ADIN1111BCPZ-R7 | 32-Lead LFCSP (5mm x 5mm w/ EP) | ||
| ADIN1111CCPZ | 32-Lead LFCSP (5mm x 5mm w/ EP) | ||
| ADIN1111CCPZ-R7 | 32-Lead LFCSP (5mm x 5mm w/ EP) |
软件资源
找不到您所需的软件或驱动?
申请驱动/软件硬件生态系统
| 部分模型 | 产品周期 | 描述 |
|---|---|---|
| USB电源开关 1 | ||
| MAX14523C | 量产 | 250mA至1.5A、可调节限流开关 |
| 反激、正向和隔离式控制器 1 | ||
| LT8301 | 推荐新设计使用 | 集成65V/1.2A开关的42VIN微功耗非光学隔离反激式转换器 |
| 高输入电压降压稳压器 1 | ||
|
LT8619 LT8619-5 |
具 6μA 静态电流的 60V、1.2A 同步单片降压型稳压器 | |
| 内部电源开关降压稳压器 1 | ||
| MAX17760 | 量产 | 4.5V至76V、300mA、高效、同步降压型DC-DC转换器 |
| 数字温度传感器 1 | ||
| ADT7422 | 推荐新设计使用 | 适用于 VSM 应用的精度为 ±0.1°C 的 16 位数字 I2C 温度传感器 |
| 微功耗降压稳压器 1 | ||
| LTC3547 | 量产 | 双通道单片式 300mA 同步降压型稳压器 |
评估套件

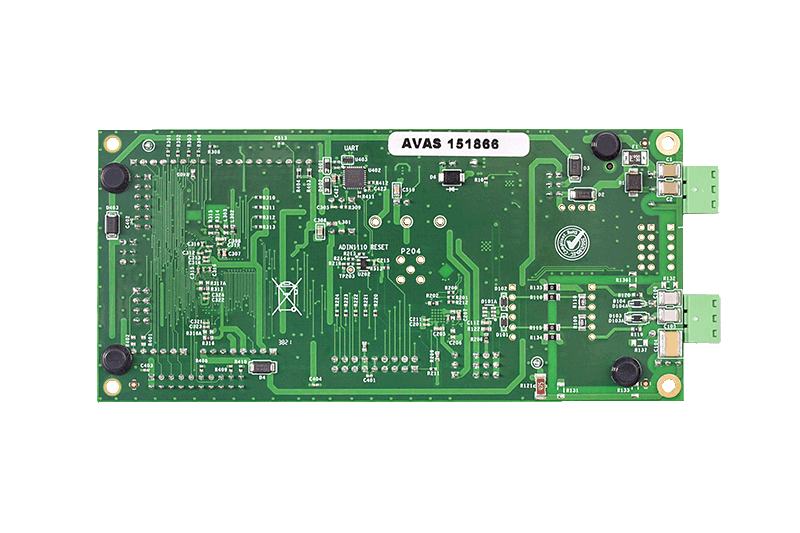

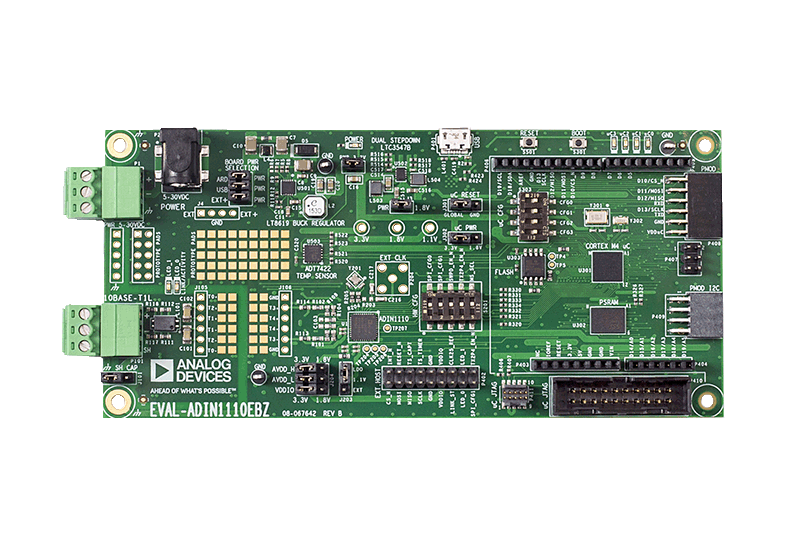

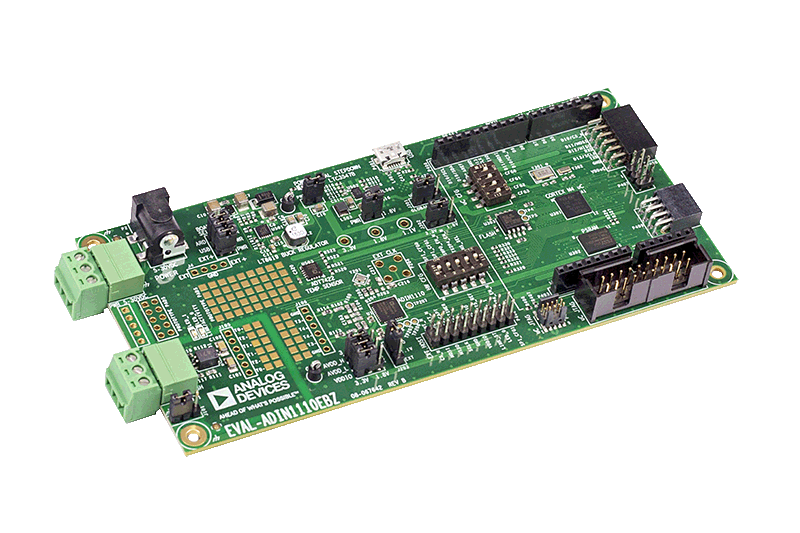

评估 ADIN1110 稳健、工业、低功耗 10BASE-T1L 以太网 MAC-PHY
