特性
- 车规级高速链路
- 最大插入损耗：21.0dB（3GHz，6Gbps）
- 最大插入损耗：19.5dB（1.5GHz，3Gbps）
- 自动适应信道条件的变化
- 工作环境温度：-40°C至+105°C
- 四通道MIPI CSI-2 v1.3输入端口
- MIPI D-PHY v1.2接收器额定速率：2.5Gbps/通道
- 在隧道模式下支持任何CSI-2数据类型
- 循环冗余校验(CRC)和纠错码(ECC)
- 16个虚拟通道
- 极性翻转和数据通道重新分配
- 通过单线进行全双工通信
- 3Gbps或6Gbps正向链路速率，187.5Mbps反向链路速率
- 符合ASIL-B标准要求
- 隧道模式下通过CRC实现端到端数据完整性
- RS前向纠错(FEC)用于保护前向视频和控制信道数据
- 为侧通道和视频数据提供CRC保护
- 上电自检
- 并发侧通道用于设备配置以及与外设通信
- I2C/UART、直通式I2C/UART、SPI、GPIO和寄存器可编程GPIO
- 使用从反向信号获取的参考(RoR)时钟，无需晶振操作
- 图像传感器的参考时钟输出
- 内置ADC和温度传感器/li>

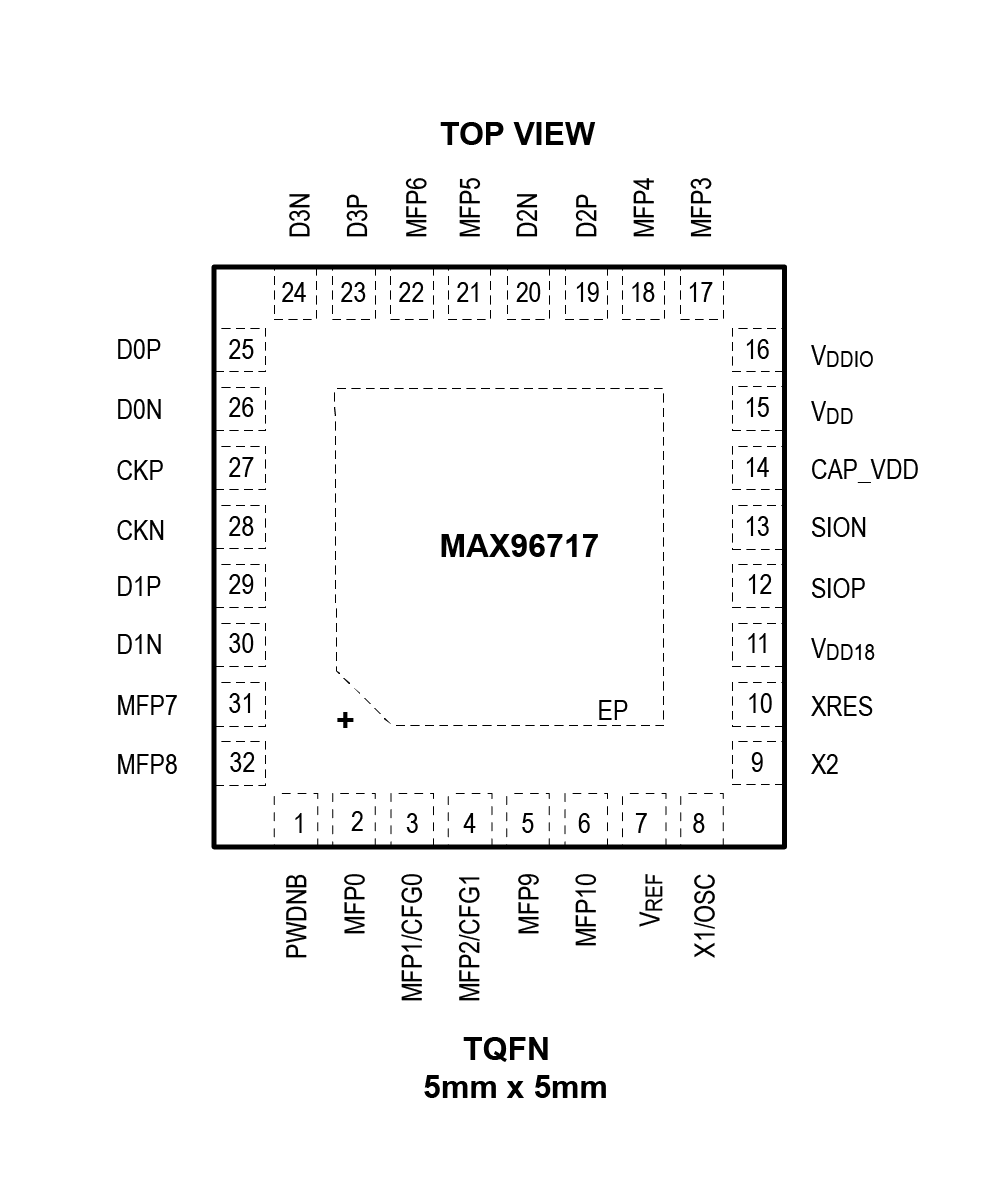

- 紧凑型5mm x 5mm、0.5mm间距TQFN侧面可湿封装
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}

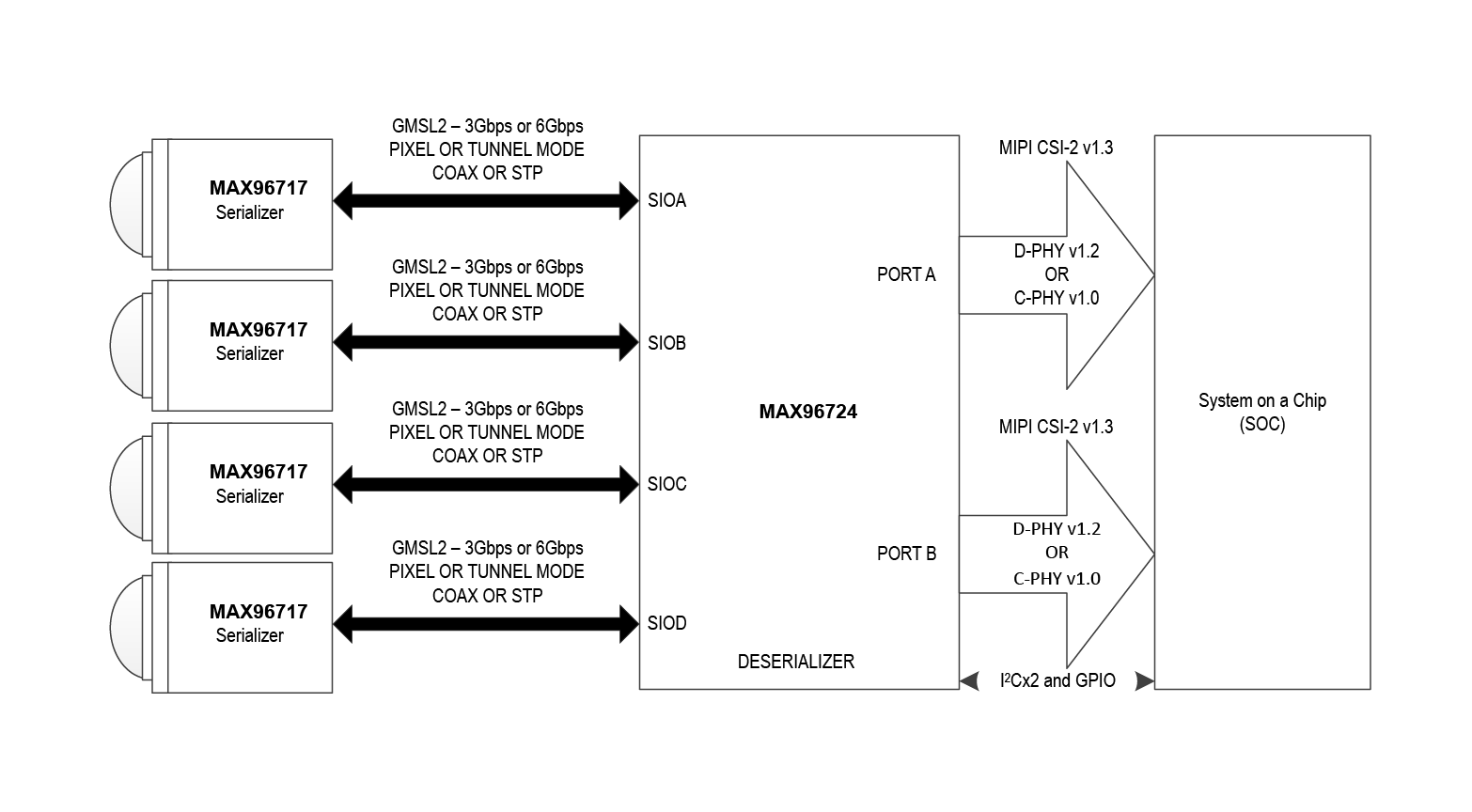

MAX96717 GMSL™ 串行器在MIPI CSI-2接口上接收视频，并在GMSL2串行链路收发器上输出视频。同时，它通过该GMSL2链路发送和接收双向控制通道数据。GMSL2数据可以通过同轴或屏蔽双绞线(STP)电缆传输。它的正向运行速率为3 Gbps或6 Gbps（固定），反向运行速率为187.5 Mbps。该器件通过本地I2C/UART 接口或通过来自匹配解串器的链路进行编程。MAX96717包括两个 I2C/UART 直通通道、灵活的GPIO、SPI通道、一个内置ADC、温度传感器和一组广泛的功能安全诊断。该器件的额定工作温度范围为-40℃至+105℃汽车级温度范围，符合AEC-Q100 2级标准。
数据可以通过符合GMSL2通道规范的低成本50 Ω同轴电缆或100 Ω STP电缆传输。数据手册中的表1提供了常用汽车电缆的典型最大长度指南。请联系工厂了解GMSL2通道规范。
应用
- 先进驾驶辅助系统(ADAS)
- 8Mp 40fps前视摄像头(FVC)系统
- 环视系统(SVS)
- 驾驶员监控系统(DMS)
- 后视摄像头(RVC)
- 具有多个同步摄像头的系统
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX96717
文档
筛查
1 应用
-
全部
-
用户手册
-
可靠性数据
-
数据手册
-
全部
-
英文
用户手册
4
可靠性数据
1
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX96717GTJ/VY+ |
32-TQFN_SW-5X5X0.75
|
|
|
| MAX96717GTJ/VY+T |
32-TQFN_SW-5X5X0.75
|
|
- MAX96717GTJ/VY+
- 引脚/封装图-中文版
-
32-TQFN_SW-5X5X0.75
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- MAX96717GTJ/VY+T
- 引脚/封装图-中文版
-
32-TQFN_SW-5X5X0.75
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
根据型号筛选
产品型号
产品生命周期
PCN
4月 10, 2020
- 1950
ASSEMBLY
MAX96717GTJ/VY+
量产
根据型号筛选
产品型号
产品生命周期
PCN
4月 10, 2020
- 1950
ASSEMBLY
评估套件 3
AD-GMSLCAMRPI-ADP#
GMSL EV Kit Adapter Board
特性和优点
- Allows utilization of GMSL serializer EV kits with a wide range of cameras having 15-pin or 22-pin ribbon cable connectors such as the RPI Camera
- Allows utilization of GMSL deserializer EV kits with various processing platforms supporting the 15-pin or 22-pin ribbon cable camera connector, such as the Raspberry Pi or the Nvidia development platforms
产品详情

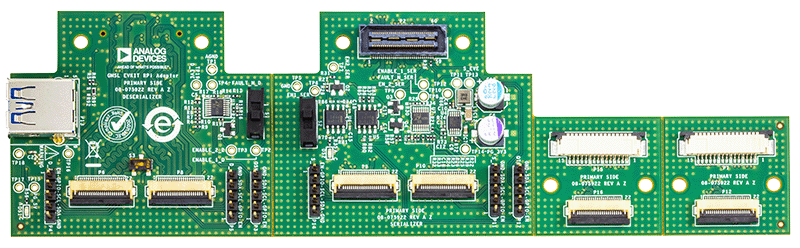

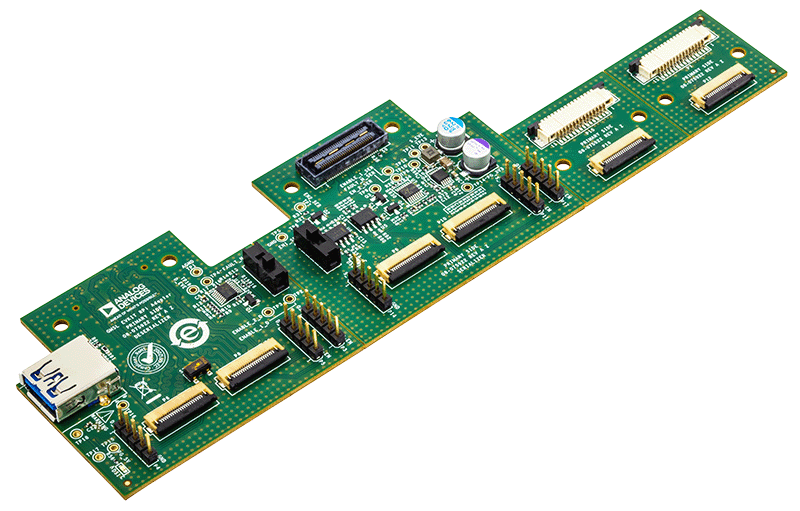

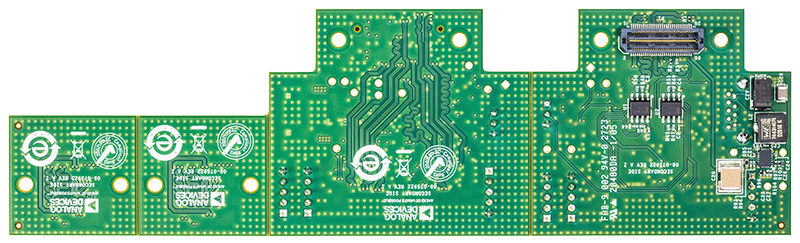

The AD-GMSLCAMRPI-ADP# enables connecting GMSL serializer and deserializer EV kits to a wide range of cameras and processing platforms supporting industry standard ribbon cable connectors. The adapter consists of three sections that can be broken apart from each other, having with the following functionalities:
- Two ribbon cable adapters containing a 15-pin and a 22-pin connector routed to each other. The 15-pin connector supports 2 MIPI lanes, while the 22-pin connector supports 4 MIPI lanes.
- A GMSL serializer EV kit adapter with two 22-pin ribbon cable connectors, for connecting cameras to either of the input MIPI ports of the GMSL serializers
- A GMSL deserializer EV kit adapter with a22-pin ribbon cable connector connected to each of the output MIPI ports, for connecting to Raspberry Pi and Nvidia development platforms, or other processing platform supporting the 15-pin or 22-pin ribbon cable connector. A USB Type-A connector is available to supply 5V @ 4A.
For a detailed look at all GMSL-2 features, including information on how to use the parts, see the newest GMSL-2 User Guide found in Analog Devices’ GMSL customer portal folder. For more information on how to design customized hardware with GMSL2 devices, see the newest GMSL2 Hardware Design Guide in Analog Devices’ GMSL customer portal folder. Finally, in the similar folders, evkit documentation and guides can be found.
APPLICATIONS
- High-Resolution Camera Systems
- Autonomous Guided Vehicles
- Advanced Driver Assistance Systems (ADAS)
资料

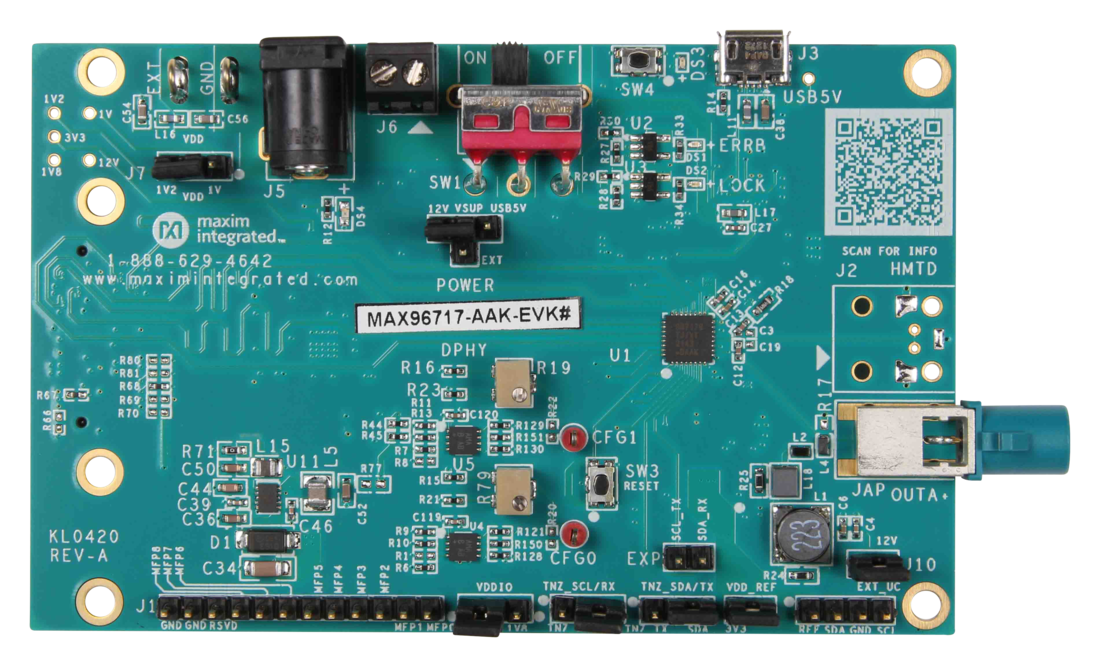

MAX96717/F/R EVKit
MAX96717、MAX96717F和MAX96717R评估套件
产品详情

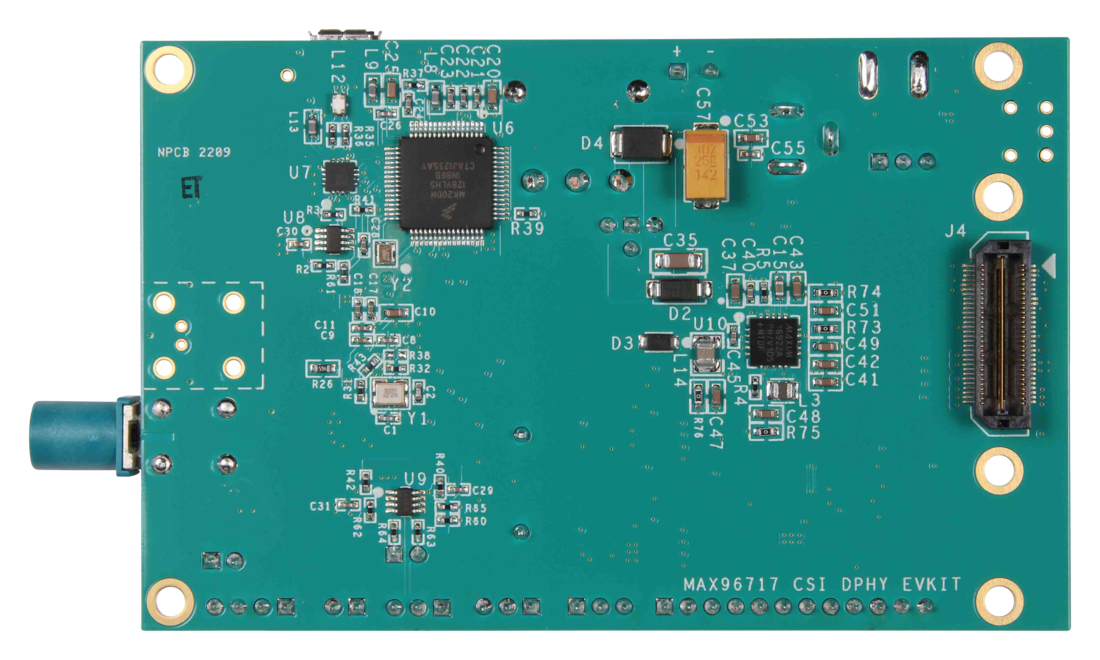

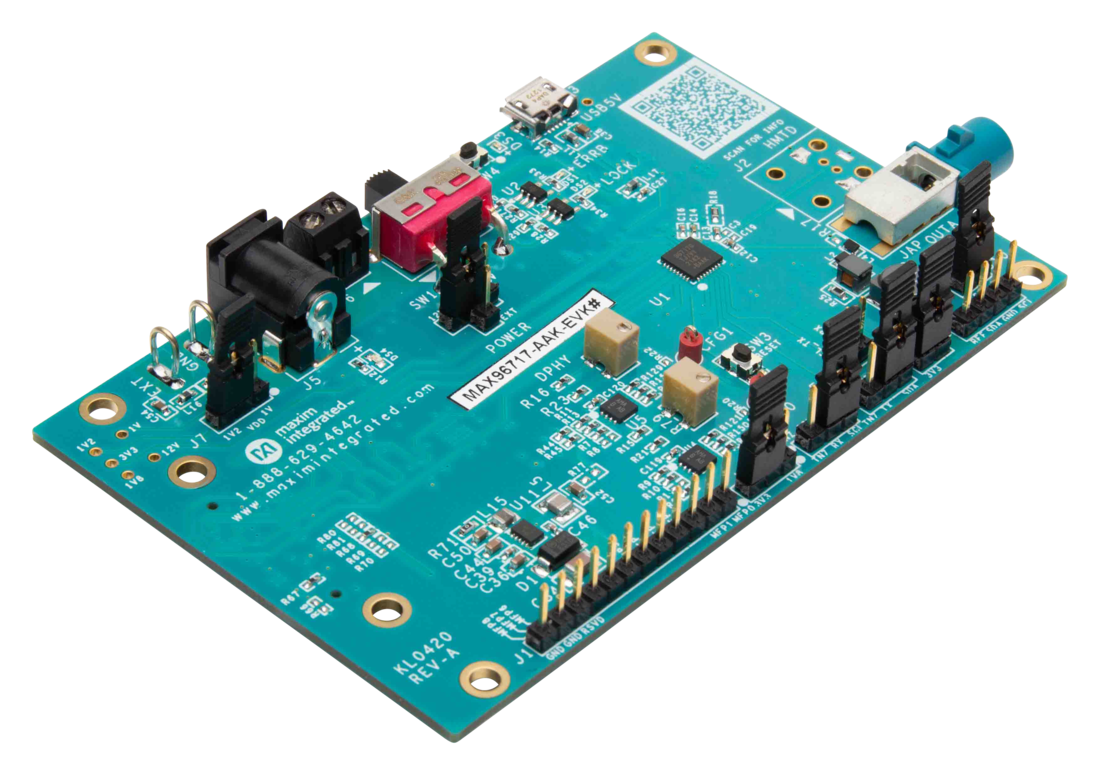

MAX96717 DPHY评估套件（EV套件）设计可靠，可使用标准FAKRA同轴(Coax)或HMTD电缆评估具有扩频和全双工控制通道的高带宽千兆多媒体串行链路(GMSL)串行器MAX96717。该评估套件还包括Windows® 7和Windows® 10软件，提供了简单的图形用户界面(GUI)来测试器件的特性。该评估套件已安装MAX96717、MAX96717F或MAX96717R IC。
若要利用标准FAKRA同轴电缆或HMTD电缆进行完整的GMSL评估，请订购MAX96717同轴电缆评估套件和配套的解串器板（数据手册中提到的MAX96716同轴电缆评估套件）。
资料
AD-GMSL522-SL
GMSL Carrier Board
特性和优点
- GMSL2 prototyping system supporting the NVIDIA Jetson™ SoCs
- On-board MAX96724 that allows 4x GMSL2/1 camera inputs that allows for camera module bring-up, debug, and video streaming
- On-board MAX96717 that can be used for camera emulation and head-unit debug
- Enables development of GMSL applications with NVIDIA Jetson™ SoC
- SAMTEC connector that allows connection of any GMSL DPHY EV Kit to the NVIDIA Jetson™
- Additional inputs: USB, Ethernet, PCIe, and microSD card
产品详情

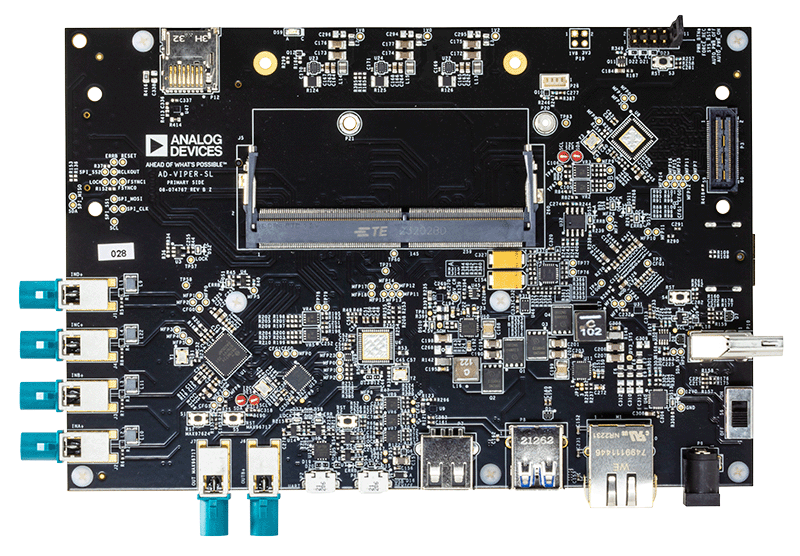

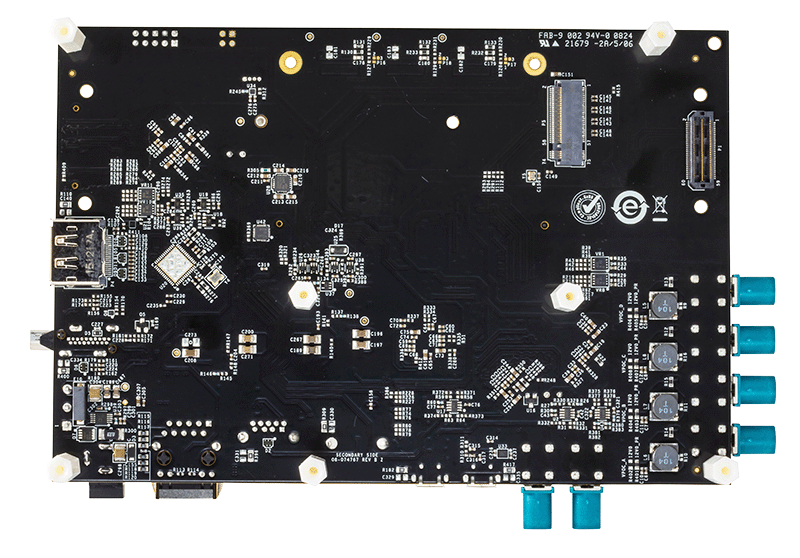

The AD-GMSL522-SL is a GMSL-enabled NVIDIA Jetson Xavier™ NX-based carrier board and software solution that allows for simple camera to display conversion. This solution creates a scalable, user friendly, GMSL platform for receiving and transmitting data over a gigabit multimedia serial link (GMSL). The platform enables demonstrations and ecosystem development by serving as a hardware platform for software development.
