Overview
Features and Benefits
- Operating RF frequency
30 MHz to 2 GHz - Voltage conversion gain > 4 dB 60 MHz to 4 GHz
- Input IP3: 31 dBm @ 900 MHz
- Input IP2: 62 dBm @ 900 MHz
- Input P1dB: 13 dBm @ 900 MHz
- Noise figure (NF)
12.0 dB @ 140 MHz
14.7 dB @ 900 MHz
- LO input at 2 × fLO
- Quadrature demodulation accuracy
Phase accuracy ~0.4°
Amplitude balance ~0.05 dB- Demodulation bandwidth ~240 MHz
- Baseband I/Q drive 2 Vp-p into 200 Ω
- Single 5 V supply
- Quadrature demodulation accuracy
Product Details
The ADL5387 is a broadband quadrature I/Q demodulator that covers an RF/IF input frequency range from 30 MHz to 2 GHz. With a NF = 13.2 dB, IP1dB = 12.7 dBm, and IIP3 = 32 dBm @ 450 MHz, the ADL5387 demodulator offers outstanding dynamic range suitable for the demanding infrastructure direct-conversion requirements. The differential RF/IF inputs provide a well-behaved broadband input impedance of 50 Ω and are best driven from a 1:1 balun for optimum performance.
Ultrabroadband operation is achieved with a divide-by-2 method for local oscillator (LO) quadrature generation. Over a wide range of LO levels, excellent demodulation accuracy is achieved with amplitude and phase balances ~0.05 dB and ~0.4°, respectively. The demodulated in-phase (I) and quadrature (Q) differential outputs are fully buffered and provide a voltage conversion gain of >4 dB. The buffered baseband outputs are capable of driving a 2 Vp-p differential signal into 200 Ω.
The fully balanced design minimizes effects from second-order distortion. The leakage from the LO port to the RF port is <−70 dBc. Differential dc-offsets at the I and Q outputs are <10 mV. Both of these factors contribute to the excellent IIP2 specifications > 60 dBm.
The ADL5387 operates off a single 4.75 V to 5.25 V supply. The supply current is adjustable with an external resistor from the BIAS pin to ground.
The ADL5387 is fabricated using the Analog Devices, Inc. advanced silicon-germanium bipolar process and is available in a 24-lead exposed paddle LFCSP.
APPLICATIONS
- QAM/QPSK RF/IF demodulators
- W-CDMA/CDMA/CDMA2000/GSM
- Microwave point-to-(multi)point radios
- Broadband wireless and WiMAX
- Broadband CATVs
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

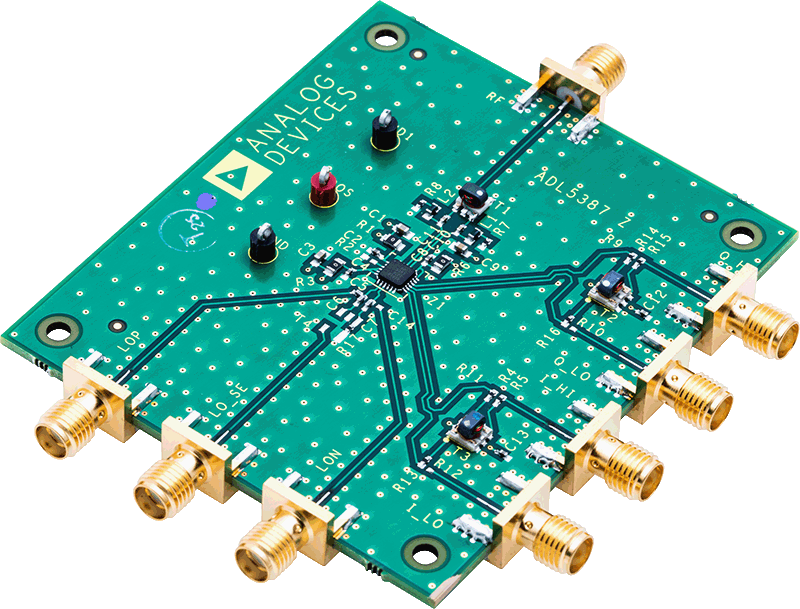

Evaluation Kits (1)
Documentation & Resources
-
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/2018PDF9M
-
AN-924: Digital Quadrature Modulator Gain11/20/2020
Tools & Simulations
Design Tools
ADIsimPLL™
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Reference Designs (2)
Product Recommendations
ADL5387 Companion Parts
Recommended Baseband Driver Amplifiers
- For a digital programmable VGA: AD8366.
- For a differential RF/IF amplifier: ADL5562, ADL5565.
- For variable gain and programmable baseband filters: ADRF6510, ADRF6516.
- For selectable gains of 1, 2 or 3: ADA4950-1, ADA4950-2.
- For low noise drivers in low voltage (1.8V) ADC applications: ADA4930-1, ADA4930-2.
Recommended Dual Analog-to-Digital Converters
- For 12-bit performance, low power, low cost and ease of use: AD9231.
- For 16-bit performance, multistage differential pipeline architecture with integrated quadrature error correction (QEC): AD9269.
- For 16-bit performance, low power and high sampling rate: AD9268, AD9650.
- For 14-bit performance, low power and high sampling rate: AD9258, AD9251.
- For 16-bit performance, continuous time sigma delta architecture with integrated QEC: AD9262.
