Features and Benefits
- Highly accurate; supports EN 50470-1, EN 50470-3, IEC 62053-21, IEC 62053-22, and IEC 62053-23 standards
- Compatible with 3-phase, 3- or 4-wire (delta or wye), and other 3-phase services
- Supplies total (fundamental and harmonic) active, reactive (ADE7878, ADE7868, and ADE7858 only), and apparent energy, and fundamental active/reactive energy (ADE7878 only) on each phase and on the overall system
- Less than 0.1% error in active and reactive energy over a dynamic range of 1000 to 1 at TA = 25°C
- Less than 0.2% error in active and reactive energy over a dynamic range of 3000 to 1 at TA = 25°C
- Supports current transformer and di/dt current sensors
- Dedicated ADC channel for neutral current input (ADE7868 and ADE7878 only)
- Less than 0.1% error in voltage and current rms over a dynamic range of 1000 to 1 at TA = 25°C
- Supplies sampled waveform data on all three phases and on neutral current
- Selectable no load threshold levels for total and fundamental active and reactive powers, as well as for apparent powers
- Low power battery mode monitors phase currents for antitampering detection (ADE7868 and ADE7878 only)
- Battery supply input for missing neutral operation
- Phase angle measurements in both current and voltage channels with a typical 0.3° error
- Wide-supply voltage operation: 2.4 V to 3.7 V
- Reference: 1.2 V (drift +5 ppm/°C typical) with external overdrive capability
- Single 3.3 V supply
- 40-lead lead frame chip scale package (LFCSP), Pb-free
- Operating temperature: −40°C to +85°C
- Flexible I2C, SPI, and HSDC serial interfaces

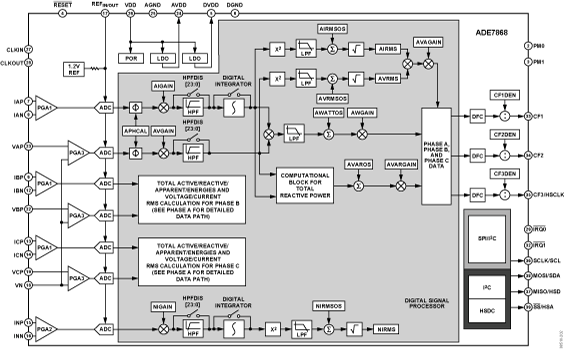

The ADE7854 / ADE7858 / ADE7868 / ADE7878 are high accuracy, 3-phase electrical energy measurement ICs with serial interfaces and three flexible pulse outputs. The ADE78xx devices incorporate second-order sigma-delta (Σ-∆) analog-to-digital converters (ADCs), a digital integrator, reference circuitry, and all of the signal processing required to perform total (fundamental and harmonic) active, reactive (ADE7878, ADE7868, and ADE7858), and apparent energy measurement and rms calculations, as well as fundamental-only active and reactive energy measurement (ADE7878) and rms calculations. A fixed function digital signal processor (DSP) executes this signal processing. The DSP program is stored in the internal ROM memory.
The ADE7854 / ADE7858 / ADE7868 / ADE7878 are suitable for measuring active, reactive, and apparent energy in various 3-phase configurations, such as wye or delta services, with both three and four wires. The ADE78xx devices provide system calibration features for each phase, that is, rms offset correction, phase calibration, and gain calibration. The CF1, CF2, and CF3 logic outputs provide a wide choice of power information: total active, reactive, and apparent powers, or the sum of the current rms values, and fundamental active and reactive powers.
The ADE7854 / ADE7858 / ADE7868 / ADE7878 contain waveform sample registers that allow access to all ADC outputs. The devices also incorporate power quality measurements, such as short duration low or high voltage detections, short duration high current variations, line voltage period measurement, and angles between phase voltages and currents. Two serial interfaces, SPI and I2C, can be used to communicate with the ADE78xx. A dedicated high speed interface, the high speed data capture (HSDC) port, can be used in conjunction with I2C to provide access to the ADC outputs and real-time power information. The ADE7854 / ADE7858 / ADE7868 / ADE7878 also have two interrupt request pins, IRQ0 and IRQ1, to indicate that an enabled interrupt event has occurred. For the ADE7868 / ADE7878, three specially designed low power modes ensure the continuity of energy accumulation when the ADE6878 / ADE7878 is in a tampering situation. See Table 1 for a quick reference chart listing each part and its functions. The ADE78xx are available in the 40-lead LFCSP, Pb-free package.
- Energy metering systems
Product Lifecycle Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
Evaluation Kits (1)
The ADE7878 is a high accuracy, 3-phase electrical energy measurement IC with serial interfaces and three flexible pulse outputs. The ADE7878 incorporates seven ADCs, reference circuitry and all signal processing required to perform total (fundamental and harmonic) active, reactive and apparent energy measurement, fundamental active and reactive energy measurement and rms calculations.
This documentation describes the ADE7878 evaluation kit hardware, firmware and software functionality. The evaluation board contains an ADE7878 and a LPC2368 microcontroller. The ADE7878 and its associated metering components are optically isolated from the microcontroller. The microcontroller communicates with the PC using a USB interface. Firmware updates can be loaded using one PC com port and a regular serial cable. The ADE7878 evaluation board and this documentation, together with the ADE7878 data sheet provide a complete evaluation platform for the ADE7878.
The evaluation board has been designed so that ADE7878 can be evaluated in an energy meter. Using appropriate current transducers, the evaluation board can be connected to a test bench or high voltage (240Vrms) test circuit. On-board resistor dividers networks provide the attenuation for the line voltages. This application note describes how the current transducers should be connected for the best performance. The evaluation board requires two external 3.3V power supplies and the appropriate current transducers.
Features & BenefitsEVAL-ADE7878EBZ can be used for the evaluation of the following:
- ADE7878, ADE7868, ADE7858, ADE7854, family of parts.
- The UG-146 User Guide describes the ADE7878 evaluation kit hardware, firmware, and software functionality.
- Evaluation board designed to be used together with accompanying software to implement a fully functional three-phase energy meter.
- Easy connection of various external transducers via screw terminals.
- Easy modification of signal conditioning components using PCB sockets.
- LED indicators on logic outputs CF1, CF2, CF3, IRQ0, and IRQ.
- Optically isolated metering components and USB based communication with PC.
- External voltage reference option available for on-chip reference evaluation.
- PC COM port-based firmware updates.
Documentation & Resources
Differences Between the ADE7854A/ADE7858A/ADE7868A/ADE7878A and ADE7854/ADE7858/ADE7868/ADE7878 Products (Rev. AN-1272)3/22/2019230 kB
AN-1334: Impact of Adding a Neutral Attenuation Network in a 3P4W Wye System (Rev. 0)1/19/2016316 K
AN-1076: Calibrating an ADE7878-Based, 3-Phase Energy Meter (Rev. 0)6/25/2010221 kB
AN-639: Frequently Asked Questions (FAQs) Analog Devices Energy (ADE) Products (Rev. A)8/17/2005165 kB
UG-146: Evaluating the ADE7878 Energy Metering IC8/29/20101915 kB
ADE78xx Polyphase Multifunction Energy Metering ICs1/16/20151 M
RF Meets Power Lines: Designing Intelligent Smart Grid Systems that Promote Energy Efficiency3/5/2010
IC Technology and Failure Mechanisms - Understanding Reliability Standards Can Raise Quality of Meters6/1/2004903 kB
Measuring Harmonic Energy with a Solid State Energy Meter9/30/200346 kB
ADE7868 Companion Parts
Recommended Digital Isolators
- For a dual, bi-directional, 2.5kV, hot swap isolator: ADUM1250.
- For a dual, bi-directional, 5kV, hot swap isolator: ADuM2250.
Recommended External References
