ADuM2250

Hot-Swappable Dual I2C® Isolators, 5 kV

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.D)
Documentation View All Documentation
IBIS Model ADuM2250 IBIS Model (All Speed Grades) Download B
Part Models 6
1ku List Price Starting From $3.69
Features
  • Bidirectional I2C communication
  • Open-drain interfaces
  • Suitable for hot swap applications
  • 30 mA current sink capability
  • 1000 KHz operation
  • 3.0 V to 5.5 V supply/logic levels

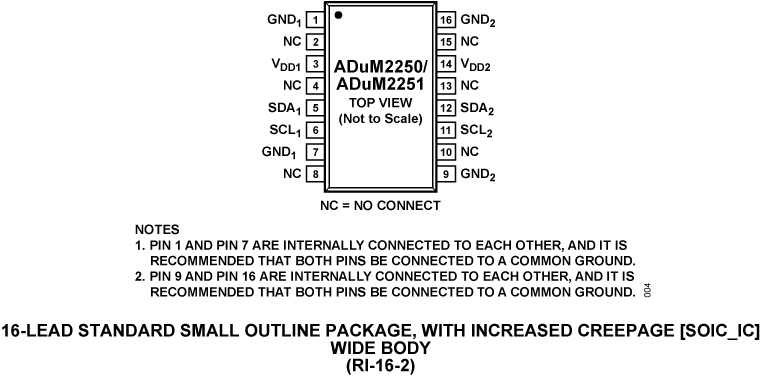

  • 16-lead SOIC wide body package version (RW-16)
  • High temperature operation: 105°C
  • 16-lead SOIC wide body enhanced creepage version (RI-16-2
  • Safety and regulatory approvals
  • UL recognition: 5000 V rms for 1 minute per UL 1577
  • 5000 V rms for 1 minute per UL 1577
  • CSA Component Acceptance Notice 5A (RI-16-2 package)
Additional Details
show more Icon

The ADuM2250 / ADuM2251 are hot swappable digital isolators with nontlatching, bidirectional communication channels and are compatible with I2C interfaces. This eliminates the need for splitting I2C signals into separate transmit and receive signals for use with stand-alone optocouplers.

The ADuM2250 provides two bidirectional channels, supporting a complete isolated I2C interface. The ADuM2251 provides one bidirectional channel and one unidirectional channel for those applications where a bidirectional clock is not required.

The ADuM2250 / ADuM2251 contain hot swap circuitry to prevent data glitches when an unpowered card is inserted onto an active bus.

These isolators are based on iCoupler® chip scale transformer technology from Analog Devices, Inc. iCoupler is a magnetic isolation technology with functional, performance, size, and power consumption advantages compared to optocouplers. The ADuM2250 / ADuM2251 integrate iCoupler channels with semiconductor circuitry to enable a complete, isolated I2C interface provided in a small form factor package.

APPLICATIONS

  • Isolated I2C, SMbus, or PMBus Interfaces
  • Multilevel I2C interfaces
  • Power supplies
  • Networking
  • Power over Ethernet
Show More Arrow image
file View Data Sheet (Rev.D)
Documentation View All Documentation
IBIS Model ADuM2250 IBIS Model (All Speed Grades) Download B
Part Models 6
1ku List Price Starting From $3.69
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADuM2250

Documentation

37
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Application Note
  • Technical Articles
  • User Guide
  • Data Sheet
  • Informational
  • Safety and Regulatory Compliance
  • Frequently Asked Question
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

pdf

UPDATED 07/31/2015
English

ADuM2250/ADuM2251: Hot-Swappable, Dual I2C Isolators, 5 kV Data Sheet (Rev.D)

Open PDF File

redirect
302 kB
download

Download PDF

PDF Vector

pdf

UPDATED 05/28/2008
Japanese

ADuM2250/ADuM2251: ホットスワップ可能な、5kVのI2C用アイソレータ (Rev.0)

Open PDF File

redirect
516 kB
download

Download PDF

Application Note

24

PDF Vector

pdf

UPDATED 06/20/2007
English
AN-913: Isolating I2C Interfaces (Rev.0) redirect icon

280 kB

download

Download PDF

PDF Vector

pdf

UPDATED 06/20/2007
Chinese
AN-913: I²C 接口的隔离 (Rev.0) redirect icon

308 kB

download

Download PDF

PDF Vector

pdf

UPDATED 06/20/2007
Japanese
AN-913: I²Cインターフェースのアイソレーション (Rev.0) redirect icon

365 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-770: iCoupler® Isolation in CAN Bus Applications (Rev.0) redirect icon

234 kB

download

Download PDF

PDF Vector

pdf

UPDATED 01/31/2011
Chinese
AN-770: CAN总线应用中的iCoupler®隔离 (Rev.0) redirect icon

362 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
Japanese
AN-770: iCoupler®絶縁のCANバスでの応用 (Rev.0) redirect icon

291 kB

download

Download PDF

PDF Vector

PDF

UPDATED 11/01/2006
English
AN-740: iCoupler® Isolation in RS-232 Applications (Rev.A) redirect icon

218.29 K

download

Download PDF

PDF Vector

pdf

UPDATED 08/31/2010
Chinese
AN-740: RS-232应用中的iCoupler® 隔离 (Rev.0) redirect icon

494 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/09/2010
Japanese
AN-740: RS-232アプリケーションでのiCoupler®アイソレーション (Rev.0) redirect icon

560 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-727: iCoupler® Isolation in RS-485 Applications (Rev.0) redirect icon

282 kB

download

Download PDF

PDF Vector

pdf

UPDATED 07/26/2010
Chinese
AN-727: RS-485应用中的iCoupler®隔离 (Rev.0) redirect icon

373 kB

download

Download PDF

PDF Vector

pdf

UPDATED 02/21/2011
Japanese
AN-727: RS-485アプリケーションでのiCoupler®アイソレータ (Rev.0) redirect icon

756 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-825: Power Supply Considerations in iCoupler® Isolation Products (Rev.0) redirect icon

181 kB

download

Download PDF

PDF Vector

pdf

UPDATED 09/09/2010
Chinese
AN-825: iCoupler®隔离产品的电源考虑因素 (Rev.0) redirect icon

181 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
Japanese
AN-825: iCoupler®アイソレーション製品での電源の考慮事項 (Rev.0) redirect icon

340 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-793: ESD/Latch-Up Considerations with iCoupler® Isolation Products (Rev.A) redirect icon

246 kB

download

Download PDF

PDF Vector

pdf

UPDATED 01/31/2011
Chinese
AN-793: iCoupler®隔离产品的ESD/闩锁考虑因素 (Rev.A) redirect icon

500 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
Japanese
AN-793: iCoupler®アイソレータ製品のESD / ラッチアップに関する考慮事項 (Rev.0) redirect icon

331 kB

download

Download PDF

PDF Vector

HTML

UPDATED 11/22/2023
English
AN-913: Isolating I2C Interfaces redirect icon

PDF Vector

HTML

UPDATED 11/22/2023
Chinese
AN-913: Isolating I2C Interfaces redirect icon

PDF Vector

HTML

UPDATED 11/22/2023
Japanese
AN-913: I2Cインターフェースのアイソレーション redirect icon

PDF Vector

HTML

UPDATED 07/03/2020
English
AN-0971: Recommendations for Control of Radiated Emissions with isoPower Devices redirect icon

PDF Vector

HTML

UPDATED 07/03/2020
Chinese
AN-0971: isoPower器件的辐射控制建议 redirect icon

PDF Vector

HTML

UPDATED 07/03/2020
Japanese
AN-0971：isoPower デバイスでの EMI 放射制御についての推奨事項 redirect icon

Technical Articles

5

PDF Vector

pdf

UPDATED 12/10/2010
English
NAppkin Note: Lowering the Power of the ADuM524x redirect icon

223 kB

download

Download PDF

PDF Vector

URL

UPDATED 10/01/2008
English
Microtransformer Isolation Benefits Digital Control redirect icon

PDF Vector

pdf

UPDATED 12/10/2010
English
Inside iCoupler® Technology:ADuM347x PWM Controller and Transformer Driver with Quad-Channel Isolators Design Summary redirect icon

291 kB

download

Download PDF

PDF Vector

URL

UPDATED 09/28/2006
English
Medical Devices Demand Stringent Isolation Techniques redirect icon

PDF Vector

URL

UPDATED 09/08/2010
Chinese
医疗设备要求严格的隔离技术 redirect icon

User Guide

1

PDF Vector

PDF

UPDATED 11/28/2017
English

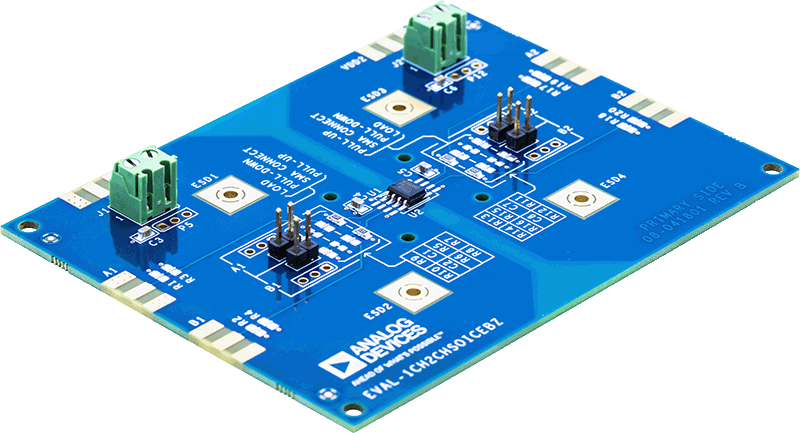

UG-1100: Evaluating the ADuM1250, ADuM1251, ADuM2250, and ADuM2251 Hot Swappable, Dual I2C Isolators (Rev.0) redirect icon
