Features
- Fast throughput rate: 1 MSPS
- Specified for VDD of 2.35 V to 5.25 V
- Low power:
- 3.6 mW Typ at 1 MSPS with 3 V supplies
- 15 mW Typ at 1 MSPS with 5 V supplies
- Wide input bandwidth: 70 dB SNR at 100 kHz input frequency
- Flexible power/serial clock speed management
- No pipeline delays
- High speed serial interface SPI®/QSPI™/MICROWIRE™/DSP compatible
- Standby mode: 1 µA max
- 6-lead SOT-23 package
- Download AD7476-EP Data Sheet (pdf)
- Military temperature range (−55°C to +125°C)
- Controlled manufacturing baseline
- One assembly/test site
- One fabrication site
- Enhanced product change notification
- Qualification data available upon request
- V62/11611 DSCC Drawing Number
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

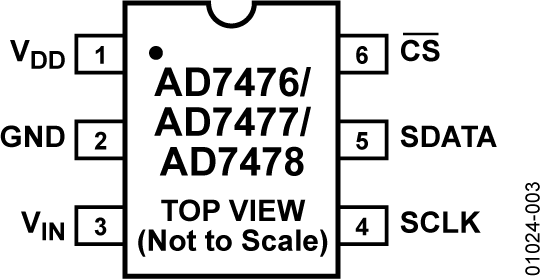

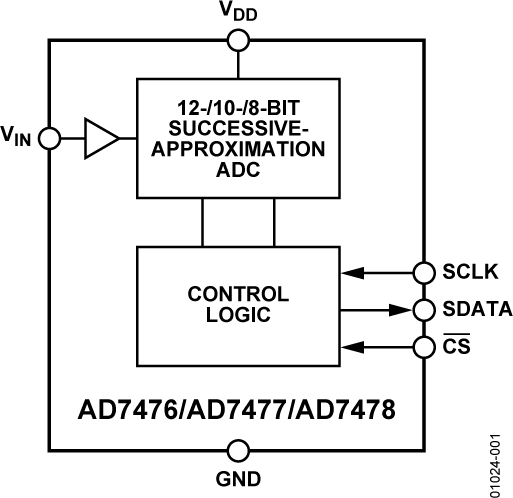

The conversion process and data acquisition are controlled using CS the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS and the conversion is initiated at this point. There are no pipeline delays associated with these parts.
The AD7476/AD7477/AD7478 use advanced design techniques to achieve very low power dissipation at high throughput rates. The reference for the parts is taken internally from VDD. This allows the widest dynamic input range to the ADC. Thus, the analog input range for the parts are 0 V to VDD. The conversion rate is determined by the SCLK.
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD7476
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Data Sheet
-
Product Highlight
-
Evaluation Design File
-
Technical Articles
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
4
AD7476/AD7477/AD7478: 1 MSPS, 12-/10-/8-Bit ADCs in 6-Lead SOT-23 Data Sheet (Rev.F)
AD7476/AD7477/AD7478: 12/10/8 ビットA/Dコンバータ、1MSPS 、6 ピンSOT- 23 (Rev.A)
Application Note
9
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Product Highlight
1
Evaluation Design File
4
410 kB
Technical Articles
3
HTML
HTML
HTML
Documentation
Data Sheet 3
Application Note 7
AN-1226: AD5382 Channel Monitor Function (Rev.B)
AN-1223: Output Channel Monitoring Using the AD5380 Multichannel DAC
AN-1219: Power-Off Protected Data Acquisition Signal Chain Using Fault-Protected CMOS Switches.
AN-1227: AD5381 Channel Monitor Function
AN-1226: AD5382 Channel Monitor Function
AN-1229: AD5383 Channel Monitor Function
AN-931: Understanding PulSAR ADC Support Circuitry
Technical Articles 1
Product Highlight 1
Evaluation Design File 2
Tutorial 2
Product Highlight 1
Product Selection Guide 1
Circuit Note 1
Device Drivers 2
Technical Book 1
Analog Dialogue 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD7476ARTZ-500RL7 |
6-Lead SOT-23
|
|
|
| AD7476ARTZ-REEL7 |
6-Lead SOT-23
|
|
|
| AD7476BRTZ-R2 |
6-Lead SOT-23
|
|
|
| AD7476BRTZ-REEL7 |
6-Lead SOT-23
|
|
|
| AD7476SRTZ-500RL7 |
6-Lead SOT-23
|
|
|
| AD7476SRTZ-EP-RL7 |
6-Lead SOT-23
|
|
|
| AD7476SRTZ-R2 |
6-Lead SOT-23
|
|
|
| AD7476SRTZ-REEL |
6-Lead SOT-23
|
|
|
| AD7476SRTZ-REEL7 |
6-Lead SOT-23
|
|
- AD7476ARTZ-500RL7
- Pin/Package Drawing
-
6-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7476ARTZ-REEL7
- Pin/Package Drawing
-
6-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7476BRTZ-R2
- Pin/Package Drawing
-
6-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7476BRTZ-REEL7
- Pin/Package Drawing
-
6-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7476SRTZ-500RL7
- Pin/Package Drawing
-
6-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7476SRTZ-EP-RL7
- Pin/Package Drawing
-
6-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7476SRTZ-R2
- Pin/Package Drawing
-
6-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7476SRTZ-REEL
- Pin/Package Drawing
-
6-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7476SRTZ-REEL7
- Pin/Package Drawing
-
6-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 16, 2017
- 16_0291
CANCELLED: Addition of Amkor Philippines as Alternate Assembly Site for 5L, 6L and 8L SOT23 Chip-On-Lead Packages
AD7476ARTZ-500RL7
PRODUCTION
AD7476ARTZ-REEL7
PRODUCTION
AD7476BRTZ-R2
AD7476BRTZ-REEL7
PRODUCTION
AD7476SRTZ-500RL7
PRODUCTION
AD7476SRTZ-EP-RL7
PRODUCTION
AD7476SRTZ-R2
AD7476SRTZ-REEL
PRODUCTION
AD7476SRTZ-REEL7
PRODUCTION
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD7476ARTZ-500RL7
PRODUCTION
AD7476ARTZ-REEL7
PRODUCTION
AD7476BRTZ-R2
AD7476BRTZ-REEL7
PRODUCTION
AD7476SRTZ-500RL7
PRODUCTION
AD7476SRTZ-R2
Feb 4, 2010
- 10_0009
Halogen Free Material Change for SOT_23 Products
AD7476ARTZ-REEL7
PRODUCTION
AD7476BRTZ-REEL7
PRODUCTION
AD7476SRTZ-500RL7
PRODUCTION
AD7476SRTZ-REEL
PRODUCTION
AD7476SRTZ-REEL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 16, 2017
- 16_0291
CANCELLED: Addition of Amkor Philippines as Alternate Assembly Site for 5L, 6L and 8L SOT23 Chip-On-Lead Packages
AD7476ARTZ-500RL7
PRODUCTION
AD7476ARTZ-REEL7
PRODUCTION
AD7476BRTZ-R2
AD7476BRTZ-REEL7
PRODUCTION
AD7476SRTZ-500RL7
PRODUCTION
AD7476SRTZ-EP-RL7
PRODUCTION
AD7476SRTZ-R2
AD7476SRTZ-REEL
PRODUCTION
AD7476SRTZ-REEL7
PRODUCTION
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD7476ARTZ-500RL7
PRODUCTION
AD7476ARTZ-REEL7
PRODUCTION
AD7476BRTZ-R2
AD7476BRTZ-REEL7
PRODUCTION
AD7476SRTZ-500RL7
PRODUCTION
AD7476SRTZ-R2
Feb 4, 2010
- 10_0009
Halogen Free Material Change for SOT_23 Products
AD7476ARTZ-REEL7
PRODUCTION
AD7476BRTZ-REEL7
PRODUCTION
AD7476SRTZ-500RL7
PRODUCTION
AD7476SRTZ-REEL
PRODUCTION
AD7476SRTZ-REEL7
PRODUCTION
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
High Voltage Op Amps ≥12V2 |
||||
|
PRODUCTION |
Unity-Gain Stable, Ultralow Distortion, 1 nV/√Hz Voltage Noise, High Speed Op Amp |
|||
|
PRODUCTION |
Single, Low Cost, Precision JFET Input Operational Amplifier |
|||
|
Low Input Bias Current Op Amps (≤100 pA)1 |
||||
|
PRODUCTION |
36 V, 19 MHz, Low Noise, Low Bias Current, JFET Op Amp |
|||
|
Low Noise Op Amps (≤ 10nV/√Hz)2 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
1 nV/√Hz, Low Power, Rail-to-Rail Output Amplifiers |
|||
|
PRODUCTION |
Precision 20 MHz CMOS Single RRIO Operational Amplifier |
|||
|
Low Power Op Amps (≤ 1mA/amp) 1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
30 V, Low Noise, Rail-to-Rail Input/Output, Low Power Operational Dual Amplifier |
|||
|
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C)2 |
||||
|
PRODUCTION |
Low Power, Low Noise and Distortion, Rail-to-Rail Output Amplifier |
|||
|
PRODUCTION |
Low Noise, Precision CMOS Amplifier |
|||
|
Series Voltage References5 |
||||
|
PRODUCTION |
3.0V Precision Micropower, Low Dropout, Low Voltage Reference |
|||
|
PRODUCTION |
Ultra-Low-Noise, High-Accuracy 3.0V Voltage Reference |
|||
|
PRODUCTION |
5.0V Precision Micropower, Low Dropout, Low Voltage Reference |
|||
|
PRODUCTION |
Ultra-Low-Noise, High-Accuracy 5.0V Voltage Reference |
|||
|
PRODUCTION |
Ultralow Noise XFET® Voltage References with Current Sink and Source Capability |
|||
|
Shunt Voltage References1 |
||||
|
PRODUCTION |
2.5 V/3.0 V High Precision Reference |
|||
|
Standard Digital Isolators3 |
||||
|
PRODUCTION |
Triple-Channel Digital Isolators |
|||
|
PRODUCTION |
Triple-Channel Digital Isolator |
|||
|
PRODUCTION |
Triple-Channel, Digital Isolator, Enhanced System-Level ESD Reliability (2/1 channel directionality) |
|||
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1
EVAL-AD7476A
AD7476A Evaluation Board
Product Detail
The EVAL-AD7476ACBZ is a fully featured evaluation kit for the AD7476A. This board operates in stand alone mode or in conjunction with the Evaluation Controller board . When operated with the Evaluation Controller board, software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the Evaluation Controller board.
Evaluation Kits1
Tools & Simulations 1
IBIS Model 1
IBIS Model
