ADA4084-2
30 V, Low Noise, Rail-to-Rail Input/Output, Low Power Operational Dual Amplifier
Top
Overview
Features and Benefits
- Rail-to-rail input/output
- Low power: 0.625 mA typical per amplifier at ±15 V
- Gain bandwidth product: 15.9 MHz at AV = 100 typical
- Unity-gain crossover: 9.9 MHz typical
- −3 dB closed-loop bandwidth: 13.9 MHz typical at ±15 V
- Low offset voltage: 100 μV maximum (SOIC)
- Unity-gain stable
- High slew rate: 4.6 V/μs typical
- Low noise: 3.9 nV/√Hz typical at 1 kHz
- Long-term offset voltage drift (10,000 hours): 3 μV typical
- Temperature hysteresis: 4 μV typical
Product Details
The ADA4084-1 (single), ADA4084-2 (dual), and ADA4084-4 (quad) are single-supply, 10 MHz bandwidth amplifiers featuring rail-to-rail inputs and outputs. They are guaranteed to operate from +3 V to +30 V (or ±1.5 V to ±15 V).
These amplifiers are well suited for single-supply applications requiring both ac and precision dc performance. The combination of wide bandwidth, low noise, and precision makes the ADA4084-1/ADA4084-2/ADA4084-4 useful in a wide variety of applications, including filters and instrumentation.
Other applications for these amplifiers include portable telecommunications equipment, power supply control and protection, and use as amplifiers or buffers for transducers with wide output ranges. Sensors requiring a rail-to-rail input amplifier include Hall effect, piezoelectric, and resistive transducers.
The ability to swing rail to rail at both the input and output enables designers to build multistage filters in single-supply systems and to maintain high signal-to-noise ratios.
The ADA4084-1/ADA4084-2/ADA4084-4 are specified over the industrial temperature range of −40°C to +125°C.

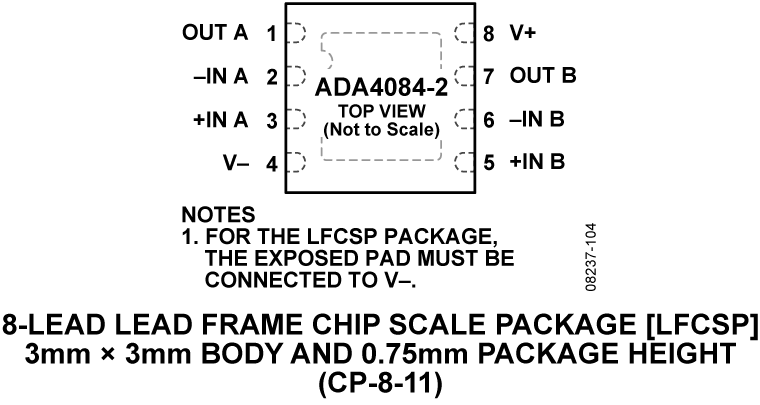

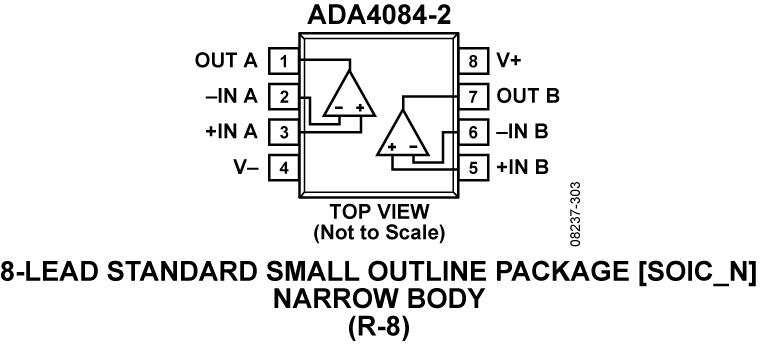

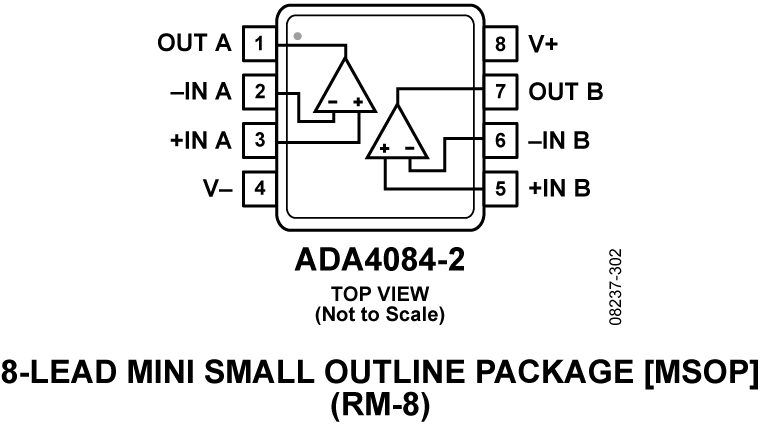

The single ADA4084-1 is available in the 5-lead SOT-23 and 8-lead SOIC; the dual ADA4084-2 is available in the 8-lead SOIC, 8-lead MSOP, and 8-lead LFCSP surface-mount packages; and the ADA4084-4 is offered in the 14-lead TSSOP and 16-lead LFCSP.
The ADA4084-1/ADA4084-2/ADA4084-4 are members of a growing series of high voltage, low noise op amps offered by Analog Devices, Inc.
Applications
- Battery-powered instrumentation
- High-side and low-side sensing
- Power supply control and protection
- Telecommunications
- Digital-to-analog converter (DAC) output amplifiers
- Analog-to-digital converter (ADC) input buffers
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
-
AN-1384: Modular Data Acquisition (DAQ) Footprint Using the AD7768/AD7768-4 (Rev. A)5/3/2019PDF500 K
-
AN-849: Using Op Amps as Comparators (Rev. A)2/14/2015PDF117 kB
-
MT-052: Op Amp Noise Figure: Don't Be Misled2/14/2015PDF60 kB
-
MT-048: Op Amp Noise Relationships: 1/f Noise, RMS Noise, and Equivalent Noise Bandwidth2/14/2015PDF81 kB
-
MT-047: Op Amp Noise2/14/2015PDF72 kB
-
MT-035: Op Amp Inputs, Outputs, Single-Supply, and Rail-to-Rail Issues2/14/2015PDF115 kB
-
MT-054: Precision Op Amps12/11/2008PDF57 kB
-
SAR ADC & Driver Quick-Match Guide9/13/2013PDF251 kB
-
Next-Generation SAR ADC Addresses Pain Points of Precision Data Acquisition Signal Chain Design12/1/2016 Analog Dialogue
-
FPGA-Based Systems Increase Motor-Control Performance3/1/2015 Analog Dialogue
Tools & Simulations
SPICE Models
Design Tools
Analog Filter Wizard
Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.
Analog Photodiode Wizard
Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADA4084-2ACPZ-R7 | Material Declaration | Reliability Data | 8-Lead LFCSP (3mm x 3mm w/ EP) | |
| ADA4084-2ACPZ-RL | Material Declaration | Reliability Data | 8-Lead LFCSP (3mm x 3mm w/ EP) | |
| ADA4084-2ARMZ | Material Declaration | Reliability Data | 8-Lead MSOP | |
| ADA4084-2ARMZ-R7 | Material Declaration | Reliability Data | 8-Lead MSOP | |
| ADA4084-2ARMZ-RL | Material Declaration | Reliability Data | 8-Lead MSOP | |
| ADA4084-2ARZ | Material Declaration | Reliability Data | 8-Lead SOIC | |
| ADA4084-2ARZ-R7 | Material Declaration | Reliability Data | 8-Lead SOIC | |
| ADA4084-2ARZ-RL | Material Declaration | Reliability Data | 8-Lead SOIC | |
| Wafer Fabrication Data |
