ADAQ23876

16-Bit, 15 MSPS, μModule Data Acquisition Solution

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 1
1ku List Price Starting From $34.83
Features
  • Integrated fully differential ADC driver with signal scaling
    • Wide input common-mode voltage range
    • High common-mode rejection
  • Single-ended to differential conversion
  • Pin selectable input range with over-range
    • Input Ranges with 4.096V REFBUF: ±10V, ±5V, ±4.096V, ±2.5V and ±1.5V
  • Gain/Attenuation Options: 0.37, 0.73, 0.87, 1.38 and 2.25
    • Critical passive components
    • 0.005% precision matched resistor array for FDA

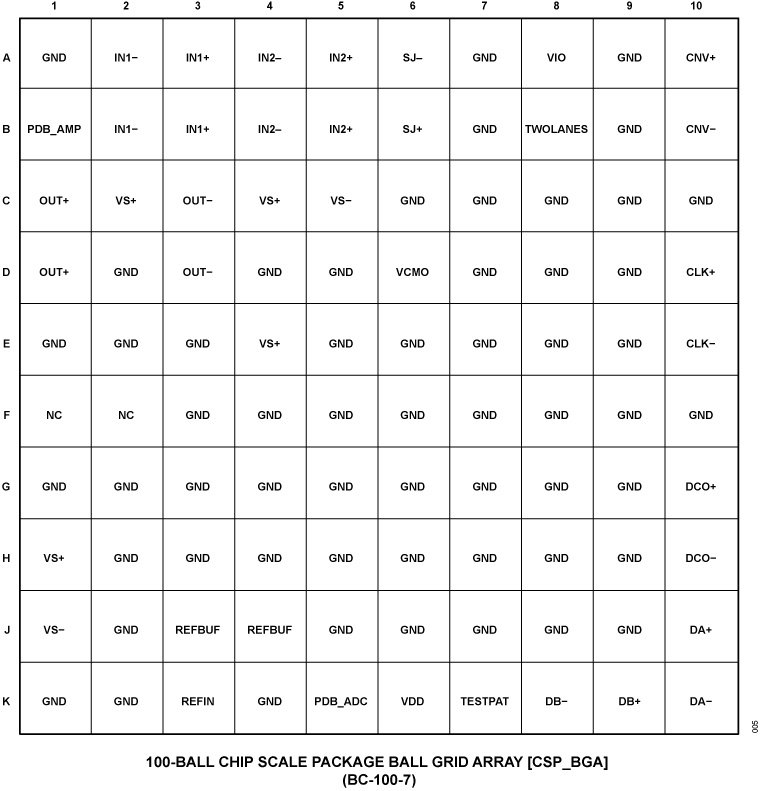

  • 9 mm × 9 mm, 0.8 mm pitch, 100-ball BGA package
    • 2.5× footprint reduction versus discrete solution
  • Low power, dynamic power scaling, power-down mode
    • 143 mW typical at 15 MSPS
  • Throughput: 15 MSPS, no pipeline delay
  • INL error: ±7.5 ppm typical, ±15 ppm maximum
    • (Gain = 0.73, gain = 0.87, gain = 1.38, gain = 2.25)
  • SINAD: 90 dB typical at 1 kHz (gain = 0.37 and gain = 0.73)
  • THD: −121 dB at 1 kHz, −112 dB at 100 kHz (gain = 0.73)
  • Gain error: ±0.005%FS typical
  • Gain error drift: ±0.11 ppm/°C typical
  • On-board reference buffer with VCMO generation
  • Serial LVDS interface
  • Wide operating temperature range: −40°C to +85°C
Additional Details
show more Icon

The ADAQ23876 is a precision, high speed, μModule® data acquisition solution that reduces the development cycle of a precision measurement systems by transferring the design burden of component selection, optimization, and layout from the designer to the device.

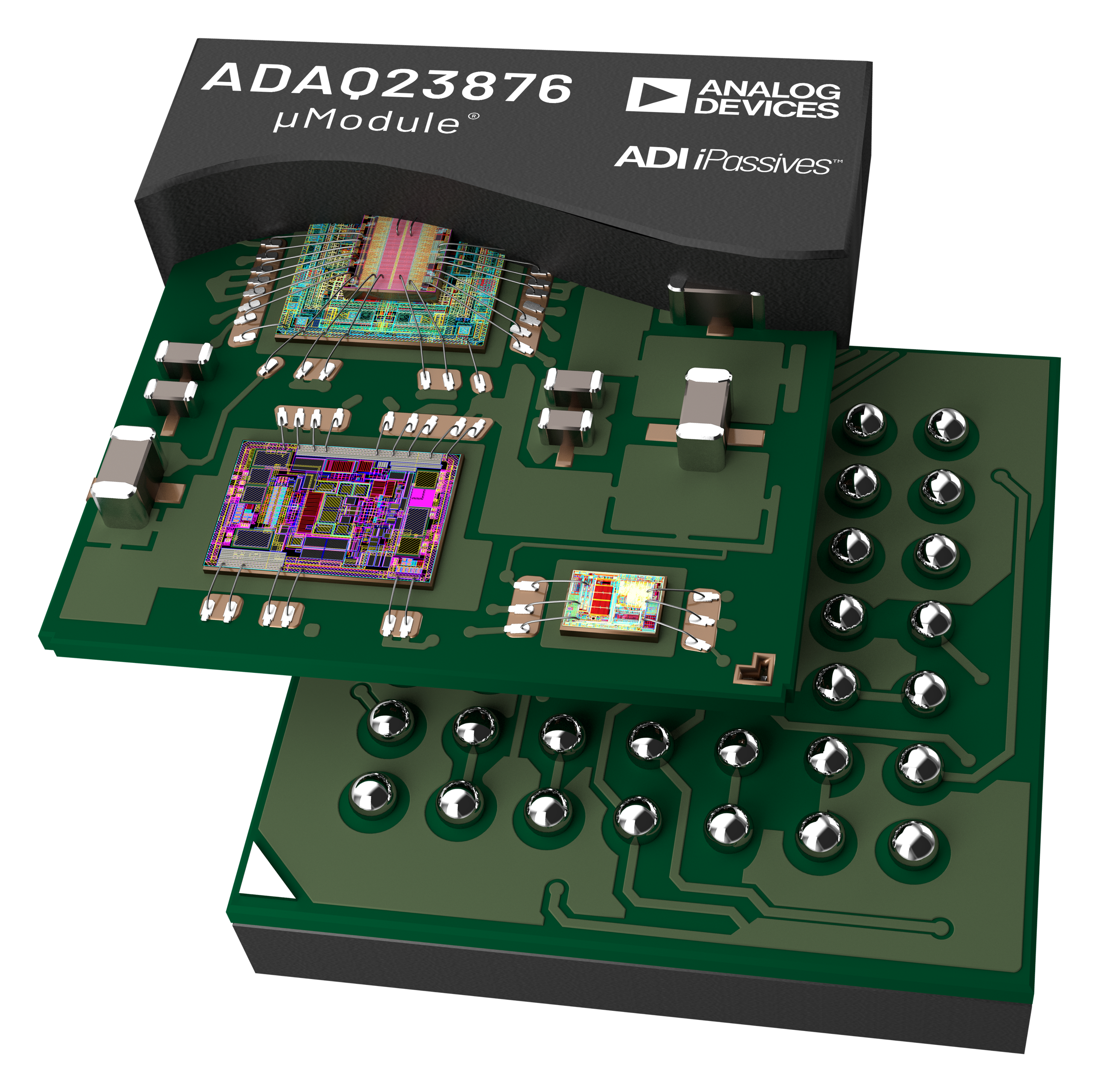

Using System-in-Package (SIP) technology, the ADAQ23876 reduces end system component count by combining multiple common signal processing and conditioning blocks in a single device, including a low noise, fully differential ADC driver (FDA), a stable reference buffer, and a high speed, 16-bit, 15 MSPS successive approximation register (SAR) ADC.

The ADAQ23876 also incorporates the critical passive components with superior matching and drift characteristics using Analog Devices, Inc., iPassive® technology to minimize temperature dependent error sources and to offer optimized performance. The fast settling of the ADC driver stage and no latency of the SAR ADC provide a unique solution for high channel count multiplexed signal chain architectures and control loop applications.

The small footprint, 9 mm × 9 mm BGA package enables smaller form factor instruments without sacrificing performance. The system integration solves many design challenges while the device still provides the flexibility of a configurable ADC driver feedback loop to allow gain or attenuation adjustments, as well as fully differential or single-ended to differential input. A single 5 V supply operation is possible while achieving optimum performance from the device.

The ADAQ23876 features a serial LVDS digital interface with one-lane or two-lane output modes, allowing the user to optimize the interface data rate for each application. The specified operation of the μModule is from −40°C to +85°C.

APPLICATIONS

  • Automatic test equipment
  • Data acquisition
  • Hardware in the Loop (HiL)
  • Power analyzers
  • Nondestructive test (acoustic emissions)
  • Mass spectrometry
  • Traveling wave fault location
  • Medical imaging and instruments
Part Models 1
1ku List Price Starting From $34.83

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADAQ23876BBCZ
  • HTML
  • HTML
Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-ADAQ23876

Evaluating the ADAQ23876 16-Bit, 15 MSPS, μModule Data Acquisition Solution

zoom

EVAL-ADAQ23876

Evaluating the ADAQ23876 16-Bit, 15 MSPS, μModule Data Acquisition Solution

Evaluating the ADAQ23876 16-Bit, 15 MSPS, μModule Data Acquisition Solution

Features and Benefits

  • ADAQ23876 15 MSPS, 16-bit μModule evaluation board
  • Versatile analog signal conditioning circuitry
  • On-board reference, LDO, and power supply circuits
  • PC software for control and data analysis of time and frequency domain
  • System demonstration platform-compatible (SDP-H1)

Product Detail

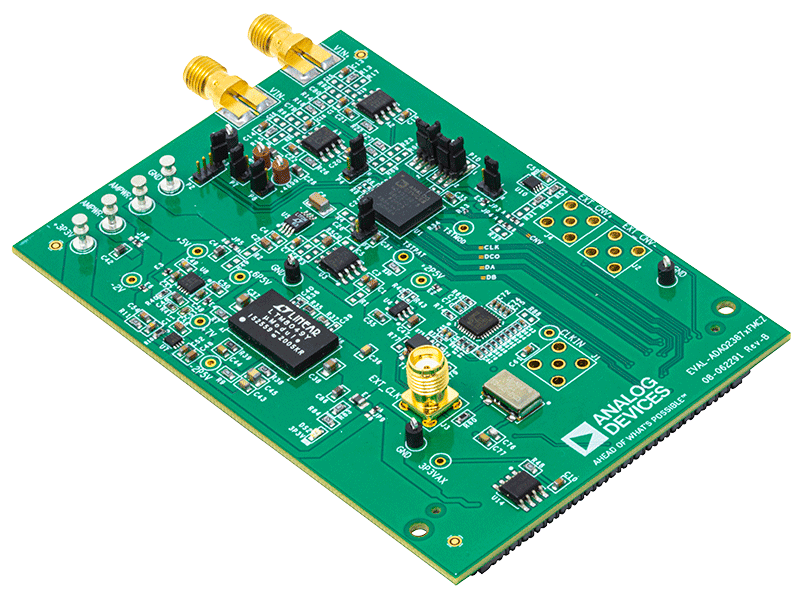

The EVAL-ADAQ23876FMCZ evaluation board (see Figure 1 in the user guide) enables simplified evaluation of the ADAQ23876 15 MSPS, 16-bit, high speed, precision μModule® data acquisition solutions. The EVAL-ADAQ23876FMCZ demonstrates the performance of the ADAQ23876 μModules, and is a versatile tool for a variety of applications.

The ADAQ23876 μModule combines multiple common signal processing and conditioning blocks into devices that include a low noise, fully differential analog-to-digital converter (ADC) driver, a stable reference buffer, high resolution, 16-bit, 15 MSPS successive approximation register (SAR) ADCs, and the critical passive components necessary for optimum performance.

The EVAL-ADAQ23876FMCZ interfaces with a high speed system demonstration platform (SDP), SDP-H1 (EVAL-SDP-CH1Z), via a 160-pin connector, as shown in Figure 2 in the user guide.

For full details on the ADAQ23876 see the ADAQ23876 data sheet, which must be consulted in conjunction with the user guide when using the EVAL-ADAQ23876FMCZ.

Tools & Simulations

Tools & Simulations 4

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Reference Designs

Reference Designs 2

Figure 1. Simplified Block Diagram

Precision Low Latency Development Kit

zoomopens a dialog

CN0584

Precision Low Latency Development Kit

CN0584

Circuits from the lab

tooltip Info:Circuits from the lab
Precision Low Latency Development Kit

Features and Benefits

  • 4 Analog Input Channels with Configurable Voltage Ranges
  • 4 Analog Output Channels with Configurable Voltage Ranges
  • 250 ns Latency between ADC Measurement and DAC Settling
  • Analog Front End Board Modeling and Simulation Compatible with MATLAB and Python in Rx or Tx Paths
  • All Power and Digital Connections provided by the Interface Connector
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

20.98 M

Figure 1. CN0585 Simplified Block Diagram

Quad Channel, Low Latency, Data Acquisition and Signal Generation Module

zoomopens a dialog

CN0585

Quad Channel, Low Latency, Data Acquisition and Signal Generation Module

CN0585

Circuits from the lab

tooltip Info:Circuits from the lab
Quad Channel, Low Latency, Data Acquisition and Signal Generation Module

Features and Benefits

  • 4 Analog Input Channels with Configurable Voltage Ranges
  • 4 Analog Output Channels with Configurable Voltage Ranges
  • 200 ns Latency between ADC Measurement and DAC Settling
  • Analog Front End Interface Connector
  • Modeling and Simulation Compatible with MATLAB and Python
  • FMC Connector Interface to FPGA
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

32.13 M
