AD7177-2
32-Bit, 10 kSPS, Sigma-Delta ADC with 100 µs Settling and True Rail-to-Rail Buffers
Show More
Not the part you were looking for?
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 32-bit data output
- Fast and flexible output rate: 5 SPS to 10 kSPS
- Channel scan data rate of 10 kSPS/channel (100 µs settling)
- Performance specifications
- 19.1 noise free bits at 10 kSPS
- 20.2 noise free bits at 2.5 kSPS
- 24.6 noise free bits at 5 SPS
- INL: ±1 ppm of FSR
- 85 dB filter rejection of 50 Hz and 60 Hz with 50 ms settling
- User configurable input channels
- 2 fully differential channels or 4 single-ended channels
- Crosspoint multiplexer
- On-chip 2.5 V reference (±2 ppm/°C drift)
- True rail-to-rail analog and reference input buffers
- Internal or external clock
- See data sheet for additional features
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

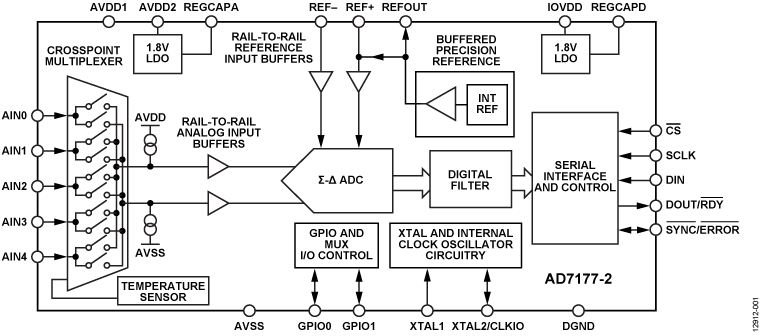

The AD7177-2 is a 32-bit low noise, fast settling, multiplexed, 2-/4-channel (fully/pseudo differential) Σ-Δ analog-to-digital converter (ADC) for low bandwidth inputs. It has a maximum channel scan rate of 10 kSPS (100 µs) for fully settled data. The output data rates range from 5 SPS to 10 kSPS.
The AD7177-2 integrates key analog and digital signal conditioning blocks to allow users to configure an individual setup for each analog input channel in use. Each feature can be user selected on a per channel basis. Integrated true rail-to-rail buffers on the analog inputs and external reference inputs provide easy to drive high impedance inputs. The precision 2.5 V low drift (2 ppm/°C) band gap internal reference (with output reference buffer) adds embedded functionality to reduce external component count.
The digital filter allows simultaneous 50 Hz and 60 Hz rejection at a 27.27 SPS output data rate. The user can switch between different filter options according to the demands of each channel in the application. The ADC automatically switches through each selected channel. Further digital processing functions include offset and gain calibration registers, configurable on a per channel basis.

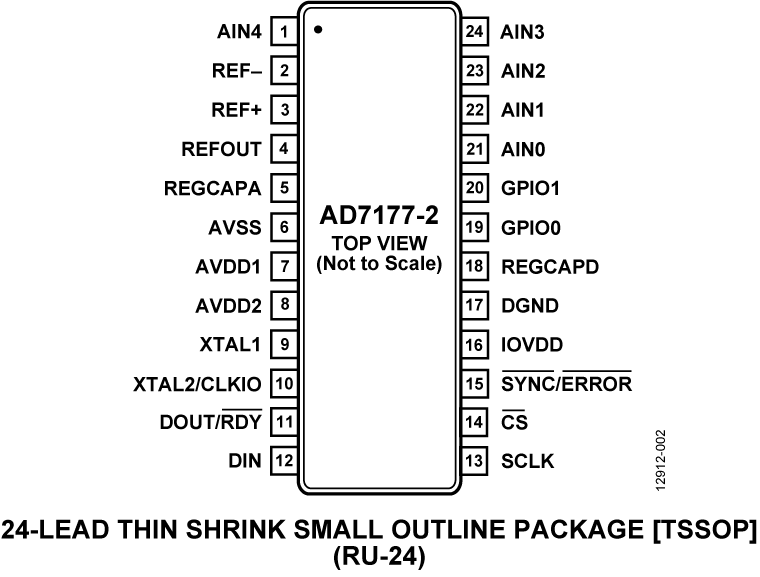

The device operates with a 5 V AVDD1 supply, or with ±2.5 V AVDD1/AVSS, and 2 V to 5 V AVDD2 and IOVDD supplies. The specified operating temperature range is −40°C to +105°C. The AD7177-2 is available in a 24-lead TSSOP package.
Applications
- Process control: PLC/DCS modules
- Temperature and pressure measurement
- Medical and scientific multichannel instrumentation
- Chromatography
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD7177-2
Documentation
Filters
1 Applied
-
All
-
Informational
-
Data Sheet
-
User Guide
-
Application Note
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
2
Informational
1
HTML
User Guide
1
Application Note
3
HTML
HTML
HTML
Documentation
Data Sheet 1
User Guide 1
Application Note 1
Informational 1
Circuit Note 2
Tutorial 2
Technical Book 1
Device Drivers 2
Analog Dialogue 1
Rarely Asked Question Page 1
Webcast 1
Video
5
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD7177-2BRUZ |
24-Lead TSSOP
|
|
|
| AD7177-2BRUZ-RL7 |
24-Lead TSSOP
|
|
- AD7177-2BRUZ
- Pin/Package Drawing
-
24-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7177-2BRUZ-RL7
- Pin/Package Drawing
-
24-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 16, 2016
- 16_0009
Change of MSL Rating for AD7172-2, AD7175-2, AD7176-2 & AD7177-2 TSSOP Devices
AD7177-2BRUZ
PRODUCTION
AD7177-2BRUZ-RL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 16, 2016
- 16_0009
Change of MSL Rating for AD7172-2, AD7175-2, AD7176-2 & AD7177-2 TSSOP Devices
Software & Part Ecosystem
Device Drivers
Mbed Support
Mbed is an open source, development environment for ARM microcontrollers.
Looking for Evaluation Software? You can find it here
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Dual-Supply Analog Switches and Multiplexers2 |
||||
|
PRODUCTION |
4 Ω Ron, 4-Channel ±15 V/+12 V/±5 V iCMOS Multiplexer |
|||
|
PRODUCTION |
1.8 Ω Maximum On Resistance, ±15 V/12 V/±5 V, 4:1, iCMOS Multiplexer |
|||
|
Low Power Op Amps (≤ 1mA/amp) 1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Dual 55V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifiers |
|||
|
Negative Linear Regulators (LDO)1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
–28 V, −200 mA, Low Noise, Linear Regulator |
|||
|
Positive Linear Regulators (LDO)1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator |
|||
|
Series Voltage References2 |
||||
|
PRODUCTION |
Ultralow Noise, LDO XFET® 5.0V Voltage Reference w/Current Sink and Source |
|||
|
RECOMMENDED FOR NEW DESIGNS |
Ultra-Low-Noise, High-Accuracy 5.0V Voltage Reference |
|||
|
Standard Digital Isolators4 |
||||
|
PRODUCTION |
Quad-Channel, Digital Isolator, Enhanced System-Level ESD Reliability |
|||
|
PRODUCTION |
Quad-Channel Digital Isolator (3/1 Channel Directionality) |
|||
|
PRODUCTION |
Small, 3.75 kV RMS Quad Digital Isolators (3/1 Channel Directionality) |
|||
|
PRODUCTION |
5 kV RMS Quad-Channel Digital Isolators |
|||
|
Unregulated Doubling/Inverting Charge Pumps1 |
||||
|
PRODUCTION |
CMOS Switched-Capacitor Voltage Converter |
|||
|
Zero-Drift Op Amps1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Precision, Ultralow Noise, RRIO, Zero-Drift Dual Op Amp |
|||
| Parts | Product Life Cycle | Description |
|---|---|---|
|
RECOMMENDED FOR NEW DESIGNS |
Low Power, with 4- or 8-channel, 24-bit, 31.25 kSPS, Sigma-Delta ADC with True Rail-to-Rail Buffers |
|
|
RECOMMENDED FOR NEW DESIGNS |
Low Power, 24-Bit, 31.25 kSPS, Sigma-Delta ADC with True Rail-to-Rail Buffers |
|
|
RECOMMENDED FOR NEW DESIGNS |
Low Power, 8-/16-Channel, 31.25 kSPS, 24-Bit, Highly Integrated Sigma-Delta ADC |
|
|
RECOMMENDED FOR NEW DESIGNS |
24-Bit, 250 kSPS, Sigma-Delta ADC with 20 µs Settling and True Rail-to-Rail Buffers |
|
|
RECOMMENDED FOR NEW DESIGNS |
24-Bit, 250 kSPS Sigma Delta ADC with 20 µs Settling |
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1
EVAL-AD7177-2
AD7177-2 Evaluation Board
Product Detail
The EVAL-AD7177-2SDZ evaluation kit features the AD7177-2, a 32-bit, 10 kSPS analog-to-digital converter (ADC) with integrated rail-to rail-analog input buffers, on-board power supply regulation, and an external amplifier section for amplifier evaluation. A 7 V to 9 V ac-to-dc adapter is regulated to 5 V and 3.3 V, which supply the AD7177-2 and support components.
The EVAL-AD7177-2SDZ evaluation board connectsto the USB port of a PC via the EVAL-SDP-CB1Z SDP controller board.
The AD7177-2 evaluation software fully configures the AD7177-2 device functionality via a user accessible register interface and provides dc time domain analysis in the form of waveform graphs, histograms, and associated noise analysis for ADC performance evaluation.
Full specifications for the AD7177-2 are available in the product data sheet, which should be consulted in conjunction with this user guide UG-849 when using the evaluation board.
