ADUM3151

3.75 kV, 7-Channel, SPIsolator Digital Isolators for SPI (with 2/1 Aux channel directionality)

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $2.54
Features
  • Supports up to 17 MHz SPI clock speed
  • 4 high speed, low propagation delay, SPI signal isolation channels
  • Three 250 kbps data channels

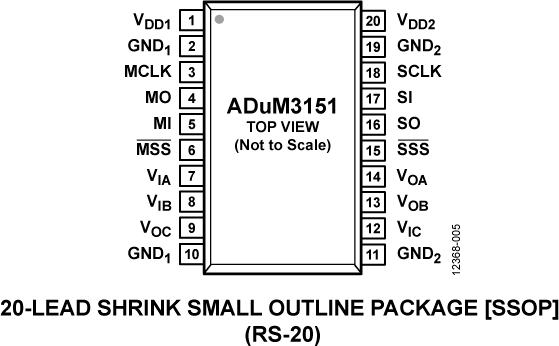

  • 20-lead SSOP package with 5.1 mm creepage
  • High temperature operation: 125°C
  • High common-mode transient immunity: >25 kV/μs
  • Safety and regulatory approvals
    • UL recognition per UL 1577
      • 3750 V rms for 1 minute
    • CSA Component Acceptance Notice 5A
    • VDE certificate of conformity
      • DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
      • VIORM = 565 V peak
Additional Details
show more Icon

The ADuM3151/ADuM3152/ADuM3153 are 7-channel, SPIsolator digital isolators optimized for isolated serial peripheral interfaces (SPIs). Based on the Analog Devices, Inc., iCoupler® chip scale transformer technology, the low propagation delay in the CLK, MO/SI, MI/SO, and SS SPI bus signals supports SPI clock rates of up to 17 MHz. These channels operate with 14 ns propagation delay and 1 ns jitter to optimize timing for SPI.

The ADuM3151/ADuM3152/ADuM3153 isolators also provide three additional independent low data rate isolation channels in three different channel direction combinations. Data in the slow channels is sampled and serialized for a 250 kbps data rate with up to 2.5 μs of jitter in the low speed channels.

Applications

  • Industrial programmable logic controllers (PLCs)
  • Sensor isolation



Part Models 4
1ku List Price Starting From $2.54

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADUM3151ARSZ
  • HTML
  • HTML
ADUM3151ARSZ-RL7
  • HTML
  • HTML
ADUM3151BRSZ
  • HTML
  • HTML
ADUM3151BRSZ-RL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 27, 2015

- 15_0031

ADuM315x Data Sheet Changes

ADUM3151ARSZ

PRODUCTION

ADUM3151ARSZ-RL7

PRODUCTION

ADUM3151BRSZ

PRODUCTION

ADUM3151BRSZ-RL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 27, 2015

- 15_0031

arrow down

ADuM315x Data Sheet Changes

ADUM3151ARSZ

PRODUCTION

ADUM3151ARSZ-RL7

PRODUCTION

ADUM3151BRSZ

PRODUCTION

ADUM3151BRSZ-RL7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-ADUM3151

ADuM3151 / ADuM3152 / ADuM3153 / ADuM4151 / ADuM4152 / ADuM4153 Evaluation Board

zoom

EVAL-ADUM3151

ADuM3151 / ADuM3152 / ADuM3153 / ADuM4151 / ADuM4152 / ADuM4153 Evaluation Board

ADuM3151 / ADuM3152 / ADuM3153 / ADuM4151 / ADuM4152 / ADuM4153 Evaluation Board

Features and Benefits

  • Access to all seven data channels
  • Multiple connection options
  • Support for Tektronix active probes
  • Provision for cable terminations
  • Support for PCB edge-mounted coaxial connectors
  • Easy configuration
  • Installed SPIsolator® digital isolator: ADuM3151BRSZ in the 20-lead SSOP package

Product Detail

The EVAL-ADuM3151Z supports the parts listed in the supported models section, which are, 7-channel, data direction variants of SPIsolator® isolators optimized for use in SPI applications. They include three low speed channels for axillary functions, which are not timing critical. The evaluation board provides a JEDEC standard 20-lead SSOP pad layout, support for signal distribution, loopback, and loads referenced to VDDx or GNDx, as well as optimal bypass capacitance. Signal sources can be wired onto the board as well as brought onto the board through edge-mounted SMA connectors (sold separately) or terminal blocks for power connections. The board includes 200 mil header positions for compatibility with Tektronix active probes.

The board follows best printed circuit board (PCB) design practices for 4-layer boards, including a full power and ground plane on each side of the isolation barrier. No other EMI or noise mitigation design features are included on this board. In cases of very high speed operation or when ultralow emissions are required, refer to the AN-1109 application note for additional board layout techniques.

Supported SPIsolator Models
  • ADuM3151ARSZ
  • ADuM3151BRSZ
  • ADuM3152ARSZ
  • ADuM3152BRSZ
  • ADuM3153ARSZ
  • ADuM3153BRSZ
  • ADuM4151ARIZ
  • ADuM4151BRIZ
  • ADuM4152ARIZ
  • ADuM4152BRIZ
  • ADuM4153ARIZ
  • ADuM4153BRIZ

Reference Designs

Reference Designs 5

Figure 1. CN0565 Simplified Block Diagram

Electrical Impedance Tomography Measurement System

zoomopens a dialog

CN0565

Electrical Impedance Tomography Measurement System

CN0565

Circuits from the lab

tooltip Info:Circuits from the lab
Electrical Impedance Tomography Measurement System

Features and Benefits

  • Up to 24 Input Electrodes, Software Selectable
  • 2-wire or 4-wire Electrode Configuration Supported
  • Real and Imaginary Measurements up to 200 kHz
  • Open Source Image Recreation Algorithms
  • Isolated Power and Digital Domains from the Host
  • Arduino Form Factor Compatible
View Detailed Reference Design external link
PLC/DCS Quad-Channel Voltage and Current Input Front End

Quad Channel Analog Input with Open Wire Detection and HART Compatibility for PLC/DCS Applications

zoomopens a dialog

CN0414

Quad Channel Analog Input with Open Wire Detection and HART Compatibility for PLC/DCS Applications

CN0414

Circuits from the lab

tooltip Info:Circuits from the lab
Quad Channel Analog Input with Open Wire Detection and HART Compatibility for PLC/DCS Applications

Features and Benefits

  • 4-Channels
  • +/- 10V , 4-20mA inputs
  • HART Compatible
  • Integrated Open Wire Detection
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

undefined

undefined

4-Channel Multiplexed HART Analog Output Circuit

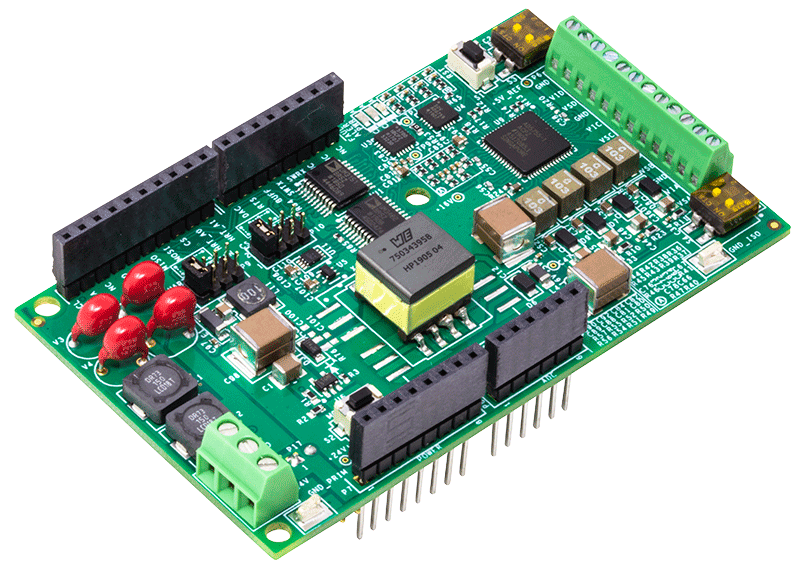

Completely Isolated 4-Channel Analog Output Circuit for PLC/DCS Systems with HART

zoomopens a dialog

CN0418

Completely Isolated 4-Channel Analog Output Circuit for PLC/DCS Systems with HART

CN0418

Circuits from the lab

tooltip Info:Circuits from the lab
Completely Isolated 4-Channel Analog Output Circuit for PLC/DCS Systems with HART

Features and Benefits

  • 4-Channels
  • +/- 10V , 4-20mA outputs
  • HART Compatible
  • Dynamic Power Control
  • Digital Slew Rate Limiting
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

2.95 M

PLC/DCS Quad Channel Voltage and Current Input Front End

PLC/DCS Quad Channel Voltage and Current Input with HART Compatibility

zoomopens a dialog

cn0364

PLC/DCS Quad Channel Voltage and Current Input with HART Compatibility

cn0364

Circuits from the lab

tooltip Info:Circuits from the lab
PLC/DCS Quad Channel Voltage and Current Input with HART Compatibility

Features and Benefits

  • Quad Channel Voltage and Current Inputs
  • Fully Isolated
  • HART Compatibility
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

1.87 M

Femtoampere Measurement System Functional Diagram

Ultrahigh Sensitivity Femtoampere Measurement Platform

zoomopens a dialog

CN0407

Ultrahigh Sensitivity Femtoampere Measurement Platform

CN0407

Circuits from the lab

tooltip Info:Circuits from the lab
Ultrahigh Sensitivity Femtoampere Measurement Platform

Features and Benefits

  • Femtoampere measurements
  • Electrometer grade input amplifier
  • 20fA maximum input bias current @ 85°C
  • 24-bit sigma delta ADC
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

1.96 M
