ADUM5211

PRODUCTION

Dual-Channel Isolators with Integrated DC-to-DC Converter (1/1 Channel Directionality)

Data Sheet (Rev. E) Product Selection Table

Part Models: 6
1ku List Price: Starting From $3.23

Viewing:

Part Details

isoPower integrated, isolated dc-to-dc converter
Regulated 3.15 V to 5.25 V output
Up to 150 mW output power
Dual dc-to-100 Mbps (NRZ) signal isolation channels
Soft start power supply

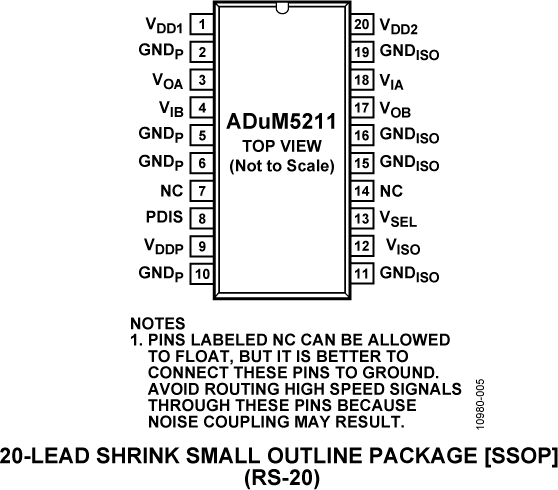

20-lead SSOP package with 5.3 mm creepage
Supports SPI up to 15 MHz
High temperature operation: 105°C

High common-mode transient immunity: >25 kV/μs
Safety and regulatory approvals

UL 1577
- V_ISO = 2500 V rms for 1 minute
IEC/CSA 62368-1
IEC/CSA 61010-1
CQC GB 4943.1
DIN EN IEC 60747-17 (VDE 0884-17) (pending)
- V_IORM = 560 V peak

Part Models: 6
1ku List Price: Starting From $3.23

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADUM5211ARSZ	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5211ARSZ-RL7	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5211BRSZ	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5211BRSZ-RL7	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5211CRSZ	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5211CRSZ-RL7	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Jul 18, 2019 - 19_0011 ADuM5210/ADuM5211/ADuM5212 Die Revision and Data Sheet Change
		PCN19_0011_Form Material_Report Datasheet Specification Comparison Qualification Results Summary
ADUM5211ARSZ	PRODUCTION
ADUM5211ARSZ-RL7	PRODUCTION
ADUM5211BRSZ	PRODUCTION
ADUM5211BRSZ-RL7	PRODUCTION
ADUM5211CRSZ	PRODUCTION
ADUM5211CRSZ-RL7	PRODUCTION
Oct 31, 2016 - 16_0250 ADuM5210/ADuM5211/ADuM5212 Die Revision
		PCN16_0250_Form Material_Report Qualification Results Summary
ADUM5211ARSZ	PRODUCTION
ADUM5211ARSZ-RL7	PRODUCTION
ADUM5211BRSZ	PRODUCTION
ADUM5211BRSZ-RL7	PRODUCTION
ADUM5211CRSZ	PRODUCTION
ADUM5211CRSZ-RL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

ADuM5211 IBIS Models 1

ADuM5211 3V/5V

Evaluation Kits

ADuM5211 Evaluation Board

Buy Now View Details

Features and Benefits

isoPower integrated, isolated dc-to-dc converter
Regulated 3.15 V or 5.25 V output
Up to 150 mW output power
20-lead SSOP package with 5 mm creepage
High temperature operation: 105°C
High common-mode transient immunity: >25 kV/μs

Product Details

The EVAL-ADuM5211EBZ supports the ADuM5210 / ADuM5211 / ADuM5212 and ADuM6210 / ADuM6211 / ADuM6212 150 mW isolated power modules. It provides a JEDEC standard SSOP20 pad layout as well as support for setting the desired output voltage, setting enable control and providing multiple positions for on-board loads and bypass capacitors.

isoPower devices employ high frequency, high power switching circuits to enable power transfer across chip scale, air core transformers. The evaluation board includes EMI mitigation recommendations from the AN-0971 Application Note. With the included techniques, this PCB and power module is capable of meeting the requirements of CISPER22 Class A or Class B depending on the voltage and load range.

Complete specifications for the ADuM5210 / ADuM5211/ ADuM5212 and ADuM6210 / ADuM6211 / ADuM6212 are provided in the ADuM5210 / ADuM5211 / ADuM5212 and ADuM6210 / ADuM6211 / ADuM6212 data sheets, available from Analog Devices, Inc., and should be consulted in conjunction with this user guide when using the evaluation board.
