ADA4522-2

Dual 55V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifiers

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.G)
Documentation View All Documentation
SPICE Model ADA4522-1/ADA4522-2/ADA4522-4 SPICE Macro Model Download 3.21 KB LTspice ADA4522-2 - Operational Amplifiers (Op Amps) Download 1.42 KB
Part Models 7
1ku List Price Starting From $1.87
Features
  • Low offset voltage: 5 μV maximum
  • Extremely low offset voltage drift: 22 nV/°C maximum
  • Low voltage noise density:
    • 5.8 nV/√Hz typical
    • 117 nV p-p typical from 0.1 Hz to 10 Hz
  • Low input bias current: 50 pA typical
  • Unity-gain crossover: 3 MHz typical
  • Single-supply operation: input voltage range includes ground and rail-to-rail output
  • Wide range of operating voltages
    • Single-supply operation: 4.5 V to 55 V
    • Dual-supply operation: ±2.25 V to ±27.5 V
  • Integrated EMI filters
  • Unity-gain stable
Additional Details
show more Icon

The ADA4522-1 / ADA4522-2 / ADA4522-4 are single/dual/quad channel, zero drift op amps with low noise and power, ground sensing inputs, and rail-to-rail output, optimized for total accuracy over time, temperature, and voltage conditions. The wide operating voltage and temperature ranges, as well as the high open-loop gain and very low dc and ac errors make the devices well suited for amplifying very small input signals and for accurately reproducing larger signals in a wide variety of applications.

The ADA4522-1 / ADA4522-2 / ADA4522-4 performance is specified at 5.0 V, 30 V, and 55 V power supply voltages. These devices operate over the range of 4.5 V to 55 V, and are excellent for applications using single-ended supplies of 5 V, 10 V, 12 V, and 30 V, or for applications using higher single supplies and dual supplies of ±2.5 V, ±5 V, and ±15 V. The ADA4522-1 /  ADA4522-2 / ADA4522-4 use on-chip filtering to achieve high immunity to electromagnetic interference (EMI).

The ADA4522-1 / ADA4522-2 / ADA4522-4 are fully specified over the extended industrial temperature range of −40°C to +125°C and are available in 8-lead MSOP, 8-lead SOIC, 14-lead SOIC, and 14-lead TSSOP packages.

APPLICATIONS

  • Inductance, capacitance, and resistance (LCR) meter/megohmmeter front-end amplifiers
  • Load cell and bridge transducers
  • Magnetic force balance scales
  • High precision shunt current sensing
  • Thermocouple/resistance temperature detector (RTD) sensors
  • Programmable logic controller (PLC) input and output amplifiers
Show More Arrow image
file View Data Sheet (Rev.G)
Documentation View All Documentation
SPICE Model ADA4522-1/ADA4522-2/ADA4522-4 SPICE Macro Model Download 3.21 KB LTspice ADA4522-2 - Operational Amplifiers (Op Amps) Download 1.42 KB
Part Models 7
1ku List Price Starting From $1.87
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADA4522-2

Documentation

9
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Technical Articles
  • Data Sheet
  • Application Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

4

PDF Vector

PDF

UPDATED 10/29/2015
English

ADA4522-1/ADA4522-2/ADA4522-4: 55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifiers Data Sheet (Rev.G)

Open PDF File

redirect
5.02 M
download

Download PDF

PDF Vector

PDF

UPDATED 05/01/2015
Japanese

ADA4522-1/ADA4522-2/ADA4522-4: 55 V 電源、EMI 強化、ゼロ・ドリフト、超低ノイズ、レール TO レール出力オペアンプ データシート (Rev.E)

Open PDF File

redirect
145.02 K
download

Download PDF

PDF Vector

PDF

UPDATED 10/16/2019
English

ADA4522-2-KGD: Known Good Die Datasheet (Rev.0)

Open PDF File

redirect
234.43 K
download

Download PDF

PDF Vector

PDF

UPDATED 10/16/2019
Japanese

ADA4522-2-KGD: Known Good Die データシート (Rev.0)

Open PDF File

redirect
234.43 K
download

Download PDF

Technical Articles

2

PDF Vector

pdf

UPDATED 11/01/2010
English
MS-2066: Low Noise Signal Conditioning for Sensor-Based Circuits redirect icon

425 kB

download

Download PDF

PDF Vector

PDF

UPDATED 11/01/2010
Chinese
MS-2066：传感器电路的低噪声信号调理 redirect icon

1.12 M

download

Download PDF

Application Note

3

PDF Vector

HTML

UPDATED 07/24/2020
English
Low Noise Amplifier Selection Guide for Optimal Noise Performance redirect icon

PDF Vector

HTML

UPDATED 07/24/2020
Chinese
最佳噪声性能：低噪声放大器选型指南 redirect icon

PDF Vector

HTML

UPDATED 07/24/2020
Japanese
AN-940: 最適ノイズ性能を得るための低ノイズ・アンプ選択の手引き redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Tutorial 2

MT-054: Precision Op Amps
MT-052: Op Amp Noise Figure: Don't Be Misled

Analog Dialogue 3

Understanding and Eliminating 1/f Noise
How to Use Zero-Drift Amplifiers in Wider Bandwidth Applications
Zero-Drift Amplifiers: Now Easy to Use in High Precision Circuits

Webcast 3

Noise Optimization in Sensor Signal Conditioning Circuits (Part II)
Noise Optimization in Sensor Signal Conditioning Circuits (Part I)
Designing High Reliability Components in Airborne Systems

Video

1

Thumbnail Image

Video

2022-03-23

02:09

Precision Narrow Bandwidth Signal Chain Solutions

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADA4522-2-KGD-WP CHIPS OR DIE
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4522-2ARMZ 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4522-2ARMZ-R7 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4522-2ARMZ-RL 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4522-2ARZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4522-2ARZ-R7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4522-2ARZ-RL 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 20, 2020

- 18_0171

ADA4522 Die Revision

ADA4522-2ARMZ

PRODUCTION

ADA4522-2ARMZ-R7

PRODUCTION

ADA4522-2ARMZ-RL

PRODUCTION

ADA4522-2ARZ

PRODUCTION

ADA4522-2ARZ-R7

PRODUCTION

ADA4522-2ARZ-RL

PRODUCTION

pdf

PCN18_0171_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 20, 2020

- 18_0171

arrow down

ADA4522 Die Revision

ADA4522-2ARMZ

PRODUCTION

ADA4522-2ARMZ-R7

PRODUCTION

ADA4522-2ARMZ-RL

PRODUCTION

ADA4522-2ARZ

PRODUCTION

ADA4522-2ARZ-R7

PRODUCTION

ADA4522-2ARZ-RL

PRODUCTION

pdf

PCN18_0171_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

Evaluation Kits 3

reference details image

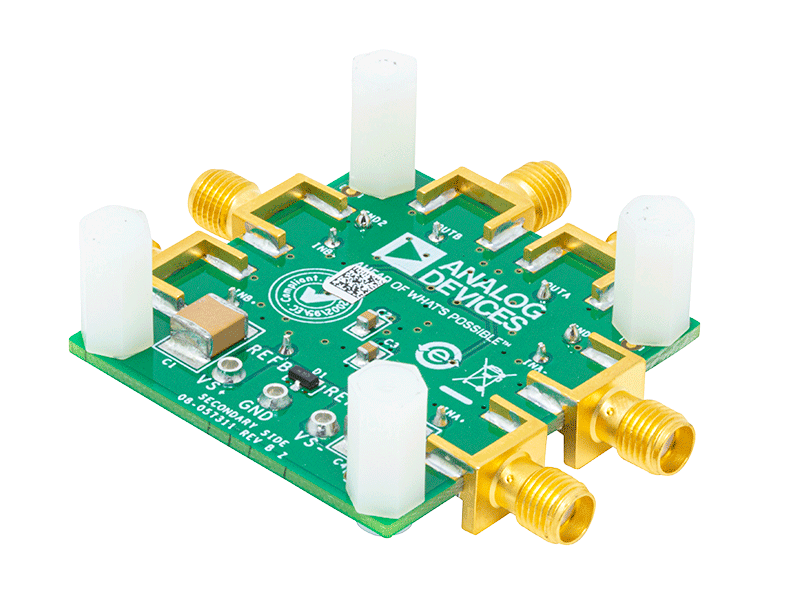

EVAL-ADA4522

ADA4522 Evaluation Board

zoom

EVAL-ADA4522

ADA4522 Evaluation Board

download icon

Download

 print icon

Print
EVAL-ADA4522
ADA4522 Evaluation Board

Features and Benefits

  • Full featured evaluation board for the ADA4522-2
  • Enables efficient prototyping
  • User defined circuit configuration
  • Edge mounted SMA connector provisions
Buy Now View Details

Product Detail

The EVAL-ADA4522-2ARMZ allows the evaluation of the ADA4522-2, 8-lead, dual-channel, mini small outline package (MSOP) operational amplifier (op amp). Both channels of the ADA4522-2 in this evaluation board are configured in a noninverting amplifier with a gain of 101. The output has a low-pass filter with a cutoff frequency of approximately 117 kHz that minimizes the artifacts introduced by the 800 kHz chopping frequency of the ADA4522-2.

The flexible design of the evaluation board allows the user to create a multitude of configurations such as inverting and noninverting amplifier, difference amplifier, and second-order Sallen-Key filters. In addition, a combination of test points and edge mounted Subminiature Version A (SMA) connectors are used for the inputs and outputs for ease of use.

The evaluation board mainly consists of 0805 sized resistors and capacitors to ensure easy installation by the user, besides the bypass capacitors, C1 and C4. The 10 µF bypass capacitors (C1 and C4) have a package size of 2220 to accommodate a higher voltage rating because the ADA4522-2 has a maximum supply of 55 V.

For full details on the ADA4522-2, see the ADA4522-1/ ADA4522-2/ADA4522-4 data sheet, which must be consulted in conjunction with this user guide when using the EVAL-ADA4522-2ARMZ.

Resources

pdf icon

PDF

UG-1749: Evaluation Board User Guide for the ADA4522-2 55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifier Download

329.46 K

Show More Arrow image
reference details image

DC2677A

LTC2358-18, LT6658, ADA4522-2 Industrial Data Acquisition Nonisolated Board

zoom

DC2677A

LTC2358-18, LT6658, ADA4522-2 Industrial Data Acquisition Nonisolated Board

download icon

Download

 print icon

Print
DC2677A
LTC2358-18, LT6658, ADA4522-2 Industrial Data Acquisition Nonisolated Board
Buy Now View Details

Product Detail

Demonstration circuit 2677A is a reference design for robust industrial data acquisition applications for the LTC®2358-18. The LTC2358-18 is capable of high voltage measurements with a large input common range; however, the DC2677A implements input protection that allows up to 400V of continuous input protection. Combined with gas discharge tubes, which provide protection from surges, the DC2677A is capable of surviving extreme abuse.

This reference design includes the LTC2358-18 SAR ADC, ADA4522-2 dual zero-drift operational amplifier, and an LT6658 dual-output, high current reference for sensor excitation.

The digital interface is an HSMC (high-speed mezzanine connector), which is compatible with Altera Cyclone V SoCkit and other Altera FPGA evaluation boards that support 3.3V CMOS I/O.

Resources

pdf icon

PDF

DC2677A - Demo Manual Download

1.08 M

pdf icon

PDF

DC2677A - Schematic Download

174.51 K

pdf icon

ZIP

DC2677A - Design Files Download

4.79 M

Show More Arrow image
reference details image

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board

zoom

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board

download icon

Download

 print icon

Print
EVAL-OPAMP-2
EVAL-OPAMP-2 Evaluation Board
Buy Now View Details

Product Detail

The universal precision op amp evaluation boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs compliant. See references below on what board to order by lead count and package.

  • EVAL-PRAOPAMP-2CPZ (dual 8-lead LFCSP) CP-8
  • EVAL-PRAOPAMP-2RMZ (dual 8-lead MSOP) RM-8
  • EVAL-PRAOPAMP-2RZ (dual 8-lead SOIC) R-8

Evaluation Kits3

evaluation kit item images

EVAL-ADA4522

ADA4522 Evaluation Board
evaluation kit item images

DC2677A

LTC2358-18, LT6658, ADA4522-2 Industrial Data Acquisition Nonisolated Board
evaluation kit item images

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board

Tools & Simulations 6

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

ADA4522-2 - Operational Amplifiers (Op Amps) Download

1.42 K
