LTC4306

采用电容缓冲的 4 通道、二线式总线多路复用器

更多 showmore-icon

Info: : 量产 tooltip
Info: : 量产 tooltip
产品详情
产品模型 8
特性
  • 1:4 2-Wire Multiplexer/Switch
  • Connect SDA and SCL Lines with 2-Wire Bus Commands
  • Supply Independent Bidirectional Buffer for SDA and SCL Lines Increases Fan-Out
  • Programmable Disconnect from Stuck Bus
  • Compatible with I2C and SMBus Standards

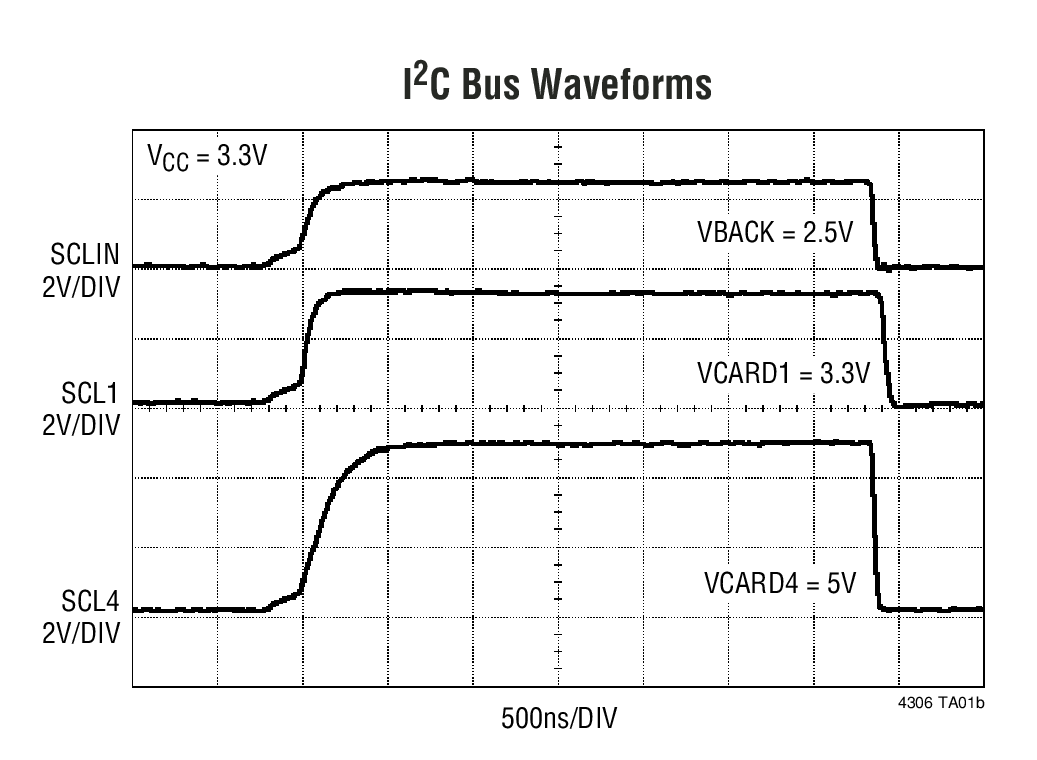

  • Rise Time Accelerator Circuitry
  • SMBus Compatible ALERT Response Protocol
  • Two General Purpose Inputs-Outputs
  • Prevents SDA and SCL Corruption During Live Board
  • Insertion and Removal from Backplane
  • ±10kV Human Body Model ESD Ruggedness

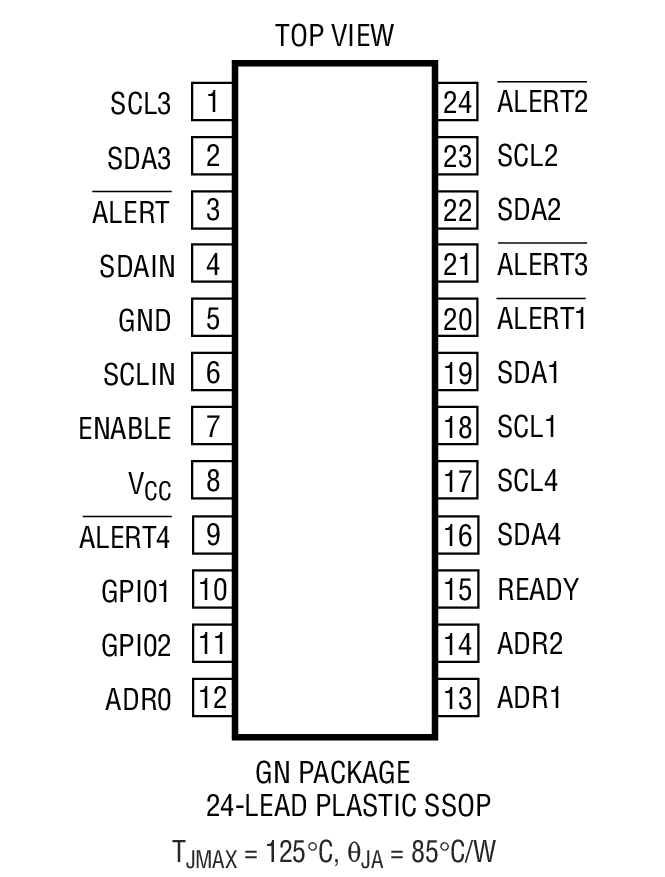

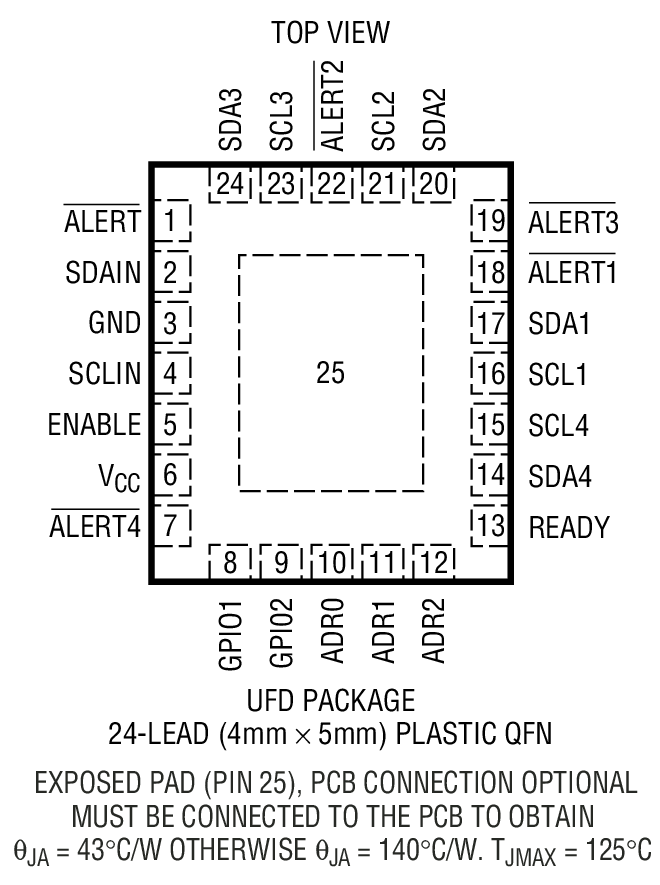

  • 24-Lead QFN (4mm × 5mm) and SSOP Packages
更多细节
show more Icon
The LTC®4306 is a 4-channel, 2-wire bus multiplexer with bus buffers to provide capacitive isolation between the upstream bus and downstream buses. Through software control, the LTC4306 connects the upstream 2-wire bus to any desired combination of downstream buses. Each channel can be pulled up to a supply voltage ranging from 2.2V to 5.5V, independent of the LTC4306 supply voltage.

The downstream channels are also provided with ALERT1-ALERT4 inputs for fault reporting. Programmable timeout circuitry disconnects the downstream buses if the bus is stuck low. When activated, rise time accelerators source currents into the 2-wire bus pins to reduce rise time. Driving the ENABLE pin low restores all features to their default states. Three address pins provide 27 distinct addresses.

The LTC4306 is available in 24-lead QFN (4mm × 5mm) and SSOP packages.


Applications

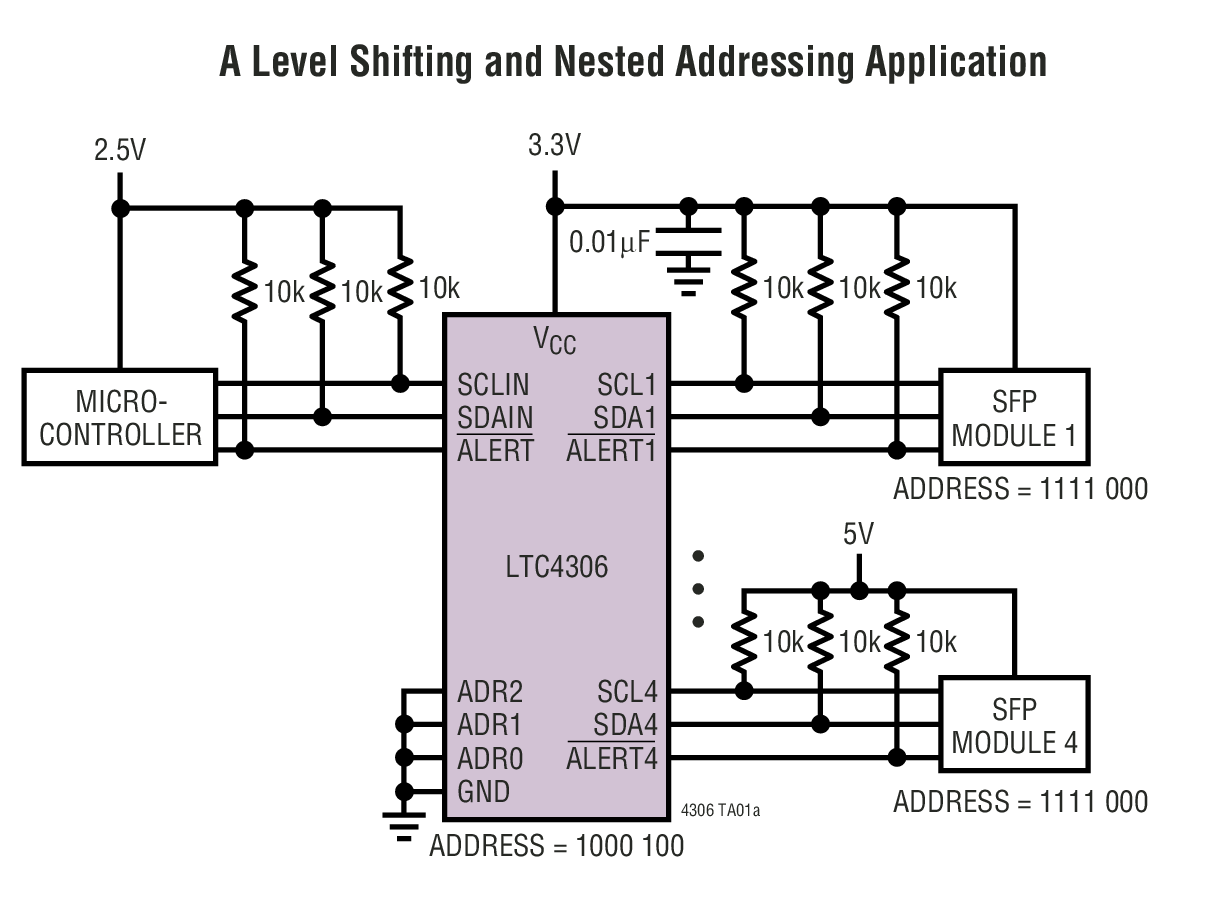

  • Nested Addressing
  • 5V/3.3V Level Translator
  • Capacitance Buffer/Bus Extender
产品模型 8

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

视频

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LTC4306CGN#PBF
  • HTML
  • HTML
LTC4306CGN#TRPBF
  • HTML
  • HTML
LTC4306CUFD#PBF
  • HTML
  • HTML
LTC4306CUFD#TRPBF
  • HTML
  • HTML
LTC4306IGN#PBF
  • HTML
  • HTML
LTC4306IGN#TRPBF
  • HTML
  • HTML
LTC4306IUFD#PBF
  • HTML
  • HTML
LTC4306IUFD#TRPBF
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

8月 10, 2022

- 22_0177

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC4306CGN#PBF

量产

LTC4306CGN#TRPBF

量产

LTC4306IGN#PBF

量产

LTC4306IGN#TRPBF

量产

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

8月 10, 2022

- 22_0177

arrow down

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC4306CGN#PBF

量产

LTC4306CGN#TRPBF

量产

LTC4306IGN#PBF

量产

LTC4306IGN#TRPBF

量产

软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 2

reference details image

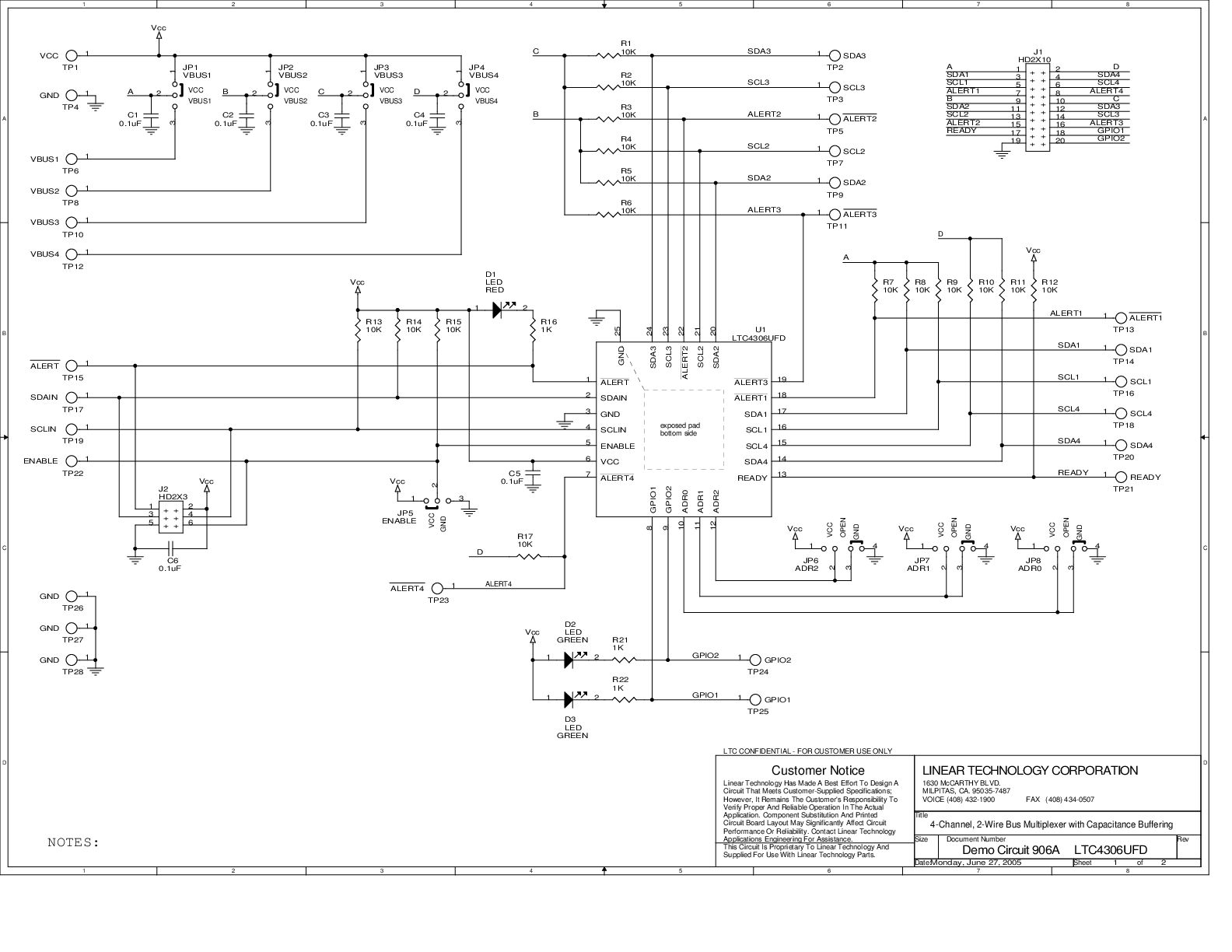

DC906A

LTC4306 4通道I2C多路复用器

reference details image

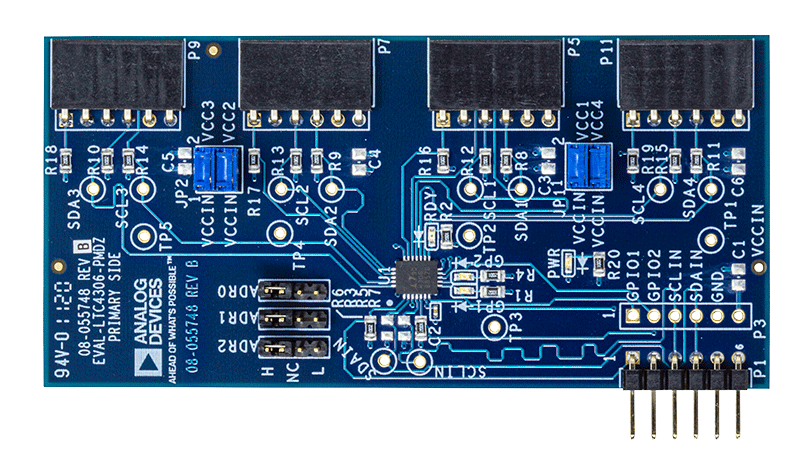

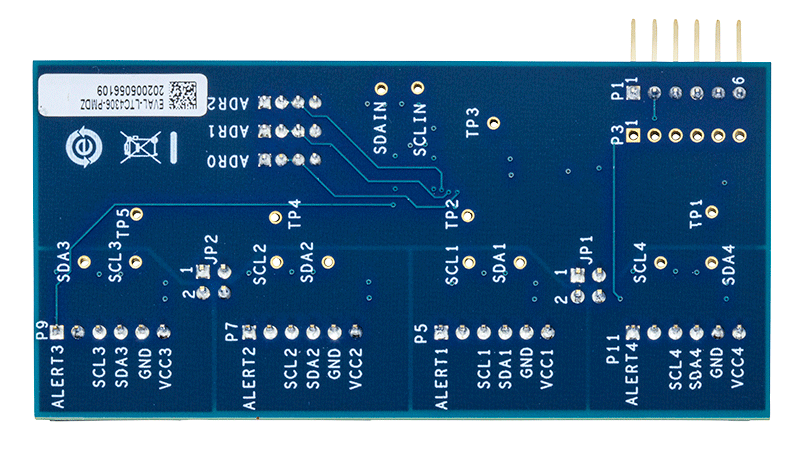

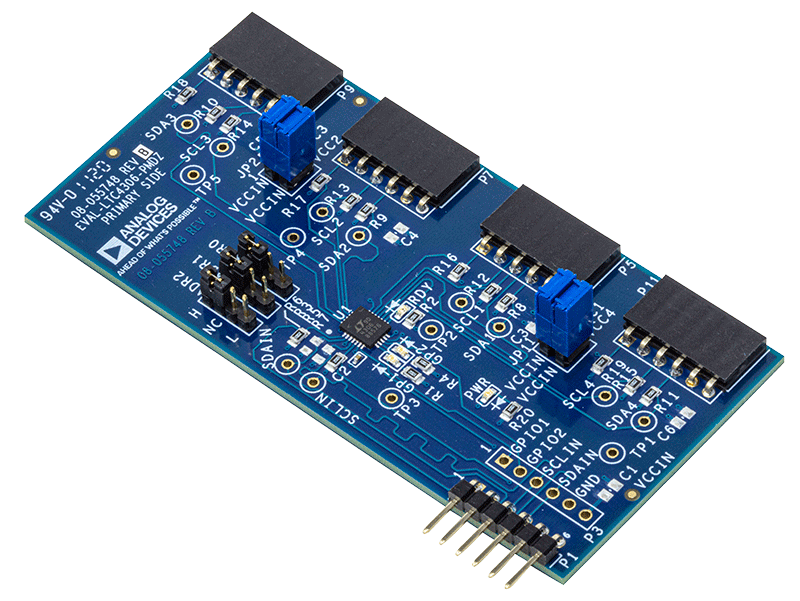

EVAL-LTC4306

LTC4306 Evaluation Board with PMOD Connectors on Both Upstream and Downstream

zoom

EVAL-LTC4306

LTC4306 Evaluation Board with PMOD Connectors on Both Upstream and Downstream

LTC4306 Evaluation Board with PMOD Connectors on Both Upstream and Downstream

特性和优点

  • Features LTC4306, a 4-channel, 2-wire I2C bus and SMBus compatible multiplexer having bus buffers that provide capacitive isolation between the upstream bus and downstream buses
  • 6-pin PMOD connectors for upstream and downstream connection for compatibility with PMOD form factors such as EVAL-ADICUP3029  (Arduino based Wireless Development Platform based on an ultra-low power ARM Cortex-M3 processor) or with EVAL-SDP-CK1Z  (SDP-K1 Cortex ARM core processors Controller Board and color sensor)

产品详情

The EVAL-LTC4306-PMDZ features LTC4306, a 4-channel, 2-wire I2C bus and SMBus compatible multiplexer having bus buffers that provide capacitive isolation between the upstream bus and downstream buses. This evaluation board provides 6-pin PMOD connectors for upstream and downstream connection for compatibility with PMOD form factors such as EVAL-ADICUP3029, an Arduino based Wireless Development Platform for Internet of Things applications based on an ultra-low power ARM Cortex-M3 processor.

Pmod is the Digilent defined standard of Peripheral Modules, small I/O interface boards that offer an ideal way to extend the capabilities of programmable logic and microcontroller boards. They allow sensitive signal conditioning circuits and high-power drive circuits to be placed where they are most effective — near sensors and actuators.

EVAL-LTC4306-PMDZ comes with PMOD connectors on both upstream and downstream side for compatibility with PMOD form factors, 10K pull up resistors on upstream and all downstream buses and 0.1uF bypass capacitor on the upstream side. The user has the option to add 6 pin 2.54mm pitch pin header for connection to the GPIOs (General Purpose Input/Output pins) on EVAL-LTC4306-PMDZ for extra functionality. The user also has the option to add test points on different places on the board for fault monitoring and place additional bypass capacitors (0805 size footprint) on the upstream and the downstream side for defense against any unwanted noise in their system for adequate bypassing on power supply lines.
