LTC3557

具锂离子电池充电器和三个降压型稳压器的USB电源管理器

更多 showmore-icon

Info: : 量产 tooltip
Info: : 量产 tooltip
产品详情
特性
  • 可在输入电源之间进行无缝切换:锂离子电池、USB、5V 墙上适配器或具 Bat-Track 功能的高电压降压型稳压器
  • 当输入电流受限或不能提供输入电流时,200mΩ 内部理想二极管和可选的外部理想二极管控制器提供了低损耗电源路径
  • 三路、可调高效率降压型开关稳压器 (600mA、400mA、400mA IOUT)
  • 可利用引脚来选择的突发模式 (Burst Mode®) 操作
  • 全功能锂离子/锂聚合物电池充电器
  • 1.5A 最大充电电流和热限制功能
  • 电池浮动电压:
    • 4.2V (LTC3557)
    • 4.1V (LTC3557-1)

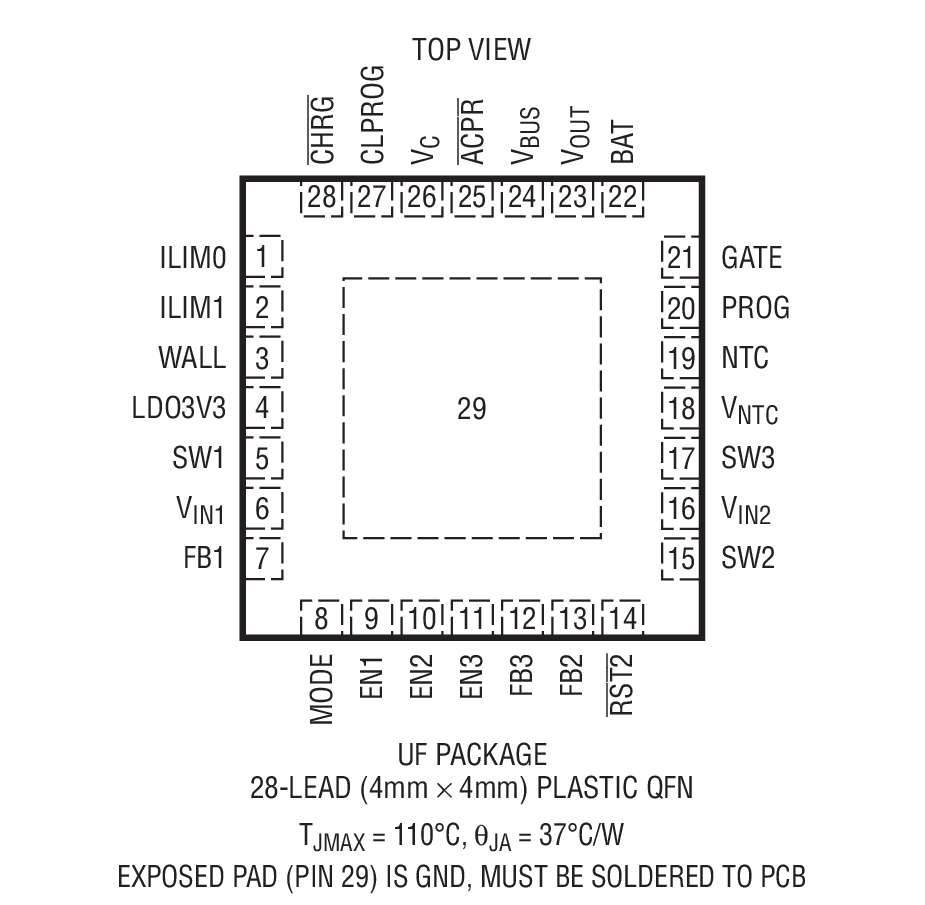

  • 扁平 4mm x 4mm 28 引脚 QFN 封装



更多细节
show more Icon

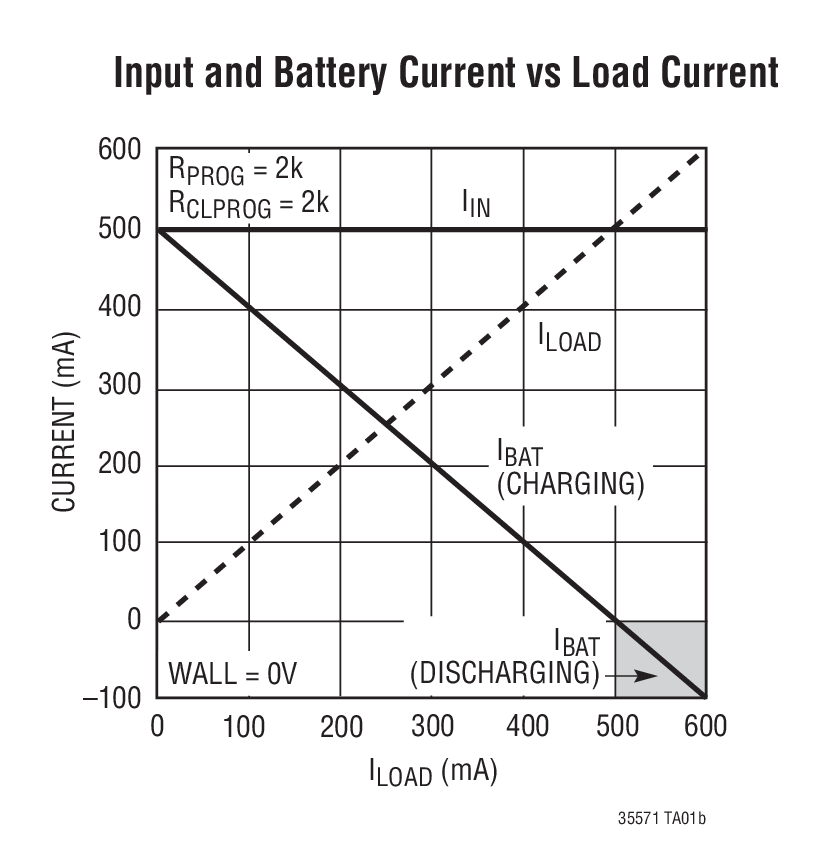

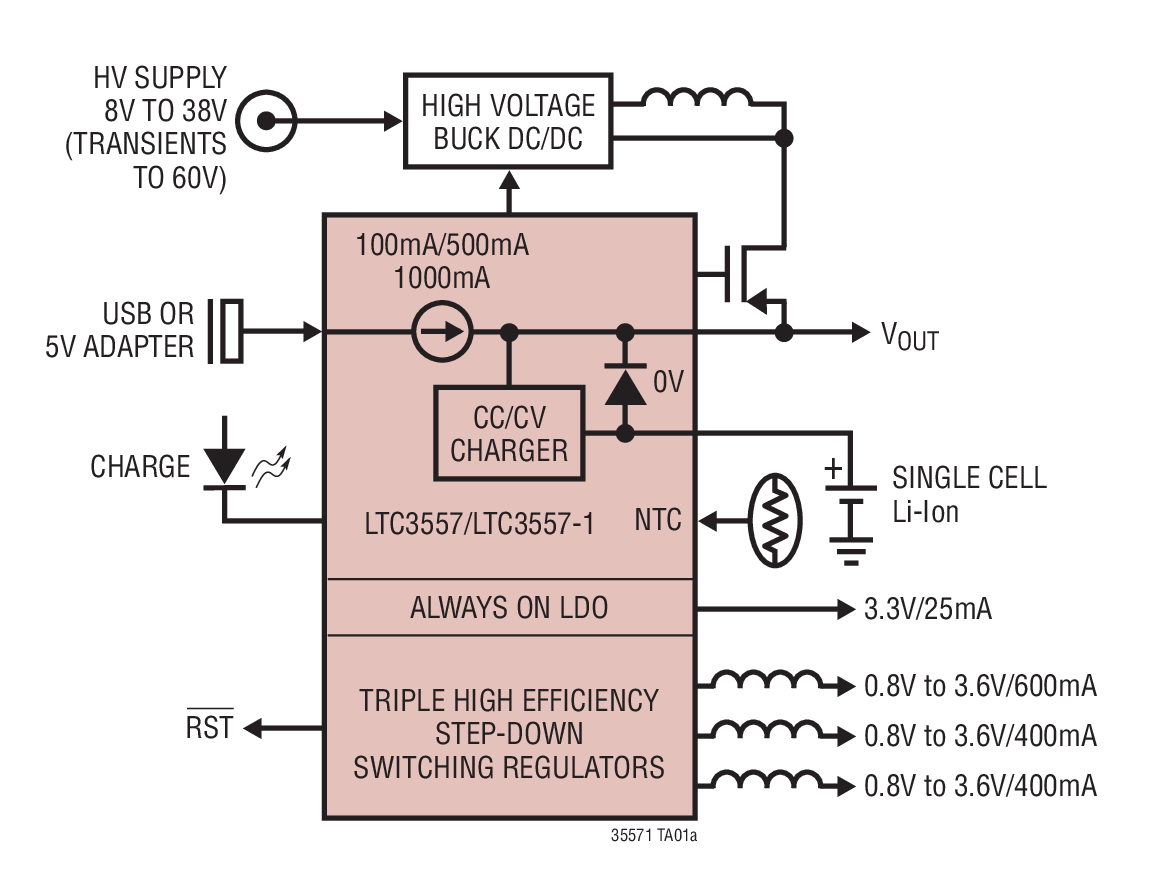

LTC®3557/LTC3557-1 是面向单节锂离子/锂聚合物电池应用的高集成度电源管理和电池充电器 IC。它包括一个具自动负载优选功能的 PowerPath 管理器、一个电池充电器、一个理想二极管和众多的内部保护功能。LTC3557/LTC3557-1 电源管理器专为 USB 应用而设计,可自动地把输入电流的最大值限制为 100mA 或 500mA (对于 USB 应用) 或者 1A  (对于墙上适配器供电型应用)。电池充电电流可自动减小,因此,负载电流与充电电流之和就不会超过编程输入电流限值。 LTC3557/LTC3557-1 还包括三个可调同步降压型开关稳压器和一个具 Bat-Track  功能的高电压降压型稳压器输出控制器,允许从高达 38V  的电源进行高效充电。LTC3557/LTC3557-1 采用扁平 4mm x 4mm x 0.75mm  的 28 引脚 QFN  封装。




Applications

  • 基于 HDD 的 MP3 播放器
  • PDA、PMP、PND/GPS
  • 基于 USB 的手持式产品



产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LTC3557EUF#PBF
  • HTML
  • HTML
LTC3557EUF#TRPBF
  • HTML
  • HTML
LTC3557EUF-1#PBF
  • HTML
  • HTML
LTC3557EUF-1#TRPBF
  • HTML
  • HTML
软件和型号相关生态系统

软件和型号相关生态系统

评估

评估套件 4

reference details image

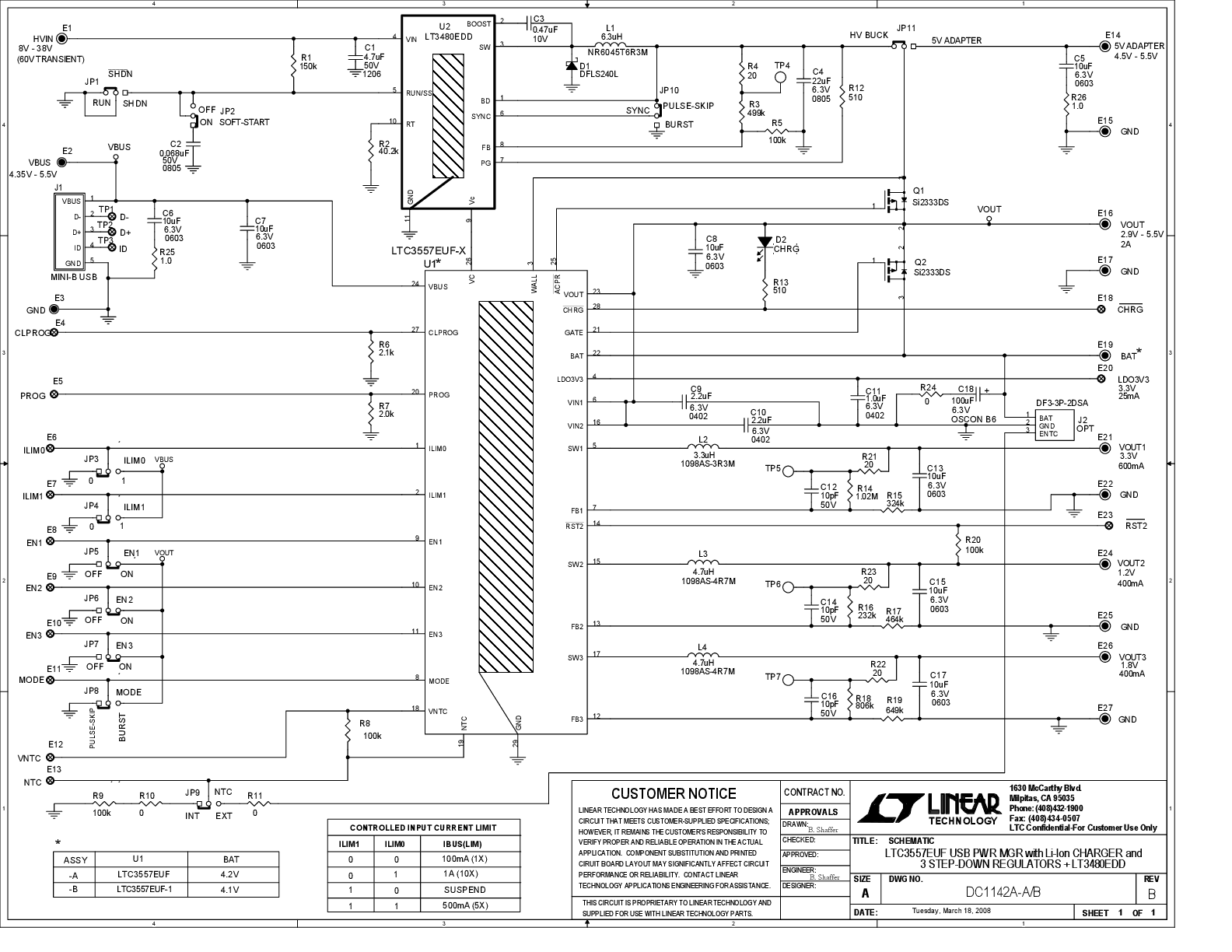

DC1142A-A

LTC3557/-1 | USB Power Manager with Li-Ion/Polymer Charger and Three Buck Regulator

reference details image

DC1142A-B

LTC3557/-1 | USB Power Manager with Li-Ion/Polymer Charger & Three Buck Regulator

reference details image

DC1138A-B

LT3557EUF-1/LT3505EDD Demo Board | PMIC Plus HV Buck, USB Power Manager with 0.5A Li-Ion Charger and Three Bucks Plus HV Buck Controller

zoom

DC1138A-B

LT3557EUF-1/LT3505EDD Demo Board | PMIC Plus HV Buck, USB Power Manager with 0.5A Li-Ion Charger and Three Bucks Plus HV Buck Controller

LT3557EUF-1/LT3505EDD Demo Board | PMIC Plus HV Buck, USB Power Manager with 0.5A Li-Ion Charger and Three Bucks Plus HV Buck Controller

产品详情

The DC1138A-B contains the LTC3557-1 Power Management Integrated Circuit (PMIC) plus the LT3505EDD 36V (40V transients) buck regulator. The LTC3557-1 (4.1V charge voltage) includes a PowerPath controller, a 1.5A battery charger (configured for 500mA), an ideal diode, an always-on LDO, three synchronous step-down switching regulators (600mA and 2 × 400mA ), as well as a buck regulator VC controller.


Designed specifically for USB applications, the PowerPath controller incorporates a precision input current limit which communicates with the battery charger to ensure that the input current does not violate the USB specification. The ideal diode from BAT to VOUT guarantees that ample power is always available to VOUT even if there is insufficient or absent power at VBUS. The LTC3557-1 also has the ability to receive power from a wall adapter or other non-current- limited power source.

reference details image

DC1138A-A

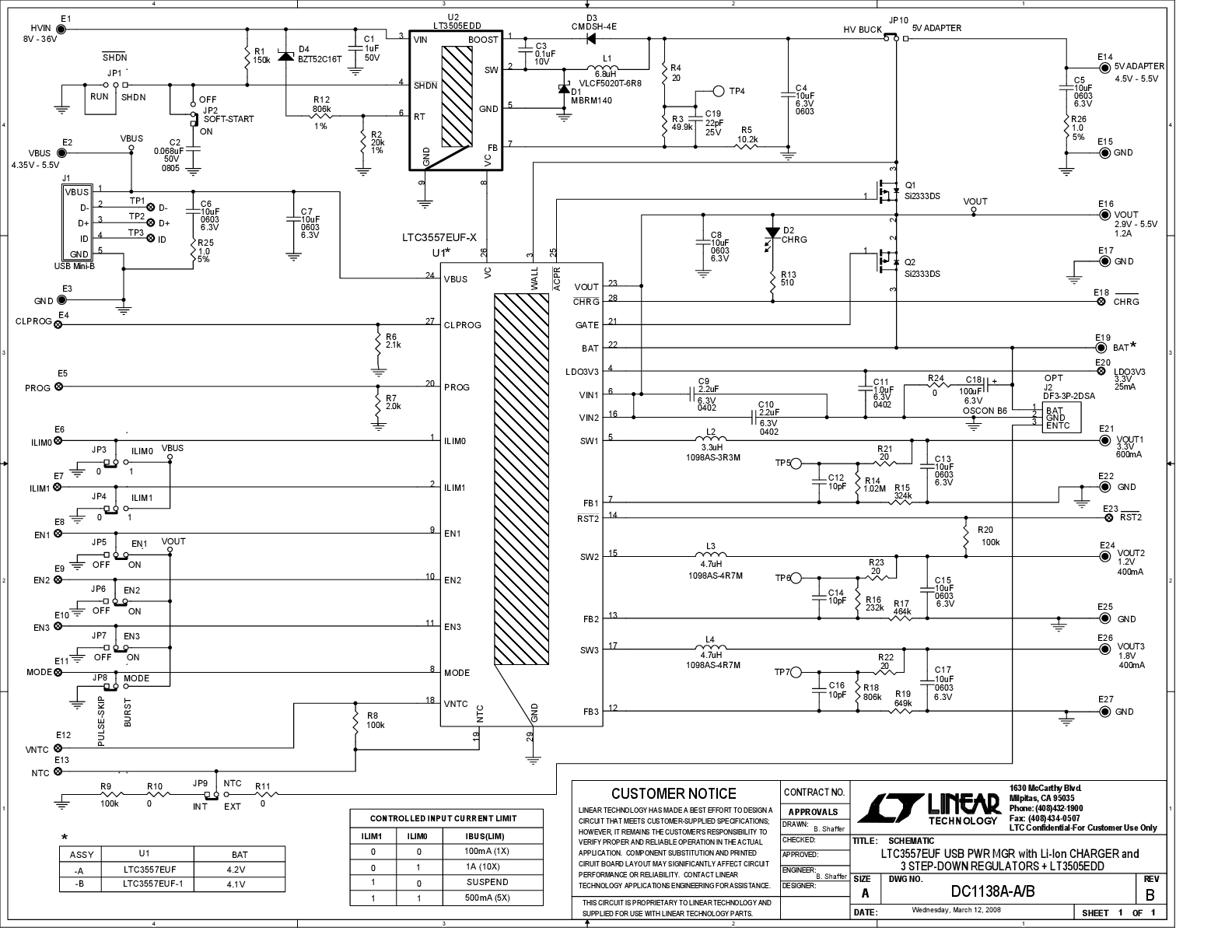

LTC3557EUF/LT3505EDD Demo Board | PMIC Plus HV Buck, USB Power Manager with 0.5A Li-Ion Charger and Three Bucks Plus HV Buck Controller

zoom

DC1138A-A

LTC3557EUF/LT3505EDD Demo Board | PMIC Plus HV Buck, USB Power Manager with 0.5A Li-Ion Charger and Three Bucks Plus HV Buck Controller

LTC3557EUF/LT3505EDD Demo Board | PMIC Plus HV Buck, USB Power Manager with 0.5A Li-Ion Charger and Three Bucks Plus HV Buck Controller

产品详情

The DC1138A-A contains the LTC3557 Power Management Integrated Circuit (PMIC) plus the LT3505EDD 36V (40V transients) buck regulator. The LTC3557 (4.2V charge voltage) includes a PowerPath controller, a 1.5A battery charger (configured for 500mA), an ideal diode, an always-on LDO, three synchronous step-down switching regulators (600mA and 2 × 400mA ), as well as a buck regulator VC controller.


Designed specifically for USB applications, the PowerPath controller incorporates a precision input current limit which communicates with the battery charger to ensure that the input current does not violate the USB specification. The ideal diode from BAT to VOUT guarantees that ample power is always available to VOUT even if there is insufficient or absent power at VBUS. The LTC3557 also has the ability to receive power from a wall adapter or other non-current-limited power source.
