ADMV8809

推荐用于新设计

0.5GHz to 9GHz, Digitally Tunable, High-Pass Filters and Low-Pass Filters

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Digitally tunable, high-pass and low-pass tuning
  • Suboctave bandwidths with additional user adjustability
  • Rejection: 40dB
  • Single-chip replacement for discrete filter banks
  • Compact, 8mm × 8mm × 1.07mm LGA package

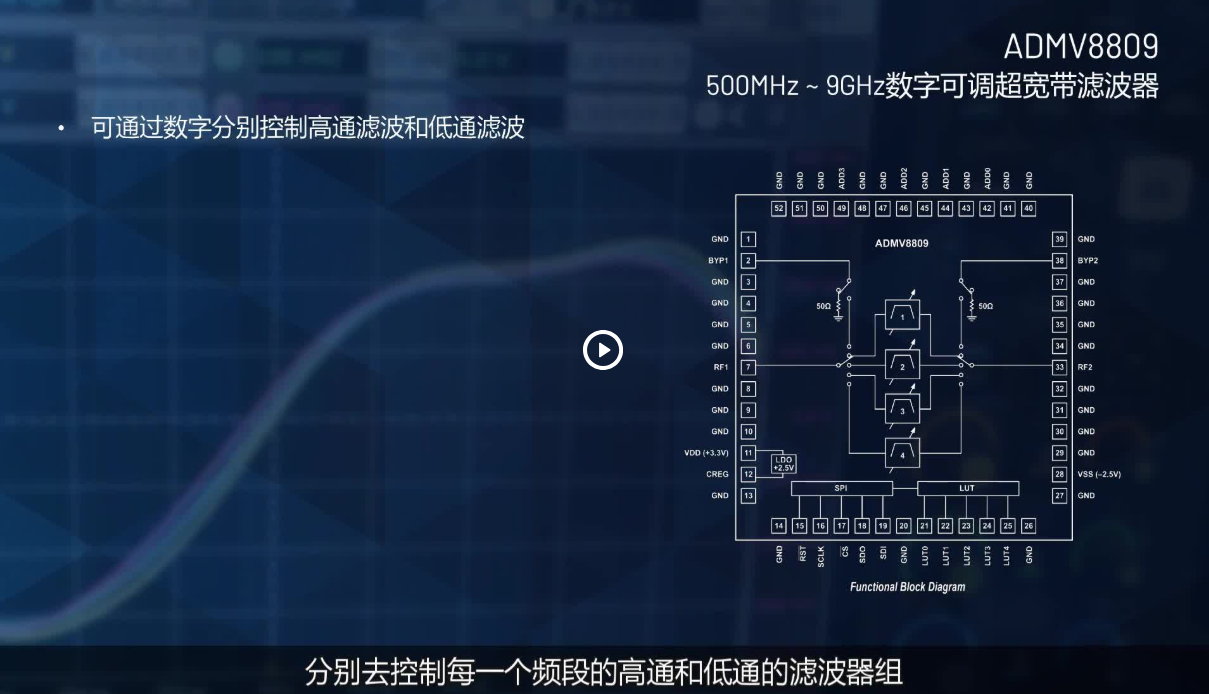

The ADMV8809 is a fully monolithic microwave IC (MMIC) that features digitally selectable operating frequencies. The device features four independently controlled high-pass filters (HPFs) and low-pass filters (LPFs) that span the 0.5GHz to 9GHz frequency range (fCENTER).

The flexible architecture of the ADMV8809 allows the 3dB cutoff frequency (f3dB) of the high-pass and low-pass filters to be controlled independently. The digital logic control on each filter is 3-bits wide (eight states) and controls the on-chip reactive elements to adjust the f3dB. The typical insertion loss is <6.2dB. When using the HPF = LPF state, the filter has 40dB rejection for the low side at 0.5 × fU3dB and for the high side at 2 × fL3dB, which is ideally suited for minimizing system second-order intercept (IP2) and harmonics.

This tunable filter can be used as a smaller alternative to large switched filter banks and discrete component-based tunable filters, and the ADMV8809 provides a dynamically adjustable solution in advanced communications applications.

APPLICATIONS

  • Land mobile radios
  • Test and measurement equipment
  • Military radars, electronic warfare, and electronic countermeasures
  • Satellite communications
  • Industrial and medical equipment
ADMV8809
0.5GHz to 9GHz, Digitally Tunable, High-Pass Filters and Low-Pass Filters

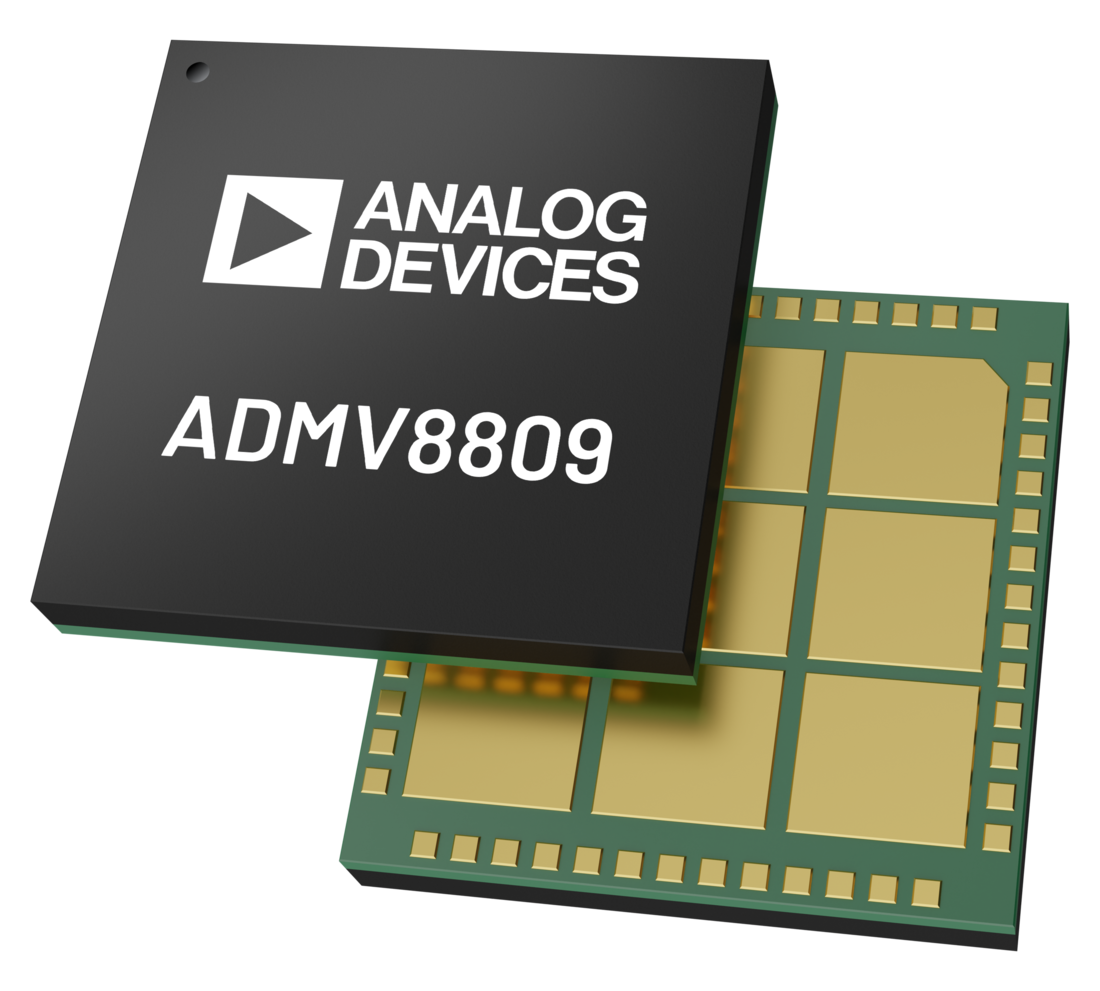

ADMV8809 Functional Block Diagram ADMV8809 Pin Configuration ADMV8809 Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

S-Parameter Files (S2P)

S-Parameters for RF and Microwave Tunable Filters

打开工具
LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADMV8809

Evaluating the ADMV8809 0.5GHz to 9GHz, Digitally Tunable, High-Pass Filters and Low-Pass Filters

立即购买 更多内容

特性和优点

  • Fully featured evaluation board for the ADMV8809
  • On-board system demonstration platform (EVAL-SDP-CS1Z (SDP-S)) connector for SPI
  • Evaluation using on-board LDO regulators power by the USB
  • ACE Software interface for SPI control

产品详情

The ADMV8809-EVALZ is an evaluation board available for evaluating the ADMV8809 digitally tunable, high-pass filter and low-pass filter. The evaluation board incorporates the ADMV8809 chip, as well as a negative voltage generator, low dropout (LDO) regulators, and an interface to the SDP-S controller board to allow for simple and efficient evaluation. The negative voltage generator and LDO regulators allow the ADMV8809 to be powered by either the 5 V USB supply voltage from the PC via the SDP-S controller board or by using two external power supplies.

The ADMV8809 is an IC that features a digitally selectable, operating frequency. The chip can be programmed using a 4‑wire serial port interface (SPI). The SDP-S controller board allows the user to interface with the ADMV8809 SPI through the Analog Devices, Inc., Analysis, Control Evaluation (ACE) Software.

For full details on the ADMV8809, see the ADMV8809 data sheet, which must be consulted in conjunction with this user guide when using the ADMV8809-EVALZ.
EVAL-ADMV8809
Evaluating the ADMV8809 0.5GHz to 9GHz, Digitally Tunable, High-Pass Filters and Low-Pass Filters

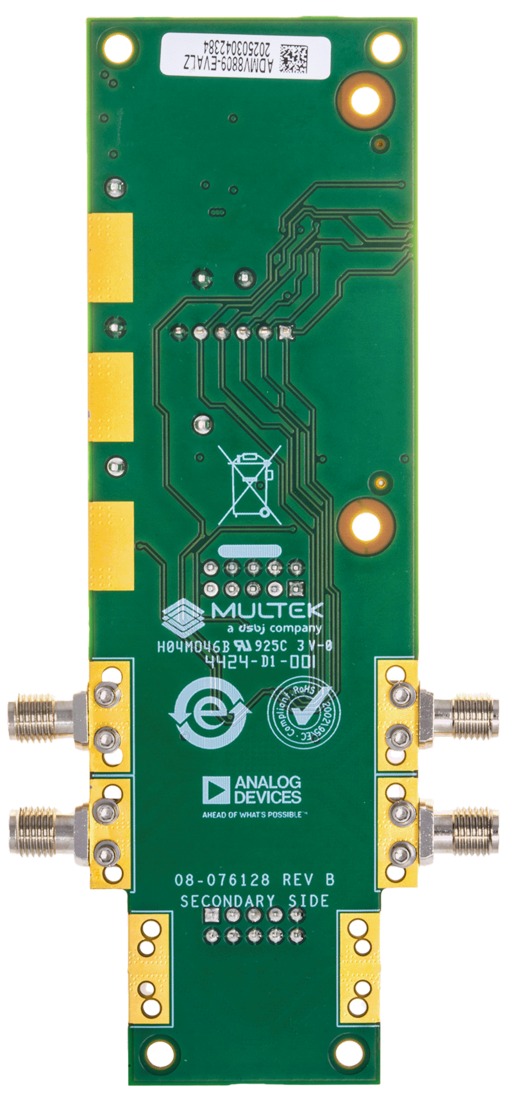

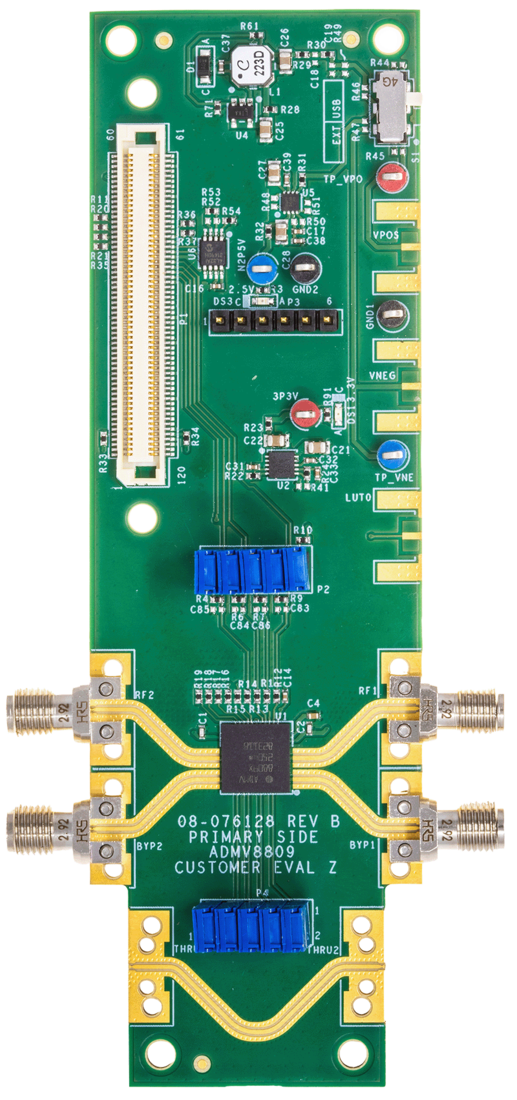

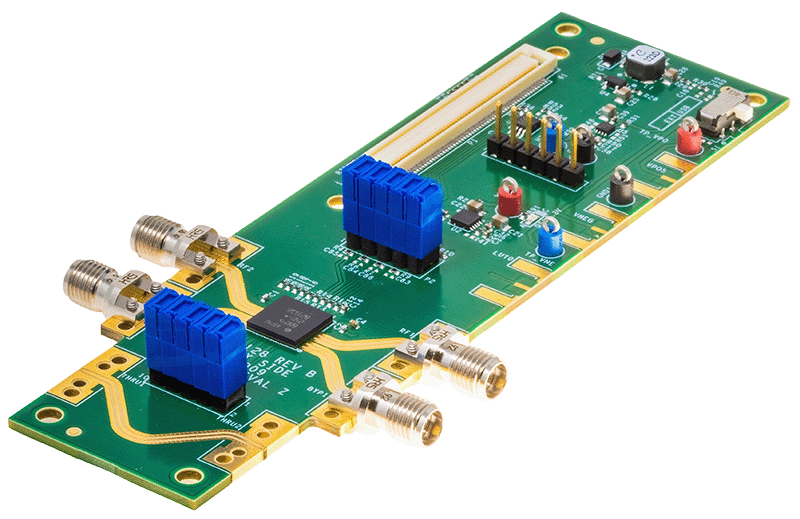

EVAL-ADMV8809 Board Photo Angle EVAL-ADMV8809 Board Photo Top View EVAL-ADMV8809 Board Photo Bottom View
