ADE9113

推荐新设计使用

带 SPI 接口的隔离式 Σ-Δ ADC

产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

Viewing:

产品详情

  • 2 (ADE9112) 或 3 (ADE9113) 通道隔离、同步采样 Σ-Δ ADC,带集成的 isoPower、隔离式 DC/DC 转换器
  • 3 (ADE9103) 通道非隔离同时采样 Σ-Δ ADC
  • 同步多个 ADE9103/ADE9112/ADE9113 套件
  • 具有双向 CRC 和菊花链功能的 4 线 SPI
  • 唯一 SPI 可读零件 ID 寄存器
  • 多达 4 个 ADE9103/ADE9112/ADE9113 套件用单个晶体或外部时钟计时
  • IRQ 硬件引脚和寄存器用于故障检测和实现稳健性
  • 高达 32 kSPS 的采样率
  • 高达 95 dB 的 SNR
  • 电流通道的峰值模拟输入电压范围:±31.25 mV
  • 电压通道的峰值单端模拟输入电压范围:±500 mV
  • 内部电压基准温度系数:<13 ppm/°C(典型值)
  • ADC 失调漂移:<2 nV/°C(典型值)
  • 适用于交流和直流测量系统
  • 适用于隔离和非隔离式测量的 3.3 V 单电源
  • 28 引脚、宽体、细间距 SOIC 小型封装,爬电距离为 8.3 mm
  • 温度范围:−40°C 至 +125°C
  • 符合 CISPR 32 B 类射频辐射标准
  • ADE9112 和 ADE9113 安全法规认证
    • 符合 IEC 60747-17 合规证书
    • 5000 V RMS 持续 1 分钟,符合 UL 1577 标准
    • 符合 IEC 61010-1 和 IEC 62368-1
ADE9113
带 SPI 接口的隔离式 Σ-Δ ADC
ADE9113 Functional Block Diagram ADE9103/ADE9112/ADE9113 Typical Applications Circuit ADE9113 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目
提问

参考资料

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源


硬件生态系统

部分模型 产品周期 描述
内部电源开关降压稳压器 2
MAX17554 量产 集成60V、50mA、超小型、高效率、同步降压DC-DC转换器
MAX17555 推荐新设计使用 集成60V、50mA、超小型、高效率、同步降压DC-DC转换器
微功耗降压稳压器 1
LT8604/
LT8604C
高效42V/120mA同步降压
正线性稳压器(LDO) 3
ADP150 量产 超低噪声、150 mA CMOS线性调节器
ADP7112 推荐新设计使用 20 V、200 mA低噪声CMOS LDO线性稳压器
ADP7118 推荐新设计使用 20 V、200 mA、低噪声、CMOS LDO线性稳压器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

评估套件

eval board
EVAL-ADE9178

特性和优点

  • Fully featured evaluation kit (EV kit) board for the ADE9178 and ADE9113 chipset
  • Up to 32 A current measurement with on-board shunts
  • Up to 240 VRMS nominal line neutral voltage measurement
  • CLI to read/write registers
  • GUI to read/write registers

产品详情

The ADE9178EVKIT# EV kit board allows the performance of the ADE9178 alongside the ADE9113 analog-to-digital converters (ADCs) to be evaluated. With the inclusion of the resistor ladder network and shunts, this ADE9178EVKIT# EV kit board allows for easy setup procedure due to the fact that no external components are needed.

The ADE9178EVKIT# EV kit board comes preprogrammed with software including a command line interface (CLI) tool to communicate with the EV kit over serial and a graphical user interface (GUI). The CLI and GUI tools provide access to the part registers for board calibration and calibration frequency (CF) pulse generation. For more details on how to use the CLI/GUI and access the detailed software guide, see the Evaluation Board Software section.

Full specifications on the ADE9178 and ADE91xx are available in the ADE9178 and ADE91xx data sheet, respectively, available from Analog Devices, Inc., and must be consulted with this user guide when using the ADE9178EVKIT# EV kit board.

eval board
EVAL-ADE9113

ADE9113(具有SPI接口的隔离式 Σ-Δ ADC)的评估板

特性和优点

  • ADE9103ADE9112ADE9113的全功能评估板
  • PC控制结合系统演示平台(EVAL-SDP-CB1Z)
  • PC软件用于(时域和频域)的控制和数据分析
  • 独立工作能力

产品详情

EVAL-ADE9113KTZ评估套件包括两个协同工作的电路板(与EVAL-SDP-CB1Z一起),以在接近实际3相仪表实现中评估ADE9113隔离式 Σ-Δ 模数转换器(ADC)的性能。尽管该套件也可用于测试ADE9103和ADE9112 ADC的类似功能,但EVAL-ADE9113KTZ仅安装有ADE9113器件,因此本用户指南中仅提及ADE9113。评估软件采用LabVIEW®编写,支持使用PC接口访问每个ADE9113的寄存器。此外,微控制器单元(MCU)适配器板与Arduino®屏蔽型连接器兼容,支持自定义固件开发,也可以与Nucleo-F103RB的参考代码配合使用。

eval board
AD-ACEVSECRDSET-SL

Type 2 EVSE 3.6 kW Charging Cable

特性和优点

  • Complete reference design for Type 2 EVSE Cordset (IC-CPD)
  • Power level from 2.3 kW up to 3.6 kW
  • Designed to comply with the applicable standards - IEC61851, IEC62752
  • Incorporates a 6 mA DC/30 mA rms RCD and a control pilot circuit
  • Stuck relay detection and relay state of health
  • Overtemperature detection
  • Integrated isolation
  • Reduced component count for cost optimization
  • Bluetooth 5.2 interface for connectivity to external devices
  • Open-source software stack to enable custom firmware development

产品详情

The AD-ACEVSECRDSET-SL is a complete Type 2 EVSE 3.6 kW charging cable solution, providing a reference design intended for evaluation and prototyping of electric vehicle (EV) charging systems.

The system includes a 3-channel isolated sigma-delta (Σ-Δ) ADC for voltage and current measurement on the single-phase power input and measurement of the relay voltage for solder contacts detection and relay state of health. Safe operation is enabled by the inclusion of a 6 mA DC / 30 mA rms RCD. Detection of overvoltage, undervoltage, overcurrent, overtemperature and EV diode presence is also available.

A MAX32655 low-power, ARM® Cortex®-M4 Microcontroller implements the logic for system control and communication with the EV over the control pilot interface. A programming and debugging interface are included. The MAX32655 Bluetooth 5.2 interface enables connectivity to external devices.

The design is accompanied by an open-source software stack and reference applications, enabling custom software development to start from a proven implementation validated to meet the applicable standards. An external programmer such as the MAX32625PICO MAXDAP Programming Adapter, or any other similar programmer supporting the SWD interface, is required to enable firmware programming and debug.

The system is designed to comply with the IEC61851 and IEC62752 standards.

APPLICATIONS

  • EV charging

eval board
AD-ACEVSE22KWZ-KIT

AD-ACEVSE22KWZ-KIT

特性和优点

  • 计量子系统以及二级、7kW 至 22kW 电动汽车供电设备 (EVSE) 的其他选定功能
  • 适用于 ADE9112、ADE9113 和 ADE9178 的全功能板
  • 额定电压为三相,240V RMS 线对中性电压
  • 额定电流测量高达 32A,使用板载分流器
  • 支持高达 22kW 的组合功率传输至负载
  • 采用 MAX32672 低功耗、安全微控制器
  • 支持 LCD 显示屏以显示能量和状态更新
  • 通过 RS-485 通信接口支持 MODBUS™ 协议
  • 支持 Protobuf™消息与 EVerest 开源软件(OSS)进行通信
  • IEC61851 兼容状态机实现

产品详情

AD-ACEVSE22KWZ-KIT 是针对计量子系统和其他选定功能在内的 2 级、7 kW 至 22 kW 交流电动汽车供电设备 (EVSE) 的参考设计。它包括 ADE9113 隔离式 Σ-Δ 模数转换器 (ADC) 与 ADE9178 计量 DSP,可精确测量输送到电动汽车 (EV) 的能量。它包括 MAX32672 超低功耗 ARM® Cortex®-M4 处理器,这是一款经济高效、高度集成且高度可靠的 32 位微控制器,用于收集能量测量数据并安全地将其发送到主机进行显示。当充电插头插入电动汽车时,微控制器上运行充电控制状态机以转换不同的充电状态。该套件包括柔性印刷电路 (FPC) 连接器和 LCD,用于读取充电周期内的能量测量值和状态转变。电源输入/输出、控制导频 (CP) 和接近导频 (PP) 信号在电路板边缘的连接器上显露。输送到电动汽车的能量以分流器和电阻阶梯网络两端的电压降来测量,这使得在现场设置电路板变得容易。

EVAL-ADE9178

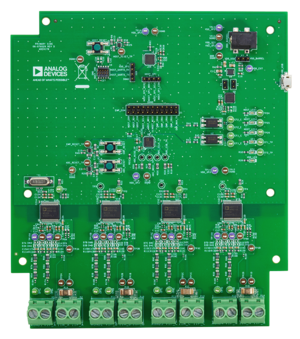

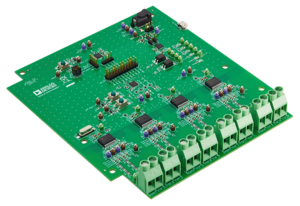

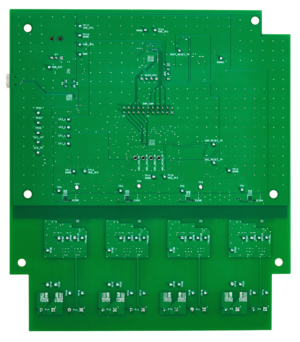

EVAL-ADE9178 Angle View EVAL-ADE9178 Bottom View EVAL-ADE9178 Top View
EVAL-ADE9113
ADE9113(具有SPI接口的隔离式 Σ-Δ ADC)的评估板
EVAL-ADE9113 Board Photo Angle View EVAL-ADE9113 Board Photo Top View EVAL-ADE9113 Board Photo Bottom View
AD-ACEVSECRDSET-SL
Type 2 EVSE 3.6 kW Charging Cable
AD-ACEVSECRDSET-SL Functional Block Diagram AD-ACEVSECRDSET-SL AD-ACEVSECRDSET-SL Top View AD-ACEVSECRDSET-SL Bottom View
AD-ACEVSE22KWZ-KIT
AD-ACEVSE22KWZ-KIT
AD ACEVSE22KWZ-KIT Board Photo Angle View AD ACEVSE22KWZ-KIT Board Photo Top View AD ACEVSE22KWZ-KIT Board Photo Bottom View
