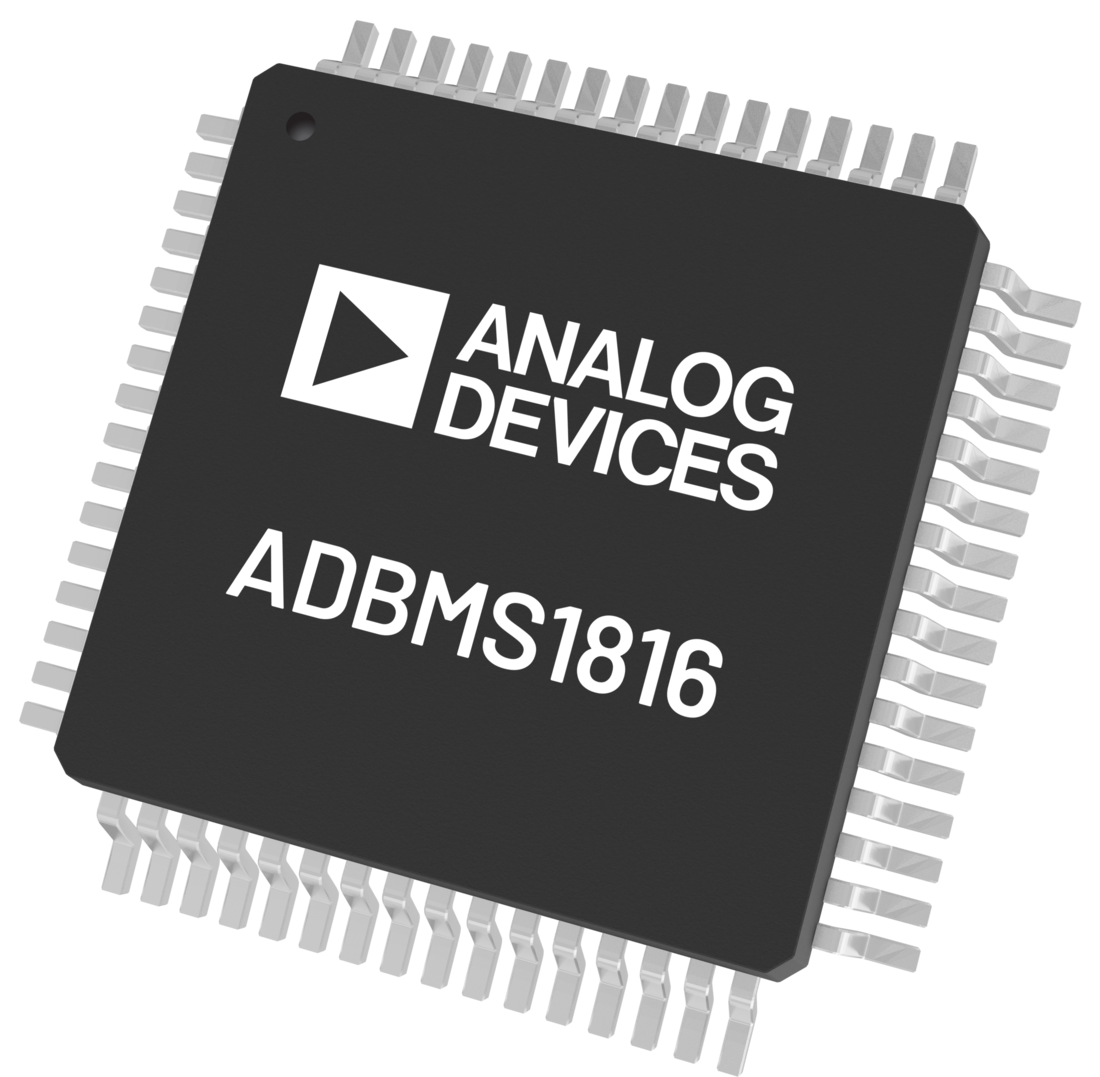

ADBMS1816

Wide Range BMS System

• 36V to 96V operation, can handle currents up to 100A
• Simplified E2W/E3W AD-BMSE2E3WLC-48V baseboard + EVAL-ADBM1816WLC daughter board configuration​​



Battery Chemistry Compatibility

• Supports multiple battery chemistries: Ni-MH, Li-ion, LiFePO4, Sodium-Ion, and others



System Integration

• Plug-and-play integration
• MCU-agnostic design for easy integration into existing systems
• Flexible topology support: Centralized, Distributed, and Modular configurations



Monitoring Capabilities

• Cell voltage accuracy: ±3.6mV
• Temperature monitoring: Up to 8 sensors
• SoC/SoH Coulomb counting
• High-side and low-side current sensing



Vehicle State Management

• E2W/E3W vehicle state condition readiness
• Support for Driving, Charging, Parking, and Fault states



Connectivity and Software

• Daisy-chaining ready for multi-board configurations
• Comprehensive GUI compatible with any PC/laptop
• Integrated firmware and GUI software suite
• Real-time monitoring, diagnostics, and data plotting capabilities
• Open-source BMS example codes provided

The AD-BMSE2E3WLC-SL Solution Kit is a cost-competitive, system-level reference design developed for medium- to high-performance Battery Management System (BMS) applications in Electric 2-Wheeler (E2W) and Electric 3-Wheeler (E3W) platforms. Designed for battery systems operating from 36V to 96V and supporting currents up to 100A, the solution combines accurate battery monitoring, current sensing, protection, and system control into a flexible development platform. The kit leverages the automotive-grade ADBMS1816W battery monitoring IC to provide precise cell-voltage measurement, temperature monitoring, and pack-level diagnostics, enabling developers to evaluate and accelerate the implementation of advanced BMS functions for a wide range of battery chemistries, including Li-ion, LiFePO4, Ni-MH, and Sodium-Ion batteries.

The solution kit consists of two primary hardware components: the AD-BMSE2E3WLC-48V baseboard, which integrates current sensing, power-path control, communication interfaces, and system-level BMS functionality and the EVAL-ADBMS1816WLC daughterboard, which expands cell-monitoring capability and enables support for higher cell-count battery packs. The package also includes the MAX32666FTHR microcontroller board, which executes BMS algorithms and provides USB-to-SPI communication for GUI interaction and two DC2472A Battery Emulator boards for evaluation and testing purposes, allowing users to simulate battery-cell voltages without connecting an actual battery pack. ​

The solution kit consists of two primary hardware components: the AD-BMSE2E3WLC-48V Base Board, which integrates current sensing, power-path control, communication interfaces, and system-level BMS functionality and the EVAL-ADBMS1816WLC Daughter Board, which expands cell-monitoring capability and enables support for higher cell-count battery packs. The package also includes the MAX32666FTHR microcontroller board, which executes BMS algorithms and provides USB-to-SPI communication for GUI interaction and two DC2472A Battery Emulator boards for evaluation and testing purposes, allowing users to simulate battery-cell voltages without connecting an actual battery pack.

Featuring built-in charge and discharge control circuitry with both high-side and low-side current sensing, the AD-BMSE2E3WLC-SL supports accurate State of Charge (SoC) and State of Health (SoH) estimation while providing the flexibility to implement centralized, distributed, or modular BMS architectures. Its modular and stackable design supports standard Arduino and Feather form factors, allowing users to integrate their preferred MCU platforms with minimal hardware modification. The system is further enhanced by daisy-chain-ready isoSPI connectivity, enabling scalable battery monitoring solutions for larger systems.

To accelerate development, this reference design also includes open-source firmware examples and a comprehensive PC-based graphical user interface (GUI) that provides real-time monitoring, diagnostics, configuration, and data visualization capabilities.

Upon purchase, the AD-BMSE2E3WLC-SL Solution Kit comes complete with:

Boards:

• 1x AD-BMSE2E3WLC-48V Baseboard (can be purchased separately) ​
• 1x EVAL-ADBMS1816WLC Daughterboard (can be purchased separately) ​
• 1x MAX32666FTHR Microcontroller Board (can be purchased separately)
• 1x MAX32625PICO Programmer with 10-pin SWD Debugger Cable (can be purchased separately)
• 2x DC2472A Battery Cell Emulator (can be purchased separately)

Accessories:

• 2x USB Cable (Male USB-A to Male Micro USB-B)
• 2x Red Alligator Clip to Banana Plug (1166-12-0)
• 2x Black Alligator Clip to Banana Plug (1166-12-0)
• 2x isoSPI Twisted Pair Cable

However, customers also have the option to avail of the components individually as intended for their application development.

APPLICATIONS

• Medium to High Performance Electric and Hybrid 2- or 3-Wheeler Vehicles
• Light Electric Vehicles (LEVs)
• BMS Battery Research and Development
• Adaptive Battery Type System Monitoring
• Portable Energy Storage Systems

宽范围 BMS 系统

• 工作电压范围为 36V 至 48V，可处理高达 100A 的电流。

电池化学兼容性

• 支持多种电池化学类型：镍氢电池、锂离子电池、磷酸铁锂电池、钠离子电池及其他

系统集成

• 可与基于 Arduino 的微控制器板配合使用
• 即插即用集成<

监测功能

• 电池电压精度：±3.6mV
• 温度监测：最多 8 个传感器
• SoC/SoH 库仑计数

连接性和软件

• 支持菊花链连接，适用于多板配置
• 具备全面的图形用户界面，兼容任何 PC/笔记本电脑，并可实现实时电池监控和诊断。

EVAL-ADBMS1816WLC 是一个扩展和评估平台，旨在与 AD-BMSE2E3WLC-48V 底板配合使用，为电动两轮车 (E2W)、电动三轮车 (E3W) 和轻型电动汽车 (LEV) 应用中使用的电池组提供额外的电池监控功能。

该电路板以 ADBMS1816W 电池监控 IC 为核心，能够精确测量电池单体电压。EVAL-ADBMS1816WLC 子板专为无缝集成而设计，通过 isoSPI 通信连接到 AD-BMSE2E3WLC-48V 底板，支持可扩展和菊花链式电池管理架构。

该设计包括与 Arduino 兼容的排针、专用电池单体连接器和高可靠性通信接口，从而简化了硬件设置和系统扩展。结合 AD-BMSE2E3WLC 软件生态系统、固件示例和 GUI 工具，该子板可实现对各种可充电电池化学体系和储能应用的实时电池电压监测、诊断、数据可视化，并可对电池管理算法进行快速评估。

应用

• 中高性能电动和混合动力两轮或三轮车辆
• 轻型电动车
• BMS 电池研发
• 自适应电池类型系统监控
• 便携式储能系统

如果您有兴趣购买包含基板以及完整参考设计评估所需的其他配件的解决方案套件，请访问 AD-BMSE2E3WLC-SL 页面。

Wide Range BMS System

• Can operate from 36V to 48V, can handle currents up to 100A​

Battery Chemistry Compatibility​

• Supports multiple battery chemistries: Ni-MH, Li-ion, LiFePO4, Sodium-ion, and others​​

System Integration

• Plug-and-play integration
• MCU-agnostic design for easy integration into existing systems
• Flexible topology support: Centralized, Distributed, and Modular configurations

Monitoring Capabilities

• Cell voltage accuracy: ±3.6mv
• Temperature monitoring: Up to 8 sensors
• SoC/SoH Coulomb counting
• High-side and low-side current sensing

Vehicle State Management

• E2W/E3W vehicle state condition readiness
• Support for Driving, Charging, Parking, and Fault states

Connectivity and Software

• Daisy-chaining ready for multi-board configurations
• Comprehensive GUI compatible with any PC/laptop
• Integrated firmware and GUI software suite
• Real-time monitoring, diagnostics, and data plotting capabilities
• Open-source BMS example codes provided

The AD-BMSE2E3WLC-48V is the baseboard of the AD-BMSE2E3WLC-SL Solution Kit, developed to simplify the evaluation of Battery Management Systems for Electric 2- and 3-Wheeler (E2/E3W), Light Electric Vehicle (LEV), and energy storage applications.

Operating over a battery voltage range of 36V to 48V and supporting currents up to 100A, the board integrates battery monitoring, current sensing, power-path control, communication interfaces, and MCU connectivity into a single platform. Its MCU-agnostic architecture, Arduino-compatible headers, FeatherWing connector, and isoSPI communication interface provide flexibility for integration into centralized, distributed, or modular BMS architectures.

When paired with the EVAL-ADBMS1816WLC Daughter Board, it enables a wider range of high-accuracy cell voltage measurement (up to 96V), temperature monitoring, SOC/SOH estimation, and battery protection functions required for LEV systems.

Built around the automotive-grade ADBMS1816W battery monitoring IC, the AD-BMSE2E3WLC-48V Baseboard supports multiple battery chemistries, including Li-ion, LiFePO4, Ni-MH, and Sodium-ion batteries.

APPLICATIONS

• Medium to High Performance Electric and Hybrid 2- or 3-Wheeler Vehicles
• Light Electric Vehicles
• BMS Battery Research and Development
• Adaptive Battery Type System Monitoring
• Portable Energy Storage Systems

For those interested in purchasing the Solution Kit, which includes the daughterboard as well as the other accessories needed for full reference design evaluation, please visit the AD-BMSE2E3WLC-SL page.
