MAX11166

16-Bit, 500ksps, ±5V SAR ADC with Internal Reference in TDFN

Show More showmore-icon

Industry's Smallest, True Bipolar ±5V, 16-Bit ADCs

Part Details
Features
  • High DC/AC Accuracy Improves Measurement Quality
    • 16-Bit Resolution with No Missing Codes
    • 500ksps Throughput Rates without Pipeline Delay/Latency
    • 92.9dB SNR and -103dB THD at 10kHz
    • 0.5 LSBRMS Transition Noise
    • ±0.2 LSB DNL (typ) and ±0.4 LSB INL (typ)
  • Highly Integrated ADC Saves Cost and Space
    • ±6ppm/°C Internal Reference
    • Internal Reference Buffer
    • ±5V Bipolar Analog Input Range
  • Wide Supply Range and Low Power Simplify Power-Supply Design
    • 5V Analog Supply
    • 2.3V to 5V Digital Supply
    • 25.5mW Power Consumption at 500ksps
    • 10µA in Shutdown Mode
  • Multi-Industry Standard Serial Interface and Small Package Reduce Size
    • SPI/QSPI/MICROWIRE®/DSP-Compatible Serial Interface
    • 3mm x 3mm Tiny 12-Pin TDFN Package
Additional Details
show more Icon

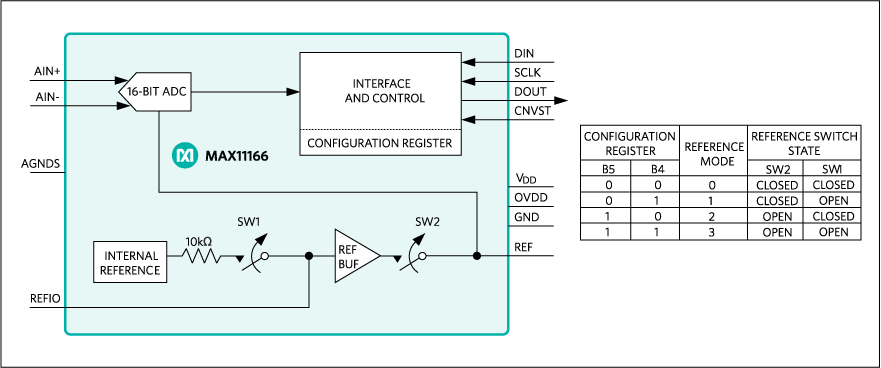

The MAX11166 16-bit, 500ksps, SAR ADC offers excellent AC and DC performance with true bipolar input range, small size, and internal reference. The MAX11166 measures a ±5V (10VP-P) input range while operating from a single 5V supply. A patented charge-pump architecture allows direct sampling of high-impedance sources. The MAX11166 integrates an optional internal reference and buffer, saving additional cost and space.

These ADCs achieve 92.9dB SNR and -103dB THD. The MAX11166 guarantees 16-bit no-missing codes and ±0.4 LSB INL (typ).

The MAX11166 communicates using an SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic. The serial interface can be used to daisy-chain multiple ADCs in parallel for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.

The MAX11166 is offered in 12-pin, 3mm x 3mm, TDFN package and is specified over the -40°C to +85°C temperature range.

Applications

  • Automatic Test Equipment
  • Data Acquisition Systems
  • Industrial Control Systems/Process Control
  • Medical Instrumentation

close icon
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

MAX11166EVSYS

Evaluation System for the MAX11166

zoom

MAX11166EVSYS

Evaluation System for the MAX11166

Evaluation System for the MAX11166

Features and Benefits

  • Windows XP-, Windows Vista-, and Windows 7-Compatible Software
  • High-Speed USB Interface
  • Various Sample Sizes and Sample Rates
  • Time Domain, Frequency Domain, and Histogram Plotting
  • Collects Up to 1 Mega Samples
  • Frequency, RMS, MIN, MAX, and Average DC Calculations
  • On-Board Voltage Reference
  • 40MHz SPI Interface
  • RoHS Compliant
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Detail

The MAX11166 evaluation system (EV system) includes a mother board and daughter board to evaluate the MAX11166 16-bit ADC. The EV system includes a simple graphical user interface (GUI) for exercising the features of the IC. This GUI is compatible with Windows XP®-, Windows Vista®-, and Windows® 7. The EV system GUI allows different sample sizes, adjustable sampling rates, internal or external reference options, and graphing software that includes the following representations of the sampled signals: time domain, frequency domain, histogram, and single conversion.
The EV system is made up of the MAXPRECADCMB mother board with an on-board Altera FPGA and the daughter board for evaluating the IC. The mother board plugs into the PC through a high-speed USB link to send SPI commands through the GUI. The mother board accepts a 5V supply. The daughter board accepts ±15V supplies.
The daughter board comes installed with a MAX11166ETC+ in a 12-pin TDFN-EP package.

Applications

  • Automatic Test Equipment
  • Data Acquisition Systems
  • Industrial Control Systems/Process Control
  • Medical Instrumentation
Tools & Simulations

Tools & Simulations 1

Reference Designs

Reference Designs 3

5865fig01

MAXREFDES71: 2-Channel Analog Input/Analog Output with Transformer Driven Power

zoomopens a dialog

MAXREFDES71

MAXREFDES71: 2-Channel Analog Input/Analog Output with Transformer Driven Power

MAXREFDES71: 2-Channel Analog Input/Analog Output with Transformer Driven Power

Features and Benefits

Applications

  • Industrial control automation
  • Servo drive

Competitive Advantages

  • High speed
  • High accuracy
  • Low noise

Features

  • Two independent analog inputs
  • Two independent analog outputs
  • Isolated power and data
  • High-speed 400ksps analog input sampling rate
  • High-accuracy 16-bit resolution
  • Voltage output settles to within 2 LSB in 17µs
  • Current output settles to within 2 LSB in 77µs
  • Device drivers
  • Example C source code
  • Configuration files for ZedBoard™ platform
  • FMC-compatible

View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

26.55 M

MAXREFDES32

2-Channel Analog Input/Analog Output with Flyback DC-DC

zoomopens a dialog

MAXREFDES32

2-Channel Analog Input/Analog Output with Flyback DC-DC

2-Channel Analog Input/Analog Output with Flyback DC-DC

Features and Benefits

  • Two independent analog inputs
  • Two independent analog outputs
  • Isolated power and data
  • High-speed 400ksps analog input sampling rate
  • High-accuracy 16-bit resolution
  • Voltage output settles to within 2 LSB in 17µs
  • Current output settles to within 2 LSB in 77µs
  • Device drivers
  • Example C source code
  • Configuration files for ZedBoard platform
  • FMC-compatible
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

26.1 M

MAXREFDES74

MAXREFDES74: 18-Bit Precision Data Acquisition System

zoomopens a dialog

MAXREFDES74

MAXREFDES74: 18-Bit Precision Data Acquisition System

MAXREFDES74: 18-Bit Precision Data Acquisition System

Features and Benefits

The MAXREFDES74# reference design features:

  • Power and data isolation
  • Flexible, configurable inverting or noninverting input scheme
  • Unipolar or bipolar input (ADC) and output (DAC)

MAX11156

  • 18-bit resolution with no missing codes
  • SNR: 94.4dB
  • THD: -107dB at 1kHz
  • Buffered internal or external voltage reference input
  • Internal reference with -6ppm/°C (typ) temperature coefficient
  • Single 5V supply
  • True bipolar ±5V input range

MAX5318

  • 18-bit resolution with no missing codes
  • High accuracy: ±2 LSB INL (max)
  • 3µs settling time
  • User-programmable offset and gain calibration
  • ±0.5ppm/°C (typ) offset and gain drift over temperature
  • Force/sense output
  • 50MHz SPI-compatible interface with 1.8V to 5.5V logic
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

6.42 M
