MAX11161

16-Bit, 250ksps, +5V SAR ADC with Internal Reference in µMAX

ADC with Internal Reference in Industry-Standard 10-Pin Package

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

High DC/AC Accuracy Improves Measurement Quality
- 16-Bit Resolution with No Missing Codes
- 250ksps Throughput Rates Without Pipeline Delay/Latency
- 92.2dB SNR and -106.5dB THD at 10kHz
- 0.5 LSB_RMS Transition Noise
- ±0.8 LSB INL (typ) and ±0.3 LSB DNL (typ)
Highly Integrated ADC Saves Cost and Space
- ±7ppm/°C Internal Reference
- Internal Reference Buffer
Flexible and Low Power Supply Saves Space and Cost
- +5V Analog and +2.3V to +5V Digital Supply
- 31mW Power Consumption at 250ksps
- 10µA in Shutdown Mode
Multi-Industry Standard Serial Interface and Small Package Reduces Size
- SPI/QSPI™/MICROWIRE®/DSP-Compatible
- 3mm x 5mm, Tiny 10-Pin µMAX Package

Product Details

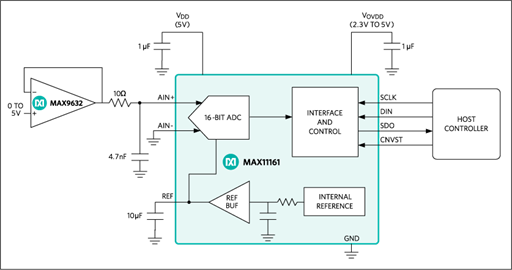

The MAX11161 is a 16-bit, 250ksps, SAR ADC offering excellent AC and DC performance with true unipolar input range, internal reference, and small size. The MAX11161 measures a +5V (0 to 5V) input range and can operate with a single 5V supply. The MAX11161 integrates a low drift reference with internal buffer, saving the cost and space of an external reference.

This ADC achieves 92.2dB SNR at 10kHz and -106.5dB THD. The MAX11161 guarantees 16-bit no-missing codes and ±0.8 LSB INL (typ).

The MAX11161 communicates using an SPI-compatible serial interface at 2.3V, 3V, 3.3V, or 5V logic. The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.

The MAX11161 is offered in a 10-pin, 3mm x 5mm, µMAX® package and is specified over the -40°C to +85°C temperature range.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Product Categories

A/D Converters (ADC)
- Single Channel A/D Converters

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (6)

MAX11168EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11162EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11160EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11150EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11158EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11152EVKIT

Evaluation Kit for the MAX11150/MAX11152/MAX11158/MAX11160/MAX11161 /MAX11162 /MAX11163 /MAX11168 /MAX11169

MAX11168EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

MAX11162EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

MAX11160EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

MAX11150EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

MAX11158EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

MAX11152EVKIT

View Detailed Evaluation Kit Information

The evaluation kit (EV kit) demonstrates the MAX1115X/MAX1116X family of 18-/16-bit SAR ADCs. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: In "standalone" mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitation for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: In "FPGA" mode, the EV kit is connected to an Avnet ZedBoard™ through a low-pin-count FMC connector. The ZedBoard features a Xilinx^® Zynq^® -7000 SoC, that connects to the PC through an Ethernet port, which allows the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin PMOD- style header for user-supplied SPI interface to connect the signals for SCLKx, DINx, DOUTx, and CNVSTx.

The EV kit includes Windows XP^®-, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options (depending upon target device selected), and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard board accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +20V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX1115X/MAX1116X EV kit comes installed with a MAX1115XEUB+/MAX1116XEUB+ in a 10-pin µMAX^® package, but can also evaluate other pin-compatible parts in the family. For a full list of products supported by this EV kit, see Table 4.

Applications

Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Medical Instrumentation

Features & Benefits

High-Speed USB Connector, FMC Connector, and PMOD-Style Connector
75MHz SPI Clock Capability through FMC Connector
10MHz SPI Clock Capability in Standalone Mode
Various Sample Sizes and Sample Rates (Up to 500ksps)
Collects Up to 1 Million samples (with FPGA Platform)
Time Domain, Frequency Domain, and Histogram Plotting
Sync In/Out for Coherent Sampling (with FPGA platform)
On-Board Input Buffers (MAX9632 and MAX44242)
On-Board Voltage References (MAX6126 and MAX6070)
Proven PCB Layout
Fully Assembled and Tested
Windows XP-, Windows 7-, and Windows 8.1-Compatible Software

Resources

MAX11150/52/58/60/62/68 EVKIT Gerber Files

ZIP

1.10M

Documentation & Resources

Data Sheets

MAX11161: 16-Bit, 250ksps, +5V SAR ADC with Internal Reference in µMAX Data Sheet (Rev. 0)
5/21/2015
PDF

Tools & Simulations

IBIS Models

IBS

86.06K

MAX11161 IBIS Model

Software Development

MAX11150/52/58/60/62/68 EVKIT Software, 1.0.0

ZIP

MAX11168 EV Kit Software, 1.0.0

ZIP

MAX1115x,6x, 1.0.0

ZIP

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number	Material Declaration	Reliability Data	Pin/Package Drawing	CAD Symbols, Footprints & 3D Models
MAX11161EUB+	Material Declaration	Reliability Data	10-MINI_SO-N/A	Ultra Librarian SamacSys
MAX11161EUB+T	Material Declaration	Reliability Data	10-MINI_SO-N/A	Ultra Librarian SamacSys
Wafer Fabrication Data

Request Product/Process Change Notifications

Close

Save to myAnalog

Support & Discussions

Contact ADI Technical Support »

Ask your question »

Contact ADI Technical Support »

Ask your question »

Sample & Buy

Ordering FAQs

See our Ordering FAQs for answers to questions about online orders, payment options and more.

Buy Now Pricing

(**) Displayed Buy Now Price and Price Range is based on small quantity orders.

List Pricing

(*)The 1Ku list pricing shown is for BUDGETARY USE ONLY, shown in United States dollars (FOB USA per unit for the stated volume), and is subject to change. International prices may differ due to local duties, taxes, fees and exchange rates. For volume-specific price or delivery quotes, please contact your local Analog Devices, Inc. authorized distributor. Pricing displayed for Evaluation Boards and Kits is based on 1-piece pricing.

Lead Times

Please see the latest communication from our CCO regarding lead times.

Sampling

Selecting the Sample button above will redirect to the third-party ADI Sample Site. The part selected will carry over to your cart on this site once logged in. Please create a new account there if you have never used the site before. Contact SampleSupport@analog.com with any questions regarding this Sample Site.

Price Table Help

Evaluation Boards

Pricing displayed is based on 1-piece.

Up to two boards can be purchased through Analog.com. To order more than two, please purchase through one of our listed distributors.

Pricing displayed is based on 1-piece. The USA list pricing shown is for budgetary use only, shown in United States dollars (FOB USA per unit), and is subject to change. International prices may vary due to local duties, taxes, fees and exchange rates.
