MAX6070

PRODUCTION

Low-Noise, High-Precision Series Voltage References

Highest Performance SOT23 Voltage References with 6ppm/°C Maximum Temperature Coefficient

Data Sheet (Rev. 20) Product Selection Table

Part Models: 58
1ku List Price: Starting From $1.22

Viewing:

Overview

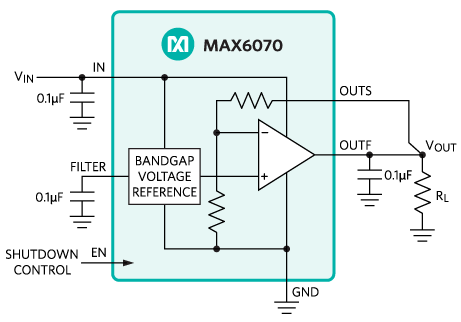

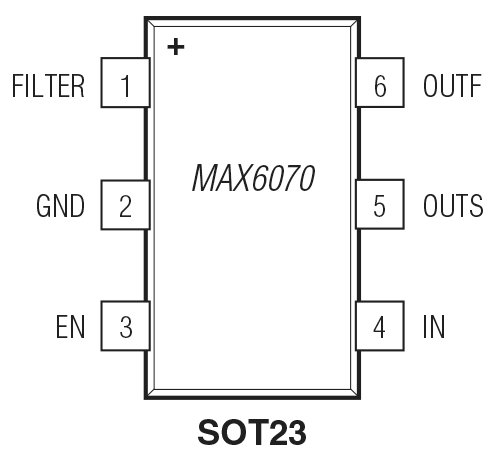

6-Pin SOT23 Package Reduces System Board Space
Stable Performance Over Temperature and Time Improves System Accuracy
- High ±0.04% Initial Accuracy
- Low 1.5ppm/°C (typ), 6ppm/°C (max, A grade) Temperature Drift
- Low 4.8µV_P-P Noise (0.1Hz to 10Hz) at 2.5V
- Low 200mV Dropout Voltage
- High 85dB Ripple Rejection
Low 150µA Supply Current Reduces Power Consumption
Filter Option Lowers High-Frequency Noise
Output Options: 1.25V, 1.8V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V Cover Common Voltage Levels for a Wide Variety of Applications
0.78mm x 1.41mm WLP with 0.35mm Bump Spacing
AEC-Q100 Qualified (Refer to Ordering Information)

The MAX6070/MAX6071 offer a very low noise and low-drift voltage reference in a small 6-pin SOT23 package. These devices provide a 1/f noise voltage of only 4.8µV_P-P at an output voltage of 2.5V, with a temperature drift of 6ppm/°C (max, A grade). The devices consume 150µA of supply current and can sink and source up to 10mA of load current. The low-drift and low-noise specifications enable enhanced system accuracy, making these devices ideal for high-precision industrial applications. The MAX6070 offers a noise filter option for wideband applications.

The devices are available in a 6-pin SOT23 package and specified over the extended industrial temperature range of -40°C to +125°C. The 2.5V options are also available in a 6-bump 0.78mm x 1.41mm wafer-level package (WLP).

Applications

High-Accuracy Industrial and Process Control
High-Resolution ADCs and DACs
Precision Current Sources
Precision Instrumentation

Part Models: 58
1ku List Price: Starting From $1.22

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX6070AAUT12+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT12+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT18+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT18+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT18/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT18/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT21+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT21+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT25+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT25+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT30+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT30+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT33+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT33+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT33/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT33/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT41+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT41+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT50+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT50+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT50/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070AAUT50/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT12+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT12+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT12/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT12/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT18+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT18+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT21+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT21+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT21/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT21/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT25+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT25+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT25/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT25/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT30+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT30+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT30/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT30/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT33+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT33+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT33/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT33/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT41+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT41+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT41/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT41/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT50+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070BAUT50+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070DAUT12/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070DAUT12/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070DAUT25/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070DAUT25/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070DAUT30/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070DAUT30/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070DAUT41/V+	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6070DAUT41/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 26, 2020 - 2037_AMENDED ASSEMBLY
		pcn_2037_amended
MAX6070AAUT12+	PRODUCTION
MAX6070AAUT12+T	PRODUCTION
MAX6070AAUT18+	PRODUCTION
MAX6070AAUT18+T	PRODUCTION
MAX6070AAUT21+	PRODUCTION
MAX6070AAUT21+T	PRODUCTION
MAX6070AAUT25+	PRODUCTION
MAX6070AAUT25+T	PRODUCTION
MAX6070AAUT30+	PRODUCTION
MAX6070AAUT30+T	PRODUCTION
MAX6070AAUT33+	PRODUCTION
MAX6070AAUT33+T	PRODUCTION
MAX6070AAUT41+	PRODUCTION
MAX6070AAUT41+T	PRODUCTION
MAX6070AAUT50+	PRODUCTION
MAX6070AAUT50+T	PRODUCTION
MAX6070BAUT12+	PRODUCTION
MAX6070BAUT12+T	PRODUCTION
MAX6070BAUT18+	PRODUCTION
MAX6070BAUT18+T	PRODUCTION
MAX6070BAUT21+	PRODUCTION
MAX6070BAUT21+T	PRODUCTION
MAX6070BAUT25+	PRODUCTION
MAX6070BAUT25+T	PRODUCTION
MAX6070BAUT30+T	PRODUCTION
MAX6070BAUT33+	PRODUCTION
MAX6070BAUT33+T	PRODUCTION
MAX6070BAUT41+	PRODUCTION
MAX6070BAUT41+T	PRODUCTION
MAX6070BAUT50+	PRODUCTION
MAX6070BAUT50+T	PRODUCTION
Apr 16, 2020 - 2037A ASSEMBLY
		pcn_2037a
MAX6070AAUT12+T	PRODUCTION
MAX6070AAUT30+T	PRODUCTION
MAX6070AAUT33+	PRODUCTION
MAX6070BAUT12+T	PRODUCTION
MAX6070BAUT18+	PRODUCTION
MAX6070BAUT18+T	PRODUCTION
Mar 31, 2020 - 2037N ASSEMBLY
		pcn_2037n
MAX6070AAUT18+	PRODUCTION
MAX6070AAUT18+T	PRODUCTION
MAX6070AAUT21+	PRODUCTION
MAX6070AAUT21+T	PRODUCTION
MAX6070AAUT25+	PRODUCTION
MAX6070AAUT25+T	PRODUCTION
MAX6070AAUT41+	PRODUCTION
MAX6070AAUT41+T	PRODUCTION
MAX6070AAUT50+	PRODUCTION
MAX6070AAUT50+T	PRODUCTION
MAX6070BAUT21+	PRODUCTION
MAX6070BAUT21+T	PRODUCTION
MAX6070BAUT25+	PRODUCTION
MAX6070BAUT25+T	PRODUCTION
MAX6070BAUT30+T	PRODUCTION
MAX6070BAUT33+	PRODUCTION
MAX6070BAUT33+T	PRODUCTION
MAX6070BAUT41+T	PRODUCTION
MAX6070BAUT50+	PRODUCTION
MAX6070BAUT50+T	PRODUCTION
Apr 8, 2021 - 2026 ASSEMBLY
		pcn_2026
MAX6070AAUT18/V+	PRODUCTION
MAX6070AAUT18/V+T	PRODUCTION
MAX6070AAUT33/V+	PRODUCTION
MAX6070AAUT33/V+T	PRODUCTION
MAX6070AAUT50/V+	PRODUCTION
MAX6070BAUT12/V+	PRODUCTION
MAX6070BAUT12/V+T	PRODUCTION
MAX6070BAUT25/V+	PRODUCTION
MAX6070BAUT25/V+T	PRODUCTION
MAX6070BAUT33/V+	PRODUCTION
MAX6070BAUT33/V+T	PRODUCTION
MAX6070BAUT41/V+	PRODUCTION
MAX6070BAUT41/V+T	PRODUCTION
MAX6070DAUT12/V+	PRODUCTION
MAX6070DAUT12/V+T	PRODUCTION
MAX6070DAUT25/V+	PRODUCTION
MAX6070DAUT25/V+T	PRODUCTION
MAX6070DAUT30/V+	PRODUCTION
MAX6070DAUT30/V+T	PRODUCTION
MAX6070DAUT41/V+	PRODUCTION
MAX6070DAUT41/V+T	PRODUCTION
Aug 4, 2020 - 1708B5 ASSEMBLY
		pcn_1708b5
MAX6070AAUT33/V+T	PRODUCTION
MAX6070BAUT25/V+T	PRODUCTION
Mar 13, 2019 - 1708B ASSEMBLY
		pcn_1708b
MAX6070BAUT12/V+	PRODUCTION
MAX6070BAUT12/V+T	PRODUCTION
MAX6070BAUT33/V+	PRODUCTION
MAX6070BAUT33/V+T	PRODUCTION
MAX6070BAUT41/V+T	PRODUCTION
Nov 1, 2021 - 2209 ASSEMBLY
		pcn_2209
MAX6070BAUT21+	PRODUCTION
MAX6070BAUT21+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
