MAX11163
16-Bit, 250ksps, +5V Unipolar Input, SAR ADC, in Tiny 10-Pin µMAX
Show More
ADC in Industry-Standard 10-Pin Package Offers 93.8dB SNR
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- High DC/AC Accuracy Improves Measurement Quality
- 16-Bit Resolution with No Missing Codes
- 250ksps Throughput Rates without Pipeline Delay/Latency
- 93.2dB SNR and -105dB THD at 10kHz
- 0.38 LSBRMS Transition Noise
- ±0.2 LSB DNL (typ) and ±0.5 LSB INL (typ)
- Wide Supply Range and Low Power Simplify Power-Supply Design
- +5V Analog Supply
- +2.3V to +5V Digital Supply
- 19mW Power Consumption at 250ksps
- 10µA in Shutdown Mode
- Multi-Industry Standard Serial Interface and Small Package Reduce Size
- SPI/QSPI™ MICROWIRE®/DSP-Compatible Serial Interface
- 3mm x 5mm Tiny 10-Pin µMAX Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

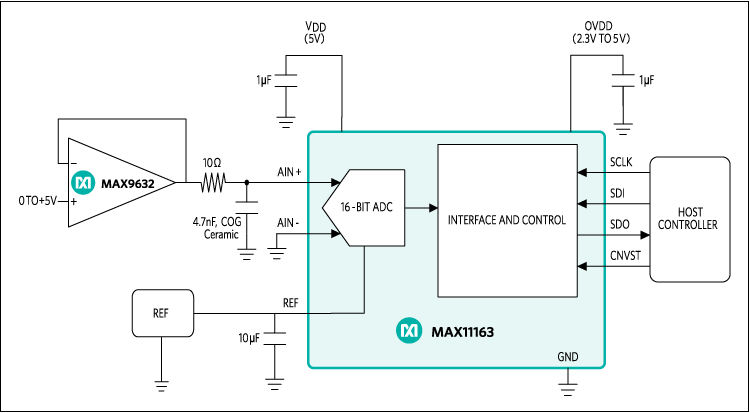

The MAX11163 is a 16-bit, 250ksps, +5V unipolar pseudo-differential input SAR ADC offering excellent AC and DC performance in small standard package.
This ADC typically achieves 93.2dB SNR, -105dB THD, ±0.5 LSB INL, and ±0.2 LSB DNL. The MAX11163 guarantees 16-bit no-missing codes.
The MAX11163 communicates using an SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic.
The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.
The MAX11163 is offered in a 10-pin, 3mm x 5mm, µMAX® package and is specified over the -40°C to +85°C temperature range.
Applications
- Automatic Test Equipment
- Industrial Process Control
- Medical Instrumentation
- Narrowband Receivers
- Test and Measurements
