LTP5902-IPM

SmartMesh IP Wireless 802.15.4e PCBA Module with Antenna Connector

Data Sheet

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

37mm × 24mm PCBA module with MMCX antenna connector
Integrates 2.4 GHz, IEEE 802.15.4e System-on-Chip, Complete with Embedded SmartMesh Networking Software
- >99.999% Network Reliability in the Most Challenging RF Environments
- Sub 50µA Routing Nodes
Serves as either a Wireless Mote, EManager, or Access Point Mote in a SmartMesh IP network
These products contain encryption. Import/export restrictions may apply

Product Details

SmartMesh IP wireless sensor networks are self managing, low power internet protocol (IP) networks built from wireless nodes called motes.The LTP5902-IPM is printed circuit board assembly (PCBA) product with on-board chip antenna in the Eterna^®family of IEEE 802.15.4e solutions, featuring a highly integrated, low power radio design as well as an ARM Cortex-M3 32-bit microprocessor running SmartMesh IP embedded networking software. The LTP5902-IPM, at 37mm × 24mm, is built for surface-mount assembly.

With SmartMesh IP time-synchronized networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. SmartMesh IP is a highly flexible network with proven reliability and low power performance in an easy-to-integrate platform.

The LTP5902-IPM’s behavior in a SmartMesh IP network is determined by the choice of SmartMesh IP network software loaded: Wireless Mote, EManager, Access Point Mote in a SmartMesh IP network. The SmartMesh IP software provided with the LTP5902-IPM is fully tested and validated, and is readily configured via a software Application Programming Interface. Once you have purchased SmartMesh IP products, the SmartMesh IP stack binaries may be downloaded via your myAnalog account.

The pin signaling behavior of the LTP5902IPC-IPMA hardware is determined by the software loaded and is described in detail in the following product datasheets:


LTP5902-IPM	=	LTP5902IPC-IPMA hardware	+	SmartMesh IP Mote Software	→	LTP5902-IPM Datasheet
LTP5902-IPR	=	LTP5902IPC-IPMA hardware	+	SmartMesh IP EManager Software	→	LTP5902-IPR Datasheet
LTP5902-IPA	=	LTP5902IPC-IPMA hardware	+	SmartMesh IP Access Point Software	→	LTP5902-IPA Datasheet


Network Features
Feature	Benefit
>99.999% Network Reliability	Avoids communications dropouts common with other wireless networks
NIST-certified AES-128 bit Encryption	Data protected by end-to-end encryption, message integrity checking and device authentication
Scalable	Uses time-slotted channel-hopping protocol to avoid in-network collisions to maximize scale while minimizing power and latency-hungry transmission retries due to congestion
Bidirectional Communications	Ideal for both monitoring and control applications
Up to 10 messages/second/node	Time-slotted communications avoids contention. This data rate includes built-in margin for packet retries.


Device Features
Feature	Benefit
Industry-Leading Low Power Radio Technology	• 4.5mA to Receive a Packet • 5.4mA to Transmit at 0dBm • 9.7mA to Transmit at 8dBm
Pre-engineered RF	RF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.
RF Modular Certifications	Pre-certified in USA, Canada, EU, Australia/New Zealand, India, Japan, Korea, Taiwan
Energy Harvesting Support	Very low power design enables motes to be powered by a wide variety of energy harvesters. Click here to see a demonstration circuit of a SmartMesh IP mote powered by indoor light.
Integrated Temperature Sensor	Precise temperature sensor is integrated directly into the mote.

Applications

SmartMesh IP is ideally suited for wireless Industrial Internet of Things (IoT) applications. To learn more about SmartMesh applications, click here.

Product Categories

RF & Microwave
- SmartMesh IP

Markets & Technology

Industrial Automation Technology (IAT)
- Condition-Based Monitoring (CBM)

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (4)

DC9021B

SmartMesh IP Starter Kit
DC9018B-B

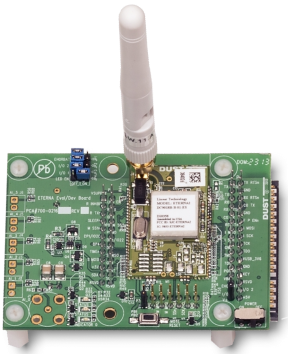

SmartMesh IP RF Certified Eval/Dev Mote (MMCX Antenna Connector with 2dBi Dipole Antenna)
DC9021A

SmartMesh IP RF Certified Starter Kit (Chip Antennae), 100 Mote Capacity
DC9000B

SmartMesh IP Starter Kit (Chip Antennae), 100 Mote Capacity

DC9021B

View Detailed Evaluation Kit Information

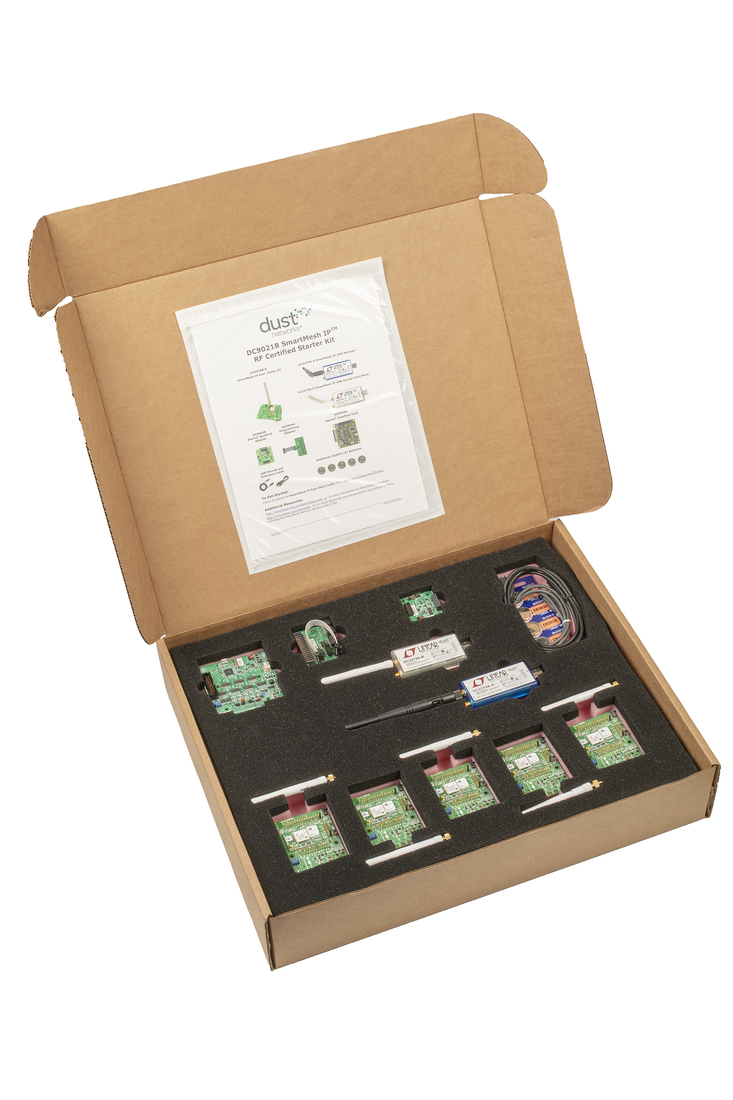

The DC9021B SmartMesh IP^™ Starter Kit provides all the tools for evaluating SmartMesh^® network performance with respect to your application needs, including high reliability, ultralow power, scalability and ease of installation. This accelerates device integration and application software development.

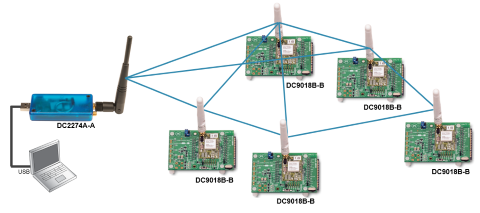

The DC9021B Starter Kit includes five motes, or nodes (DC9018B-B), to enable you to quickly deploy a multi-hop mesh network in the RF environment specific to your application. The StarGazer evaluation software graphical user interface (GUI) allows you to quickly see the mesh network form, as well as key performance statistics, such as data reliability and latency.

The DC9018B-B Evaluation/Development Mote Modules feature easy-to-probe signal pins. In addition, the starter kit provides access to both manager and mote software application programming interfaces (APIs) over USB to enable application software development.

The DC2274A-A USB Embedded Network Manager comes factory-configured as an embedded network manager, where both the wireless-to-wired access point function and the network management algorithms run on board.

The DC2274A-B USB Access Point Mote enables customers to evaluate VManager, which supports thousands of nodes.

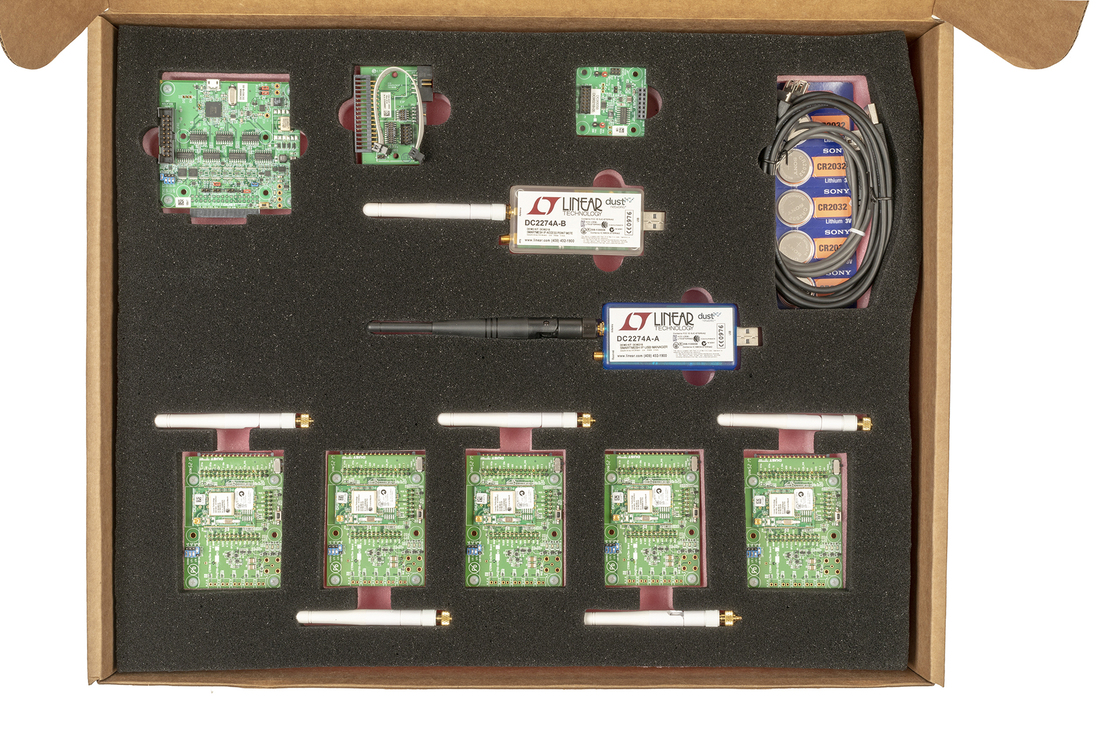

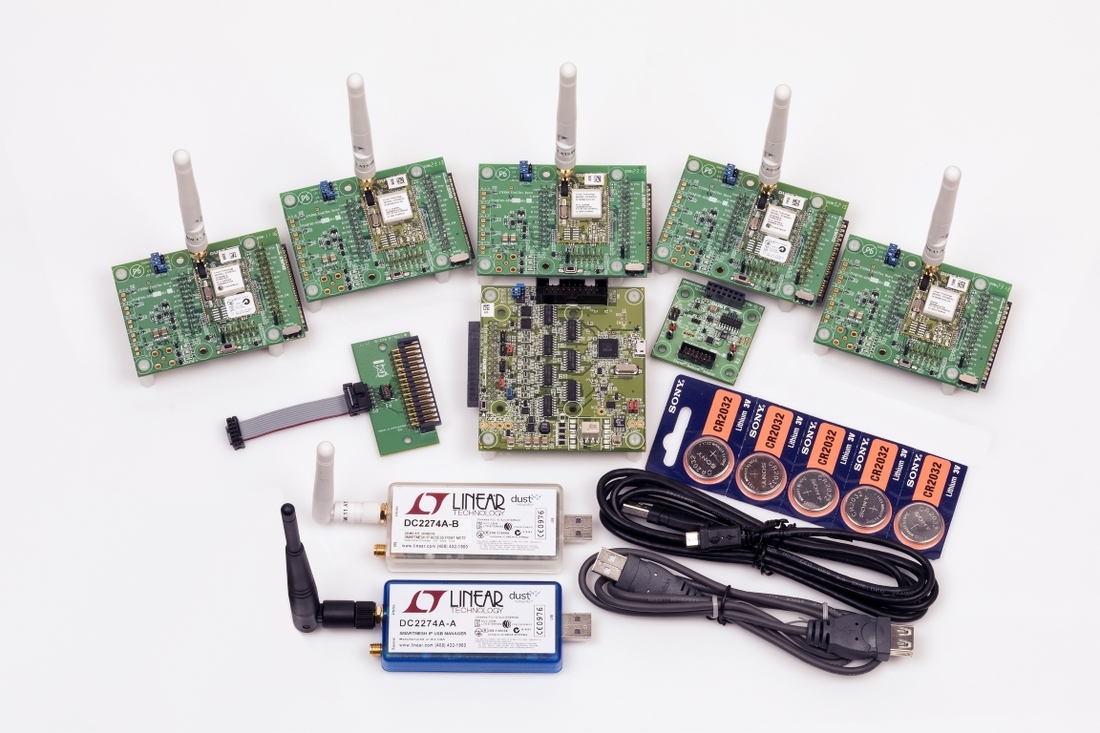

SmartMesh IP Starter Kit – includes the following items:

One USB Embedded Network Manager (DC2274A-A)
One USB Access Point Mote (DC2274A-B)
Five Evaluation / Development Motes (DC9018B-B)
One Eterna Interface Card (DC9006A), which includes a DC9004 adapter card
One Eterna QuikEval Adapter (DC9005A)
Additional CR2032 batteries
USB Cables

Watch the SmartMesh IP Starter kit Video

The DC9021B Starter Kit operates in the 2.4000GHz to 2.4835GHz international license-free frequency band. Starter kits and demo boards are for evaluation purposes only. It remains the customer’s responsibility to verify proper and reliable operation in the actual end application.

SmartMesh IP Starter Kit Software
Software Utility	Description	Download Link
StarGazer	GUI application for visualizing a network and interacting with motes	Download
Serial Mux	Software used to connect multiple clients to the manager	Download
SmartMesh SDK (optional)	Software development kit used to interact with the devices’ Application Programming Interface (API)	GitHub Repository
FTDI driver	USB-to-Serial drivers for communication with DC9001, DC9006 boards	Download VCP from FTDIchip.com
LBR (optional)	Low power Border Router software utility and sample code. Python script for mapping SmartMesh IP networks onto an IPv4 network (e.g. Ethernet)	Download

Resources

DC9018B-B

View Detailed Evaluation Kit Information

SmartMesh IP Networks are populated by motes, the nodes on the network. Based on the break through Eterna^® technology, the motes are ultralow power, extending battery life to years and many times that of alternative products. In addition to extra long battery life, the motes feature an advanced array of features.

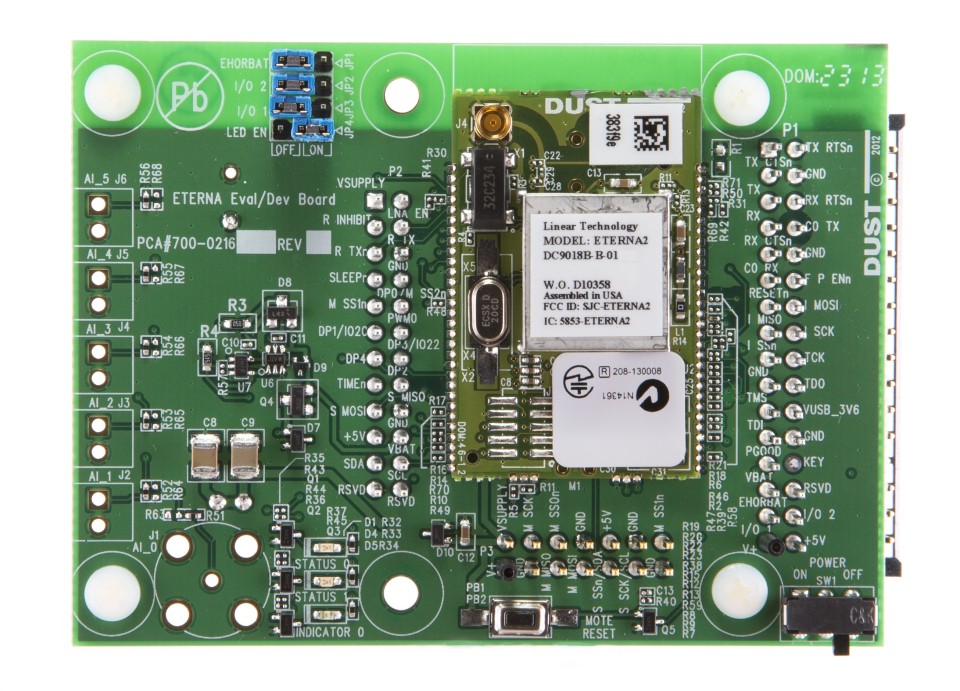

DC9018B-B Evaluation/Development Mote incorporates the RF-Certified LTP5902-IPM SmartMesh IP Mote PCB Module (including MMCX antenna connector) and a CR2032 coin cell.

SmartMesh WirelessHART Starter Kit Software
Software Utility	Description	Download Link
StarGazer	GUI application for visualizing a network and interacting with motes	Download
Serial Mux	Software used to connect multiple clients to the manager	Download
SmartMesh SDK (optional)	Software development kit used to interact with the devices’ Application Programming Interface (API)	GitHub Repository
FTDI driver	USB-to-Serial drivers for communication with DC9001, DC9006 boards	Download VCP from FTDIchip.com
LBR (optional)	Low power Border Router software utility and sample code. Python script for mapping SmartMesh IP networks onto an IPv4 network (e.g. Ethernet)	Download

Resources

DC9021A

View Detailed Evaluation Kit Information

Note: Newer Kit Available - Please see the DC9021B

The DC9021A SmartMesh IP™ RF Certified Starter Kit provides all the tools for evaluating SmartMesh® network performance for your application needs, including high reliability, ultralow power, scalability and ease of installation. This accelerates device integration and application software development.

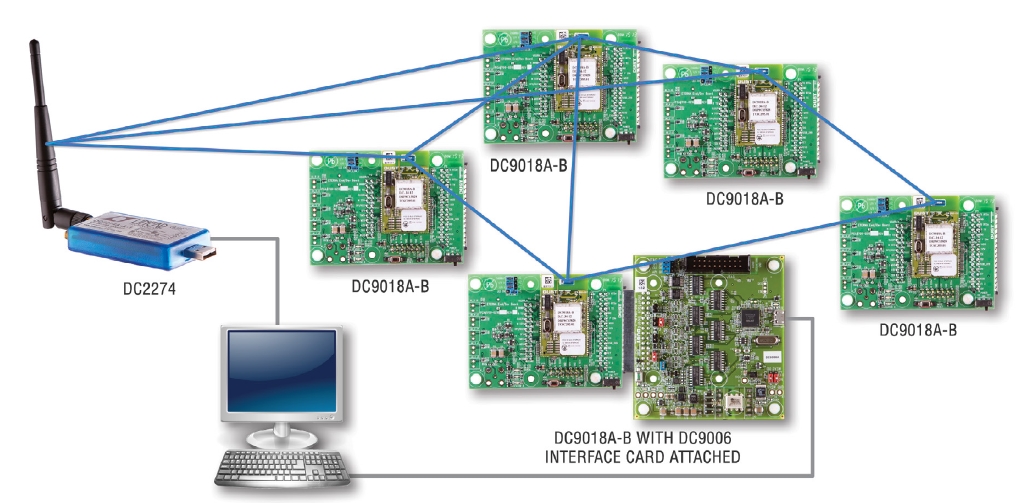

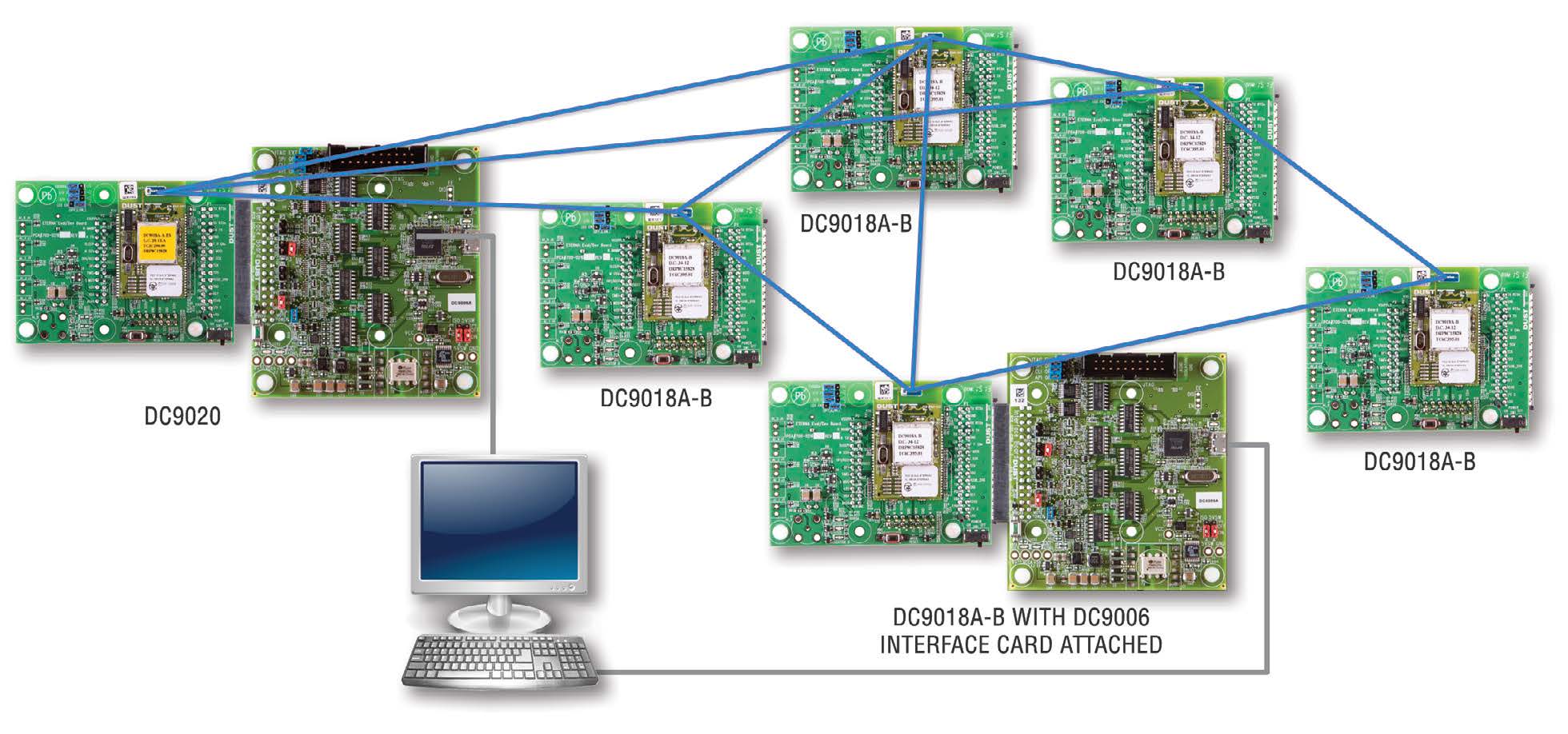

The DC9021A Starter Kit includes five motes or wireless nodes (DC9018A-B) to enable you to quickly deploy a multi-hop mesh network in the RF environment for your specific application. The StarGazer evaluation software graphical user interface (GUI) allows you to quickly see the mesh network form, as well as key performance statistics, such as data reliability and latency.

The DC9018A-B Evaluation/Development Mote Modules feature easy-to-probe signal pins. In addition, the starter kit provides access to both manager and mote software application programming interfaces (APIs) over USB to enable application software development.

The DC2274A-A USB Network Manager comes factory-configured as an embedded network manager, where both the wireless-to-wired access point function and the network management algorithms run on board. Optionally, users may configure the DC2274 as a SmartMesh IP Access Point Mote for operation with VManager software. (Click here to learn more about network managers.)

The DC9021A Starter Kit operates in the 2.4000GHz to 2.4835GHz international license-free frequency band and includes RF intentional radiator certifications for Japan, as well as the United States, Canada, Europe, India, South Korea, Taiwan, Australia and New Zealand. Starter kits and demo boards are for evaluation purposes only. It remains the user’s responsibility to verify proper and reliable operation in the actual end application.

SmartMesh IP Starter Kit – includes the following items:

One USB Network Manager (DC2274A-A)
Five Evaluation / Development Motes (DC9018A-B)
One Eterna Interface Card (DC9006), which includes a DC9004 adaptor card
Additional CR2032 batteries
Cables

Resources

DC9000B

View Detailed Evaluation Kit Information

Note: Newer Kit Available - Please see the DC9021B

The DC9000B SmartMesh IP^™ Starter Kit provides all the tools for evaluating SmartMesh^® network performance with respect to your application needs, including high reliability, ultralow power, scalability and ease of installation. This accelerates device integration and application software development.

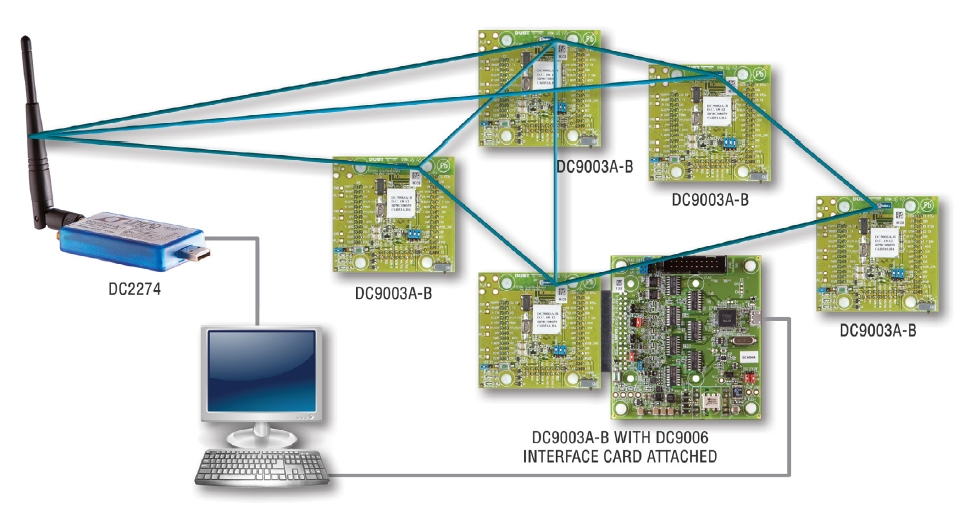

The DC9000B Starter Kit includes five motes, or nodes (DC9003A-B), to enable you to quickly deploy a multi-hop mesh network in the RF environment specific to your application. The StarGazer evaluation software graphical user interface (GUI) allows you to quickly see the mesh network form, as well as key performance statistics, such as data reliability and latency.

The DC9003A-B Evaluation/Development Mote Modules feature easy-to-probe signal pins. In addition, the starter kit provides access to both manager and mote software application programming interfaces (APIs) over USB to enable application software development.

The DC2274A USB Network Manager comes factory-configured as an embedded network manager, where both the wireless-to-wired access point function and the network management algorithms run on board. Optionally, users may configure the DC2274 as a SmartMesh IP Access Point Mote for operation with VManager software. (Click here to learn more about network managers.)

The DC9000B Starter Kit operates in the 2.4000GHz to 2.4835GHz international license-free frequency band. Starter kits and demo boards are for evaluation purposes only. It remains the customer’s responsibility to verify proper and reliable operation in the actual end application.

SmartMesh IP Starter Kit – includes the following items:

One USB Network Manager (DC2274)
Five Evaluation / Development Motes (DC9003A-B)
One Eterna Interface Card (DC9006), which includes a DC9004 adapter card
Additional CR2032 batteries
Cables
