ADF4360-8
Integrated Integer-N Synthesizer and VCO - Output Frequency 65 to 400
Top
Alternative Parts
Overview
Features and Benefits
- Output frequency range: 65 MHz to 400 MHz
- 3.0 V to 3.6 V power supply
- 1.8 V logic compatibility
- Integer-N synthesizer
- Programmable output power level
- 3-wire serial interface
- Digital lock detect
- Hardware and software power-down mode
Product Details

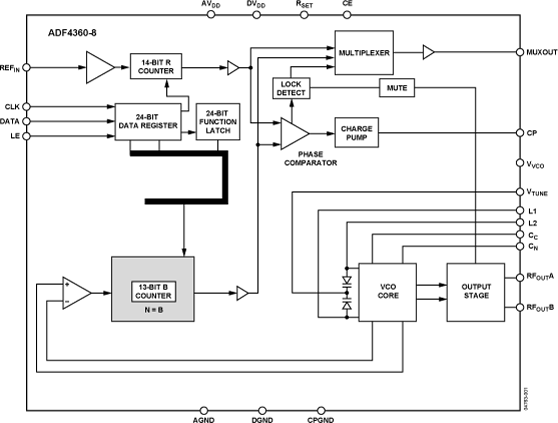

The ADF4360-8 is an integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-8 center frequency is set by external inductors. This allows a frequency range of between 65 MHz to 400 MHz. Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
AN-873: Lock Detect on the ADF4xxx Family of PLL Synthesizers (Rev. 0)12/6/2006PDF207 kB
-
Ask the Applications Engineer - PLL Synthesizers (Rev. AN-30)12/6/2004PDF184 kB
-
UG-105: Evaluation Board for the ADF4360-8 Integrated PLL and VCO Frequency Synthesizer (Rev. B)9/14/2015PDF231 kB
-
UG-476: PLL Software Installation Guide8/10/2015PDF520 kB
-
FAQs7/26/2017
-
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/2018PDF9M
-
Phase-Locked Loops for High-Frequency Receivers and Transmitters - Part 37/1/1999 Analog Dialogue
-
Phase-Locked Loops for High-Frequency Receivers and Transmitters - Part 25/1/1999 Analog Dialogue
-
Phase-Locked Loops for High-Frequency Receivers and Transmitters - Part 13/1/1999 Analog Dialogue
Software & Systems Requirements
Device Drivers
Tools & Simulations
Design Tools
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
ADIsimPLL™
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
Product Recommendations
ADF4360-8 Companion Parts
Recommended Linear Regulators
- For a step up, 3V to 5V regulator: ADP1613.
- For ultralow noise, 3V applications,150 mA output: ADP150.
- For high accuracy, 5V applications: ADP3334.
- For ultalow noise, 3V applications, 200 mA output: ADP151.
Recommended Divide-by-4 Prescaler
- For a low noise, low power, fixed RF block: ADF5001.
Recommended Modulators/Demodulators
Recommended PLL Active Filter
- For an ultralow noise, rail-to-rail amplifier: OP184.
Recommended Reference Buffer
- With integrated filters for improved noise: LTC6957.
Recommended Reference Clean Up PLL
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|

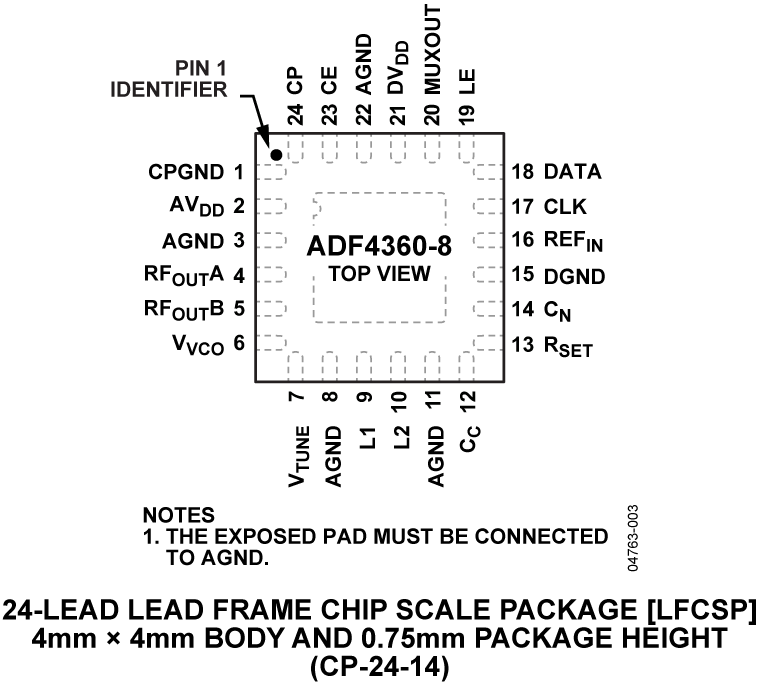

| ADF4360-8BCPZ | Material Declaration | Reliability Data | 24-Lead LFCSP (4mm x 5mm w/ EP) | |
| ADF4360-8BCPZRL | Material Declaration | Reliability Data | 24-Lead LFCSP (4mm x 5mm w/ EP) | |
| ADF4360-8BCPZRL7 | Material Declaration | Reliability Data | 24-Lead LFCSP (4mm x 5mm w/ EP) | |
| Wafer Fabrication Data |
