ADF4158

RECOMMENDED FOR NEW DESIGNS

ADF4158

Direct Modulation/Waveform Generating, 6.1 GHz Fractional-N Frequency Synthesizer

RECOMMENDED FOR NEW DESIGNS

RECOMMENDED FOR NEW DESIGNS

ADF4158 Functional Block Diagram slide

ADF4158 Pin Configuration slide

ADF4158 Functional Block Diagram

ADF4158 Pin Configuration

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $6.00

Features

RF bandwidth to 6.1 GHz
25-bit fixed modulus allows subhertz frequency resolution
Frequency and phase modulation capability
Sawtooth and triangular waveforms in the frequency domain
Parabolic ramp
Ramp superimposed with FSK
Ramp with 2 different sweep rates
Ramp delay
Ramp frequency readback
Ramp interruption
2.7 V to 3.3 V power supply
Separate V_P allows extended tuning voltage
Programmable charge pump currents
3-wire serial interface
Digital lock detect
Power-down mode
Cycle slip reduction for faster lock times
Switched bandwidth fast-lock mode
Qualified for automotive applications

Additional Details

The ADF4158 is a 6.1 GHz, fractional-N frequency synthesizer with modulation and waveform generation capability. It contains a 25-bit fixed modulus, allowing subhertz resolution at 6.1 GHz. It consists of a low noise digital phase frequency detector (PFD), a precision charge pump, and a programmable reference divider. There is a sigma-delta (Σ-Δ) based fractional interpolator to allow programmable fractional-N division. The INT and FRAC registers define an overall N-divider as N = INT + (FRAC/2²⁵).

The ADF4158 can be used to implement frequency shift keying (FSK) and phase shift keying (PSK) modulation. There are also a number of frequency sweep modes available, which generate various waveforms in the frequency domain, for example, sawtooth and triangular waveforms. Sweeps can be set to run automatically, or each step manually triggered by an external pulse. The ADF4158 features cycle slip reduction circuitry, which leads to faster lock times, without the need for modifications to the loop filter.

Control of all on-chip registers is via a simple 3-wire interface. The device operates with a power supply ranging from 2.7 V to 3.3 V and can be powered down when not in use.

Applications

Frequency modulated continuous wave (FMCW) radar
Communications test equipment

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $6.00

{{#if toggleButtonDescription}} {{/if}} {{#if newProjectTitle}} {{/if}}

Technical Documents 7

ADF4158: Direct Modulation/Waveform Generating, 6.1 GHz Fractional-N Frequency Synthesizer Data Sheet (Rev.I) 04/30/2010

Show More

UG-476: PLL Software Installation Guide 08/10/2015

UG-123: Evaluation Board for ADF4158 Fractional-N PLL Frequency Synthesizer (Rev.A) 09/14/2015

Show More

AN-1154: Optimizing Phase Noise and Spur Performance of the ADF4157 and ADF4158 PLLs Using Constant Negative Bleed 01/19/2024

Show More

Technological Solutions to Overcoming Hurdles in Unmanned Aerial Vehicles and Systems Market 01/10/2018

Radar Basics: How to Build a 24 GHz FMCW Radar System 01/24/2023

Show More

Show More

Reference Materials 9

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Fundamentals of Frequency Synthesis, Part 1: Phased Locked Loops 04/10/2017

Advances In Unmanned Systems Technology Electronics Solutions 05/25/2017

Fundamentals of Frequency Synthesis, Part 2: Direct Digital Synthesis (DDS) 04/10/2017

Overcoming UAV Operational Hurdles with Technology Solutions 07/18/2016

Video

4

Thumbnail Image

Video

2016-06-13

02:29

24GHz Multi-channel Radar and Sensor Solution at IMS 2016

Learn More

Thumbnail Image

Video

2017-02-27

06:35

High Performance 76-81GHz 28nm RF CMOS Automotive RADAR

Learn More

video thumbnail

Video

0001-01-01

Learn More

Thumbnail Image

Video

2012-09-18

09:06

Using ADIsimPLL to Simulate Frequency Ramps on the ADF4158

Learn More

Show More

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4158CCPZ	24-Lead LFCSP (4mm x 4mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4158CCPZ-RL7	24-Lead LFCSP (4mm x 4mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4158WCCPZ	24-Lead LFCSP (4mm x 4mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4158WCCPZ-RL7	24-Lead LFCSP (4mm x 4mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADF4158CCPZ
Pin/Package Drawing
24-Lead LFCSP (4mm x 4mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4158CCPZ-RL7
Pin/Package Drawing
24-Lead LFCSP (4mm x 4mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4158WCCPZ
Pin/Package Drawing
24-Lead LFCSP (4mm x 4mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4158WCCPZ-RL7
Pin/Package Drawing
24-Lead LFCSP (4mm x 4mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Apr 3, 2017

- 16_0230

Assembly Transfer of Select LFCSP Products to ASE Korea

ADF4158CCPZ

PRODUCTION

ADF4158CCPZ-RL7

PRODUCTION

pdf

PCN16_0230_Form

xls

Material_Report

Detailed Change Description

Detailed Change Description

pdf

Qualification Results Summary

May 11, 2014

- 13_0231

Assembly Transfer of Select 4x4 and 5x5mm LFCSP Products to STATS ChipPAC China.

ADF4158CCPZ

PRODUCTION

ADF4158CCPZ-RL7

PRODUCTION

pdf

PCN13_0231_Form

xls

Material_Report

Detailed Change Description

pdf

Qualification Report Summary

Filter by Model

Part Models

Product Lifecycle

PCN

Apr 3, 2017

- 16_0230

Assembly Transfer of Select LFCSP Products to ASE Korea

ADF4158CCPZ

PRODUCTION

ADF4158CCPZ-RL7

PRODUCTION

pdf

PCN16_0230_Form

xls

Material_Report

Detailed Change Description

Detailed Change Description

pdf

Qualification Results Summary

May 11, 2014

- 13_0231

Assembly Transfer of Select 4x4 and 5x5mm LFCSP Products to STATS ChipPAC China.

ADF4158CCPZ

PRODUCTION

ADF4158CCPZ-RL7

PRODUCTION

pdf

PCN13_0231_Form

xls

Material_Report

Detailed Change Description

pdf

Qualification Report Summary

Companion Parts 6

Parts	Product Life Cycle	Description
Frequency Dividers, Prescalers, and Counters1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
Internal Power Switch Boost Regulators1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit
Positive Linear Regulators (LDO)3
ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator
ADP3334	NOT RECOMMENDED FOR NEW DESIGNS	High Accuracy Low I_Q, 500 mA anyCAP^® Adjustable Low Dropout Regulator
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C)1
OP184	PRODUCTION	Single-Supply Rail-to-Rail Input/Output Operational Amplifier

Evaluation Software 1

zip ADF4158 and ADF4159 Evaluation Board Software

reference details image

EVAL-ADF4158

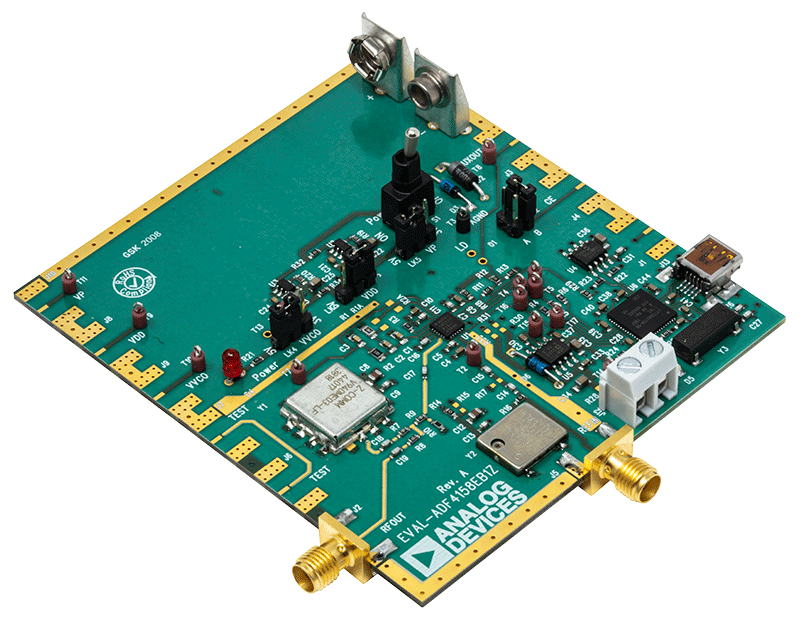

ADF4158 Evaluation Board

ADF4158 Evaluation Board

ADF4158 Evaluation Board - Top View

ADF4158 Evaluation Board - Bottom View

ADF4158 Evaluation Board

Download

Print

ADF4158 Evaluation Board

ADF4158 Evaluation Board - Top View

ADF4158 Evaluation Board - Bottom View

ADF4158 Evaluation Board

ADF4158 Evaluation Board - Top View

ADF4158 Evaluation Board - Bottom View

EVAL-ADF4158

ADF4158 Evaluation Board

Features and Benefits

Self-contained board including synthesizer, VCO, 10 MHz TCXO reference, USB interface, voltage regulators, and loop filter (5.8 GHz)
Designed for 10 MHz PFD frequency, minimum charge pump current, and 20 kHz loop bandwidth
Accompanying software allows control of synthesizer functions from a PC (via USB interface)
Battery operated: choice of 3 V or 5 V supplies

Buy Now View Details

Product Detail

The EVAL-ADF4158EB1Z evaluates the performance of the ADF4158 frequency synthesizer for phase locked loops (PLL). The board contains the ADF4158 synthesizer, a PC connector, SMA connectors for the power supplies, and an RF output. There is also a low pass loop filter (20 kHz) and a VCO (Z Communications, Inc., VCO940ME03 5.8 GHz) on board. The evaluation board is set up for a 10 MHz PFD comparison frequency. An on-board TCXO provides the 10 MHz reference frequency. A USB cable is included with the board to connect to a PC USB port.

The package also contains Windows^® software (XP, Vista, and 7 compatible) to allow easy programming of the synthesizer.

Resources

pdf

UG-476: PLL Software Installation Guide

520 kB

PDF

UG-476: PLL Software Installation Guide

421.58 K

pdf

UG-123: Evaluation Board for ADF4158 Fractional-N PLL Frequency Synthesizer (Rev.A)

370 kB

ZIP

ADF4158 Design Files

440.58 K

Show More

Software

ZIP

ADF4158 and ADF4159 Evaluation Board Software

1227 kB

evaluation kit item images

EVAL-ADF4158

ADF4158 Evaluation Board

IBIS Model 1

Simulation Model

IBIS Model

ADF4158 IBIS Model

44.15 KB

ADIsimPLL™

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

ADIsimRF

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
