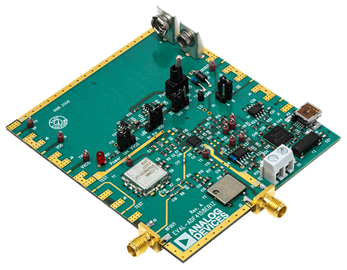

EVAL-ADF4158 Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

Self-contained board including synthesizer, VCO, 10 MHz TCXO reference, USB interface, voltage regulators, and loop filter (5.8 GHz)
Designed for 10 MHz PFD frequency, minimum charge pump current, and 20 kHz loop bandwidth
Accompanying software allows control of synthesizer functions from a PC (via USB interface)
Battery operated: choice of 3 V or 5 V supplies

Product Details

The EVAL-ADF4158EB1Z evaluates the performance of the ADF4158 frequency synthesizer for phase locked loops (PLL). The board contains the ADF4158 synthesizer, a PC connector, SMA connectors for the power supplies, and an RF output. There is also a low pass loop filter (20 kHz) and a VCO (Z Communications, Inc., VCO940ME03 5.8 GHz) on board. The evaluation board is set up for a 10 MHz PFD comparison frequency. An on-board TCXO provides the 10 MHz reference frequency. A USB cable is included with the board to connect to a PC USB port.

The package also contains Windows^® software (XP, Vista, and 7 compatible) to allow easy programming of the synthesizer.
