AD8606

Precision, Low Noise, RRIO, CMOS Op Amp (Dual)

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 6
1ku List Price Starting From $1.85
Features
  • Low offset voltage: 65 μV maximum
  • Low input bias currents: 1 pA maximum
  • Low noise: 8 nV/√Hz
  • Wide bandwidth: 10 MHz
  • High open-loop gain: 1000 V/mV
  • Unity gain stable
  • Single-supply operation: 2.7 V to 5.5 V

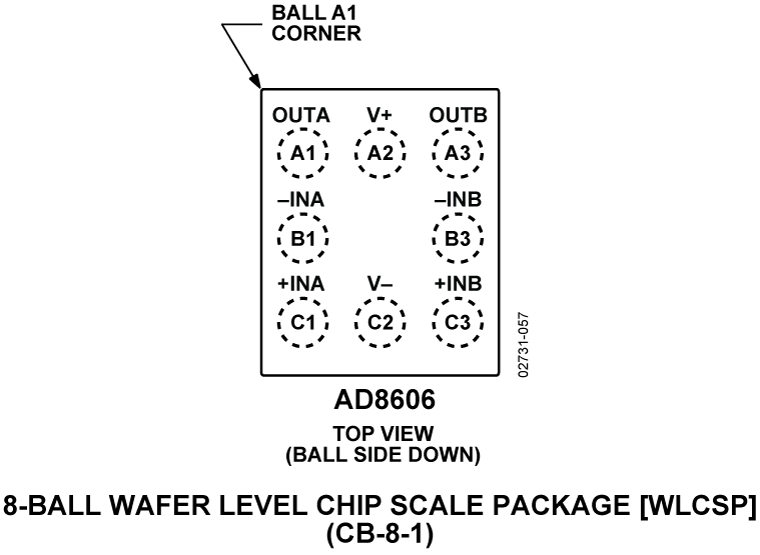

  • 5-ball WLCSP for single (AD8605), and 8-ball WLCSP for dual (AD8606)
Additional Details
show more Icon

The AD8605, AD8606, and AD8608 are single, dual, and quad rail-to-rail input and output, single-supply amplifiers. They feature very low offset voltage, low input voltage and current noise, and wide signal bandwidth. They use the Analog Devices, Inc. patented DigiTrim® trimming technique, which achieves superior precision without laser trimming.

The combination of low offsets, low noise, very low input bias currents, and high speed makes these amplifiers useful in a wide variety of applications. Filters, integrators, photodiode amplifiers, and high impedance sensors all benefit from the combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion. Applications for these amplifiers include optical control loops, portable and loop-powered instrumentation, and audio amplification for portable devices.

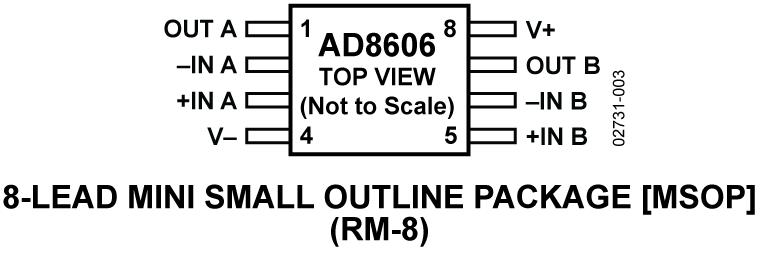

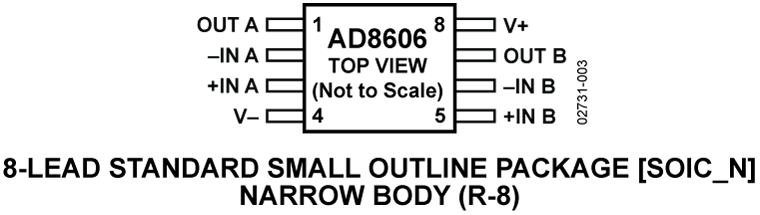

The AD8605, AD8606, and AD8608 are specified over the extended industrial temperature range (−40°C to +125°C). The AD8605 single is available in 5-lead SOT-23 and 5-ball WLCSP packages. The AD8606 dual is available in an 8-lead MSOP, an 8-ball WLSCP, and a narrow SOIC surface-mounted package. The AD8608 quad is available in a 14-lead TSSOP package and a narrow 14-lead SOIC package. The 5-ball and 8-ball WLCSP offer the smallest available footprint for any surface-mounted operational amplifier. The WLCSP, SOT-23, MSOP, and TSSOP versions are available in tape-and-reel only.

Applications

  • Photodiode amplification
  • Battery-powered instrumentation
  • Multipole filters
  • Sensors
  • Barcode scanners
  • Audio
Part Models 6
1ku List Price Starting From $1.85

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD8606ACBZ-REEL7
  • HTML
  • HTML
AD8606ARMZ-R7
  • HTML
  • HTML
AD8606ARMZ-REEL
  • HTML
  • HTML
AD8606ARZ
  • HTML
  • HTML
AD8606ARZ-REEL
  • HTML
  • HTML
AD8606ARZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 5, 2024

- 24_0030

Qualification Notification of Alternate Wafer Fab Site at ADI Limerick for AD8606 with Under Bump Metallization Change

Feb 28, 2012

- 11_0175

Shipping Changes for WLCSP Products with 8mm Carrier Tape Width

May 8, 2023

- 23_0068

Qualification of Alternate Wafer Fab Site at ADI Limerick for 0.6um CMOS Amplifier Product

AD8606ARMZ-R7

PRODUCTION

AD8606ARMZ-REEL

PRODUCTION

AD8606ARZ

PRODUCTION

AD8606ARZ-REEL

PRODUCTION

AD8606ARZ-REEL7

PRODUCTION

Mar 22, 2021

- 21_0001

Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP

Jan 5, 2015

- 14_0246

Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

Aug 19, 2009

- 07_0024

Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad

AD8606ARMZ-R7

PRODUCTION

AD8606ARMZ-REEL

PRODUCTION

AD8606ARZ

PRODUCTION

AD8606ARZ-REEL

PRODUCTION

AD8606ARZ-REEL7

PRODUCTION

Jul 20, 2012

- 12_0105

Halogen Free Material Change for Select SOIC Narrow and Wide Body Products Assembled at Amkor

AD8606ARZ

PRODUCTION

AD8606ARZ-REEL

PRODUCTION

AD8606ARZ-REEL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 5, 2024

- 24_0030

arrow down

Qualification Notification of Alternate Wafer Fab Site at ADI Limerick for AD8606 with Under Bump Metallization Change

Feb 28, 2012

- 11_0175

arrow down

Shipping Changes for WLCSP Products with 8mm Carrier Tape Width

May 8, 2023

- 23_0068

arrow down

Qualification of Alternate Wafer Fab Site at ADI Limerick for 0.6um CMOS Amplifier Product

AD8606ARMZ-R7

PRODUCTION

AD8606ARMZ-REEL

PRODUCTION

AD8606ARZ

PRODUCTION

AD8606ARZ-REEL

PRODUCTION

AD8606ARZ-REEL7

PRODUCTION

Mar 22, 2021

- 21_0001

arrow down

Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP

Jan 5, 2015

- 14_0246

arrow down

Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

Aug 19, 2009

- 07_0024

arrow down

Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad

AD8606ARMZ-R7

PRODUCTION

AD8606ARMZ-REEL

PRODUCTION

AD8606ARZ

PRODUCTION

AD8606ARZ-REEL

PRODUCTION

AD8606ARZ-REEL7

PRODUCTION

Jul 20, 2012

- 12_0105

arrow down

Halogen Free Material Change for Select SOIC Narrow and Wide Body Products Assembled at Amkor

AD8606ARZ

PRODUCTION

AD8606ARZ-REEL

PRODUCTION

AD8606ARZ-REEL7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

reference details image

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board

zoom

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board

EVAL-OPAMP-2 Evaluation Board

Product Detail

The universal precision op amp evaluation boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs compliant. See references below on what board to order by lead count and package.

  • EVAL-PRAOPAMP-2CPZ (dual 8-lead LFCSP) CP-8
  • EVAL-PRAOPAMP-2RMZ (dual 8-lead MSOP) RM-8
  • EVAL-PRAOPAMP-2RZ (dual 8-lead SOIC) R-8

reference details image

ADZS-SC589-EZLITE

ADSP-SC589 Evaluation Hardware for the ADSP-SC58x/ADSP-2158x SHARC Family (529-ball CSPBGA)

zoom

ADZS-SC589-EZLITE

ADSP-SC589 Evaluation Hardware for the ADSP-SC58x/ADSP-2158x SHARC Family (529-ball CSPBGA)

ADSP-SC589 Evaluation Hardware for the ADSP-SC58x/ADSP-2158x SHARC Family (529-ball CSPBGA)

Features and Benefits

  • ADSP-SC589 529-pin 19x19mm BGA
  • 4Gb DDR3 Memory
  • 128 Mb SPI Flash
  • 2 x Ethernet (1x 10/100, 1x GigE)
  • ADAU1979 quad ADC
  • ADAU1962A 12 channel 24-bit DAC
  • SPDIF in/out, optical & coax
  • UART
  • 2 CAN transceivers + RJ11 connectors
  • USB OTG
  • USB HS
  • PCIe
  • SD/MMC memory connector
  • HADC
  • EI3 Expansion Interface
  • EZLITE includes ICE-1000 JTAG emulator and a permanent CrossCore® Embedded Studio license for use with the EZLITE via ICE-1000

Product Detail

The ADSP-SC589 EZ-KIT Lite and EZ-Board® are evaluation systems for the ADSP-SC58x family of SHARC® processors. The ADSP-SC589 processor is based on the SHARC+ core dual processor with the arm® Cortex-A5 processor core and is designed for a wide array of markets, from automotive and pro-audio to industrial-based applications that require high floating-point performance. The EZ-Board is shipped with all of the necessary hardware—you can start the evaluation immediately. The package contains the standalone evaluation board, CE-approved power supply, and USB cable. The EZ-KIT Lite® version ships with an EZ-Kit license for CrossCore® Embedded Studio (CCES) and the ICE-1000 emulator, while the EZ-Board version requires the customer to provide an ICE-1000 or ICE-2000 emulator. The EZ-Kit license gives the user a full, subscription based license to use CCES with only the ADSP-SC589 EZ-KIT Lite evaluation board.


Expansion Interface III connectors are provided for interfacing with additional extender boards to provide LCD, camera, video, and audio. Traditional mechanical switches for changing the board's factory setup have been removed in favor of I2C controlled software switches. The only remaining mechanical switches are the boot mode switch, JTAG configuration switches, and push buttons.


The evaluation board is designed to be used in conjunction with the CrossCore® Embedded Studio (CCES) development tools to test capabilities of the ADSP-SC58x processors. The development environment aids advanced application code development and debug, such as:

  • Create, compile, assemble, and link application programs written in C++, C, and assembly
  • Load, run, step, halt, and set breakpoints in application programs
  • Read and write data and program memory
  • Read and write core and peripheral registers
reference details image

ADZS-SC584-EZLITE

ADSP-SC584 Evaluation Hardware for the ADSP-SC58x/ADSP-2158x SHARC Family (349-ball CSPBGA)

zoom

ADZS-SC584-EZLITE

ADSP-SC584 Evaluation Hardware for the ADSP-SC58x/ADSP-2158x SHARC Family (349-ball CSPBGA)

ADSP-SC584 Evaluation Hardware for the ADSP-SC58x/ADSP-2158x SHARC Family (349-ball CSPBGA)

Features and Benefits

  • ADSP-SC584 349-pin 19x19mm BGA
  • 2Gb DDR3 Memory
  • 128 Mb SPI Flash
  • Ethernet (10/100 &  GigE)
  • ADAU1977 quad ADC
  • ADAU1979 quad ADC
  • ADAU1962A 12 channel 24-bit DAC
  • AD2410 Automotive Audio Bus (A2B)
  • SPDIF in/out, optical & coax
  • UART
  • 2 CAN transceivers + RJ11 connectors
  • USB OTG
  • HADC
  • EI3 Expansion Interface
  • EZLITE includes ICE-1000 JTAG emulator and a permanent CrossCore® Embedded Studio license for use with the EZLITE via ICE-1000



Product Detail

The ADSP-SC584 EZ-KIT Lite and EZ-Board® are evaluation systems for the ADSP-SC58x family of SHARC® processors. The ADSP-SC584 processor is based on the SHARC+ core dual processor with the arm® Cortex-A5 processor core and is designed for a wide array of markets, from automotive and pro-audio to industrial-based applications that require high floating-point performance. The EZ-Board is shipped with all of the necessary hardware—you can start the evaluation immediately. The package contains the standalone evaluation board, CE-approved power supply, and USB cable. The EZ-KIT Lite® version ships with two 180 day licenses for CrossCore® Embedded Studio (CCES) and the ICE-1000 emulator, while the EZ-Board version requires the customer to provide an ICE-1000 or ICE-2000 emulator.

Expansion Interface III connectors are provided for interfacing with additional extender boards to provide LCD, camera, video, and audio. Traditional mechanical switches for changing the board's factory setup have been removed in favor of I2C controlled software switches. The only remaining mechanical switches are the boot mode switch, JTAG configuration switches, and push buttons.

The evaluation board is designed to be used in conjunction with the CrossCore® Embedded Studio (CCES) development tools to test capabilities of the ADSP-SC58x processors. The development environment aids advanced application code development and debug, such as:

  • Create, compile, assemble, and link application programs written in C++, C, and assembly
  • Load, run, step, halt, and set breakpoints in application programs
  • Read and write data and program memory
  • Read and write core and peripheral registers
Tools & Simulations

Tools & Simulations 5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Reference Designs

Reference Designs 4

±10 V Single Supply Data Acquisition System

12-Bit, 300 kSPS, Single-Supply, Fully Isolated, Data Acquisition System for ±10 V Inputs

4 mA to 20 mA Single Supply Analog to Digital Conversion with Isolation

12-Bit, 300 kSPS, Single-Supply, Fully Isolated, Data Acquisition System for 4-20 mA Inputs

Optimized Signal Chain for Impedance Measurement Accuracy

High Accuracy Impedance Measurements Using 12-Bit Impedance Converters

zoomopens a dialog

CN0217

High Accuracy Impedance Measurements Using 12-Bit Impedance Converters

CN0217

Circuits from the lab

tooltip Info:Circuits from the lab
High Accuracy Impedance Measurements Using 12-Bit Impedance Converters

Features and Benefits

  • High accuracy impedance measurement
  • Complex impedance measurments using internal frequency generator
  • Measure up to several hundred k-ohms
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

zip

777 kB

Fully Isolated Data Acquisition System for Conductivity Measurements

Fully Isolated Conductivity Measurement Data Acquisition System
