ADG715
CMOS, Low Voltage, I2C Compatible Interface, Serially Controlled, Octal SPST Switches
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- I²C-compatible interface
- 2.7 V to 5.5 V single supply
- ±2.5 V dual supply
- 2.5 Ω on resistance
- 0.6 Ω on resistance fatness
- 0.1 nA leakage currents
- Octal SPST
- Power-on reset
- Fast switching times
- TTL/CMOS compatible

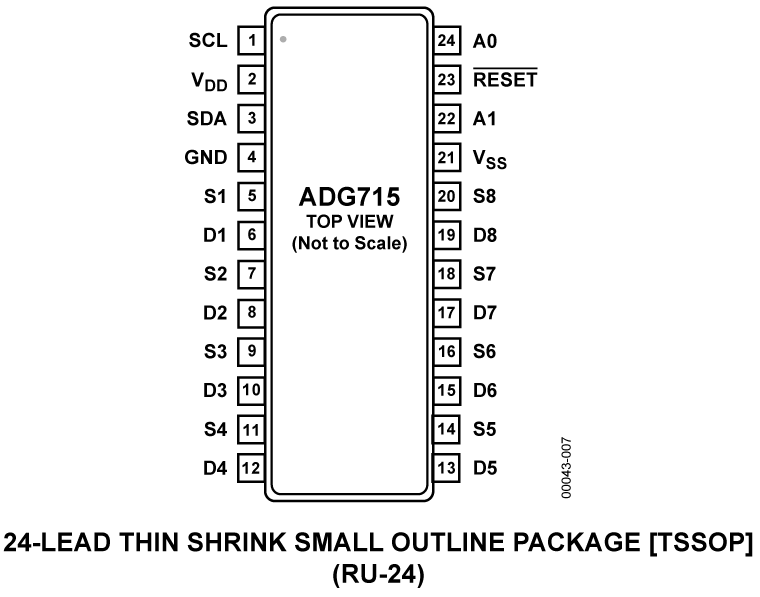

- 24-lead TSSOP and 24-lead LFCSP
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADG715 is a complementary metal-oxide semiconductor (CMOS), octal single-pole, single-throw (SPST) switch controlled via a 2- wire serial interface. On resistance is closely matched between switches and is flat over the full signal range. Each switch conducts equally well in both directions and the input signal range extends to the supplies. Data is written to these devices in the form of 8 bits, each bit corresponding to one channel.
The ADG715 uses a 2-wire serial interface that is compatible with the I2C interface standard. The ADG715 has four hardwired addresses, selectable from two external address pins (A0 and A1). The pins allow the two LSBs of the 7-bit slave address to be set by the user. A maximum of four of these devices may be connected to the bus.
On power-up, all switches are in the OFF condition, and the internal registers contain all zeros.
A low power consumption and operating supply range of 2.7 V to 5.5 V makes this part ideal for many applications. The ADG715 may also be supplied from a dual ±2.5 V supply. The ADG715 is available in a 24-lead TSSOP.
Product Highlights
- 2-wire serial interface.
- Single-/dual-supply operation.
The ADG714 and ADG715 are fully specified and guaranteed with 3 V, 5 V, and ±2.5 V supply rails. - Low on resistance, typically 2.5 Ω.
- Low leakage.
- Power-on reset.
- A 24-lead TSSOP.
Applications
- Data acquisition systems
- Communication systems
- Relay replacement
- Audio and video switching
