Overview
Features and Benefits
- 12-Bit ADC with Fast Conversion Time: 2 µs
- Four Single-Ended Analog Input Channels
- Specified for VDD of 2.7 V to 5.5 V
- Low Power Consumption
- Fast Throughput Rate: - 188 kSPS
- Sequencer Operation
- I2C® Compatible Serial Interface
- I2C® Interface supports:
- Standard, Fast, and High-Speed Modes
- Out of Range Indicator
- Pin-Selectable Addressing via AS
- Automatic Shutdown Mode: - 1 µA max

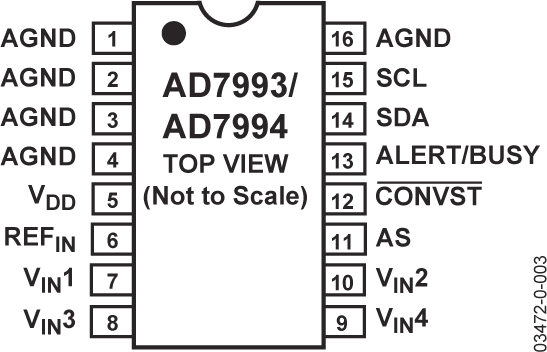

Product Details
The AD7994 is a 4-channel, 10- and 12-bit, low power, successive approximation ADCs with an I2C-compatible interface. The parts operate from a single 2.7 V to 5.5 V power supply and feature a 2 µs conversion time. The parts contain a 4-channel multiplexer and track-and-hold amplifier that can handle input frequencies up to 11 MHz.
The AD7994 provides a two-wire serial interface which is compatible with I2C interfaces. The part comes in two versions, AD7994-0 and AD7994-1. Each version allows for a minimum of two different I2C addresses. The I2C interface on the AD7994-0 supports Standard and Fast I2C Interface Modes. The I2C interface on the AD7994-1 supports Standard, Fast and two High-Speed I2C Interface Modes.
The AD7994 normally remain in a shutdown state while not converting, and power up only for conversions. The conversion process can be controlled using the CONVST pin, by a command mode where conversions occur across I2C write operations, or an automatic conversion interval mode selected through software control.
The AD7994 require an external reference that should be applied to the REFIN pin and can be in the range of 1.2 V to VDD. This allows the widest dynamic input range to the ADC.
On-chip limit registers can be programmed with high and low limits for the conversion result, and an open-drain, out-of-range indicator output (ALERT) becomes active when the programmed high or low limits are violated by the conversion result. This output can be used as an interrupt.
PRODUCT HIGHLIGHTS
- 2 µs conversion time with low power consumption.
- I2C-compatible serial interface with pin-selectable addresses. Two AD7993 / AD7994 versions allow five AD7993 / AD7994 devices to be connected to the same serial bus.
- The parts feature automatic shutdown while not converting to maximize power efficiency. Current consumption is 1 µA max when in shutdown mode.
- Reference can be driven up to the power supply.
- Out-of-range indicator that can be software disabled or enabled.
- One-shot and automatic conversion rates.
- Registers can store minimum and maximum conversion results.
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
AN-931: Understanding PulSAR ADC Support Circuitry (Rev. 0)2/14/2015PDF299 kB
-
AN-686: Implementing an I2C® Reset (Rev. 0)12/16/2003PDF44 kB
-
8- to 18-Bit SAR ADCs ... From the Leader in High Performance Analog3/8/2008PDF1885 kB
-
Designing Power Supplies for High Speed ADC2/1/2012
-
Discrete- and Integrated Control of Power Amplifiers in Base-Station Applications4/1/2008 Analog Dialogue
-
Ask The Applications Engineer—38: Better, Faster Open-Loop Gain Measurement11/1/2007 Analog Dialogue
Software & Systems Requirements
Evaluation Software
Device Drivers
Product Recommendations
AD7994 Companion Parts
Recommended External References - 2.5V
- For applications requiring 2.048V to 4.096V: REF191.
- For the reference buffer amplifier: AD8605, AD8605.
- For wide supply applications: AD780, ADR03, AD780.
- For applications requiring best accuracy, low noise, low drift: ADR421, AD780, AD780.
- For cost sensitive applications: AD1582, ADR381, ADR391.
- For low noise, high output current applications: ADR431.
Recommended Input Buffer Amplifiers
