TMC2300

Low voltage silent stepper motor driver 2…11V, up to 1.2A with zero standby current 256 µSteps, CoolStep, StallGuard2 and StealthChop

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
特性
  • Voltage Range 2V (1.8V) to 11V DC
  • Battery Operation 1-2 Li-Ion cells, or min. 2 AA / NiMh cells
  • 2-phase Stepper Motors up to 1.2A RMS, 2A peak
  • Standby <50nA typ. current draw
  • STEP/DIR Interface up to 256 microsteps for stepper motor
  • Smooth Running 256 microsteps by MicroPlyer™ interpolation
  • StealthChop2™ silent motor operation
  • Low RDSon LS 170mΩ & HS 170mΩ (typ.)
  • Low RDSon LS 170mΩ & HS 170mΩ (typ.)
  • No Sense Resistors Option using feed-forward regulation
  • Automatic Standby current reduction
  • Stall Detection StallGuard4 in StealthChop mode
  • CoolStep load dependent energy saving up to 90%
  • Single Wire UART for advanced configuration options
  • Integrated Pulse Generator for standalone motion
  • Full Protection & Diagnostics
  • Tiny of QFN 3*3 with 20 pins
更多细节
show more Icon

The TMC2300 low voltage stepper motor driver is intended for battery-operated, space and standby-power critical driver applications. Its silent drive technology StealthChop™ enables non-bugging motion control for portable, home and office applications. A highly efficient power stage, boosted by an internal charge pump for best in-class RDSon resistance, provides high motor current from a tiny package even at low supply voltages. With this, dual AA batteries can be drained down to typically 2.0V (voltage must not drop below 1.8V, provide sufficient supply buffer capacitors).

APPLICATIONS

  • IOT & Handheld devices
  • Battery operated equipment
  • Printers, POS
  • Miniature 3D Printers
  • Toys
  • Office and home automation
  • CCTV, Security
  • HVAC
  • Mobile medical devices

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型

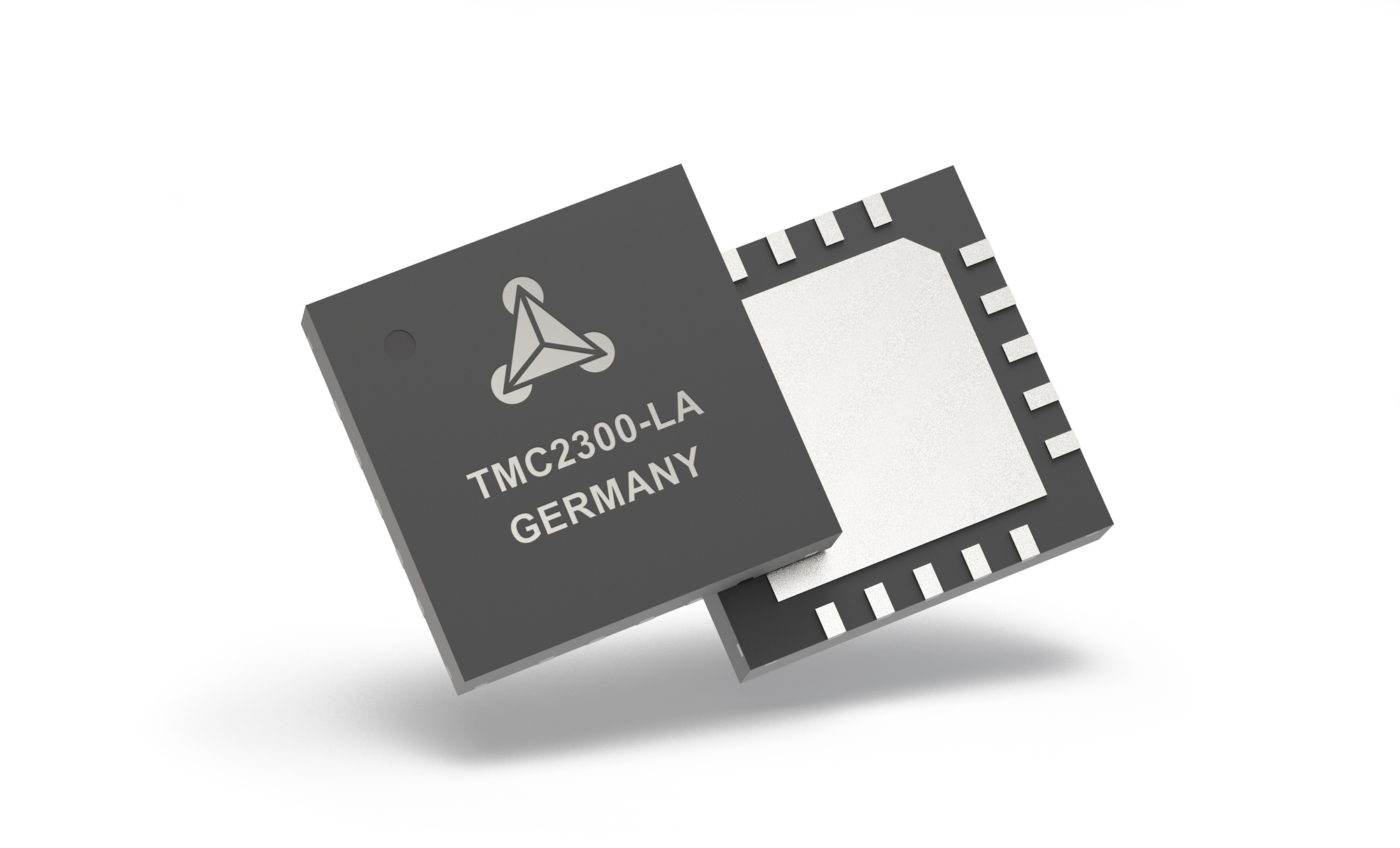

TMC2300-LA
  • HTML
  • HTML
TMC2300-LA-T
  • HTML
  • HTML
软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 3

reference details image

TMC2300-EVAL

Evaluation Board for TMC2300

zoom

TMC2300-EVAL

Evaluation Board for TMC2300

Evaluation Board for TMC2300

特性和优点

  • 2-phase stepper motor up to 1.2A coil current (2A peak)
  • Supply Voltage 2 to 11V DC
  • Standby < 50nA typical current draw
  • UART for advanced configuration options
  • 1 to 256 microsteps
  • Step/Dir interface
  • StealthChop2 silent motor operation
  • Stall detection StallGuard4 in StealthChop mode
  • 1.2A RMS, 2 to 11V

产品详情

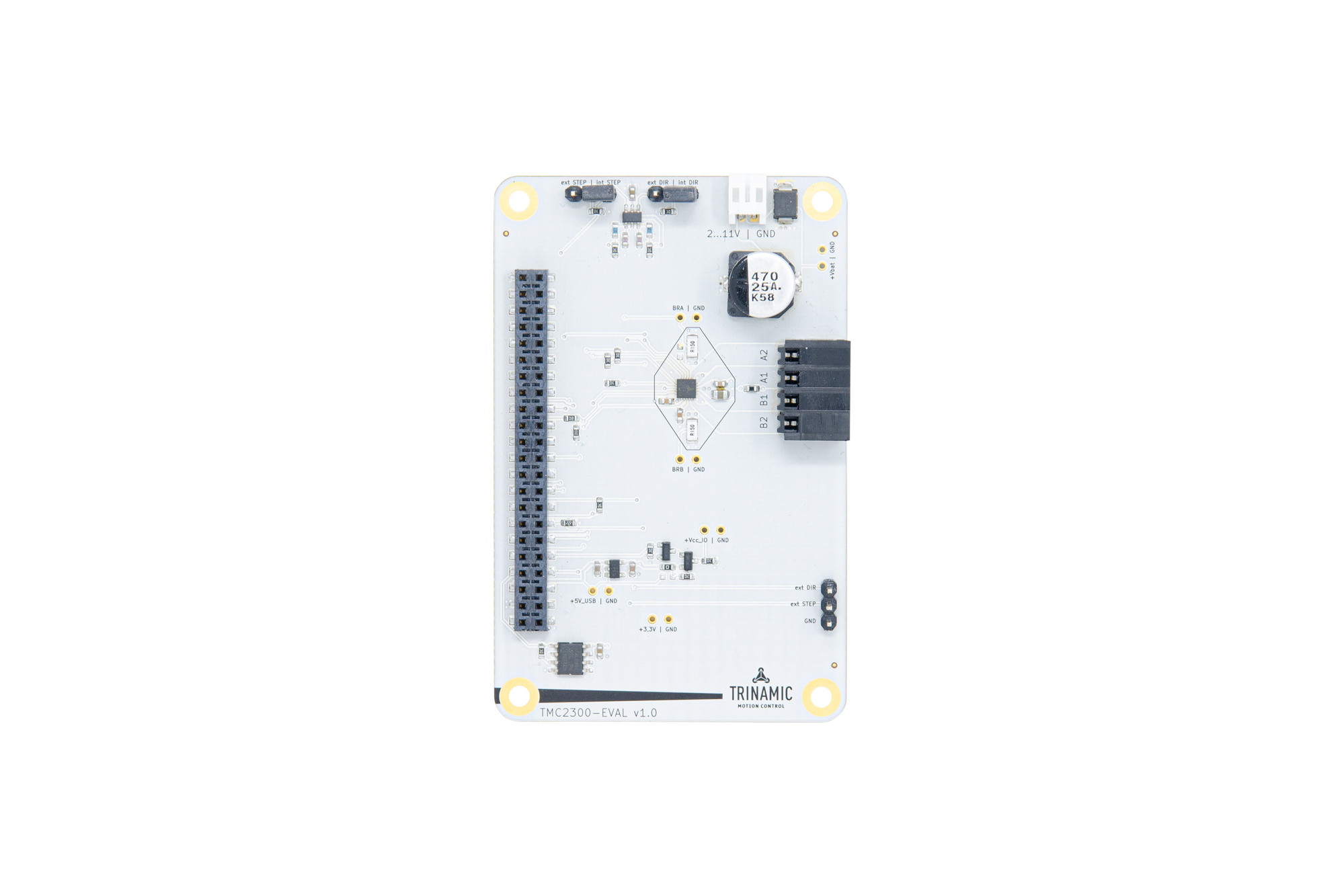

The TMC2300-EVAL allows you to explore all functions of the TMC2300-LA.

The TMC2300-EVAL-KIT is a set of one MCU board Landungsbruecke, an Eselsbruecke bridge board and one TMC2300-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2300 are accessible with probes on the bridge board. TMC2300-EVAL can be used with or without the Landungsbruecke MCU board.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE

reference details image

TMC2300-BOB

Evaluation Board for TMC2300

zoom

TMC2300-BOB

Evaluation Board for TMC2300

Evaluation Board for TMC2300

特性和优点

  • CoolStep™
  • StealthChop2™
  • StallGuard4™
  • MicroPlyer™
  • 1 to 256 Microsteps
  • 1.2A RMS, 2 to 11V

产品详情

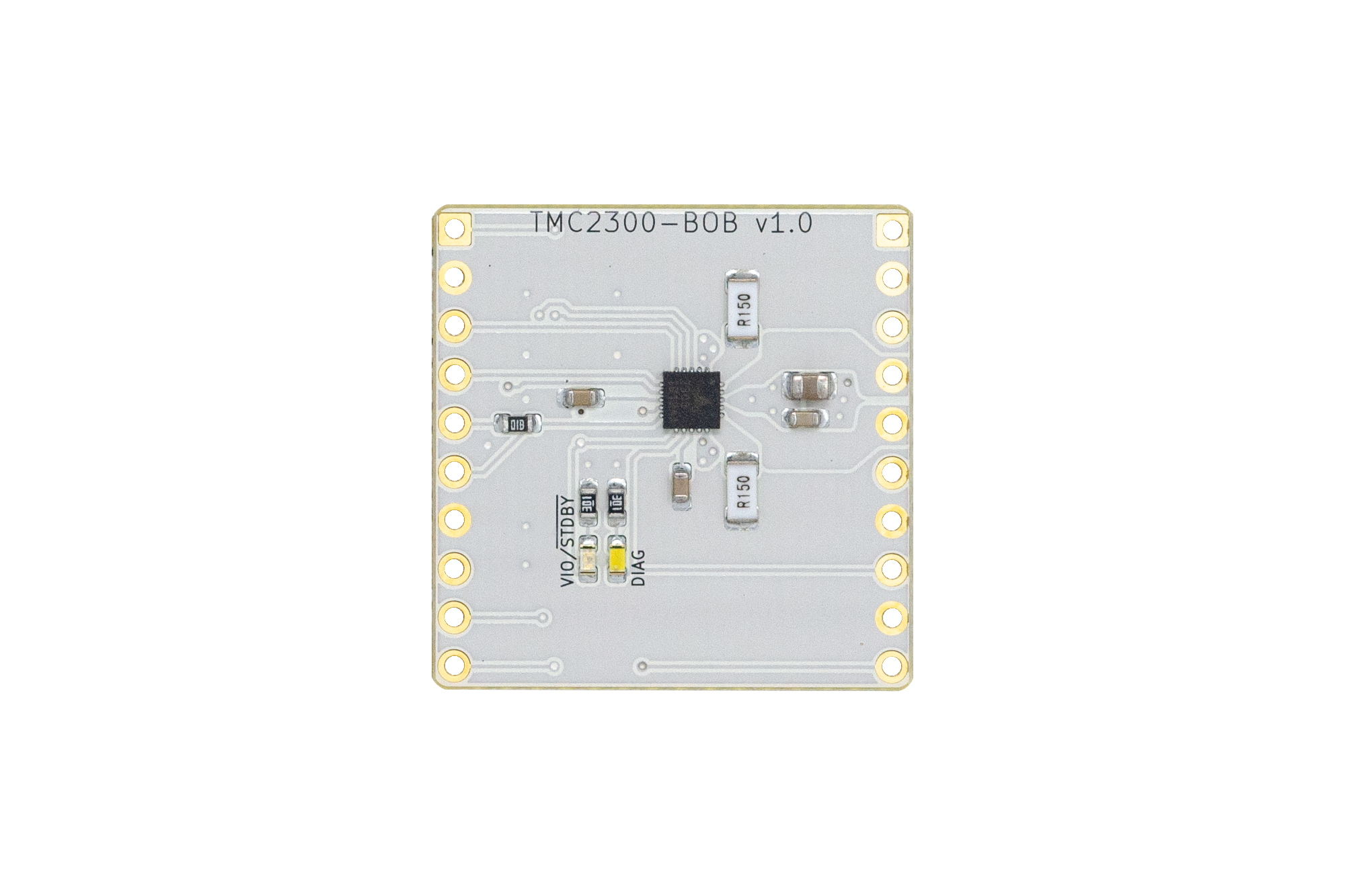

The TMC2300 breakout board is a development board with the dedicated TMC2300-LA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

reference details image

TMC2300-IOT-REF

Evaluation Board for TMC2300-IOT-REF

zoom

TMC2300-IOT-REF

Evaluation Board for TMC2300-IOT-REF

Evaluation Board for TMC2300-IOT-REF

特性和优点

  • 2-phase stepper motor up to 1.0A coil current
  • 3.5V - 6V battery powered operation range
  • Li-Ion cell charger via USB-C
  • ESP32-PICO-D4 processor with integrated WiFi and BLE capabilities
  • UART and USB-C for serial communication and programming
  • StealthChop2™ silent motor operation
  • Stall detection StallGuard4™ in StealthChop™ mode
  • CoolStep™ smart current control
  • 1A RMS, 3.5 to 6V

产品详情

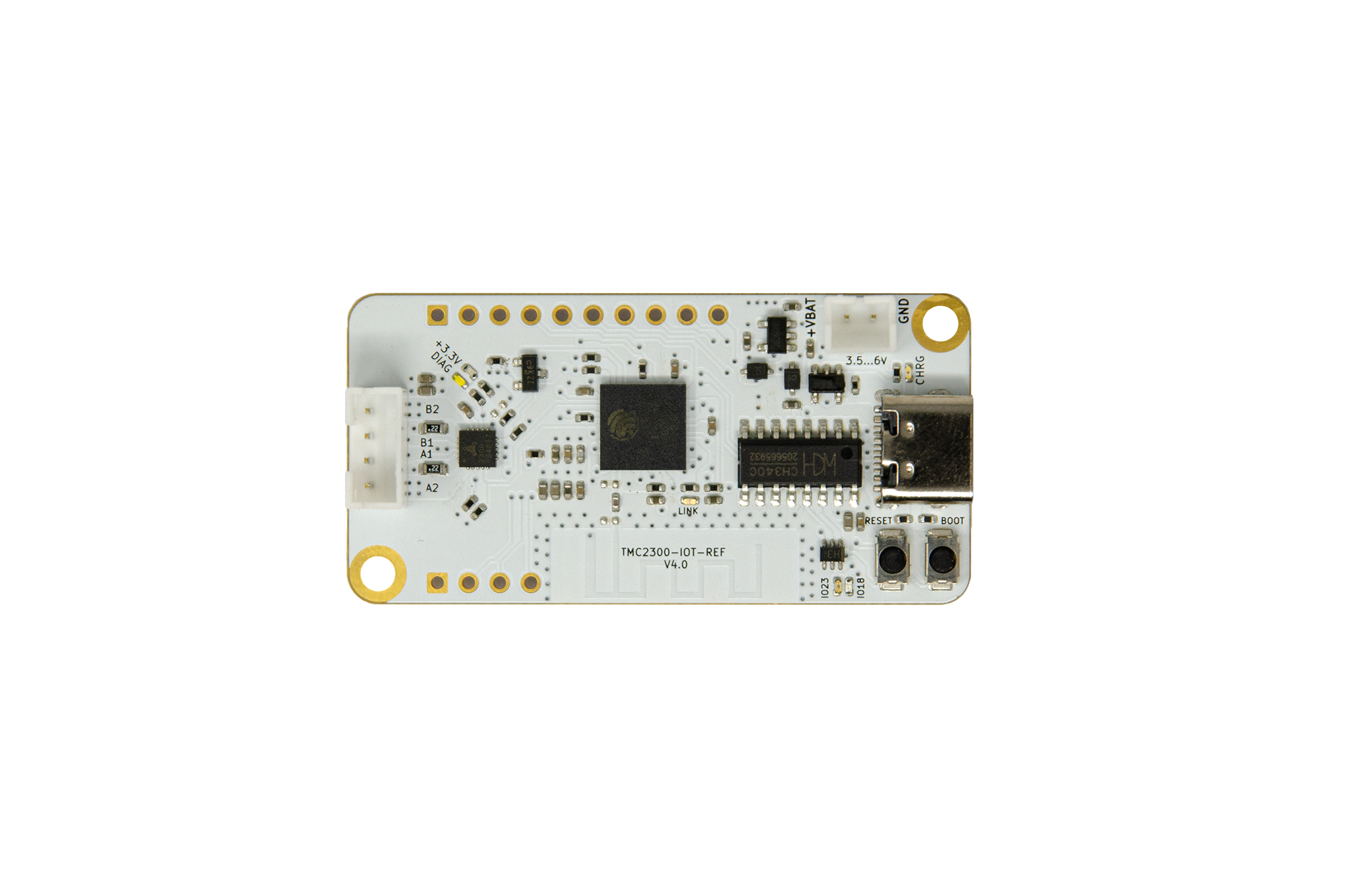

The TMC2300-IOT-REF is a completely open-source reference design for easy evaluation of the TMC2300-LA stepper motor driver IC. Whether it’s a POS device, toys, office and home automation, or mobile medical devices, Engineers can quickly prototype their IoT applications running on 3.5 – 6 V batteries. Besides the low-voltage stepper motor driver, the board features a Li-Ion cell charger via USB-C, a processor with integrated WiFi and BLE capabilities, as well as UART and USB-C for serial communication and programming. Other features including StealthChop2™, StallGuard4™ and CoolStep™ bring industrial-grade solutions to convenient, handheld devices.
