概览
优势和特点
- AEC-Q100
- Enables ASIL Compliance (FMEDA Available upon Request)
- Internal Multiplexer
- Bandwidth = 440MHz (typ), 300MHz (min)
- Low Noise: 2.1pA/
- Optimized for CIN = 0.5pF to 5pF
- Two Pin-Selectable Transimpedance Values
- 25kΩ
- 50kΩ
- OFFSET Input Enables DC Offset Cancellation from Photodiode at IN_ Input
- LP Input Reduce Power Dissipation bBetween Pulses
- Internal Clamps for Input Current Upto 2A For 10ns Pulses
- 3.3V Operation
- 16-Pin, 4mm x 4mm TQFN Package with Side-Wettable Flanks
产品详情
The MAX40662 is a 4-channel transimpedance amplifier for optical distance measurement receivers in light detection and ranging (LiDAR) applications. Low noise, high gain, low group delay, and fast recovery from overload make this quad TIA ideal for time-of-flight distance-measurement applications. The four input transimpedance stages are multiplexed to a pair of differential outputs. Important features include 2.1pA/ input-referred noise density, an internal current input clamp (up to 2A for 10ns pulses), pin-selectable 25kΩ and 50kΩ transimpedance, and wide 440MHz bandwidth. An offset current input allows optional output offset adjustment to the output voltage. A low-power/standby mode can be used to help reduce average power supply current between pulses.
The MAX40662 is available in a 16-pin, 4mm x 4mm, TQFN package with side-wettable flanks and is specified over the -40°C to +125°C automotive operating temperature range.
Applications
- Automotive Driver Assistance Systems
- LIDAR Receivers
- Optical Time-Of-Flight Distance Measurement
产品生命周期
推荐新设计使用
本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

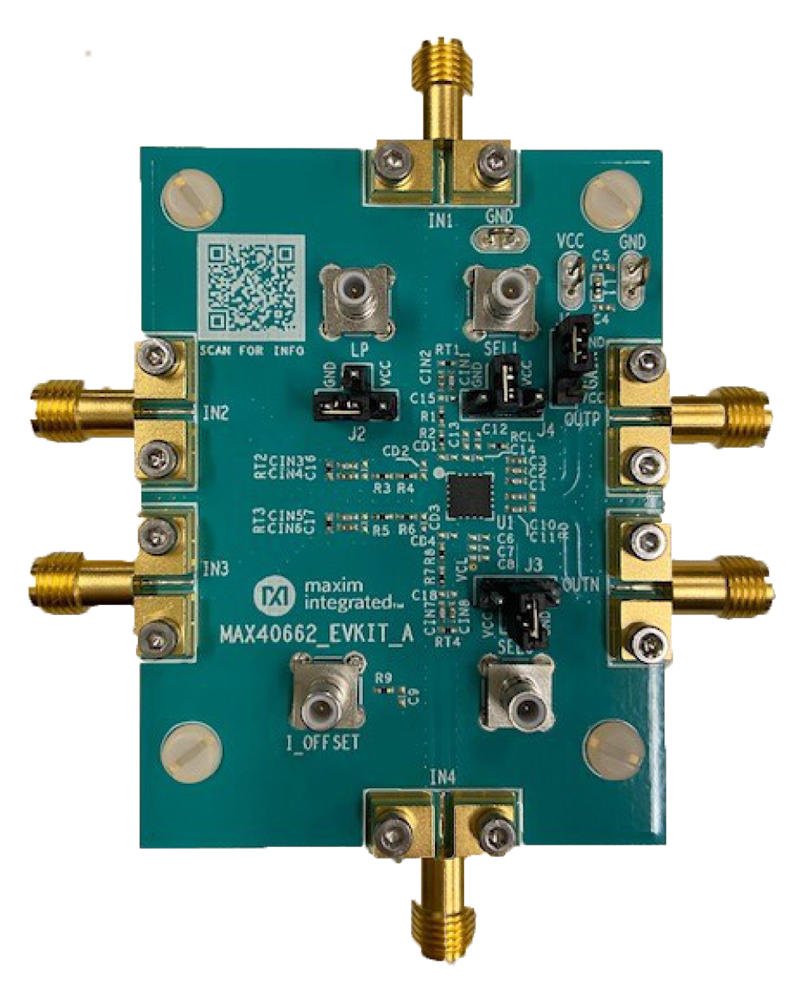

评估套件 (1)
