概览

优势和特点

  • 70A Peak Output Current per Channel
    • SilentMOS Smart Power Stage
    • Utilizes Low EMI/EMC Silent Switcher®2 Architecture

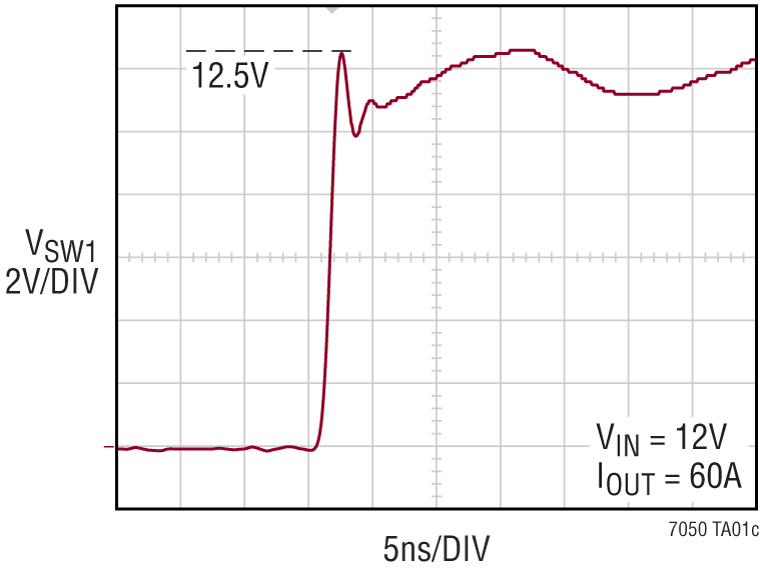

    • Ultra-low SW-Voltage Overshoot
    • Frequency Up to 2MHz
  • VIN Up to 14V

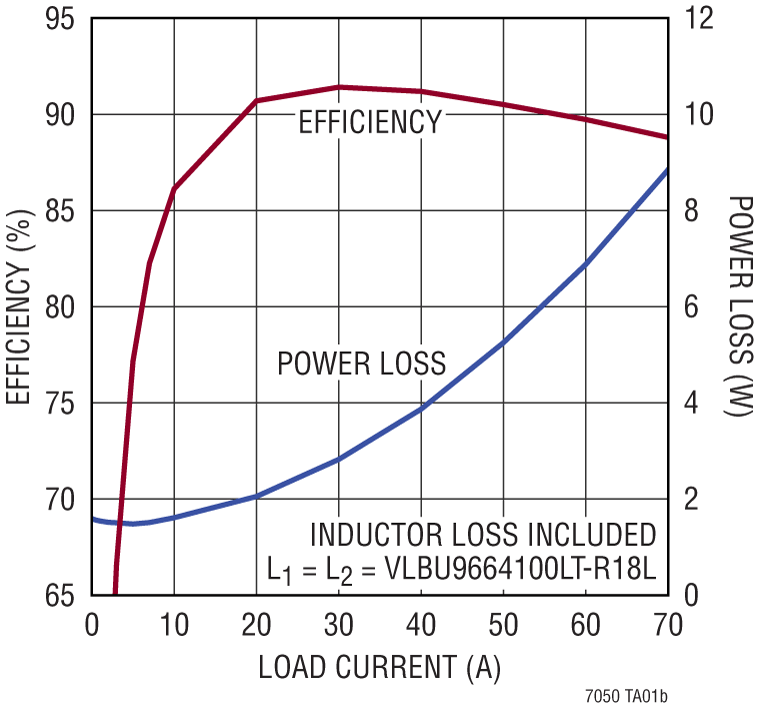

  • Up to 94% Efficiency at 1MHz with 1.8VOUT
  • Integrated Boost Diodes and Capacitors
  • Accurate Switch Current Monitoring
  • Power MOSFET Overcurrent Protection
  • Input Overvoltage and Bias Undervoltage Protection Thermal Monitor with Overtemperature Flag
  • 3.3V/5V Compatible Tri-State PWM Input

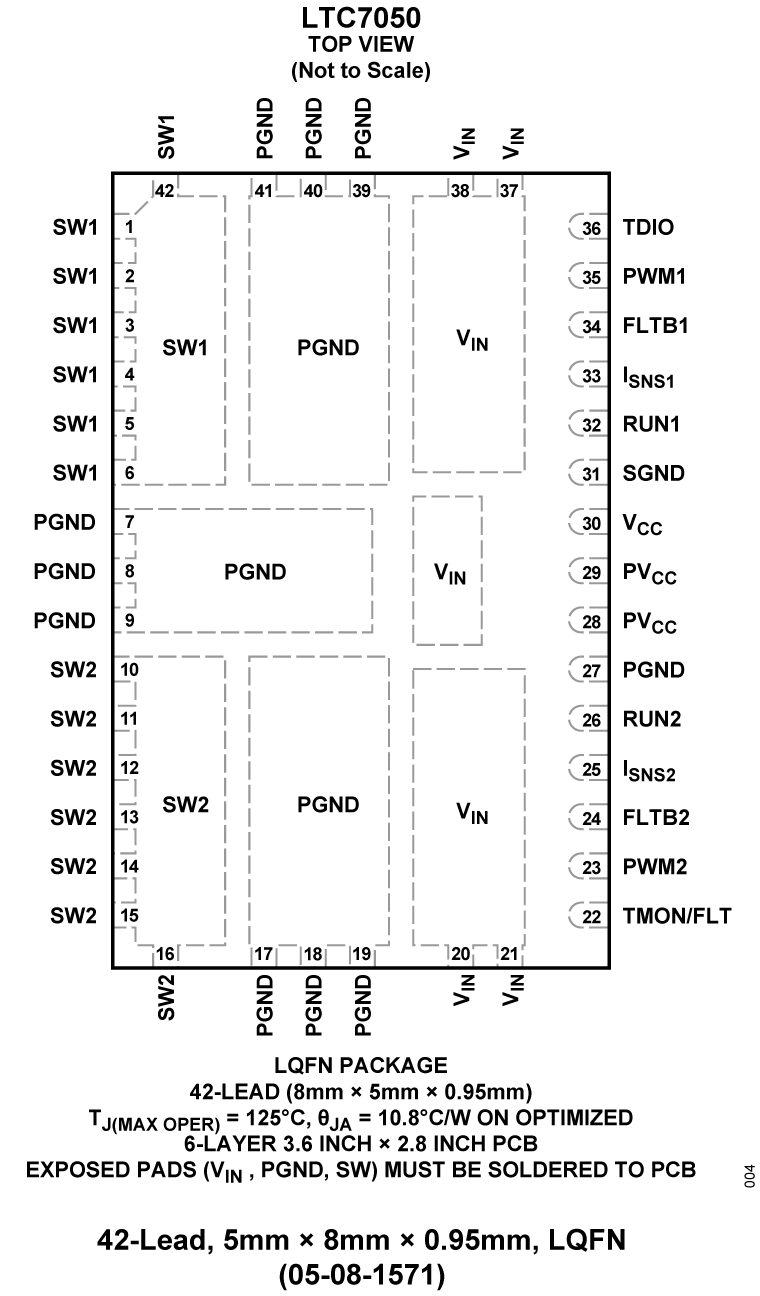

  • 5mm × 8mm LQFN Package

产品详情

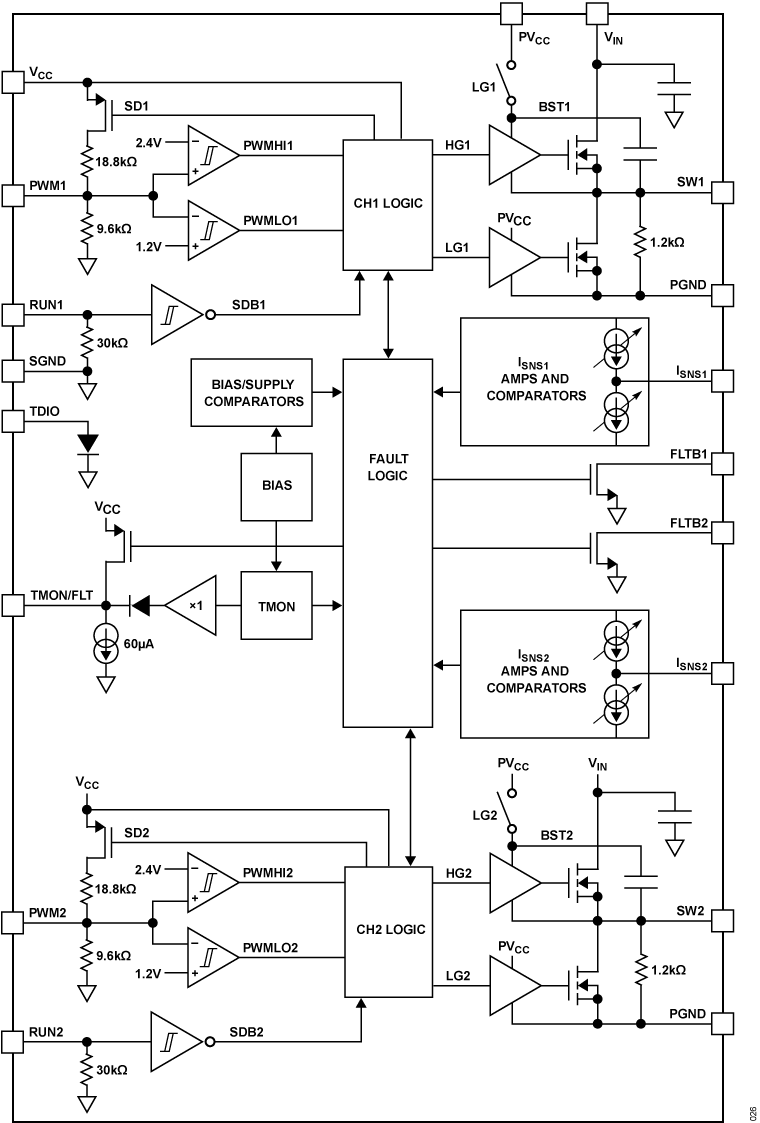

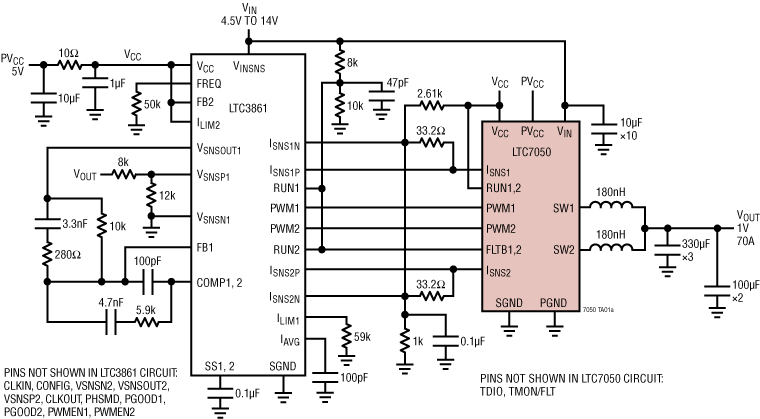

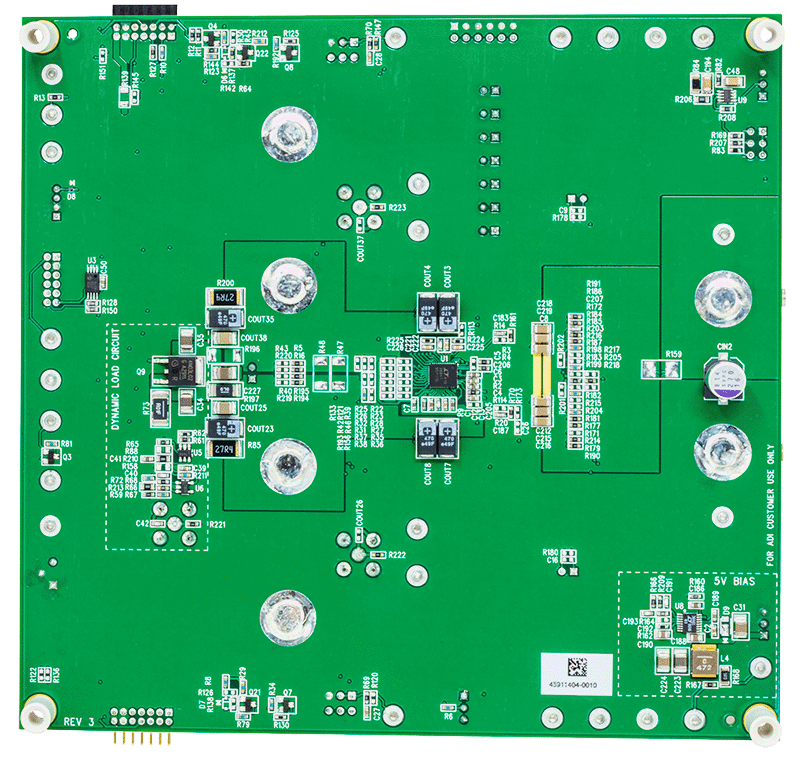

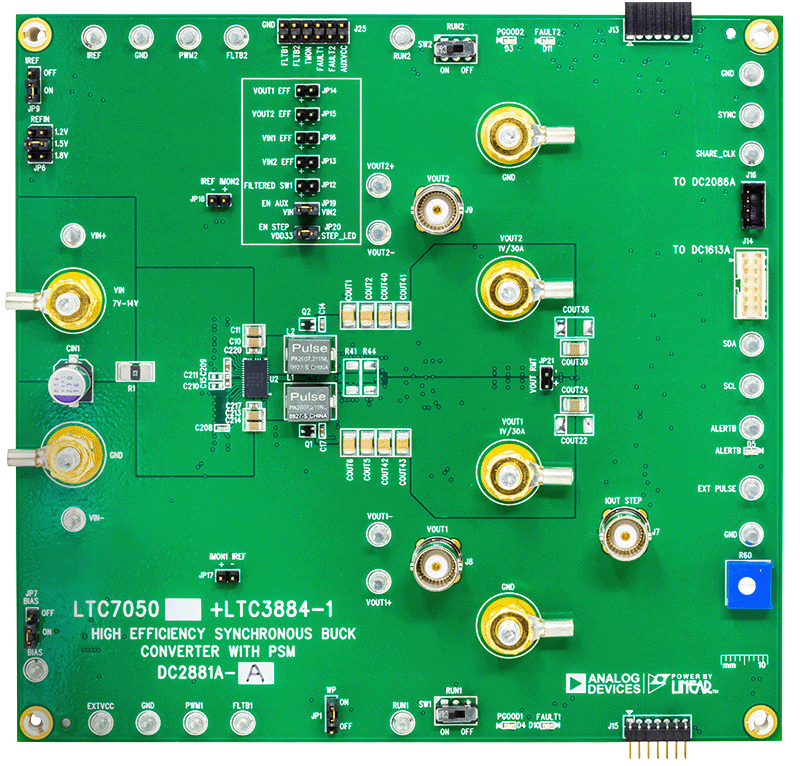

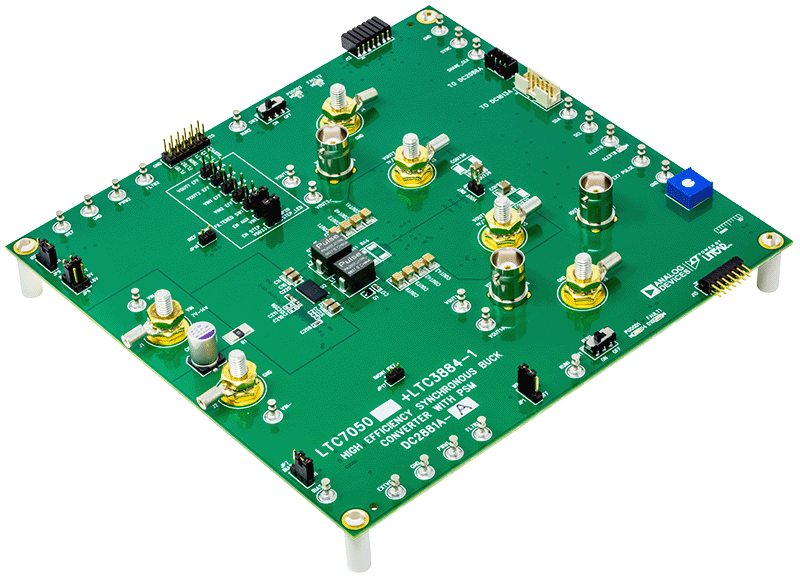

The LTC7050 dual monolithic power stage fully integrates high speed drivers with low resistance half-bridge power switches plus comprehensive monitoring and protection circuitry in an electrically and thermally optimized package. With a suitable high frequency controller, this power stage forms a compact, high current volt-age regulator system with state-of-the-art efficiency and transient response.

SilentMOS technology utilizes second generation Silent Switcher 2 architecture reducing both EMI and switch-node voltage overshoot while maximizing efficiency at high switching frequencies.

High speed current sensing provides low latency switch current information, enabling tight current balancing and immediate overcurrent protection. Thermally-enhanced packaging provides dual 40A rated continuous output current capability.

APPLICATIONS

  • High Current Servers and Workstations
  • Networking/Telecom Microprocessor Supplies
  • Small Form-Factor POL Converter

产品生命周期 icon-recommended 推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

工具及仿真模型

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。

LTspice

LTspice中提供以下器件型号:

LTC7050
LTC7050-1
