特性
- 650mW Power Limit for Intrinsic Safety Thermal
- Rating when Line Voltage ≤ 18.5V
- 35mA Current Limit if Line Voltage > 18.5V
- 55mA Current Limit for APL Class A Devices
- Shunt Regulator for Mitigating Load Changes
- Guaranteed 20mA Rectifier Current for Signal Integrity
- Guaranteed to deliver full 500mW APL power to the load
- 6V to 36V Input Voltage
- Integrated Current Sense Resistor
- Polarity Insensitive Line Voltage Detectio
- 8-Lead SOIC Package with Exposed Pad
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}
The LT8440 is a power conditioner for intrinsically safe, industrial ethernet ports in hazardous or explosive environments. The internal pass transistor is normally fully enhanced to deliver power to the load efficiently. In case of load circuit failures, the FET is modulated to limit the power to less than 650mW if line voltage ≤ 18.5V or less than 35mA if line voltage > 18.5V. The internal shunt transistor draws current parallel with the load up to the 500mW minimum guaranteed for Class A load power ports in compliance with Advanced Physical Layer (APL) standard or to 20mA minimum guaranteed if line voltage > 18.5V. The line voltage is sensed with two input pins that are insensitive to polarity, which can be connected in front of the port rectifier and incorporate the rectifier power consumption in the limitation of total power. The line current is measured as a voltage across the internal sense resistor, and the shunt current and the current limit are automatically adjusted for line voltage.
The LT8440 is packaged in an 8-lead SOIC with pin spacing that satisfies the device under coating specification so that shorts from pin to pin are countable faults when the circuit is examined for intrinsic safety at the highest levels of protection.
APPLICATIONS
- Industrial Ethernet
- Advanced Physical Layer
- Current Limiting
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LT8440
文档
筛查
1 应用
-
全部
-
用户手册
-
数据手册
-
全部
-
英文
数据手册
1
用户手册
1
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| LT8440RS8E#PBF |
8-Lead SOIC (Narrow 0.15 Inch w/ EP)
|
|
|
| LT8440RS8E#TRPBF |
8-Lead SOIC (Narrow 0.15 Inch w/ EP)
|
|
- LT8440RS8E#PBF
- 引脚/封装图-中文版
-
8-Lead SOIC (Narrow 0.15 Inch w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LT8440RS8E#TRPBF
- 引脚/封装图-中文版
-
8-Lead SOIC (Narrow 0.15 Inch w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
软件和型号相关生态系统
评估套件 1
EVAL-LT8440-AZ
Power Conditioner for APL Field Devices
产品详情

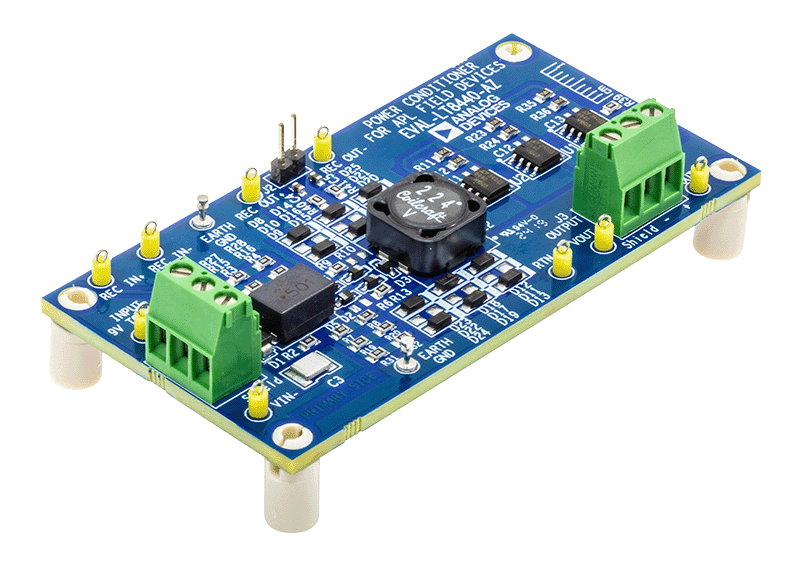

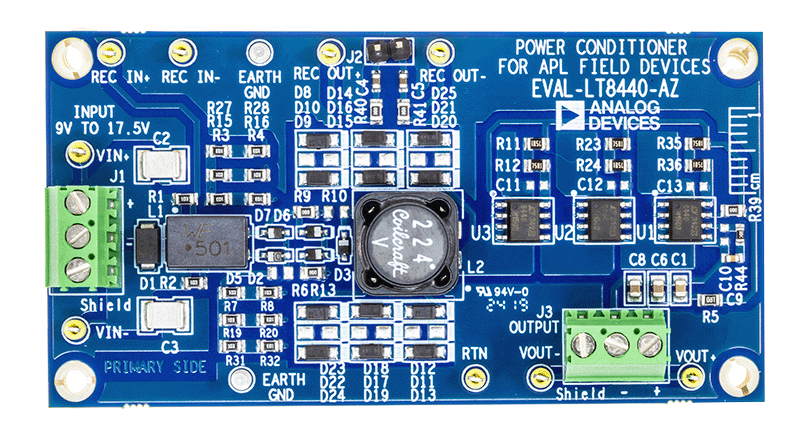

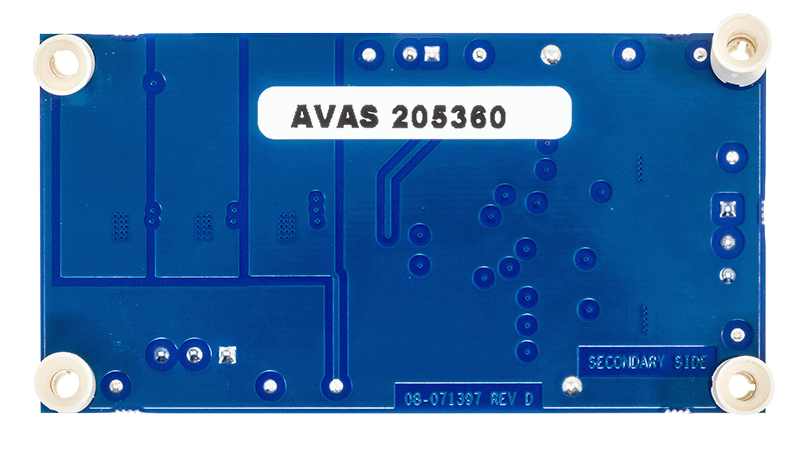

The EVAL-LT8440-AZ evaluation circuit features the LT8440 used in a load power port of an intrinsically safe field device. It can regulate and limit the power drawn by the port according to the Ethernet Advanced Physical Layer (Ethernet-APL) standard. The EVAL-LT8440-AZ is designed with three LT8440s in series to meet the triple redundancy requirement of intrinsic safety Ex ia for class A field devices, but it can be configured to work with a lower LT8440 count. See the Redundancy of LT8440 section for more details.
The evaluation circuit is also equipped with filters and protection components to meet the Ethernet-APL and intrinsic safety standards, including IEC60079-11 and IEC60079-47 standards. Communication signal integrity is well preserved on this evaluation circuit, allowing seamless link up between 10BASE-T1L devices.
The EVAL-LT8440-AZ board is designed to operate from 9V to 17.5V input voltage. Across the input voltage range, the LT8440 draws current in parallel with the load up to the 500mW minimum guaranteed for Class A load power ports in compliance with Advanced Physical Layer (APL) standards. In case of load circuit failures, the evaluation board also limits input power below 650mW. The LT8440 shunts current even at no load to ensure at least 20mA input current during normal operation, which is required by APL specification for signal integrity.
Design files for this circuit board are available at Product Evaluation Boards and Kits | Design Center | Analog Devices.
