ADUM4195

推荐新设计使用

Isolated Amplifier with Adjustable Gain and Single-Ended Output

产品模型
4
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

Viewing:

产品详情

  • High-Impedance input for isolated voltage measurement
  • Low offset error and drift (output offset voltage): ±6 mV (Max) at 25°C and −22 μV/°C (Typ)
  • Low gain error and drift: ±0.5% (max) and ±27 ppm/°C (max)
  • Voltage-supply range
    • VDD1: 4.5 V to 5.5 V
    • VDD2: 4.5 V to 5.5 V
  • Bandwidth: 210 kHz
  • Isolation voltage
    • 3000 V rms for ADuM3195
    • 5000 V rms for ADuM4195
  • Safety and regulatory approvals (pending)
    • UL recognition (pending)
      • ADuM3195: 3000 V rms for 1 minute per UL 1577
      • ADuM4195: 5000 V rms for 1 minute per UL 1577
  • CSA (pending)
  • VDE certificate of conformity (pending)
    • DIN EN IEC 60747-17
    • ADuM3195: VIORM = 849 V peak (reinforced)
    • ADuM4195: VIORM = 1401 V peak (reinforced)
  • Wide temperature range
    • −40°C to +125°C ambient operation
    • 150°C maximum junction temperature
  • AEC-Q100 qualified for automotive applications
ADUM4195
Isolated Amplifier with Adjustable Gain and Single-Ended Output
ADuM3195 Functional Block Diagram ADuM3195 Pin Configuration ADuM3195_ADuM4195 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目
提问

参考资料

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

工具及仿真模型

LTspice


LTspice中提供以下器件型号:

  • ADUM4195
  • ADUM4195-1
LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。


评估套件

eval board
EVAL-ADUM4195

Evaluating the ADuM4195 Isolated Amplifier with Adjustable Gain and Single-Ended Output

特性和优点

  • ADuM4195 isolated amplifier in a wide body SOIC-16 package
  • ADuM6028-5BRIZ isolated on-board power supply
  • Maximum 1000 V DC preconfigured input
  • Configurable for AC voltage input

产品详情

The EVAL-ADuM4195EBZ is a compact isolated DC and AC (configurable) voltage monitoring board with an isolated on-board power supply to facilitate the setup and testing of the performance characteristics of the ADuM4195.

On the input side of the board (right-hand side), the high-voltage input connector P1 is preconfigured to accept up to 1 kV DC. The internal operational amplifier (op amp) on the input side is connected in a voltage-follower configuration. On the output side of the board (left-hand side), the overall output of the ADuM4195 is directly accessible on P6 (preconfigured) or can be first-order low-pass filtered by adding a resistor and capacitor. A single 5 V DC supply is sufficient to power both the input and output side of the board, while the optional power disable (PDIS) input can be used to disable the on-board isolated power supply in applications where low-power consumption is at a premium. Full details about the device are available in the ADuM4195 data sheet, which must be consulted when using the EVAL-ADuM4195EBZ.

EVAL-ADUM4195
Evaluating the ADuM4195 Isolated Amplifier with Adjustable Gain and Single-Ended Output

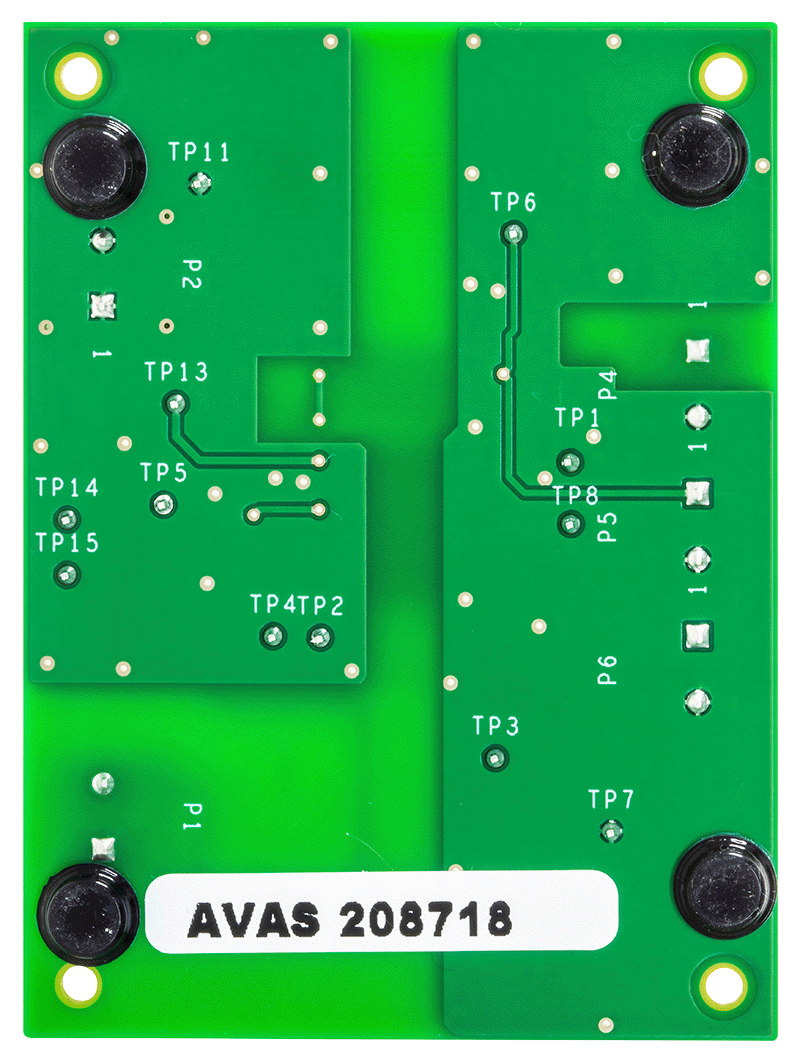

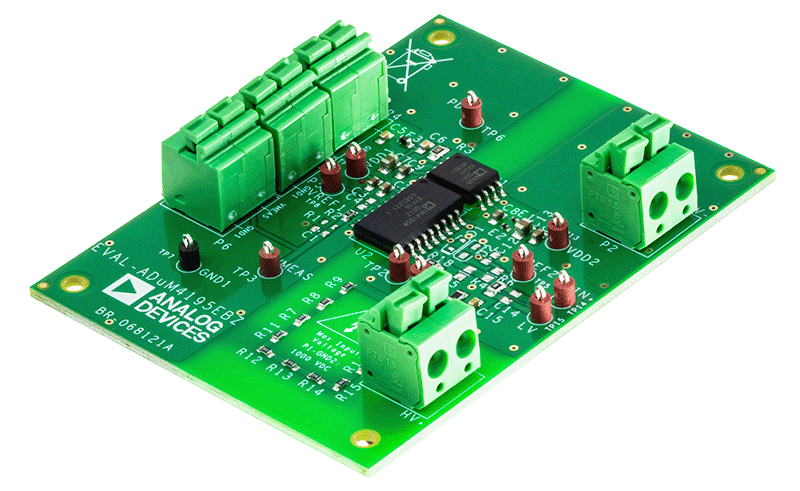

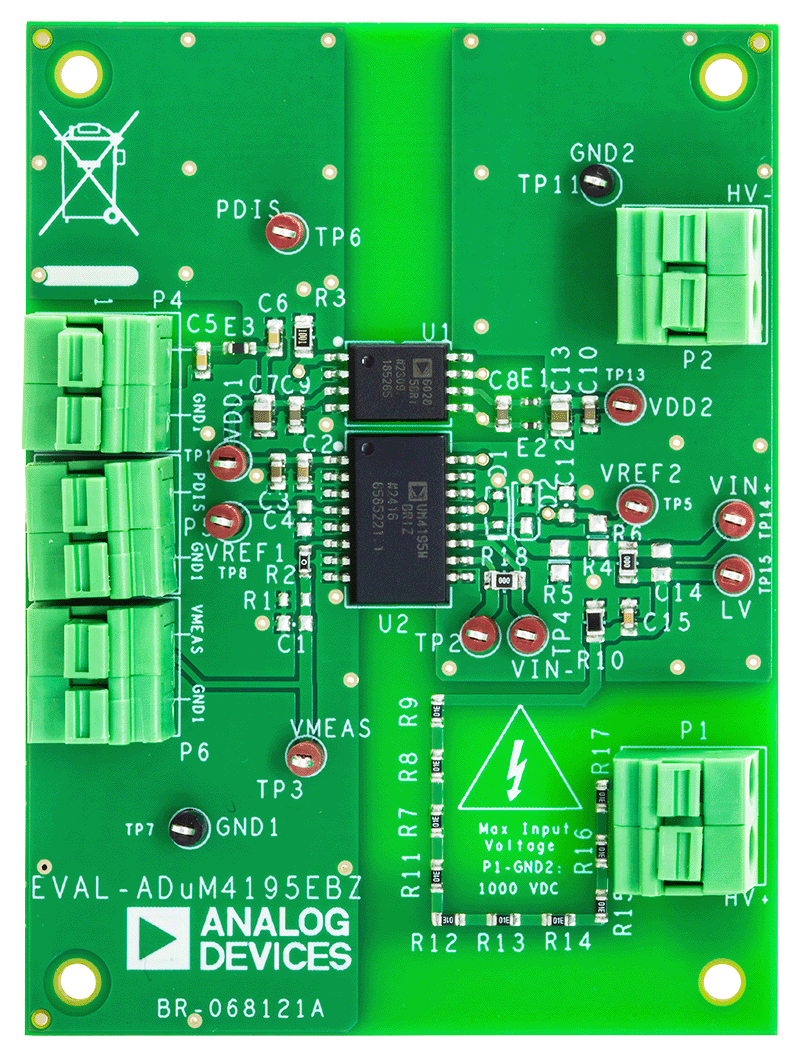

EVAL-ADUM4195 Evaluation Board Photo Angle View EVAL-ADUM4195 Evaluation Board Photo Top View EVAL-ADUM4195 Evaluation Board Photo Bottom View
