ADSP-BF531

量产

ADSP-BF531

400MHz低成本Blackfin处理器

量产

量产

ADSP-BF531 Functional Block Diagram slide

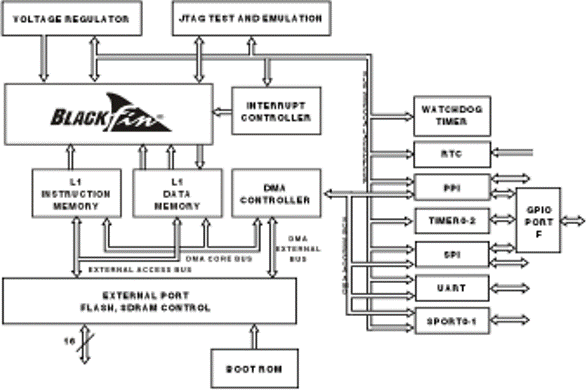

ADSP-BF531 Functional Block Diagram

不是您想寻找的产品？

去产品选项表

查看所有文档

提问

在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:

搜索

您可以在其他地方找到帮助

支持

ADI 一站式购物体验可以回答您的所有问题

访问 ADI 技术支持页面

在 ADI 论坛寻求帮助

在 EngineerZone 交流

FAQs

Sales & Ordering FAQs

产品模型 3

特性

400MHz/800MMAC的性能可实现多媒体应用中的多通道音频和CIF视频处理
具备片上内核电压调节功能的增强型动态电源管理可实现0.8V的工作电压，从而延长便携应用中的电池使用寿命

针对数据采集应用而优化的外设，提供与通用转换器的无缝连接
低成本且引脚和代码兼容的系列衍生产品，使得在成本敏感的消费类应用中的软件差异化成为可能

更多细节

ADI公司早期的ADSP-BF531、ADSP-BF532和ADSP-BF533产品系列具备Blackfin处理器的所有简单易用和架构上的特性。这三个处理器全部完全引脚兼容，仅在其性能和片上存储器方面有所不同，从而降低了风险，并提供根据终端应用要求进行灵活扩展的能力。所有这三个处理器都具备低功耗以及从低成本到极高性能的可扩展性能。

ADSP-BF531是Blackfin处理器系列的低成本切入点。它实现了性能、外设集成和价格之间的完美平衡，非常合适用于便携式测试设备、嵌入式调制解调器、生物特征识别和消费类音频等大多数对成本敏感的应用。

高集成度

52KB片上L1存储器，可配置为

32KB L1指令存储器SRAM/高速缓存

16KB L1数据存储器SRAM/高速缓存

4 KB L1便笺式SRAM

并行外设接口，支持ITU-R 656视频数据格式

两个双通道全双工同步串行端口，支持八个立体声I²S通道

12个DMA通道，支持一维和二维数据传输

存储器控制器，提供与多组外部SDRAM、SRAM、闪存或ROM的无缝连接

3个定时器/计数器，支持PWM、脉宽和事件计数模式

UART，支持IrDA®

SPI兼容端口

事件处理器

实时时钟

看门狗定时器

具备1至63倍倍频能力的锁相环

160焊球(12mm x 12mm)小型BGA封装、176引脚(24mm x 24mm)LQFP封装和169焊球(19mm x 19mm)无铅Sparse PBGA封装
