ADMV9615
推荐新设计使用60 GHz Millimeterwave Short Data Link
- 产品模型
- 1
产品详情
- Meets V-band worldwide frequency requirements
- Integrated omnidirectional circularly polarized antenna
- Integrated high band and low band diplexer for improved multipath distortion
- Full duplex operation
- Simple AM scheme
- Data rate: 1Gbps
- Ultralow latency
- Short link communication distance: 1 cm to 5 cm
- Receiver frequency: 59.85 GHz
- Transmitter frequency: 63.2625 GHz
- Transmitter gain setting range: −3 dB to +32 dB
- Integrated transmitter PA power detector
- Receiver gain setting range: −10 dB to +69 dB
- RF, IF, and BB gain control
- Integrated receiver and transmitter frequency synthesizers
- Integrated reference clock
- On-chip temperature sensors
- DC-coupled baseband input and output
- 3-wire digital SPI

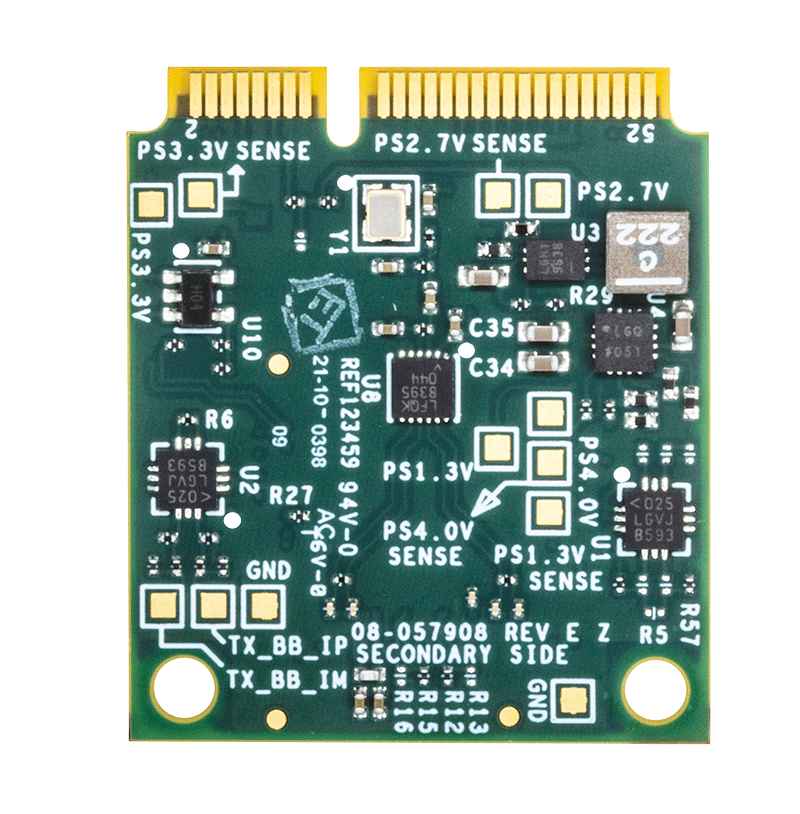

- 34.70 mm × 29.89, 52-terminal printed circuit assembly (PCA)

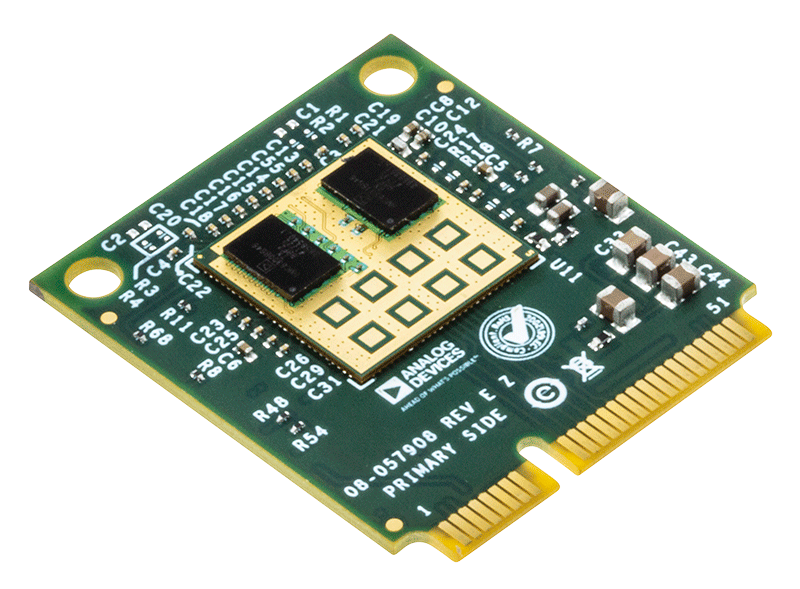

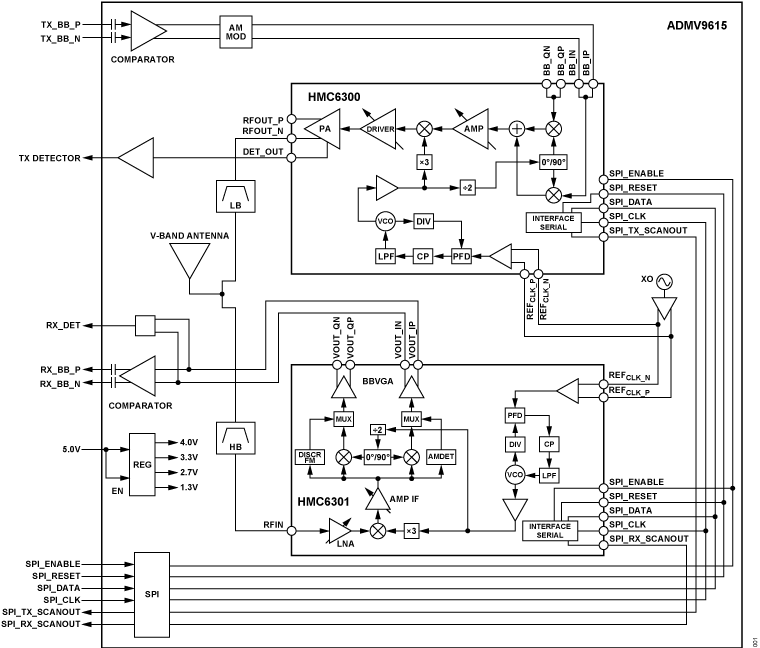

The ADMV9615 is a complete millimeterwave (mmWave) wireless connectivity solution in a small printed circuit assembly (PCA) format. All millimeterwave signals are confined to the printed circuit assembly, simplifying implementation. Wireless transmission is achieved using the integrated circularly polarized (CP) omnidirectional patch antenna array, which enables communication in many applications, including rotation. Following the antenna array is an integrated diplexer that provides isolation between the separate transmit and receive paths on the board, which reduces multipath distortion. The receive path integrates all components to demodulate the 59.85 GHz frequency to baseband signals. The flexible receiver gain control is programmable over a wide range to easily accommodate the required link budget. The receiver baseband outputs are ac-coupled and can provide almost 400 mV of differential output signal level. Likewise, the transmit path integrates all components to modulate input baseband signals to 63.2625 GHz. The transmitter has programmable gain control to maintain level transmit power. The transmit baseband inputs are dc-coupled and have a broad common-mode input range. Synthesizers are integrated to maintain excellent frequency stability vs. temperature. The simple amplitude modulation (AM) scheme eliminates the need for external data converters, allowing for bit rates of greater than 1 Gbps. On-board power management is integrated to a single 5 V voltage rail to power the ADMV9615.

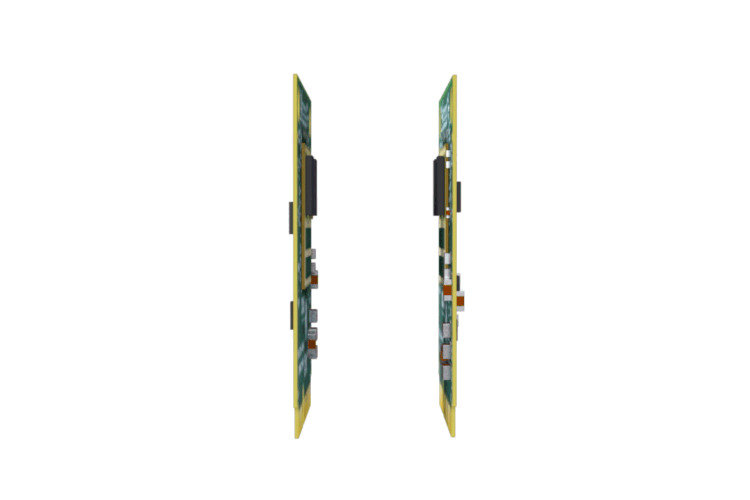

Together with the ADMV9625, the ADMV9615 provides a complete, full duplexed 60 GHz data link for high speed data transmission in the unlicensed 60 GHz industrial, scientific, and medical (ISM) band.
Applications
- 60 GHz short data link for industrial and medical high data rate applications
- High speed data for rotating applications, such as slip rings and magnetic resonance imaging systems
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号,脚注和 3D模型 |
---|---|---|---|
ADMV9615APCZ | 52-Terminal Printed Circuit Assembly [PCA] |
这是最新版本的数据手册
