ADL6346B
推荐用于新设计40dB Gain, 1500MHz to 2700MHz Transmit Amplifier
- 产品模型
- 3
概述
- 2-stage, high-linearity transmit amplifier for RF DACs, transceivers, and SoCs to power amplifier interfaces
- Excellent gain stability and flatness over temperature
- Single 5.0V supply
- Power gain: 40.0dB
- OIP3: 40.0dBm
- OIP2: 50.0dBm
- Noise figure: 4.0dB
- OP1dB: 26.0dBm
- ENP pin enables and disables within 50ns
- 100Ω and 50Ω differential inputs and 50Ω single-ended output
- DC current can be adjusted by external resistors

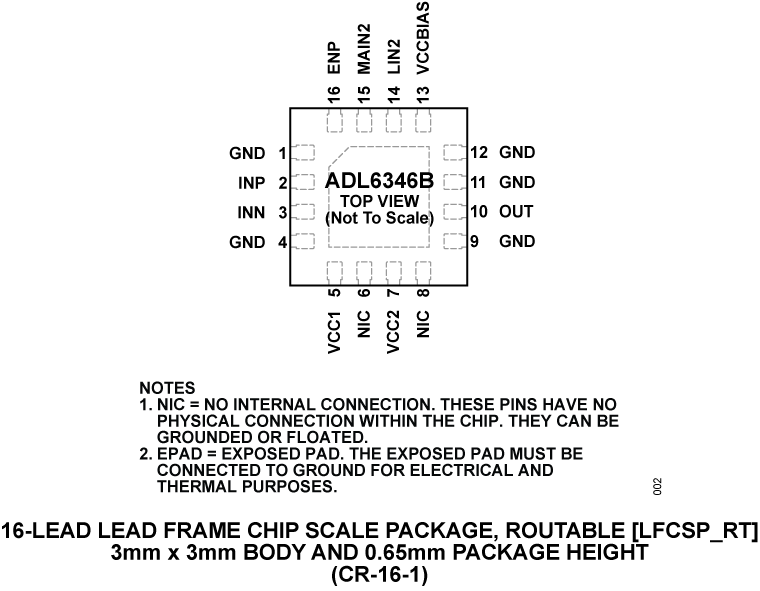

- 16-lead, 3mm × 3mm LFCSP
The ADL6346B is a transmit two-stage differential amplifier that provides an interface from RF digital-to-analog converters (DACs), RF transceivers, and systems on a chip (SoC) to power amplifiers. The ADL6346B also includes an integrated impedance matching and an integrated RF balun so that it can be configured as a differential input, single-ended output to allow high-performance RF capabilities in desired frequency ranges.
To optimize performance vs. power level, the ADL6346B includes the ability to adjust the DC operating and linearization currents using external resistors.
The ADL6346B is manufactured on an advanced silicon germanium (SiGe), bipolar complementary metal-oxide semiconductor (BiCMOS) process.
参考资料
数据手册 1
用户手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADL6346ACRZB | 16-Lead LFCSP_RT (3 mm x 3 mm Body and 0.65 mm) | ||
| ADL6346ACRZB-R7 | 16-Lead LFCSP_RT (3 mm x 3 mm Body and 0.65 mm) | ||
| ADL6346ACRZB-RL | 16-Lead LFCSP_RT (3 mm x 3 mm Body and 0.65 mm) |
这是最新版本的数据手册
软件资源
找不到您所需的软件或驱动?
申请驱动/软件工具及仿真模型
S-参数 1
评估套件
Evaluating the ADL6346B, 40dB Gain, 1500MHz to 2700MHz Transmit Amplifier
