MAX22216V

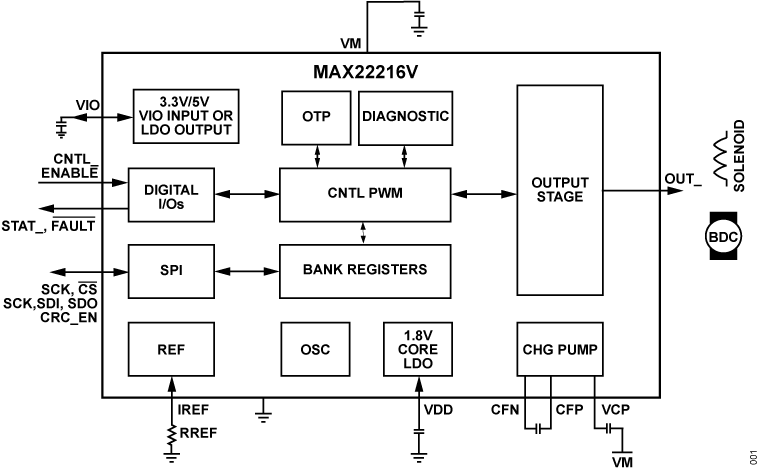

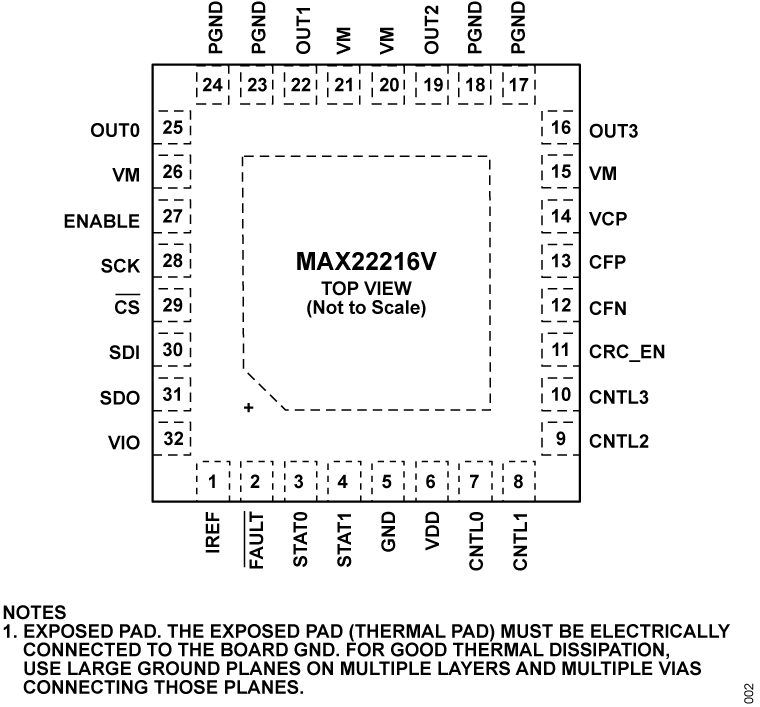

The MAX22216V is an AEC-Q100 qualified driver. It integrates four programmable 36V half-bridges. It is primarily intended to drive inductive loads such as on-off solenoid valves, DC motors, proportional valves, bistable valves, and relays. The MAX22216V is capable of up to 3.2A_FS per half-bridge and operates from -40°C to +125°C ambient temperature.

The MAX22216V half-bridges support two different use cases. In the first case, configuration settings can be entered through a serial peripheral interface (SPI) and can be changed at any time. Alternatively, settings can be stored in one-time programmable (OTP) registers, which are loaded at power-up. This enables standalone operations. Registers are user-programmable. The OTP writing procedure must be executed in a factory under well-controlled temperature and voltage conditions.

Please see the Data Sheet for the full description.

The MAX22216V evaluation board is the MAX22216EVKIT. The MAX22216EVKIT populates the MAX22216 for evaluation purposes.

APPLICATIONS

• ECU/VCU
• Suspension Control
• Door Module
• HVAC Control
• HV Contactors
• Solenoid On-Off Valves and Relay
• Switching Driver with Real-Time Current Measurement
