概览

优势和特点

  • Eight Half-Bridges Up To +36V
  • High Performances:
    • Low On-Resistance: RDS(on): 200 mΩ typical (TA = +25°C)
    • Continuous Output Current Up To 1ARMS per Half- Bridge (TA = +25°C)
    • Current-Drive Regulation (CDR)
    • Voltage-Drive Regulation (VDR)
    • Integrated Lossless Current Sensing (ICS)
  • High Flexibility:
    • Independent Programmable HIT and HOLD Currents for Each Channel (IHIT, IHOLD)
    • Independent Programmable HIT Current Timing for Each Channel (tHIT)
    • Full-Bridge Configuration Supported
    • Parallel Mode Supported
  • High Speed Serial Interface (SPI)
    • 5MHz Daisy-Chain Configuration
    • 10MHz without Daisy Chain
  • Protections and Diagnostic
    • Overcurrent Protection (OCP)
    • Open-Load Detection (OL)
    • Detection of Plunger Movement (DPM)
    • Undervoltage Lockout (UVLO)
    • HIT Current Not Reached (HHF)
    • Thermal Shutdown T = +145°C (TSD)
    • Fault Registers for Diagnostic purposes
  • Integration:
    • 32 TQFN 5mm x 5mm Package

产品详情

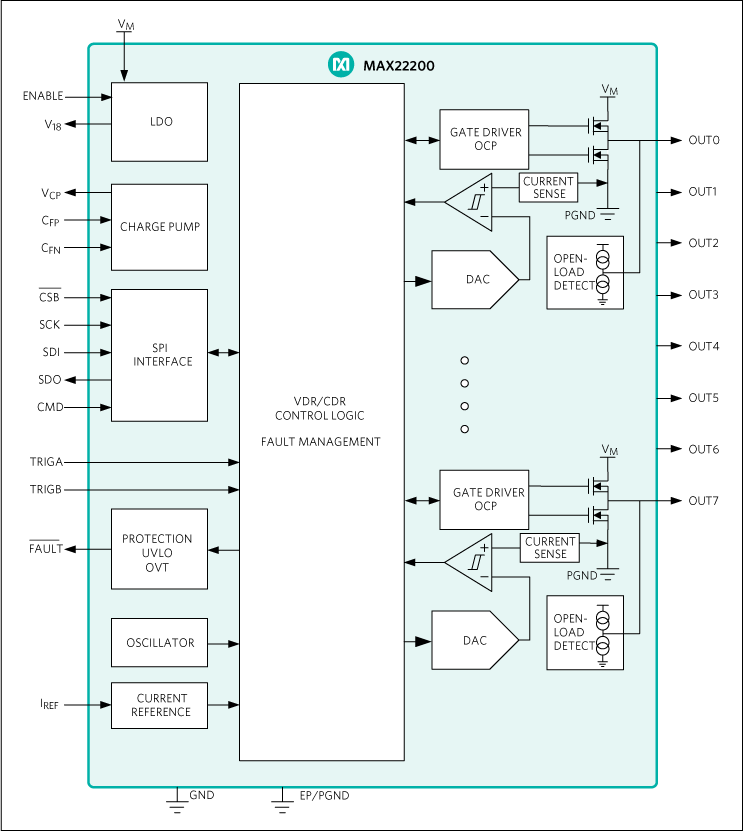

The MAX22200 is an octal 36V serial-controlled solenoid driver. Each channel features a low impedance (200mΩ typ) push-pull output stage with sink-and-source driving capability and up to 1ARMS driving current. A serial interface (SPI) that also supports daisy-chain configurations is provided to individually control each channel.

The device half-bridges can be configured as low-side drivers or as high-side drivers. Moreover, pairs of halfbridges can be paralleled to double the driving current or can be configured as full-bridges to drive up to four latched valves (bi-stable valves) or four brushed DC motors.

Two control methods are supported: voltage drive regulation (VDR) and current drive regulation (CDR). In VDR, the device outputs a PWM voltage in which the duty cycle is programmed using SPI. For a given supply voltage and solenoid resistor, the output current is proportional to the programmed duty cycle. In CDR, an internal integrated lossless current sensing (ICS) circuit senses the output current and compares it with an internal programmable reference current.

For optimal power management in solenoid drive applications, the excitation drive level (IHIT), the hold drive level (IHOLD), and the excitation drive time (tHIT) can be individually configured for each channel.

The MAX22200 features a full set of protections and diagnostic functions. This includes overcurrent protection (OCP), thermal shutdown (TSD), undervoltage Lockout (UVLO), open-load detection (OL), and detection of plunger movement (DPM). A fault indication pin (active-low FAULT) signals fault events and diagnostic information is stored in the FAULT register.

Due to the flexibility of use, the serial interface control, the high efficiency, and the small package, the MAX22200 is particularly well-suited for solenoid driver applications (valve control, relays control etc.) in which low power consumption and high level of integration are required.

The MAX22200 is available in a compact 5mm x 5mm, 32-pin TQFN package and operates over the temperature -40°C to +85°C range.

Applications

  • Relays Driver
  • Solenoid, Valves, Electromagnetic Drivers
  • Generic Low-Side and High-Side Switch Applications
  • Latched (Bi-Stable) Solenoid Valve Drivers
  • Brushed DC Motor Driver

产品生命周期 icon-recommended 推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

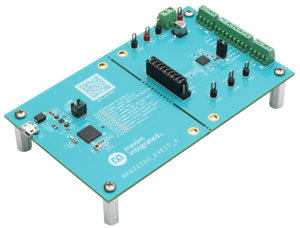

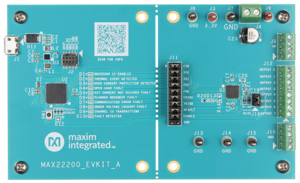

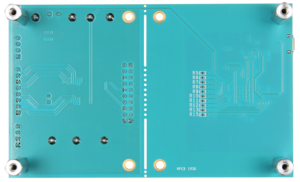

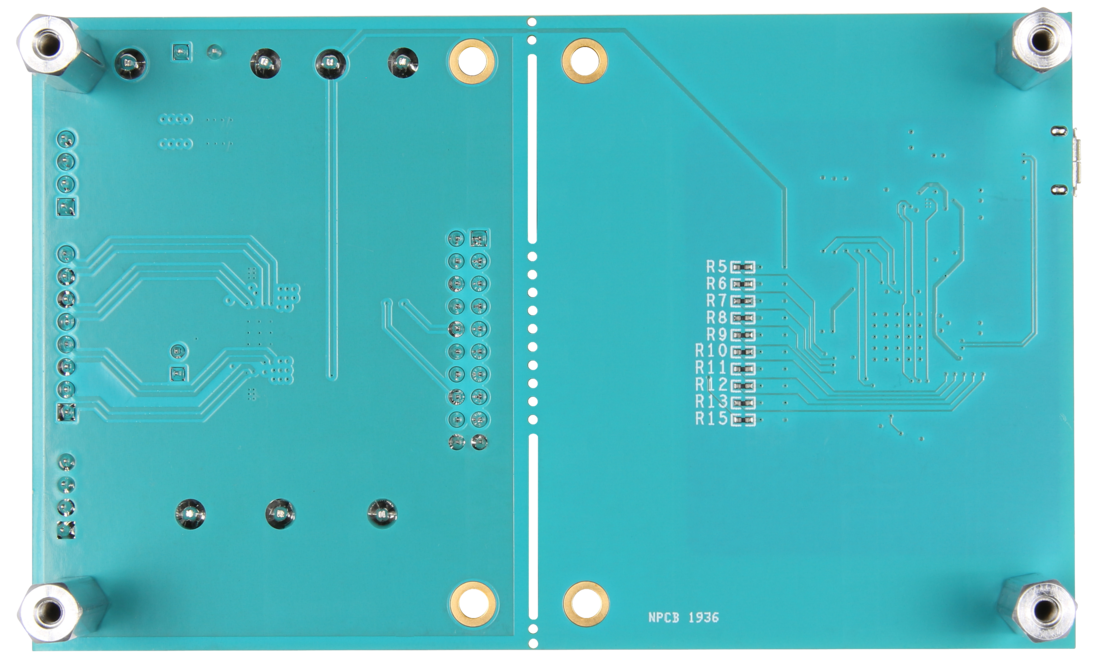

评估套件 (1)

工具及仿真模型

IBIS模型

Software Development

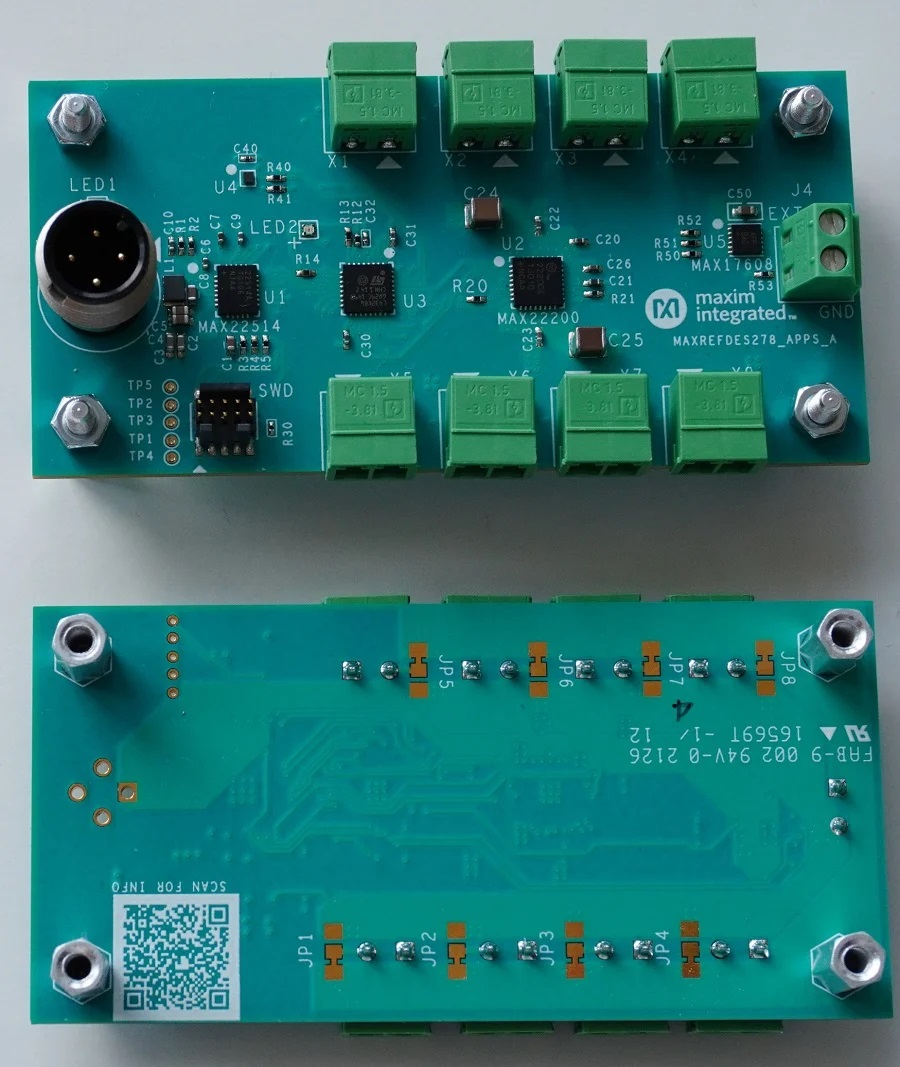

参考电路 (1)
