AD3305

推荐用于新设计

10BASE-T1S Ethernet to the Edge Bus (E²B) Transceiver with 4 channel ILaS/ISELED

数据手册 (Rev. SpC) 产品选型表

产品模型: 2

Viewing:

概述

10BASE-T1S IEEE 802.3-2022 compliant PHY with support for PLCA and an integrated MAC
10BASE-T1S PHY operating modes
- Point-to-point half-duplex (≥ 15 m)
- Multidrop configuration half-duplex (≥ 25 m, ≥ 8 nodes)
PLCA features: PLCA coordinator, burst mode, precedence mode, and multiple PLCA IDs
MAC Features
- AD3300 only: OPEN Alliance 10BASE-T1x MAC-PHY serial interface
- AD3300 only: Transmit priority queues
- 16 MAC address filters
IEEE 802.1AS / IEEE 1588 support for TSN using the gPTP combined with sensor timestamping and actuator synchronization
Low Complexity Ethernet Engine
- Provides a deterministic, low-latency data path between 10BASE-T1S to the SAIF
- 12 SAIF pins support simultaneous operation of several common sensor/actuator interface standards and functions, including SPI, I²C, UART, PWM, GPIO, Flexible I/O, and bridge to LIN
- SMC enables periodic read and write functions on all interfaces
- AD3300 supports dual mode: MAC-PHY and LCE operation simultaneously
- AD3304/5 only: Bridge to ISELED and ILaS
OPEN Alliance features sleep/wake-up, topology discovery, and advanced diagnostics

Enable output pin (EN) to power down the regulated supply inputs in sleep mode
Support for local (WAKE input pin) and network (wake-up pulse) wake

Suitable for 12 V, 24 V, 48 V automotive electrical systems or operating from 5 V levels only
Detection capability for overvoltage and undervoltage events when monitoring the VBAT pin
General-purpose ADC
SSC for handling fault conditions
Low-current 3.3 V LDO using the LVDD pin as an output
Compatible with power delivery over data cable
Provides robust EMC/EMI performance
- Low cost bus interface network with no external ESD components required
- Enhanced noise immunity providing additional performance for noisy environments
Low power consumption: maximum current of 50 mA in functional modes of operation and 40 μA in sleep mode
1.8 V to 3.3 V I/O logic levels with support for 5 V inputs
−40°C to +150°C junction temperature range
Small package: 4 mm x 4 mm 24-lead LFCSP (QFN) package
AEC-Q100 qualified for automotive applications

产品模型: 2

参考资料

数据手册 1

AD3300/1/4/5: Optimized all Hardware Edge Node, 10BASE-T1S Ethernet to the Edge Bus (E²B) Transceiver Data Sheet (Rev.SpC) 09/16/2025

申请保密协议

完成保密协议（NDA）后可获得完整的文件。

申请保密协议

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
AD3305WBCPZ	24-Lead LFSCP (4mm x 4mm x 0.95mm w/ EP)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
AD3305WBCPZ-RL	24-Lead LFSCP (4mm x 4mm x 0.95mm w/ EP)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

6月 30, 2025 - 25_0169 AD3300/AD3301/AD3304/AD3305 Data Sheet Change
		PCN25_0169_Form Material_Report Delta Qualification Matrix
AD3305WBCPZ
AD3305WBCPZ-RL
2月 10, 2025 - 25_0015 AD3300/AD3301/AD3304/AD3305 Data Sheet Change
		PCN25_0015_Form Material_Report Delta Qualification Matrix
AD3305WBCPZ
AD3305WBCPZ-RL

这是最新版本的数据手册

评估套件

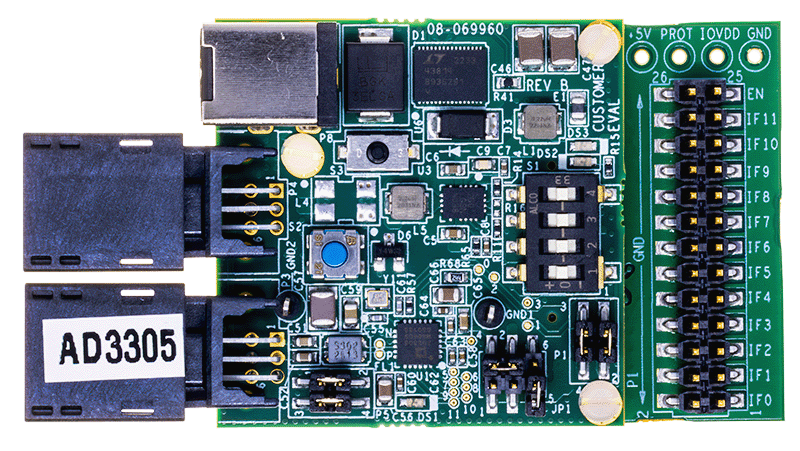

AD3305 E2B 评估套件

立即购买更多内容

特性和优点

10BASE-T1S AD3305 E2B RCP 远程节点的全功能评估板
带有 ADI 公司 E2B 远程控制协议 (RCP) 的 10 Mbps 短距离单对以太网物理层收发器
- 半双工点对点链路段
- 半双工多点混合段
- 可配置板载 50 Ω 10BASE-T1S 总线端电极
- 物理层防碰撞（PLCA）。
电源电压：12 V 至 48 V，板载电压调节器
通过 2.54 毫米连接器分接信号输入和输出
GPIO LED 和 GPIO 按钮
支持 INOVA Semiconductors 的 ISELED 和 ILaS 接口。请联系您的ADI公司代表，以获取更多信息。

产品详情

AD3305 E2B RCP 评估套件由 Analog Devices Inc. 提供，用于方便演示和灵活评估 Analog Devices E²B 远程控制协议 (RCP) 技术。AD3305 EVAL 平台为控制器节点和 AD3305 远程边缘节点之间的 10 Mbps 半双工汽车通信提供了系统解决方案。可以在每个远程节点上配置和实现灵活的接口。远程节点由控制器节点控制，其中 E²B 软件应用程序在微控制器或主机 PC 上执行。主机 PC 上使用ADI公司的评估图形用户界面软件 EdgeStudio，来创建 E²B 网络，并控制 E²B 应用程序。EdgeStudio GUI 使您能够以图形方式构建 E²B 网络，配置各种 E²B 节点，使用 GUI 作为控制器评估 E²B 网络，并导出要在微控制器应用程序中使用的网络配置。
