製品概要

機能と利点

  • 72-pin 10mm × 10mm QFN package
  • 2.4 GHz, IEEE 802.15.4e System-on-Chip, Complete with Embedded SmartMesh Networking Software
    • >99.999% Network Reliability in the Most Challenging RF Environments
    • Sub 50µA Routing Nodes
  • Serves as either a Wireless Mote, EManager, or Access Point Mote in a SmartMesh IP network
  • These products contain encryption. Import/export restrictions may apply

製品概要

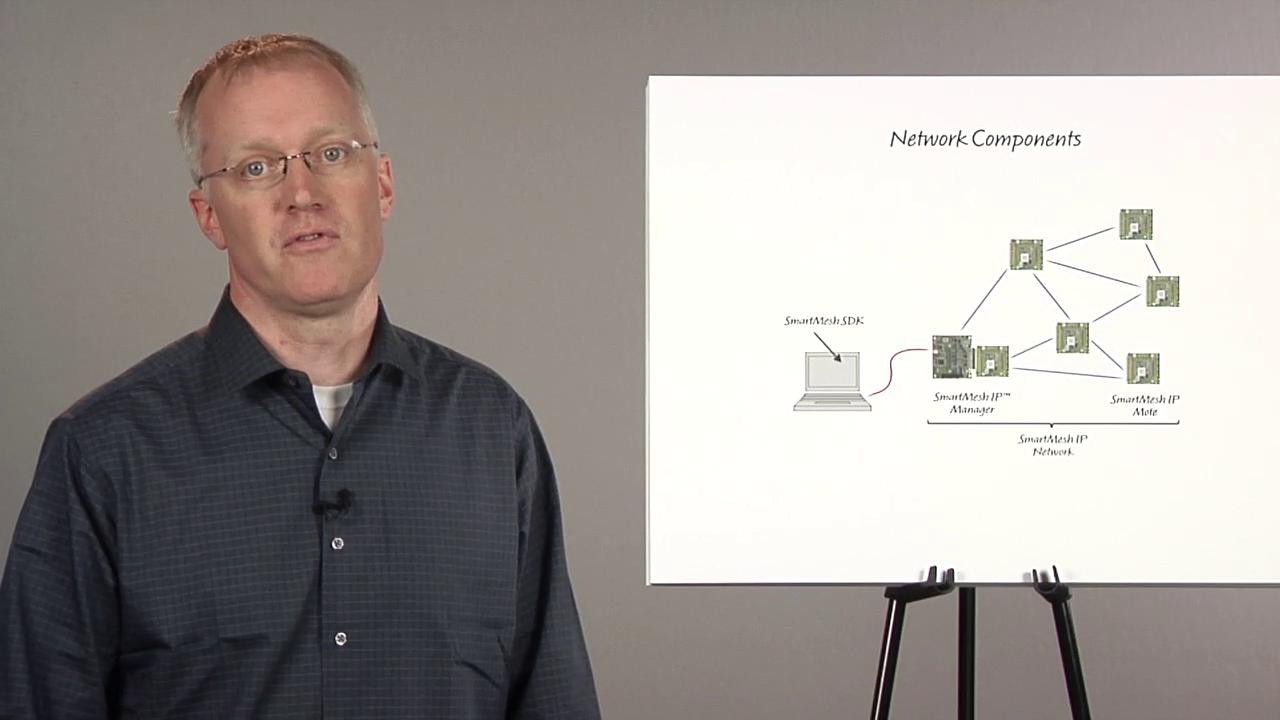

SmartMesh IP wireless sensor networks are self managing, low power internet protocol (IP) networks built from wireless nodes called motes. The LTC5800-IPM is the SmartMesh IP integrated circuit in the Eterna® family of IEEE 802.15.4e System-on-Chip (SoC) solutions, featuring a highly integrated, low power radio design as well as an ARM Cortex-M3 32-bit microprocessor running SmartMesh IP embedded networking software.

With SmartMesh IP time-synchronized networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. SmartMesh IP is a highly flexible network with proven reliability and low power performance in an easy-to-integrate platform.

The LTC5800-IPM’s behavior in a SmartMesh IP network is determined by the choice of SmartMesh IP network software loaded: Wireless Mote, EManager, or Access Point Mote in a SmartMesh IP network. The SmartMesh IP software provided with the LTC5800-IPM is fully tested and validated, and is readily configured via a software Application Programming Interface. Once you have purchased SmartMesh IP products, the SmartMesh IP stack binaries may be downloaded via your myAnalog account.

The pin signaling behavior of the LTC5800*WR-IPMA hardware is determined by the software loaded and is described in detail in the following product datasheets:

LTC5800-IPM

=

LTC5800*WR-IPMA hardware

+

SmartMesh IP  Mote  Software

LTC5800-IPM Datasheet

LTC5800-IPR

=

LTC5800*WR-IPMA hardware

+

SmartMesh IP EManager Software

LTC5800-IPR Datasheet

LTC5800-IPA

=

LTC5800*WR-IPMA hardware

+

SmartMesh IP Access Point Software

LTC5800-IPA Datasheet

Network Features

Feature

Benefit

>99.999% Network Reliability

Avoids communications dropouts common with other wireless networks

NIST-certified AES-128 bit Encryption

Data protected by end-to-end encryption, message integrity checking and device authentication

Scalable

Uses time-slotted channel-hopping protocol to avoid in-network collisions to maximize scale while minimizing power and latency-hungry transmission retries due to congestion

Bidirectional Communications

Ideal for both monitoring and control applications

Up to 10 messages/second/node

Time-slotted communications avoids contention. This data rate includes built-in margin for packet retries.

Device Features

Feature

Benefit

Industry-Leading Low Power Radio Technology

• 4.5mA to Receive a Packet
• 5.4mA to Transmit at 0dBm
• 9.7mA to Transmit at 8dBm

Pre-engineered RF

RF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.

Energy Harvesting Support

Very low power design enables motes to be powered by a wide variety of energy harvesters. Click here to see a demonstration circuit of a SmartMesh IP mote powered by indoor light.

Integrated Temperature Sensor

Precise temperature sensor is integrated directly into the mote.

Applications

SmartMesh IP is ideally suited for wireless Industrial Internet of Things (IoT) applications.

Learn more about SmartMesh applications.



製品ライフサイクル icon-recommended 製造中

この製品ファミリーの1つ以上の型番が生産/供給中です。新規の設計に適していますが、より新しい代替製品を提供している場合があります。

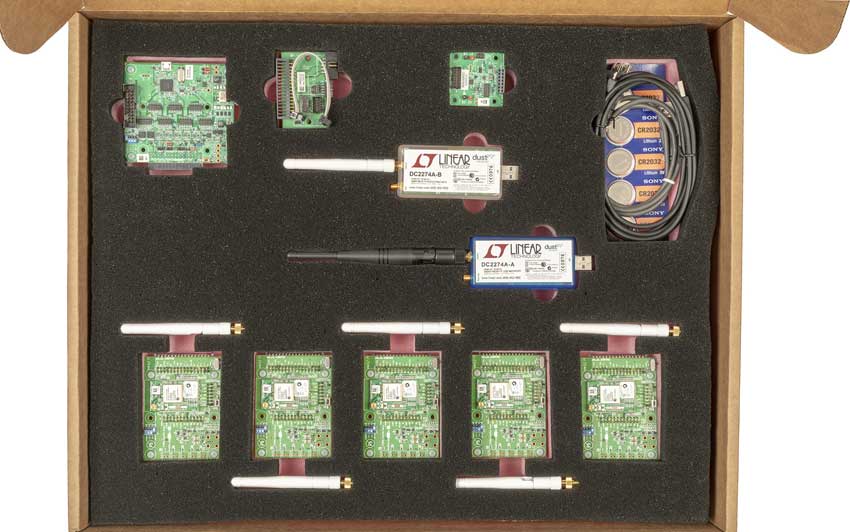

評価キット (3)
