LTP5901-IPM

SmartMesh IP Wireless 802.15.4e PCBA Module with Chip Antenna

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 1
1ku List Price Starting From $53.93
Features
  • 42mm × 24mm PCBA module with on-board chip antenna
  • Integrates 2.4 GHz, IEEE 802.15.4e System-on-Chip, Complete with Embedded SmartMesh Networking Software
    • >99.999% Network Reliability in the Most Challenging RF Environments
    • Sub 50µA Routing Nodes
  • Serves as either a Wireless Mote, EManager, or Access Point Mote in a SmartMesh IP network
  • These products contain encryption. Import/export restrictions may apply.
Additional Details
show more Icon

SmartMesh IP wireless sensor networks are self managing, low power internet protocol (IP) networks built from wireless nodes called motes. The LTP5901-IPM is printed circuit board assembly (PCBA) product with on-board chip antenna in the Eterna® family of IEEE 802.15.4e solutions, featuring a highly integrated, low power radio design as well as an ARM Cortex-M3 32-bit microprocessor running SmartMesh IP embedded networking software. The LTP5901-IPM, at 24mm × 42mm, is built for surface-mount assembly.

With SmartMesh IP time-synchronized networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. SmartMesh IP is a highly flexible network with proven reliability and low power performance in an easy-to-integrate platform.

The LTP5901-IPM’s behavior in a SmartMesh IP network is determined by the choice of SmartMesh IP network software loaded: Wireless Mote, EManager, or Access Point Mote in a SmartMesh IP network. The SmartMesh IP software provided with the LTP5901-IPM is fully tested and validated, and is readily configured via a software Application Programming Interface. Once you have purchased SmartMesh IP products, the SmartMesh IP stack binaries may be downloaded via your myAnalog account.

The pin signaling behavior of the LTP5901IPC-IPMA hardware is determined by the software loaded and is described in detail in the following product datasheets:

LTP5901-IPM

=

LTP5901IPC-IPMA hardware

+

SmartMesh IP  Mote  Software

LTP5901-IPM Datasheet

LTP5901-IPR

=

LTP5901IPC-IPMA hardware

+

SmartMesh IP EManager Software

LTP5901-IPR Datasheet

LTP5901-IPA

=

LTP5901IPC-IPMA hardware

+

SmartMesh IP Access Point Software

LTP5901-IPA Datasheet


Network Features

Feature

Benefit

>99.999% Network Reliability

Avoids communications dropouts common with other wireless networks

NIST-certified AES-128 bit Encryption

Data protected by end-to-end encryption, message integrity checking and device authentication

Scalable

Uses time-slotted channel-hopping protocol to avoid in-network collisions to maximize scale while minimizing power and latency-hungry transmission retries due to congestion

Bidirectional Communications

Ideal for both monitoring and control applications

Up to 10 messages/second/node

Time-slotted communications avoids contention. This data rate includes built-in margin for packet retries.


Device Features

Feature

Benefit

Industry-Leading Low Power Radio Technology

• 4.5mA to Receive a Packet
• 5.4mA to Transmit at 0dBm
• 9.7mA to Transmit at 8dBm

Pre-engineered RF

RF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.

RF Modular Certifications

Pre-certified in USA, Canada, EU, Australia/New Zealand, India, Japan, Korea, Taiwan

Energy Harvesting Support

Very low power design enables motes to be powered by a wide variety of energy harvesters. Click here to see a demonstration circuit of a SmartMesh IP mote powered by indoor light.

Integrated Temperature Sensor

Precise temperature sensor is integrated directly into the mote.


Applications

SmartMesh IP is ideally suited for wireless Industrial Internet of Things (IoT) applications. Learn more about SmartMesh applications.

Part Models 1
1ku List Price Starting From $53.93

close icon

Documentation

Technical Documents 34
show more Icon

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTP5901IPC-IPMA#PBF
  • HTML
  • HTML

Software & Part Ecosystem

Evaluation Kits 3

reference details image

DC9021B

SmartMesh IP Starter Kit

zoom

DC9021B

SmartMesh IP Starter Kit

SmartMesh IP Starter Kit

Product Detail

The DC9021B SmartMesh IP Starter Kit provides all the tools for evaluating SmartMesh® network performance with respect to your application needs, including high reliability, ultralow power, scalability and ease of installation. This accelerates device integration and application software development.

The DC9021B Starter Kit includes five motes, or nodes (DC9018B-B), to enable you to quickly deploy a multi-hop mesh network in the RF environment specific to your application. The command line interface allows you to quickly see the list of mesh nodes in the network, as well as key performance statistics such as data reliability and latency.

The DC9018B-B Evaluation/Development Mote Modules feature easy-to-probe signal pins. In addition, the starter kit provides access to both manager and mote software application programming interfaces (APIs) over USB to enable application software development.

The DC2274A-A USB Embedded Network Manager comes factory-configured as an embedded network manager, where both the wireless-to-wired access point function and the network management algorithms run on board.

The DC2274A-B USB Access Point Mote enables customers to evaluate VManager, which supports thousands of nodes.

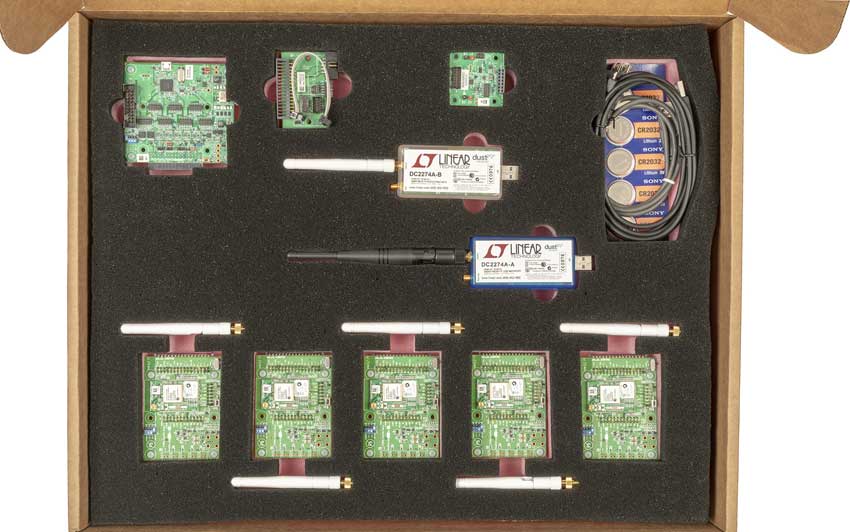

SmartMesh IP Starter Kit – includes the following items:

Watch the SmartMesh IP Starter kit Video

The DC9021B Starter Kit operates in the 2.4000GHz to 2.4835GHz international license-free frequency band. Starter kits and demo boards are for evaluation purposes only. It remains the customer’s responsibility to verify proper and reliable operation in the actual end application.

SmartMesh IP Starter Kit Software
Software Utility Description Download Link
Serial Mux Software used to connect multiple clients to the manager Download
SmartMesh SDK (optional) Software development kit used to interact with the devices’ Application Programming Interface (API) GitHub Repository
FTDI driver USB-to-Serial drivers for communication with DC9001, DC9006 boards Download VCP from FTDIchip.com
LBR (optional) Low power Border Router software utility and sample code. Python script for mapping SmartMesh IP networks onto an IPv4 network (e.g. Ethernet) Download
reference details image

DC9000B

SmartMesh IP Starter Kit (Chip Antennae), 100 Mote Capacity

zoom

DC9000B

SmartMesh IP Starter Kit (Chip Antennae), 100 Mote Capacity

SmartMesh IP Starter Kit (Chip Antennae), 100 Mote Capacity

Product Detail

Note: Newer Kit Available - Please see the DC9021B

The DC9000B SmartMesh IP Starter Kit provides all the tools for evaluating SmartMesh® network performance with respect to your application needs, including high reliability, ultralow power, scalability and ease of installation. This accelerates device integration and application software development.

The DC9000B Starter Kit includes five motes, or nodes (DC9003A-B), to enable you to quickly deploy a multi-hop mesh network in the RF environment specific to your application. The command line interface allows you to quickly see the list of mesh nodes in the network, as well as key performance statistics such as data reliability and latency.

The DC9003A-B Evaluation/Development Mote Modules feature easy-to-probe signal pins. In addition, the starter kit provides access to both manager and mote software application programming interfaces (APIs) over USB to enable application software development.

The DC2274A USB Network Manager comes factory-configured as an embedded network manager, where both the wireless-to-wired access point function and the network management algorithms run on board. Optionally, users may configure the DC2274 as a SmartMesh IP Access Point Mote for operation with VManager software. (Click here to learn more about network managers.)

The DC9000B Starter Kit operates in the 2.4000GHz to 2.4835GHz international license-free frequency band. Starter kits and demo boards are for evaluation purposes only. It remains the customer’s responsibility to verify proper and reliable operation in the actual end application.

SmartMesh IP Starter Kit – includes the following items:

reference details image

DC9021A

SmartMesh IP RF Certified Starter Kit (Chip Antennae), 100 Mote Capacity

zoom

DC9021A

SmartMesh IP RF Certified Starter Kit (Chip Antennae), 100 Mote Capacity

SmartMesh IP RF Certified Starter Kit (Chip Antennae), 100 Mote Capacity

Product Detail

Note: Newer Kit Available - Please see the DC9021B

The DC9021A SmartMesh IP™ RF Certified Starter Kit provides all the tools for evaluating SmartMesh® network performance for your application needs, including high reliability, ultralow power, scalability and ease of installation. This accelerates device integration and application software development.

The DC9021A Starter Kit includes five motes or wireless nodes (DC9018A-B) to enable you to quickly deploy a multi-hop mesh network in the RF environment for your specific application. The command line interface allows you to quickly see the list of mesh nodes in the network, as well as key performance statistics such as data reliability and latency.

The DC9018A-B Evaluation/Development Mote Modules feature easy-to-probe signal pins. In addition, the starter kit provides access to both manager and mote software application programming interfaces (APIs) over USB to enable application software development.

The DC2274A-A USB Network Manager comes factory-configured as an embedded network manager, where both the wireless-to-wired access point function and the network management algorithms run on board. Optionally, users may configure the DC2274 as a SmartMesh IP Access Point Mote for operation with VManager software. (Click here to learn more about network managers.)

The DC9021A Starter Kit operates in the 2.4000GHz to 2.4835GHz international license-free frequency band and includes RF intentional radiator certifications for Japan, as well as the United States, Canada, Europe, India, South Korea, Taiwan, Australia and New Zealand. Starter kits and demo boards are for evaluation purposes only. It remains the user’s responsibility to verify proper and reliable operation in the actual end application.

SmartMesh IP Starter Kit – includes the following items:
