LTC1540

Nanopower Comparator with Reference

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 12
1ku List Price Starting From $2.35
Features
  • Ultralow Quiescent Current: 0.3µA Typ
  • Reference Output Drives 0.01µF Capacitor
  • Adjustable Hysteresis
  • Available in 3mm × 3mm × 0.8mm DFN Package
  • Wide Supply Range: 2V to 11V
  • Input Voltage Range Includes the Negative Supply
  • Reference Output Sources Up to 1mA
  • TTL/CMOS Compatible Outputs
  • 60µs Propagation Delay with 10mV Overdrive
  • No Crowbar Current
  • 40mA Continuous Source Current
  • Pin Compatible with LTC1440, MAX921, MAX931
Additional Details
show more Icon

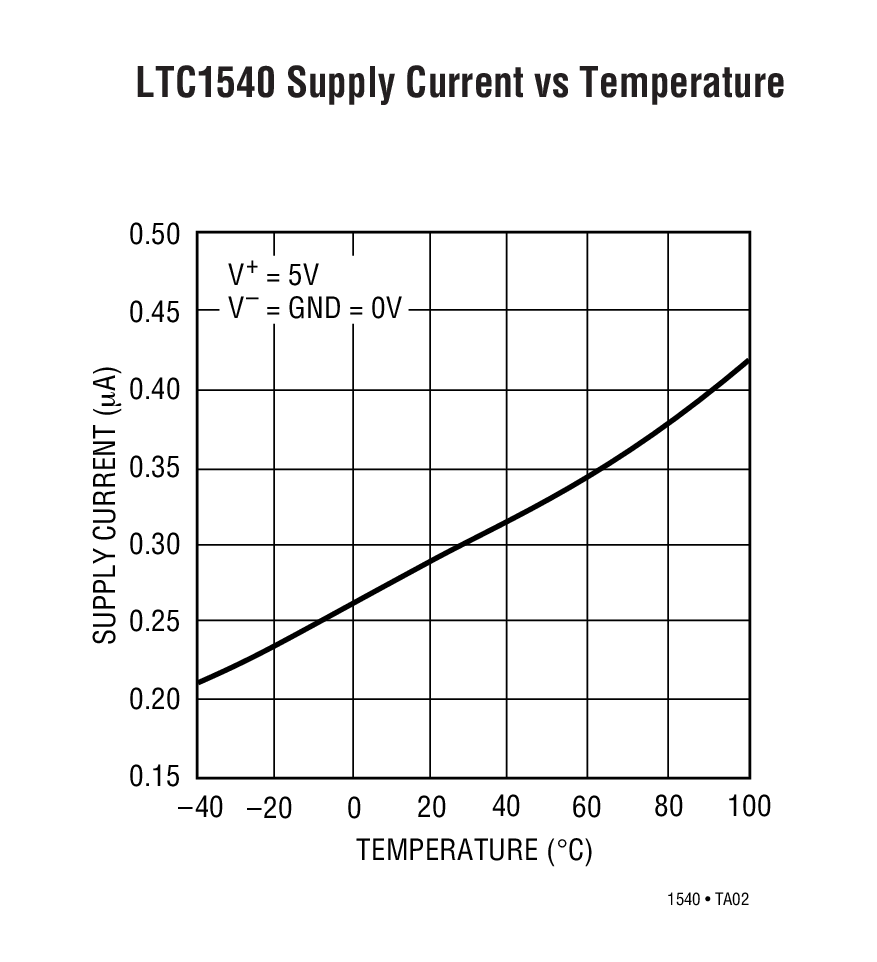

The LTC1540 is an ultralow power, single comparator with built-in reference. The comparator’s features include less than 0.6µA supply current over the commercial temperature range, a 1.182V ±2% reference, programmable hysteresis and TTL/CMOS outputs that sink and source current. The reference output can drive a bypass capacitor of up to 0.01µF without oscillation.

The comparator operates from a single 2V to 11V supply or a dual ±1V to ±5.5V supply. Comparator hysteresis is easily programmed by using two resistors and the HYST pin. Each comparator’s input operates from the negative supply to within 1.3V of the positive supply. The comparator output stage can continuously source up to 40mA. By eliminating the cross-conducting current that normally occur when the comparator changes logic states, power supply glitches are eliminated.

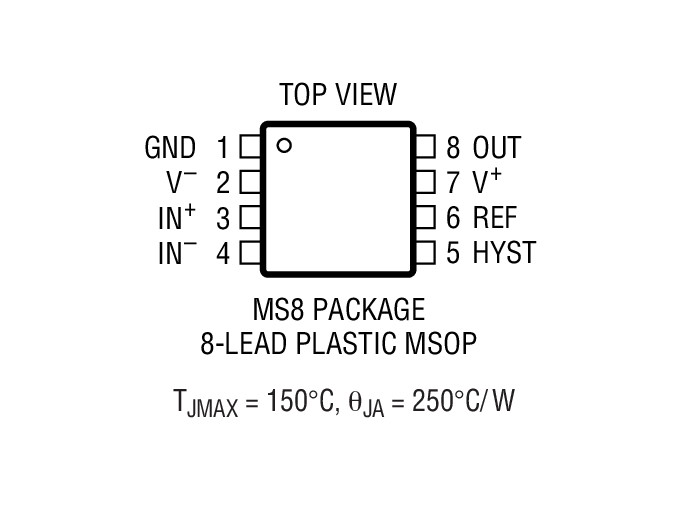

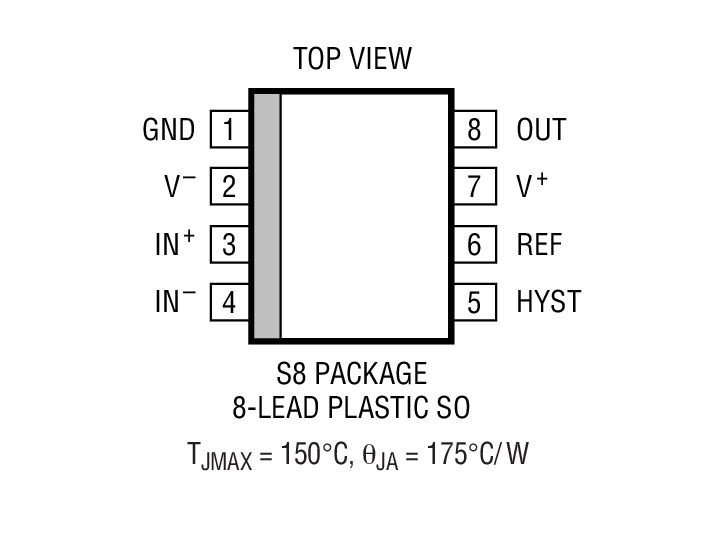

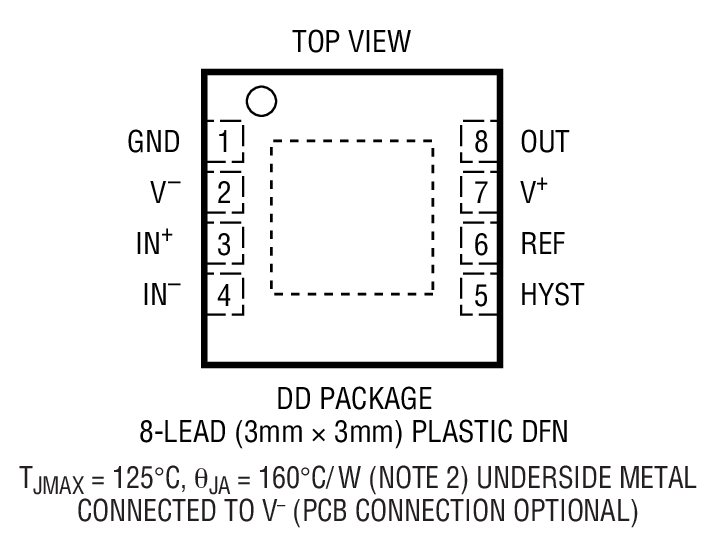

The LTC1540 is available in the 8-pin MSOP and SO packages. For space limited applications, the LTC1540 is available in a 3mm × 3mm low profile (0.8mm) dual fine-pitch leadless package (DFN).

Applications

  • Battery-Powered System Monitoring

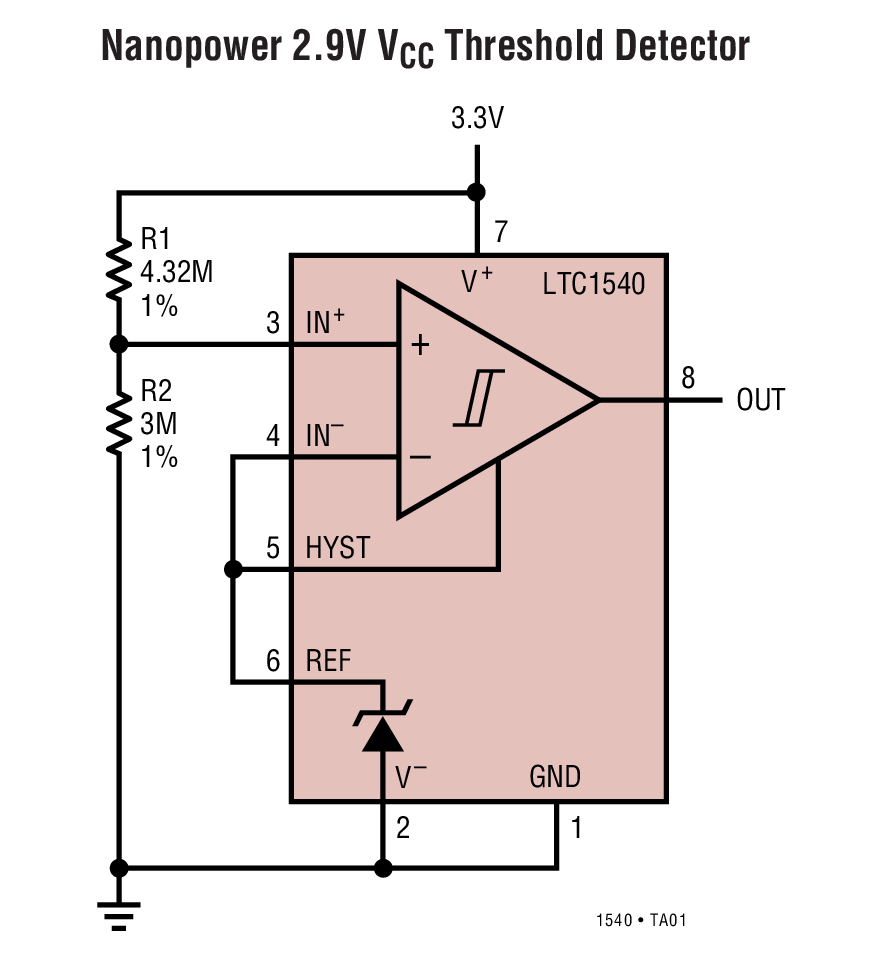

  • Threshold Detectors
  • Window Comparators
  • Oscillator Circuits
Part Models 12
1ku List Price Starting From $2.35
