  • Delay Range: 1µs to 33.6 Seconds
  • Configured with 1 to 3 Resistors
  • Delay Max Error:
    • <2.3% for Delay > 512µs
    • <3.4% for Delay of 8µs to 512µs
    • <5.1% for Delay of 1µs to 8µs
  • Delay One or Both Rising/Falling Edges
  • 2.25V to 5.5V Single Supply Operation
  • 70µA Supply Current at 10µs Delay
  • 500µs Start-Up Time
  • CMOS Output Driver Sources/Sinks 20mA
  • –55°C to 125°C Operating Temperature Range
  • Available in Low Profile (1mm) SOT-23 (ThinSOT™) and 2mm × 3mm DFN
  • AEC-Q100 Qualified for Automotive Applications

Product Details

The LTC6994 is a programmable delay block with a range of 1µs to 33.6 seconds. The LTC6994 is part of the TimerBlox® family of versatile silicon timing devices.

A single resistor, RSET, programs an internal master oscillator frequency, setting the LTC6994’s time base. The input-to-output delay is determined by this master oscillator and an internal clock divider, NDIV, programmable to eight settings from 1 to 221.

The output (OUT) follows the input (IN) after delaying the rising and/or falling transitions. The LTC6994-1 will delay the rising or falling edge. The LTC6994-2 will delay both transitions, and adds the option to invert the output.

The LTC6994 also offers the ability to dynamically adjust the delay time via a separate control voltage.

Applications

  • Noise Discriminators/Pulse Qualifiers
  • Delay Matching
  • Switch Debouncing
  • High Vibration, High Acceleration Environments
  • Portable and Battery-Powered Equipment

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

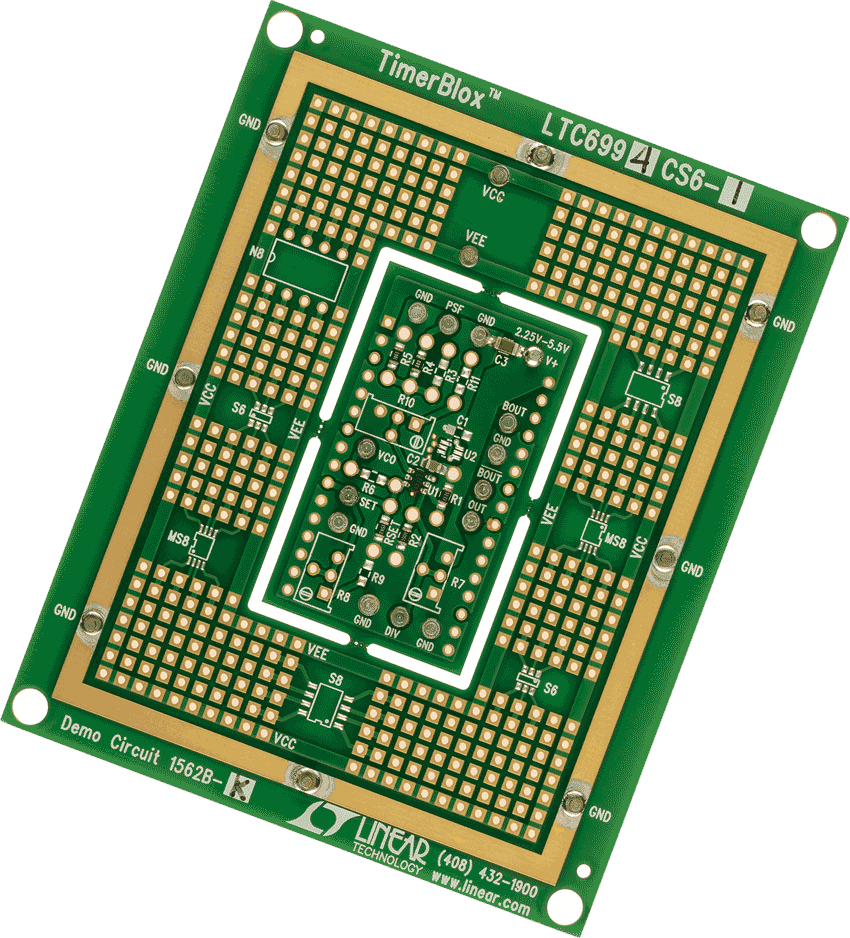

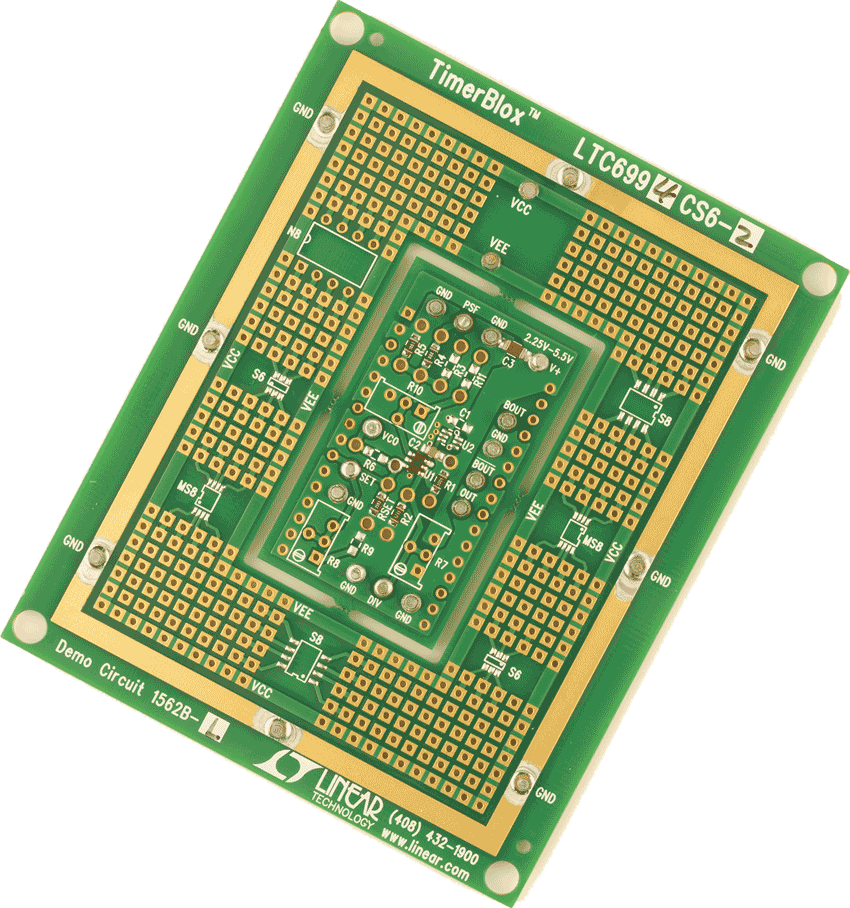

Evaluation Kits (2)

Documentation & Resources

  • View All (10)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Product Selector Card (1)
  • Solutions Bulletins & Brochures (1)
  • Videos (2)
  • Application Notes (1)
  • Technical Articles (2)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    LTspice

    LTspice Simulations

    LTC6994-1/LTC1541 Demo Circuit - High Accuracy, µPower, Over-Voltage Detector with Glitch Suppressor
    LTC6994-1/-2 Demo Circuit - Noise Discriminator
    LTC6994 Demo Circuit - Programable Pulse Delay Block
    LT6108 / LTC6994 Demo Circuit - Energy-Tripped Circuit Breaker with Automatic Delayed Retry (5-80V Input, 500mA Threshold)
    LTC6991/LTC6994 Demo Circuit - Intervalometer for Time-Lapse Photography (Adjustable Aperture from 1/4sec to 4sec)
    LTC6993 / LTC6994 Demo Circuit - Consecutive Test Sequencer (1 sec Duration Sequential Test Pulses after Initial Delay)
    LTC6994 / LTC6993 Demo Circuit - Delayed One-Shot (50ms Delay with a 10ms One Shot)

    Models for the following parts are available in LTspice:

    LTC6994-1
    LTC6994-2
